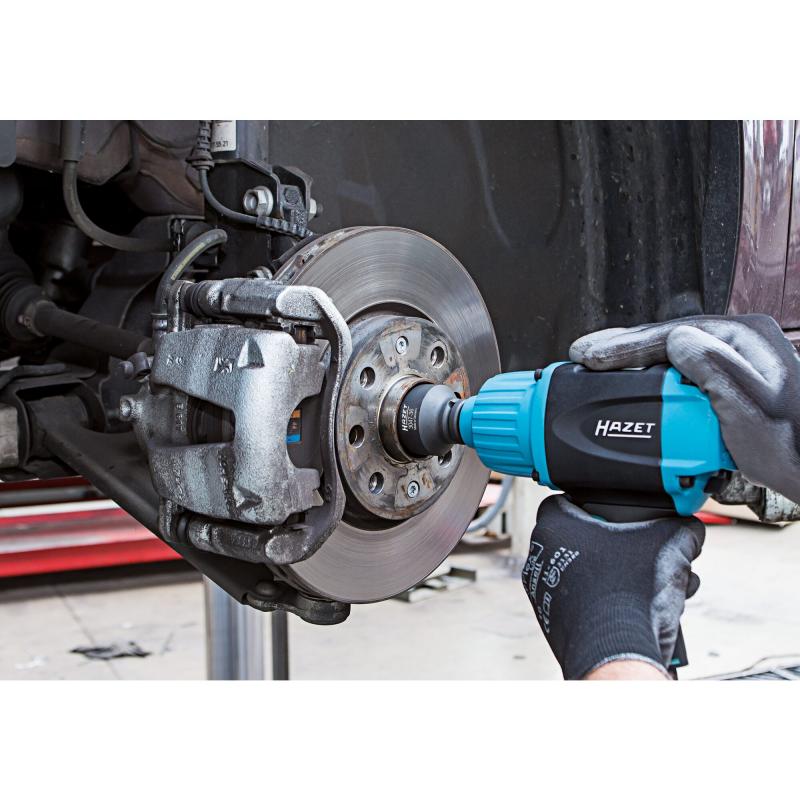

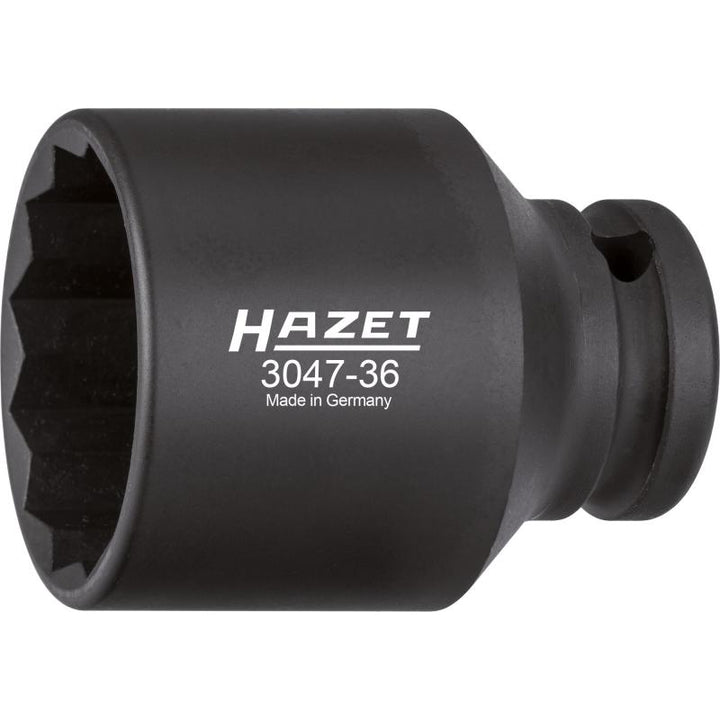

Hazet 3047-36 Impact Socket, 12-Point 36 mm, 1/2" Application: For operating the 12-point cardan shaft screw connection Ä 36 mm in the wheel hubConsiderably smaller outer diameter only 47 mm ∅ than conventional standard sockets
Optimally suited to the given spaces in the wheel hub
For OPEL/VAUXHALL Corsa D 2006→ ∙ Adam 2012→ ∙ Mokka 2012→
CHEVROLET Trax 2013→
Also suitable for BMW ∙ SEAT and VW vehicles
With borehole for locking pin or safety spring and grove for O-ring
You may also like
Specifications
General Information
Brand
Hazet
Part Number
3047-36
Product Type
Impact Socket
Packaging
Retail
Country of Origin
Germany
UPC
4000896190683
California Residents
Proposition 65 Warning
Physical Characteristics
Length
60 mm
Weight
0.29 kg
0.64 lb
Color
Black
Finish
Phosphatized
Material
Tool Steel
Details
Tip Type
12-Point
Size
Drive: Square, hollow 12.5 mm (1/2 inch)
Output: Outside 12-point traction profile
Wrench size: 36
Output: Outside 12-point traction profile
Wrench size: 36
Drive Connector Size
1/2"
Features
Depth : 25 mm
Design drive / output : With borehole for locking pin or safety spring and grove for O-ring

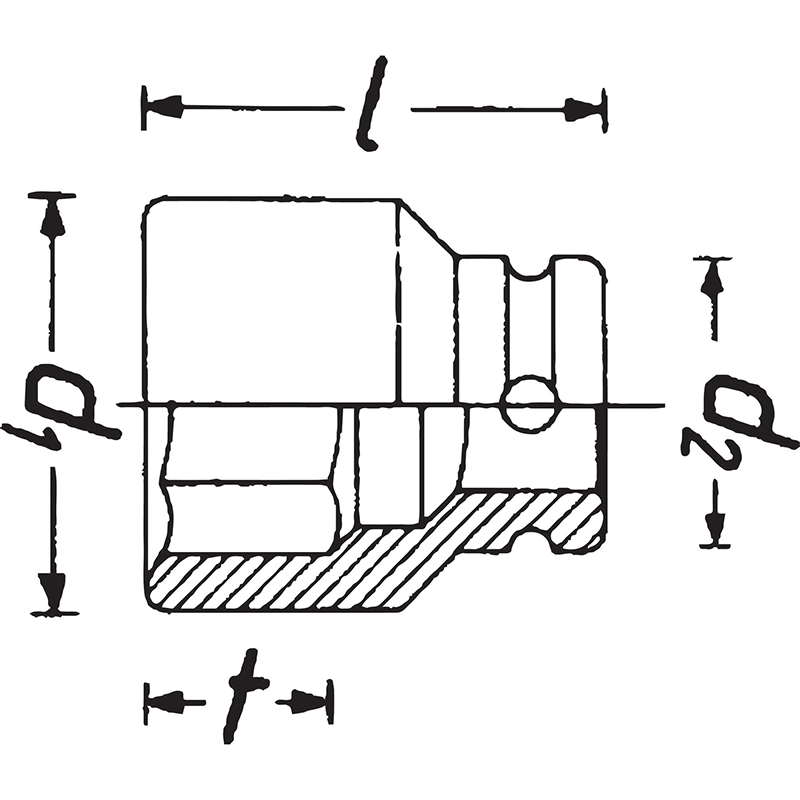

Diameter d1 (output side) : 47 mm
Diameter d2 (drive side) : 30 mm
Drive : Square 12.5 = 1/2″
Length : 60 mm
Manual / impact operation : For impact operation
Net weight : 0.294 kg
Openings across flats : 36
Output : Outside 12-point traction profile
Standard : DIN 3124, ISO 2725-2
Surface : phosphatized, oiled
Total length : 60 mm
Design drive / output : With borehole for locking pin or safety spring and grove for O-ring
Diameter d1 (output side) : 47 mm
Diameter d2 (drive side) : 30 mm
Drive : Square 12.5 = 1/2″
Length : 60 mm
Manual / impact operation : For impact operation
Net weight : 0.294 kg
Openings across flats : 36
Output : Outside 12-point traction profile
Standard : DIN 3124, ISO 2725-2
Surface : phosphatized, oiled
Total length : 60 mm
About Manufacturer
Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
