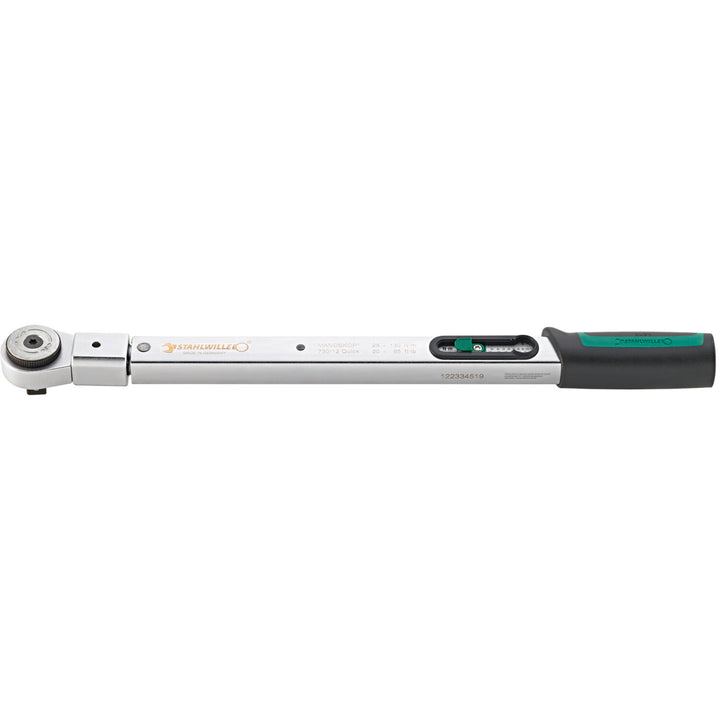

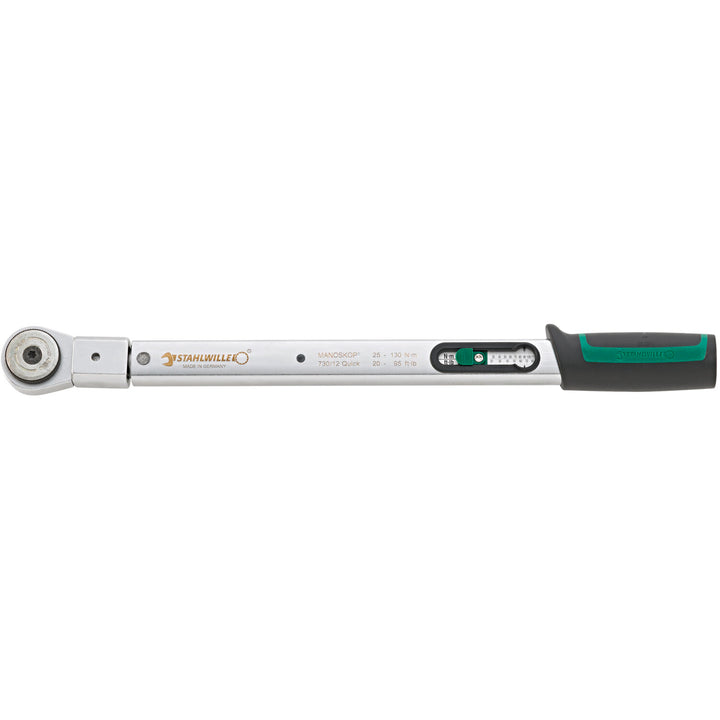

Stahlwille 96504012 730R/12 MANOSKOP 1/2" Drive torque wrench

$585.13 USD & FREE Shipping.
/
Extended Handling May Be Required
  • clicking type with dual stop signal
  • no reset to “0' required, as the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
  • Quick adjustment thanks to easy-to-operate locking lever in handle
Overview

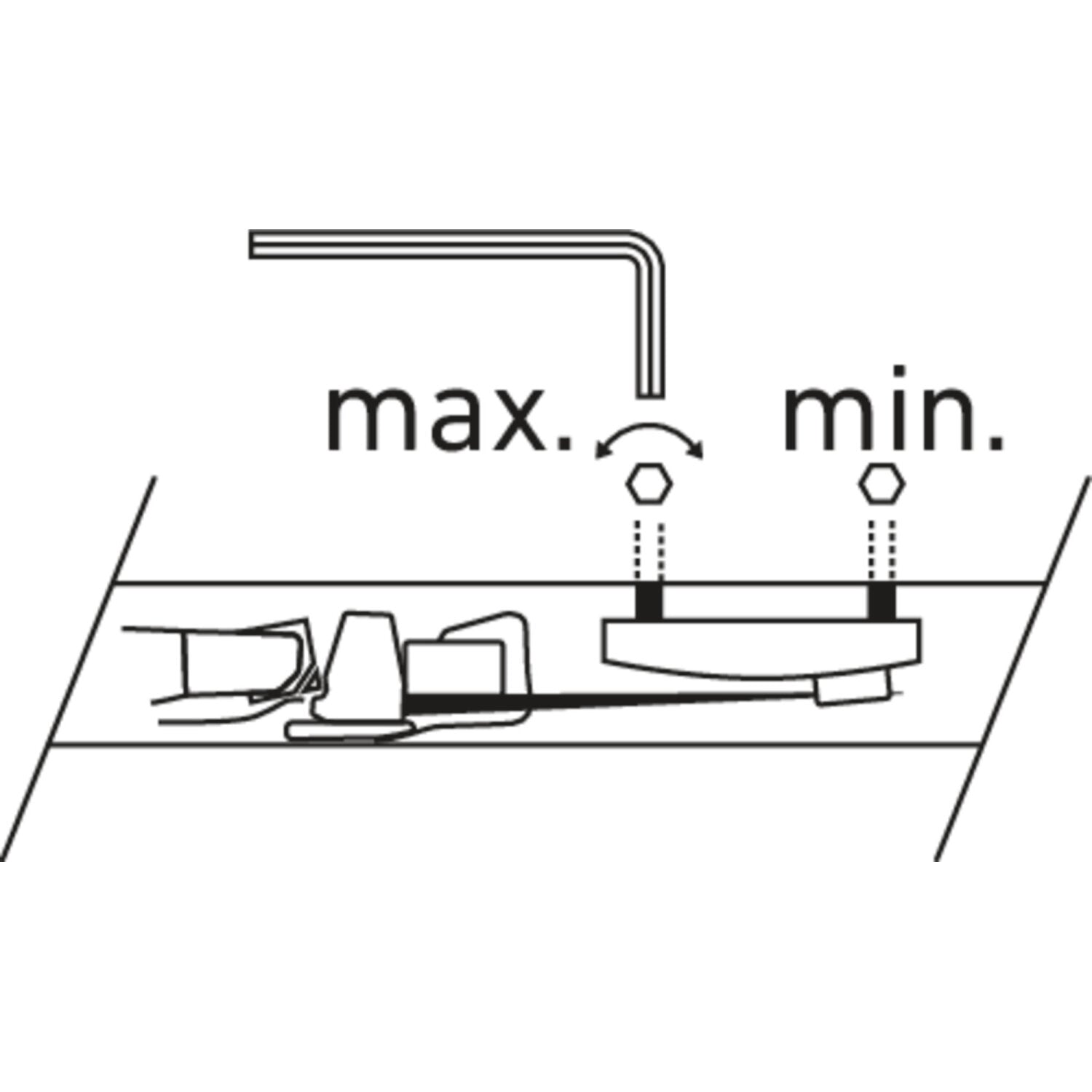

This torque wrench features a clicking type mechanism with a dual stop signal and does not require resetting to “0”, as the measuring element is only under load when force is applied. It includes a mount for interchangeable insert tools and a QuickRelease safety lock Quick adjustment is enabled by an easy-to-operate locking lever in the handle and a non-slip adjuster with thumb recess for fast torque setting. It has a double scale in N·m/ft·lb or N·m/in·lb and is also available on request as a N·m only version without dual scale. Counter-clockwise tightening is possible by turning the insert tools over The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. It allows optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791, and easy adjustment without disassembly via two external adjustment screws The torque wrench is equipped with a 2-component handle and is supplied with a calibration certificate in accordance with DIN EN ISO 6789-2:2017. It offers an accuracy of ± 4%
Brand img

Stahlwille 96504012 730R/12 MANOSKOP 1/2" Drive torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754269501
California Residents
Proposition 65 Warning
Part Number
96504012
Physical Characteristics
Length
475 mm
Width
52 mm
Height
52 mm
Weight
0.54 kg
1.19 lb
Details
Wrench Type
Torque
Torque Range Nm
25-130 Nm
Features
clicking type with dual stop signal
no reset to “0' required, as the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
Quick adjustment thanks to easy-to-operate locking lever in handle
Drive Connector Size
1/2 Inches
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
