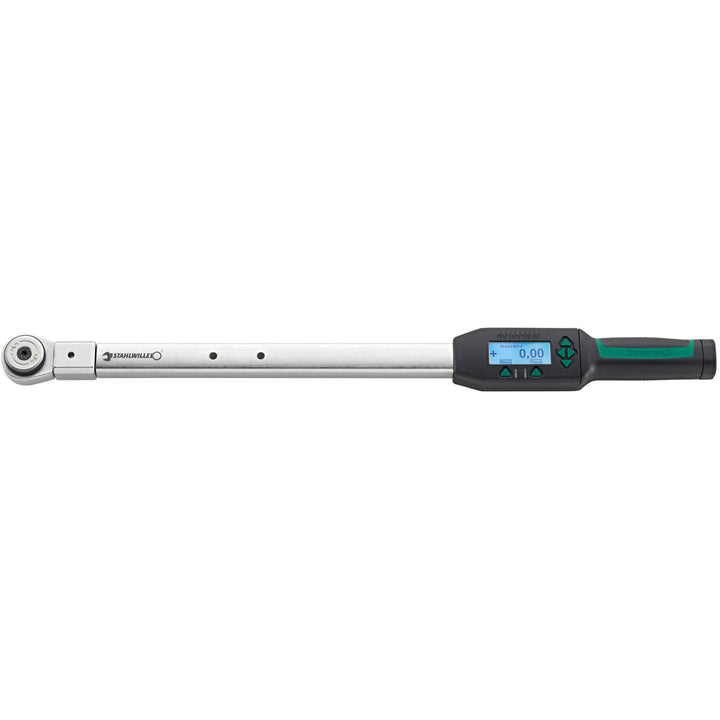

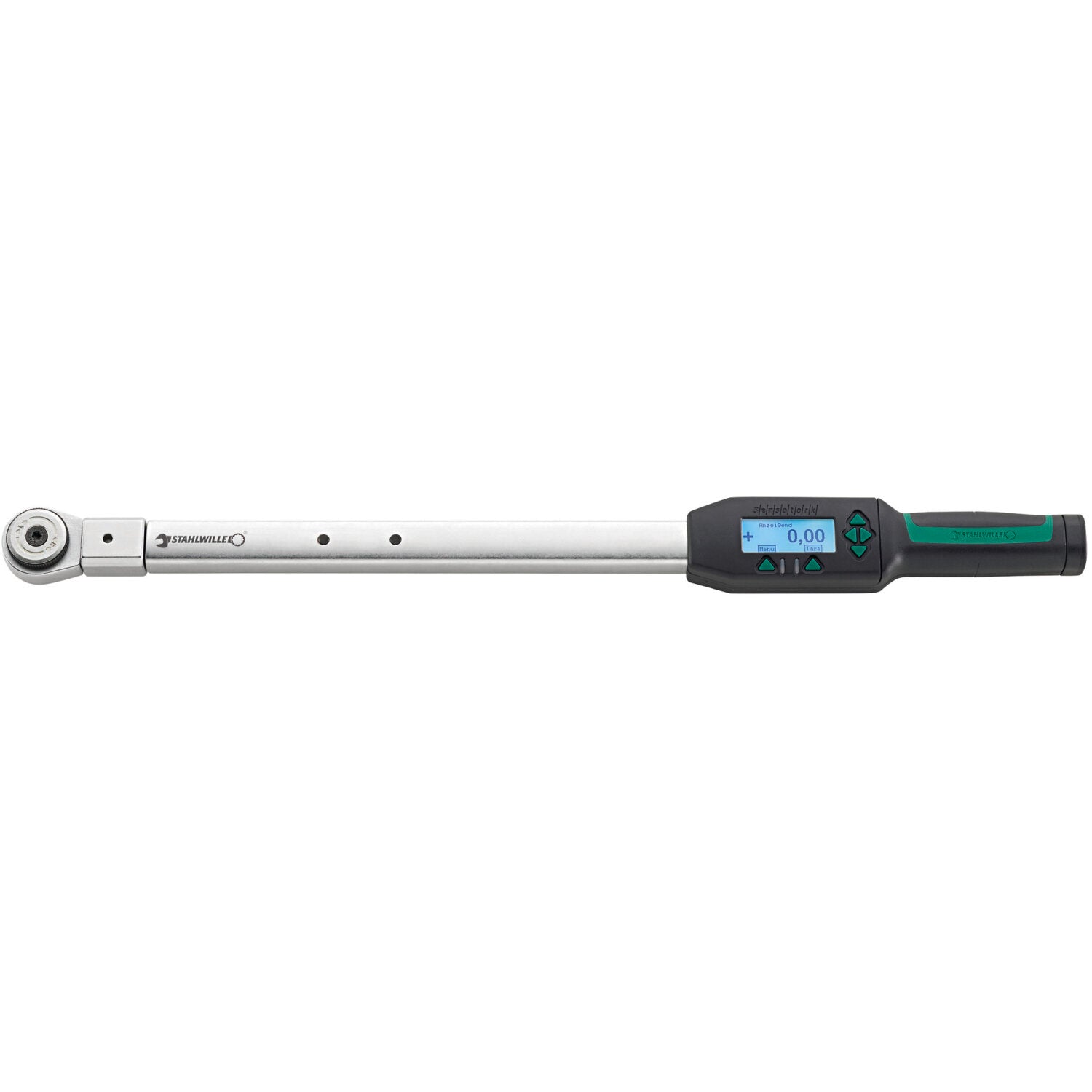

Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm
Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm
Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm
Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm

Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm


Regular price$2,529.96 USD & FREE Shipping.
/

  • Simple and flexible operation thanks to menu guidance on the large display
  • Particularly broad measurement range (5-100 % of the nominal value)
  • Includes reversible ratchet No. 735
  • With QuickRelease safety lock
  • For clockwise and counter-clockwise tightening
Overview

Electronic torque wrench with a large display and menu-guided operation. Features a measurement range of 5–100% of the nominal value and includes reversible ratchet No. 735 with QuickRelease safety lock. Suitable for clockwise and counter-clockwise tightening with simultaneous torque and angle measurement. Units include N·m, ft·lb and in·lb. Multicoloured backlit LED display provides visual status indication. Compliant with DKD-R 3-7, class 2 and supplied with calibration certificates. Torque accuracy ±1%, ±1 digit.

Stahlwille 96501640 Electronic Torque Wrench, L. 1068 mm

Specifications
General Information
Brand
Stahlwille
Packaging
Bulk
Country of Origin
Germany
UPC
4018754156528
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
96501640
Product Type
Torque Wrenches
Physical Characteristics

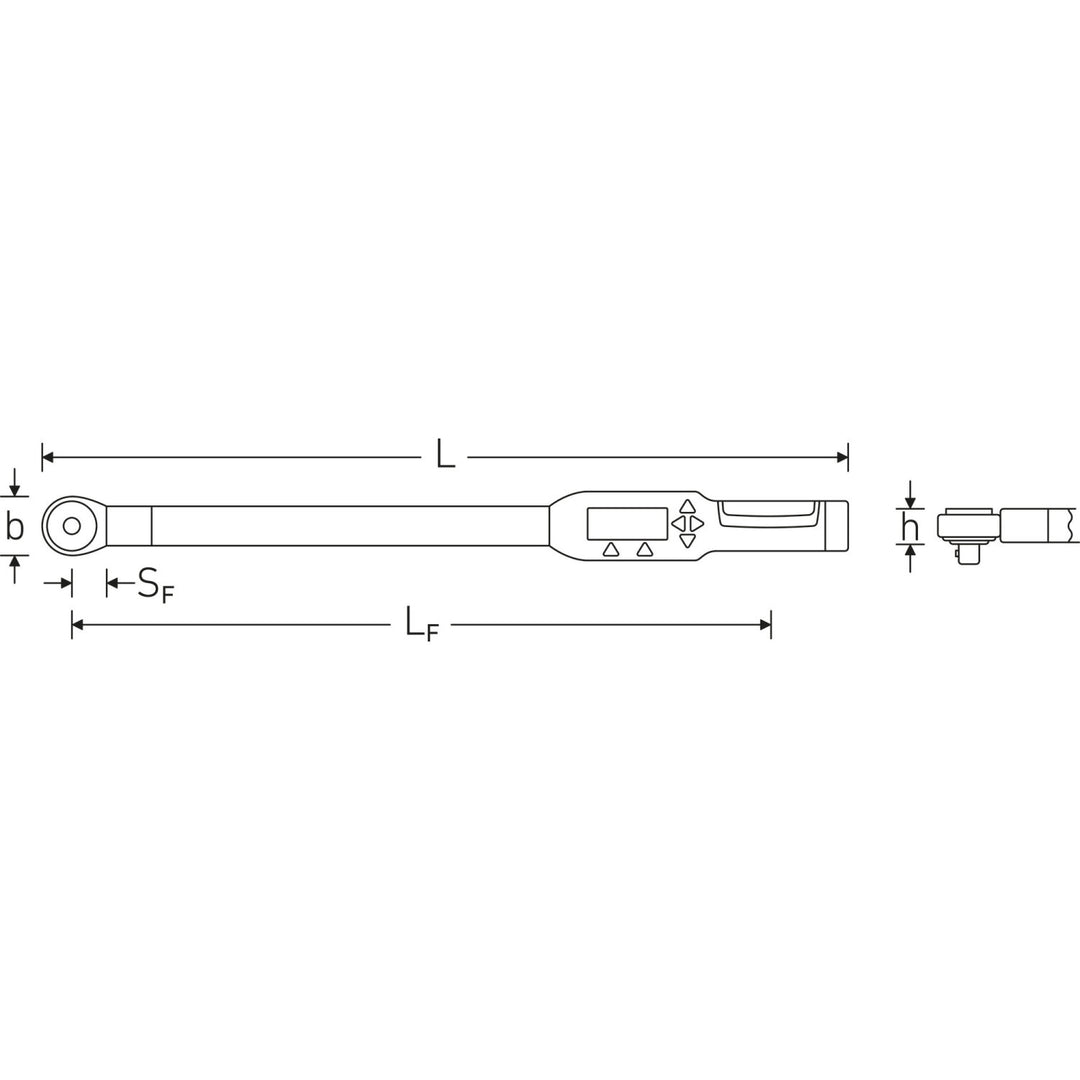

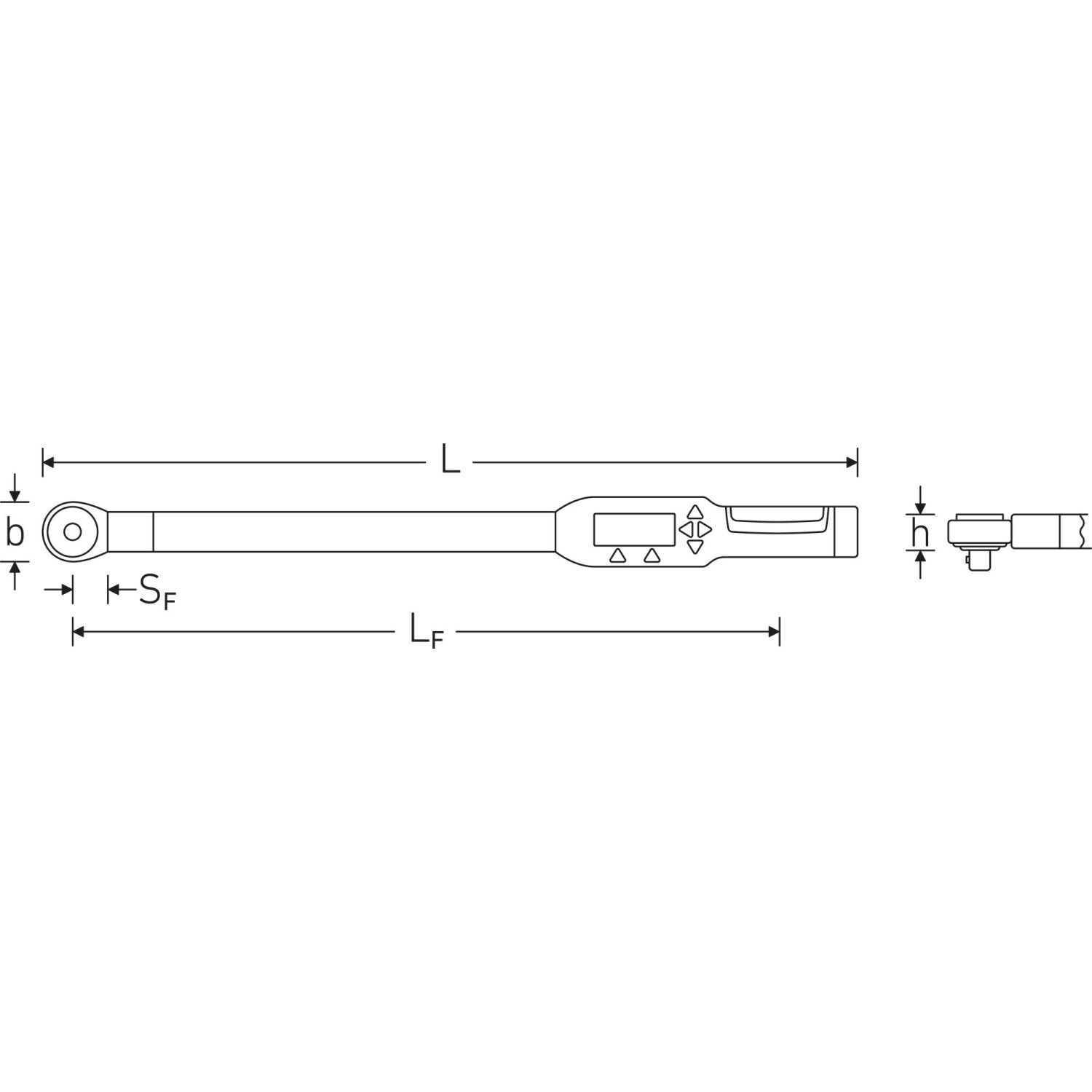

Length
1068 mm
Width
88 mm
Height
65 mm
Weight
5.20 kg
11.47 lb
Material
Plastic
Details
Features
simple and flexible operation thanks to menu guidance on the large display
particularly broad measurement range (5-100 % of the nominal value)
includes reversible ratchet No. 735
with QuickRelease safety lock
for clockwise and counter-clockwise tightening
measurement independent of the point of force application
convenient angle of rotation measurement with an extremely wide angle of rotation range
units of measurement: N·m, ft·lb, in·lb
prewarning threshold for visual, tactile and acoustic signals can be set

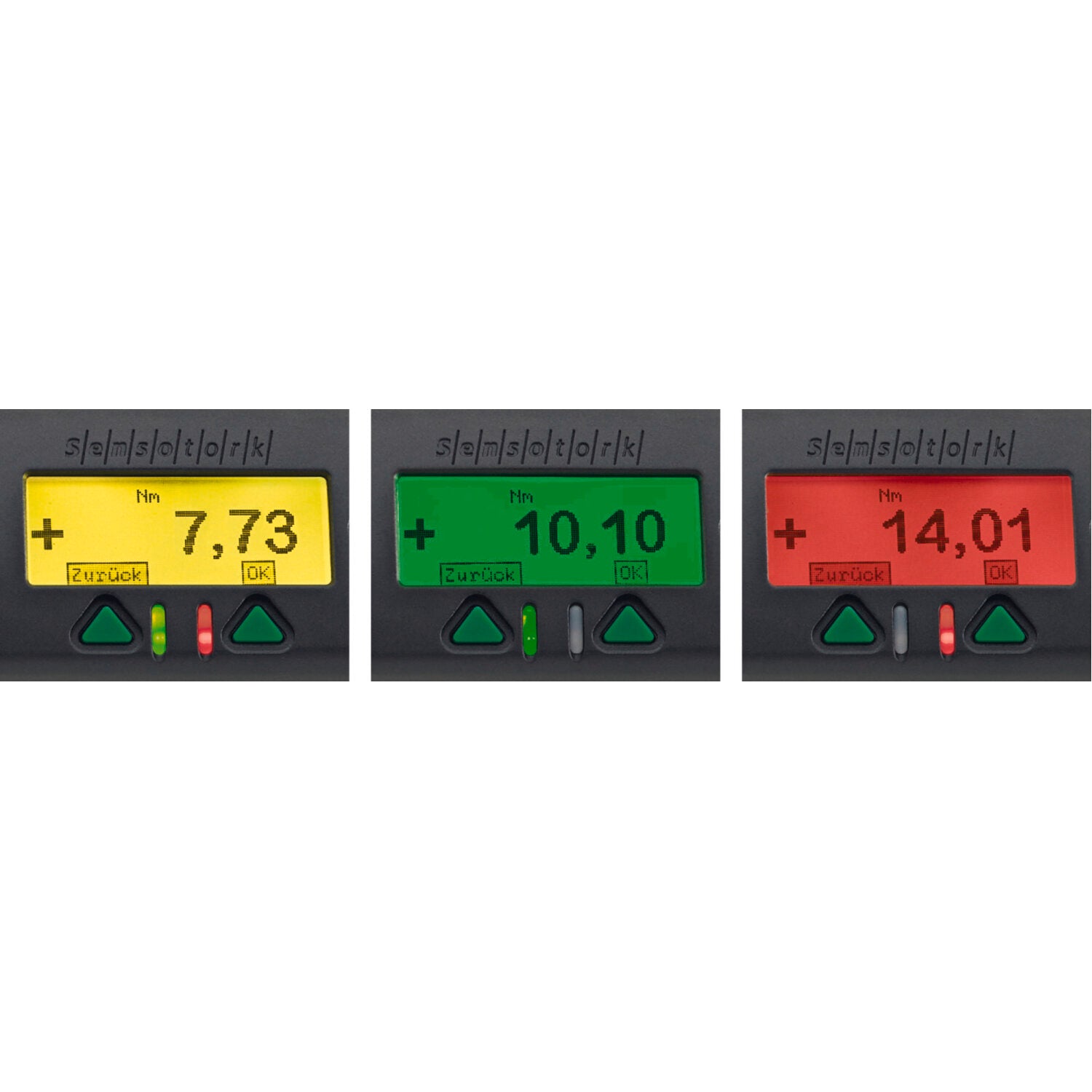

multicoloured backlit LED display gives visual cue about the status of the process (traffic light principle)
extension length compensation function: automatic compensation of the tightening torque when a deviating extension length is entered
easy to maintain thanks to simple adjustment and automatic notification of the next calibration date
multiple bolted joints can be combined into a menu-guided sequence
tightening operations are saved with a date and time stamp
individual identification designation possible
password protection against unintentional adjustment and unauthorised access
compliant with DKD-R 3-7, class 2
with 2 calibration certificates (torque in accordance with DIN EN ISO 6789-2:2017/angle of rotation based on VDI/VDE 2648-2)
in sturdy plastic box (size 40 in sturdy steel box)
supplied with 2 x 1.5 V AA batteries. NiMH batteries AA/LR6, 1.2 V can also be used.
fully automatic calibration (torque) with the perfectControl® calibration system No. 7794-2
readjustment does not require disassembly
torque and angle of rotation are visible at the same time
angle of rotation accuracy ± 1°, ± 1 digit to 100°, >100° at least 1%, ± 1 digit
torque accuracy ± 1 %, ± 1 digit
Drive Connector Size
3/4 Inch
Torque Range ft lbs
15*296 ft lb
Torque Range Nm
20-400 Nm
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
