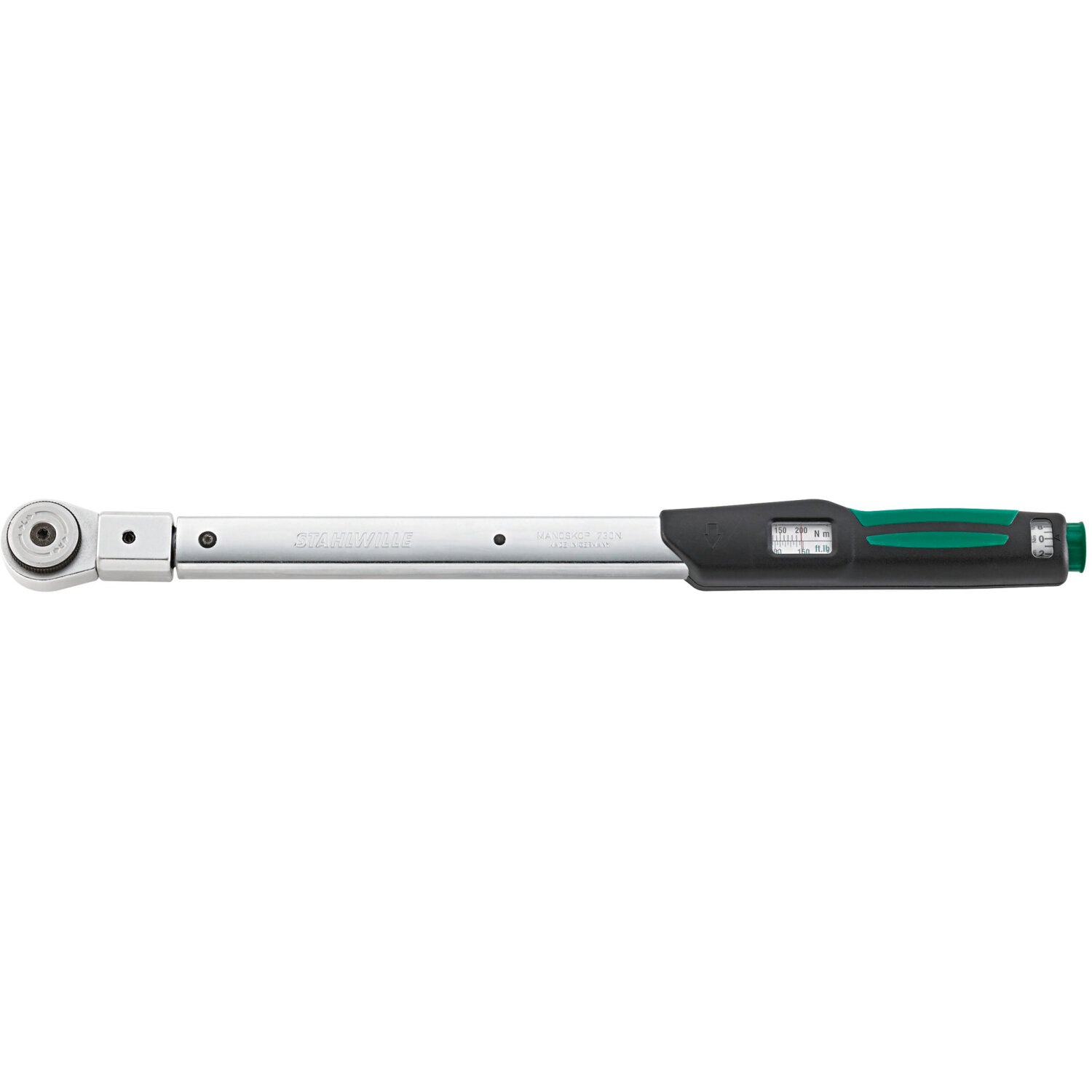

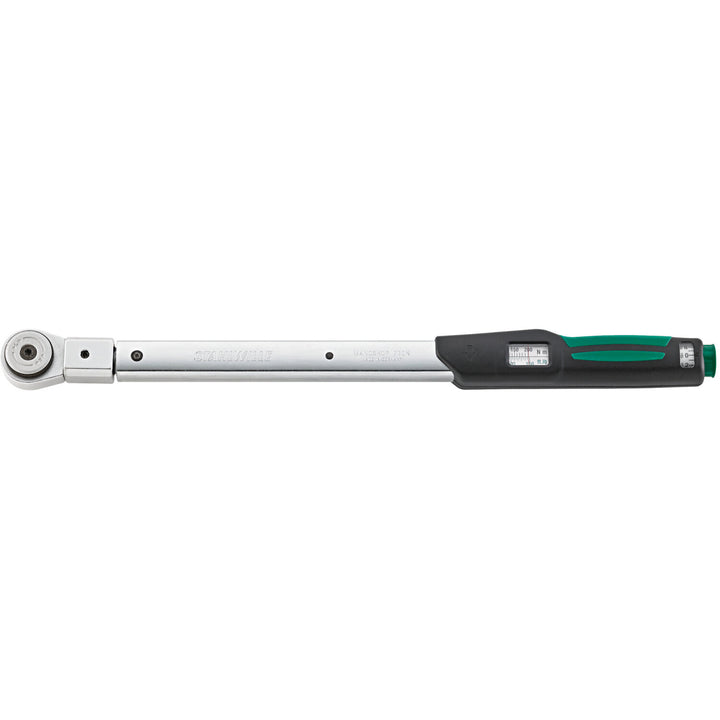

Stahlwille 96503105 3/8" Torque Wrench 10Nm - 50Nm
Stahlwille 96503105 3/8" Torque Wrench 10Nm - 50Nm
Stahlwille 96503105 3/8" Torque Wrench 10Nm - 50Nm

Stahlwille 96503105 3/8" Torque Wrench 10Nm - 50Nm


Regular price$652.25 USD & FREE Shipping.
/

  • clicking type with dual stop signal
  • no reset to '0' required
  • the measuring element is only under load when a force is applied
  • with permanently installed fine-tooth ratchet
  • fast, precise adjustment with QuickSelect quick adjustment
Overview

The MANOSKOP Torque Wrench (clicking type) features a dual stop signal and requires no reset to “0,” as the measuring element is only under load when force is applied. It comes with a permanently installed fine-tooth ratchet and allows fast, precise adjustment via the QuickSelect quick adjustment system. The dual scale (N·m/ft·lb) provides easy reading, and the clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. Calibration is optimized with perfectControl® systems No. 7794 or calibration systems No. 7706 and 7791, and adjustments can be made easily without disassembly using two external screws. Supplied in a sturdy plastic box (size 65 in sheet steel box) with a 2-component handle, the wrench includes a calibration certificate in accordance with DIN EN ISO 6789-2:2017.

Stahlwille 96503105 3/8" Torque Wrench 10Nm - 50Nm

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754229376
California Residents
Proposition 65 Warning
Part Number
96503105
Physical Characteristics

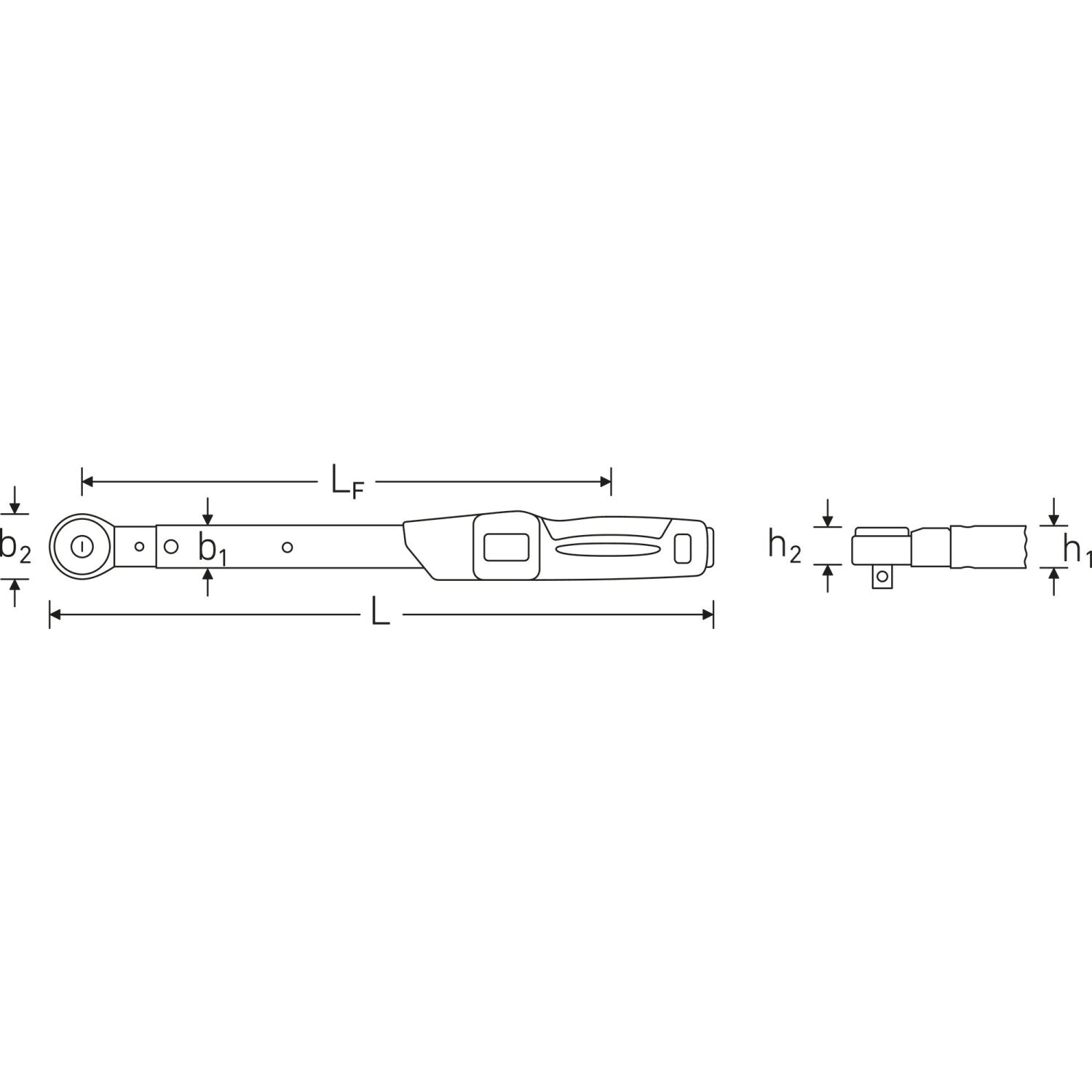

Length
364 mm
Weight
10.50 kg
23.15 lb
Details
Wrench Type
Torque Wrenches
Size
5 FK
Features
clicking type with dual stop signal
no reset to '0' required
the measuring element is only under load when a force is applied
with permanently installed fine-tooth ratchet
fast, precise adjustment with QuickSelect quick adjustment
dual scale N·m/ft·lb
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

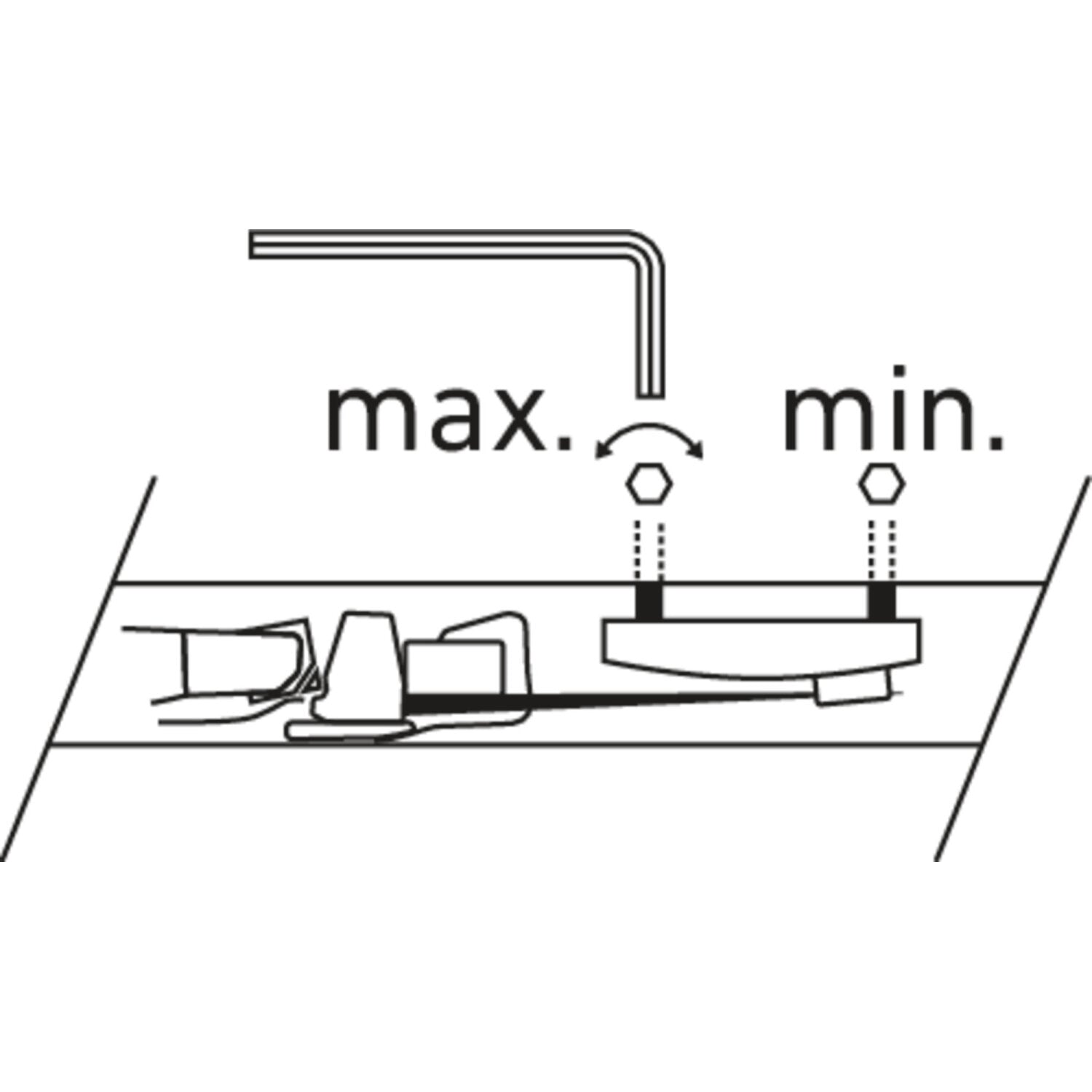

easy adjustment without disassembly via 2 external adjustment screws
in sturdy plastic box (size 65 in sheet steel box)
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
Drive Connector Size
3/8 Inches
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
