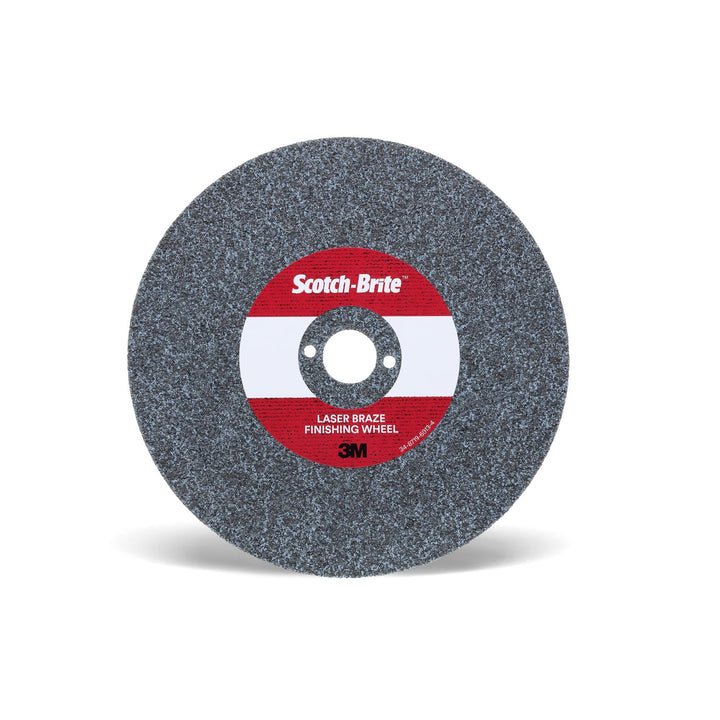

Scotch-Brite Laser Braze Finishing Wheel, LB-UW, 4 in x 4.2 mm x 3/8
in
Scotch-Brite Laser Braze Finishing Wheel, LB-UW, 4 in x 4.2 mm x 3/8
in
Scotch-Brite Laser Braze Finishing Wheel, LB-UW, 4 in x 4.2 mm x 3/8
in

Scotch-Brite Laser Braze Finishing Wheel, LB-UW, 4 in x 4.2 mm x 3/8 in

Regular price
/

$500.99 USD & FREE Shipping.
  • Designed to blend and finish silicon bronze parts during laser brazing
  • Open web construction resists loading and extends effective service life
  • Flexible Scotch-Briteâ„¢ material reduces need for recalibration and adjustments
  • 3M precision shaped grains provide excellent cut rate and a smooth finish
Overview
The Scotch-Brite Laser Braze Finishing Wheel is designed to blend and finish imperfections left by laser brazing during automotive production. It combines Scotch-Brite non-woven material with 3M Precision Shaped Grain for faster cutting action and greater durability on Silicon Bronze and other metals.

The Future of Automotive Production
The Scotch-Brite™ Laser Braze Finishing Wheel is used primarily in automotive production to level and finish metal parts assembled by laser brazing. Laser brazing is a relatively recent development in the automotive industry, whereby body panels are brazed together with silicon bronze. The resulting brazed surface is then blended to create a more uniform segment. The removal and finishing excess metal makes these brazed parts as clean and smooth as the attached surfaces, making the surface look more uniform and futuristic.

The Many Benefits of Open Web Abrasives

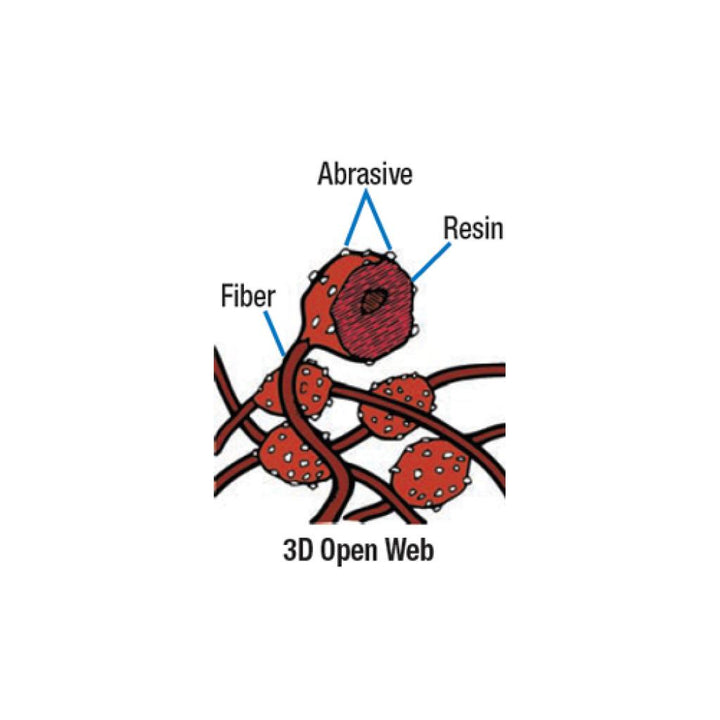

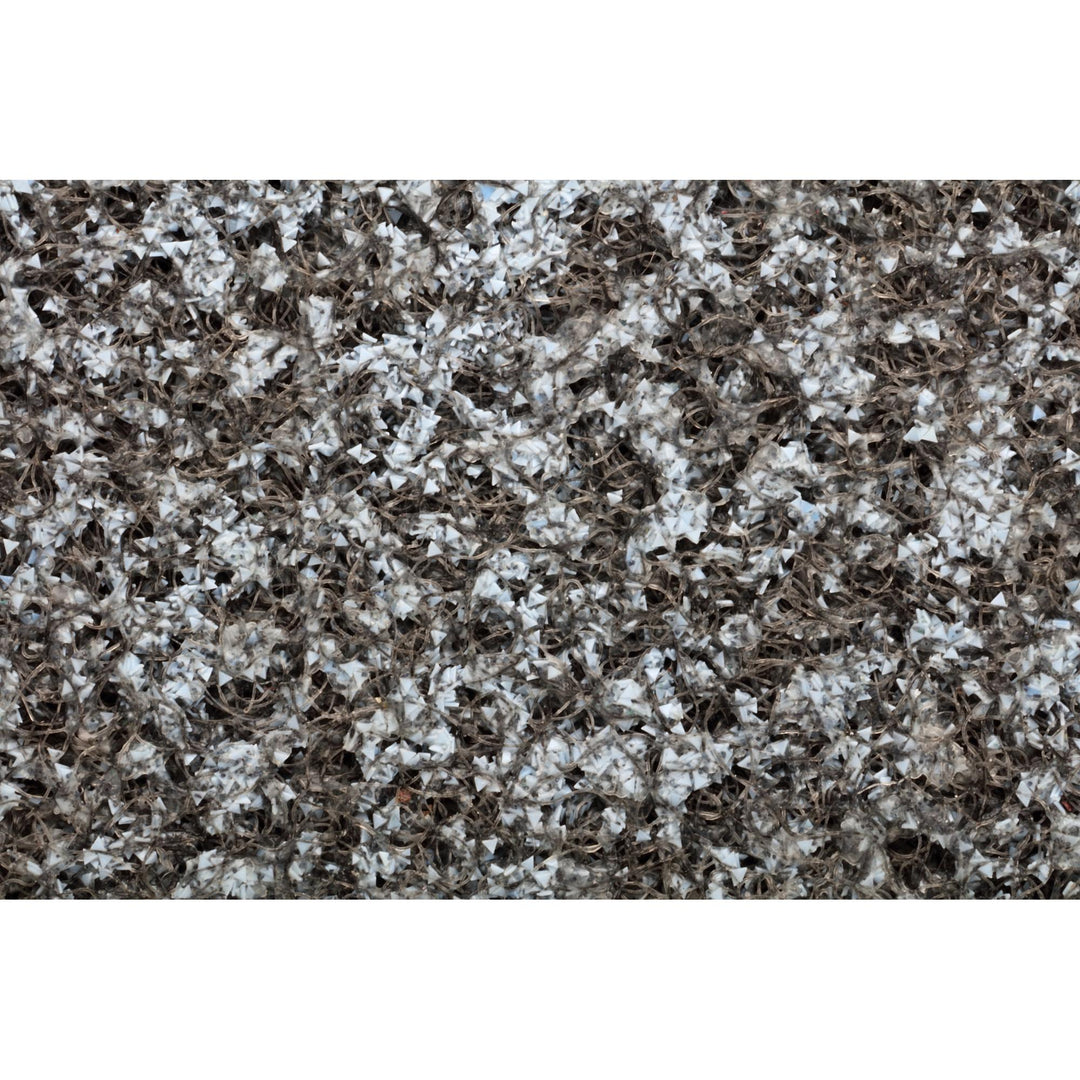

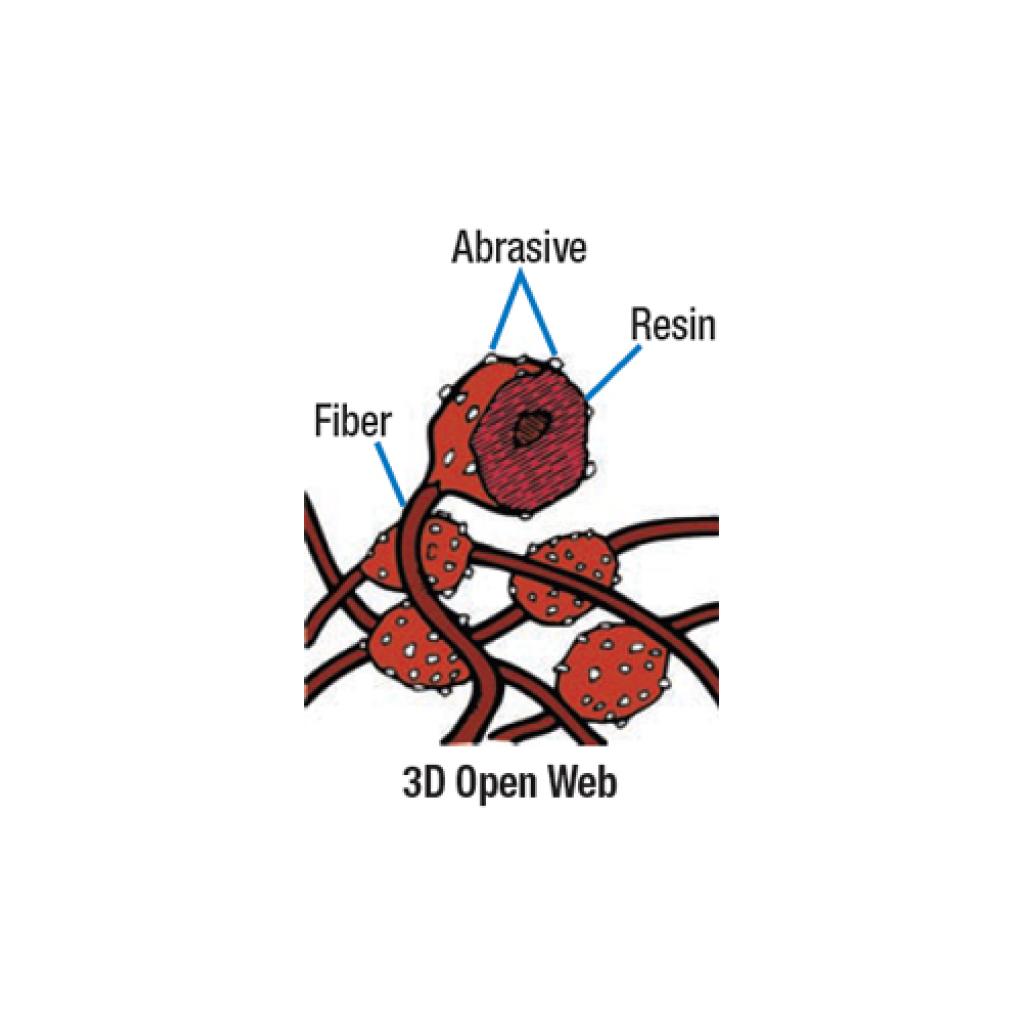

Nonwoven technology makes Scotch-Brite™ industrial abrasives unique. The combination of fiber strands, resin, and abrasive mineral in the Scotch-Brite™ Laser Braze Finishing Wheel forms a durable web.  The spring-like nature of the fibers responds to contours and effectively removes unwanted burrs, soils, and contaminants while maintaining the geometry of the workpiece, which in turn reduces rework and boosts productivity.  Gaps in the web allow swarf to escape, so debris does not clog the mineral. Fibers in the web continually break down with use to reveal fresh mineral for exceptional consistency, superior cut performance, and extremely long service life. Scotch-Brite products may enhance productivity while reducing the need for cleaning chemicals and wire brushes. From aesthetic finishing to weld blending, deburring, and more, Scotch-Brite abrasives work fast and deliver consistent results, part after part.

3M™ Precision Shaped Grain
The non-woven strands of the Scotch-Brite™ Laser Braze Finishing Wheel are filled with Precision Shaped Grain. Developed to deliver improved output on light to heavy stock removal, 3M Precision Shaped Grain lets operators finish tasks faster. Because the grain wears evenly and stays sharp, abrasives with 3M™ Precision Shaped Grain last significantly longer than their conventional ceramic counterparts, ensuring extended high performance in production applications.

Scotch-Brite Laser Braze Finishing Wheel, LB-UW, 4 in x 4.2 mm x 3/8 in

Specifications
General Information
Brand
Scotch-Briteâ„¢
Country Of Origin
United States
Sold As
Case
Lead Time
24 days
California Residents
Dimensions and Specifications
Center Hole Diameter (Imperial)
0.375 in
Center Hole Diameter (Metric)
9.525 mm
Face Width (Imperial)
0.165 in
Face Width (Metric)
4.2 mm
Maximum Speed
12100 rpm
Overall Diameter (Imperial)
4 in
Overall Diameter (Metric)
101.6 mm
Width
0.24 yd
0.22 m
Height
0.07 yd
0.07 m
Length
0.24 yd
0.22 m
Volume
196.09 cubic inch
3213.39 cm3
Weight
26.72 oz
757.5 g
Other Details
Industries
Metalworking
Sub Industries
Metal Fabrication
Usage Information
Application
Finishing
Equipment - Machines
Manual Backstand
Sub Applications
Blending
Equipment Machines
Manual Backstand
Material and Composition
Abrasive Material
Precision Shaped Ceramic
Product Form
Wheel
Grade
Non Pertinent
Resources
Brochures
