Standard Abrasives S/C Unitized Wheel 890194, 632 12 in x 1/4 in x 1-1/4 in

Regular price
/

$900.99 USD & FREE Shipping.
  • Soft/Medium density silicon carbide finely finishes and polishes on medium-pressure applications
  • Silicon Carbide mineral is suitable for ferrous and non-ferrous metals, including exotic metals and titanium, as well as composites
  • Increased edge durability over the 500 Series offers better cut and lengthens abrasive life
  • Runs clockwise and counterclockwise, allowing greater versatility when paired with tools and machines
  • Open web is load resistant, contributing to longer abrasive service life
Overview
Wheels in the Standard Abrasives Silicon Carbide Unitized Wheel 600 Series have a soft to medium density, making them a good match for medium-pressure finishing and polishing on flat or contoured parts. Choose a 600 Series wheel when your application calls for an upgrade in edge durability over a Series 500 wheel.

Soft to Medium Density Silicon Carbide Wheel Suits Tough Finishing Applications
Our Standard Abrasives™ Silicon Carbide (S/C) Unitized Wheel 600 Series has a soft to medium density when compared to other wheels in our Standard Abrasives™ Unitized Wheels line. Constructed with fine (FIN) grade silicon carbide, this double-duty non-woven abrasive wheel combines durability with a fine scratch pattern, making it a great choice for projects that require an aggressive cut yet soft finish – namely, tough finishing and polishing applications.

When it comes to polishing, trust Standard Abrasives™ S/C 600 Series Unitized Wheel for polishing fillet areas on jet blades and aircraft parts, polishing after weld removal and polishing mold and die cast aluminum, brass and copper. It's also a good match for finishing of surgical instruments and prosthetics.

Due to their conformability, these wheels are great for projects with strict tolerances, because they respond to surface irregularities. After prolonged use, the wheel can be dressed to maintain its shape.

Compatible with a Variety of Tools

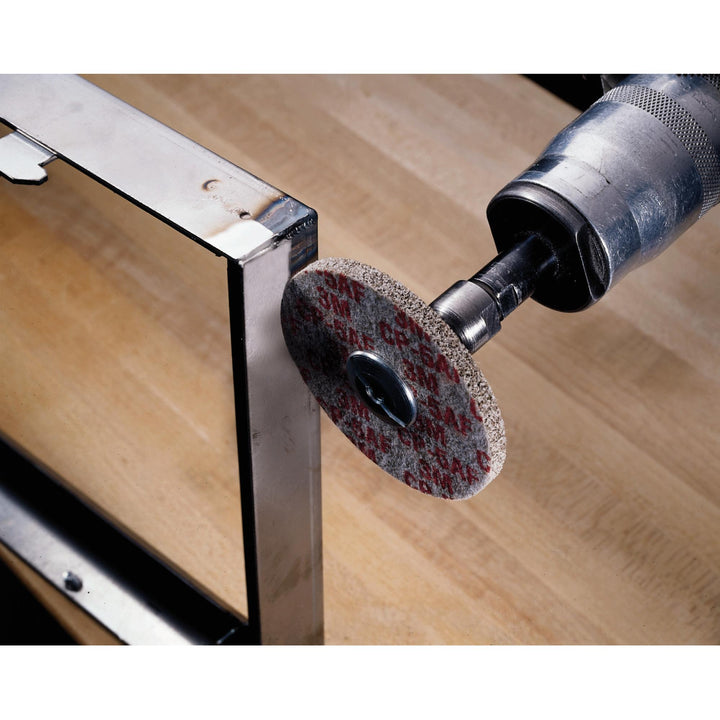

Unitized wheels are typically used on die grinders. A benefit of unitized wheels is that they are bi-directional and can be mounted on a tool or pedestal grinder without regard to the direction of the spindle rotation. This means the Standard Abrasives™ Unitized Wheel can be used with a variety of tools, and regardless of which way the workpiece is fed through the machine, the wheel will be able to respond, giving operators more flexibility. The stiffness of the unitized construction enables operators to use thinner wheels to access awkward angles with grinding tools.

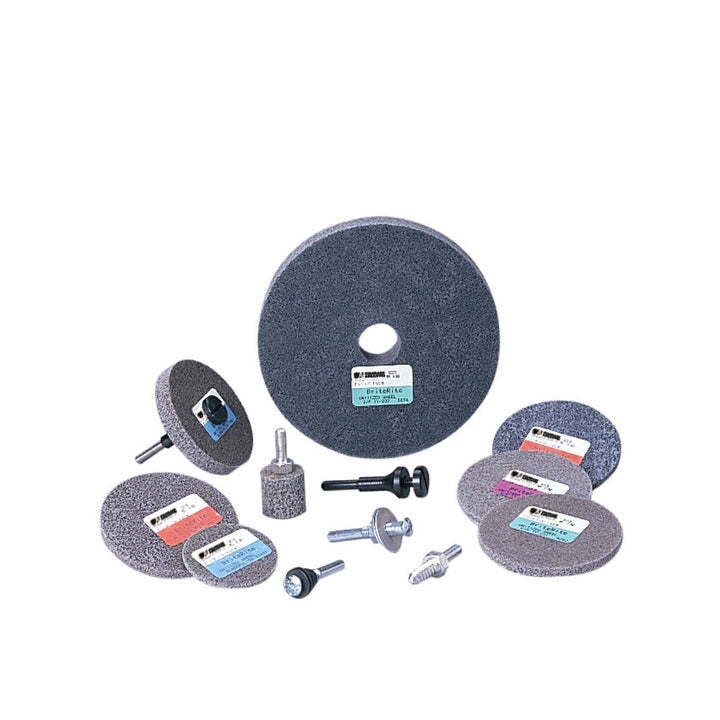

Series 600 wheels come in a range of diameters from 1-12˝ and require a unitized wheel mandrel (sold separately) for attachment to the tool. Quick change wheels are also available (sold separately).

Non-Woven Unitized Construction Offers a Step Up in Density and Durability for Stubborn Surfaces
Standard Abrasives™ Unitized Wheels are a great match for tough deburring, cleaning, blending and finishing applications. They come in a broad range of densities and grades to suit different metals, the degree of aggressiveness required, shape of the part, and desired finish. Although used for some of the same tasks as Standard Abrasives™ Buff and Blend products, they are designed with a far stronger and denser construction to support more aggressive applications and accomplish material removal more rapidly. Even though unitized wheels are much stiffer products, the non-woven nylon fibers of the wheel maintain the advantage of responding to surface irregularities while preserving the geometry of the piece, and produce a consistent finish.

Unitized wheels are created by starting with layers of open web material that combines non-woven fiber strands and abrasive mineral with a tough resin bond. These layers of web are then cured and compressed together. By fusing layers of open web, the abrasive gains more toughness and durability, so it can withstand repeated wear.

Ultimately, the wheel's durability is what makes it such a good match for edges. Regardless of the diameter or thickness of the wheel, it maintains its structural integrity to remain a stiff and long-lasting abrasive even under high pressure. Additionally, as the layers wear, the wheel can be dressed to maintain its shape.

Load-Resistant Construction Boosts Life and Performance
Standard Abrasives™ Unitized Wheels are load-resistant to keep you cutting with fresh mineral. The gaps in the open web allow unwanted swarf to escape. Consequently, less debris clogs the abrasive, so the mineral can stay fresh, keep cutting sharp and deliver a consistent cut over the life of the product. As the fibers break down and fresh mineral is exposed, it reduces the likelihood of dull or blunt mineral smearing the surface, contributing to cleaner surfaces and less re-work. Furthermore, manual fatigue that may result from applying heavy pressure to a dull abrasive is reduced.

The Many Benefits of Standard Abrasives™ Non-Woven Products
Standard Abrasives™ Unitized Wheels offer many benefits for heavy-duty jobs. For all the aforementioned reasons, Standard Abrasives™ Unitized Wheels invigorate deburring, cleaning, blending and finishing applications by helping operators reduce finishing steps, minimize costs and achieve greater throughput.

Standard Abrasives S/C Unitized Wheel 890194, 632 12 in x 1/4 in x 1-1/4 in

Specifications
General Information
Brand
Standard Abrasives™
Attachment Type
Center Hole
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Center Hole Diameter (Imperial)
1.25 in
Center Hole Diameter (Metric)
31.75 mm
Face Width (Imperial)
0.25 in
Face Width (Metric)
6.35 mm
Overall Diameter (Imperial)
12 in
Overall Diameter (Metric)
304.8 mm
Grit
Non Pertinent
Width
12.4 in
31.5 cm
Height
3.6 in
9.14 cm
Length
12.4 in
31.5 cm
Volume
553.54 cubic inch
9070.83 cm3
Weight
6.8 lb
3.08 kg
Material and Composition
Abrasive Material
Silicon Carbide
Grade
Fine
Product Form
Wheel
Certifications and Standards
Density Rating
Soft/Medium
