Overview
Features
3 operation modes: Tracking mode (track), Click point detection (first peak), DIAL mode for peak value indication (final peak). Delivery includes mains adapter and RS-232C connection cable to computer and/or printer. Compatible with HAZET testing software 7901 E-D. Big and easy to read LED status display with 3 LED. Quick wall or table fixation with 4 screws. Simple handling. Calibration in Nm, torque units lbf.ft and lbf.in may also be selected. Possibility to enter target torque setting and percentage tolerance setting.
You may also like
Specifications
General Information
Brand
Hazet
Part Number
7901E
Product Type
Torque tester
What's Included

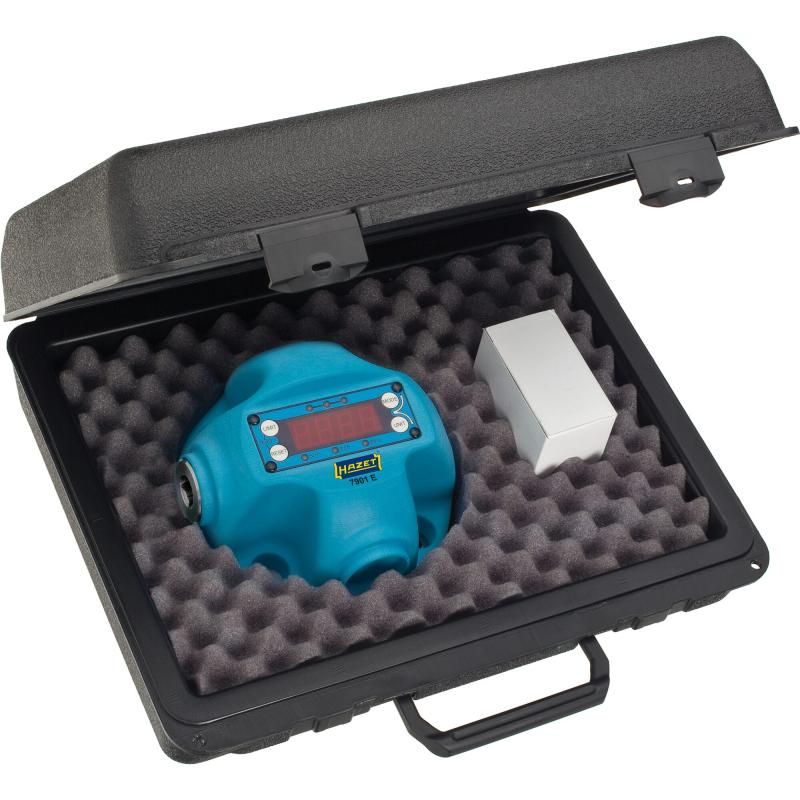

Includes main adapter and RS-232C connection cable to computer and/or printer
Packaging
Retail
UPC
4000896140671
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Height
97.5 mm
Weight
4.00 kg
8.82 lb
Color
Blue
Diameter
160 mm
Details
Drive Connector Size
Square, hollow 12.5 mm (1/2 inch)
Torque Accuracy
± 1 %
Features
Fixed square socket, 12.5 = 1/2″
3 operation modes:
Tracking mode (track)
Click point detection (first peak)
DIAL mode for peak value indication (final peak)
Compatible with HAZET testing software 7901 E-D
Quick wall or table fixation with 4 screws
Simple handling
Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
Possibility to enter target torque setting and percentage tolerance setting
Including test certificate
3 operation modes:
Tracking mode (track)
Click point detection (first peak)
DIAL mode for peak value indication (final peak)
Compatible with HAZET testing software 7901 E-D
Quick wall or table fixation with 4 screws
Simple handling
Calibration in Nm, torque units lbf.ft and lbf.in may also be selected
Possibility to enter target torque setting and percentage tolerance setting
Including test certificate
Range
10 –350 Nm (maximum torque)
Display Type
Big and easy to read LED status display with 3 LED
