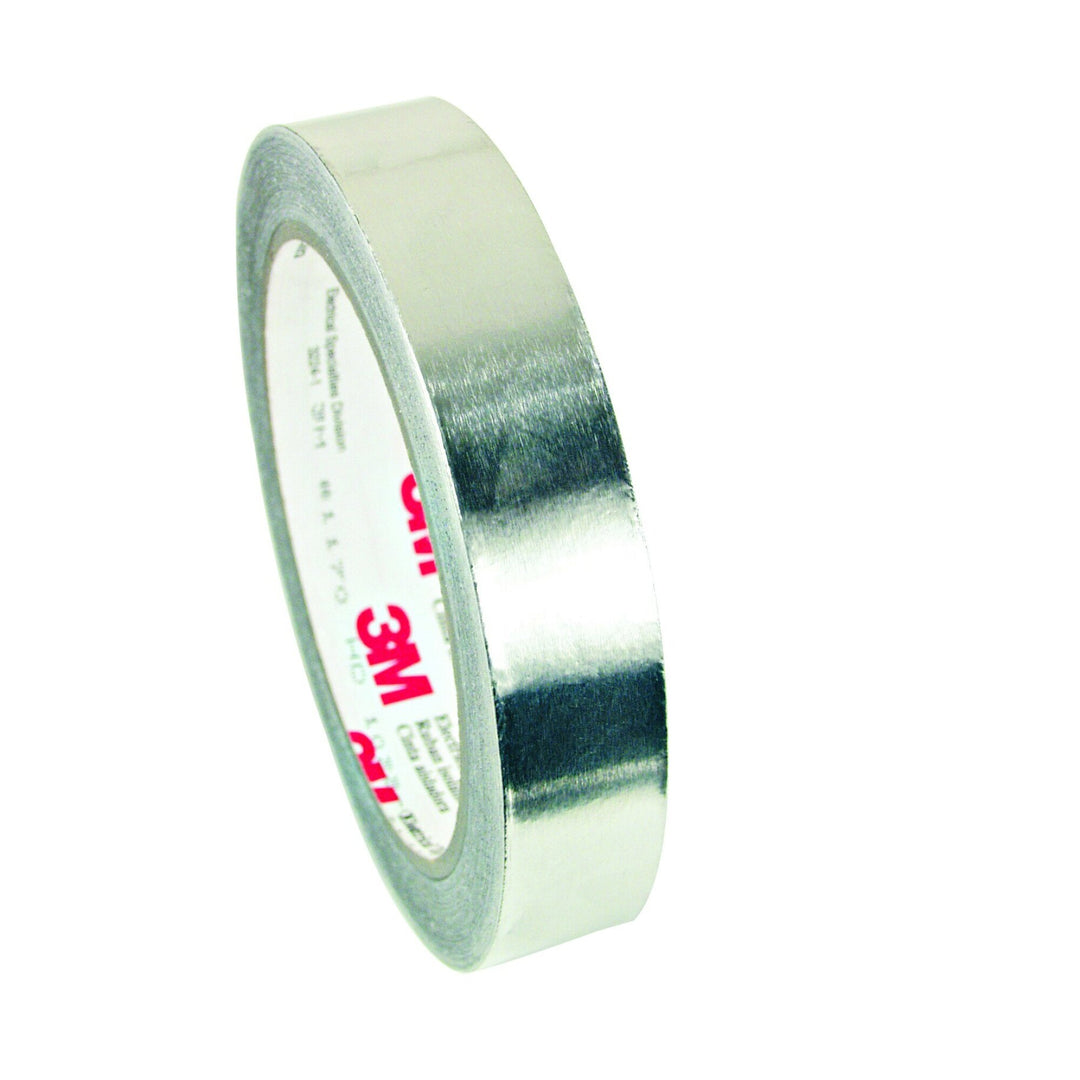

3M EMI Aluminum Foil Shielding Tape 1170, 1/2 in x 18 yd

TOP-SELLER
$55.15 USD & FREE Shipping.
/
Extended Handling May Be Required
  • Unique adhesive creates secure contact with the application surface
  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
Overview
3M EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of 40 to 266 F ( 40 to 130 C). The tape is rated for 600V dry applications.3M™ EMI Shielding Tape 1170 has aluminum foil backing with a pressure sensitive, electrically conductive, acrylic adhesive that ensures firm adherence. The conductive particles in the adhesive offer low resistance between the substrate and the backing. This tape is designed for applications such as static charge draining, seaming shielded rooms, cable wrapping and providing surface contact to non solderable materials. Ideal for EMI shielding, grounding and static charge draining. UL Listed and RoHS 2011/65/EU Compliant.
Brand img

3M EMI Aluminum Foil Shielding Tape 1170, 1/2 in x 18 yd

You may also like
Specifications
General Information
Brand
3M™
Adhesive Type
Conductive Acrylic
Country Of Origin
Taiwan
Sold As
Roll
California Residents
Proposition 65 Warning
Dimensions and Specifications
Backing (Carrier) Thickness (Imperial)
2 mil
Backing (Carrier) Thickness (Metric)
0.05 mm
Maximum Operating Temperature (Celsius)
130 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
266 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Overall Length (Imperial)
18 yd
Overall Length (Metric)
16.5 m
Overall Width (Imperial)
0.5 in
Overall Width (Metric)
12.7 mm
Tensile Strength (Imperial)
20.0 lb/in
Tensile Strength (Metric)
35 N/10mm
Total Tape Thickness Without Liner (Imperial)
3.2 mil
Total Tape Thickness Without Liner (Metric)
0.08 mm
Overall Length Imperial
18.0
Volume
57.72 cubic inch
945.81 cm3
Weight
3.55 oz
100.78 g
Other Details
Elongation At Break
5.0 %
Industries
Electronics
Primary Liner
Paper
Tensile Strength Imperial
20.0
Material and Composition
Backing Material
Aluminum Foil
Shelf Life
5 Year
Color and Appearance
Product Color
Silver
Certifications and Standards
Specifications Met
UL Recognized
Resources
Datasheet
