3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil
3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil
3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil
3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil
3M logo

3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil

$4,851.53 USD & FREE Shipping.
/
Extended Handling May Be Required
  • Tape is suitable for damping vibration at extremely low temperatures (-76°F/-60°C)
  • Viscoelastic acrylic polymer adhesive is optimized to convert vibrational energy to negligible heat that readily dissipates
  • Meets F.A.R. 25.853(a)
  • Linered for die-cutting to match parts for aerospace applications
  • Resists weather and UV degradation, ensuring performance in many difficult applications
Overview

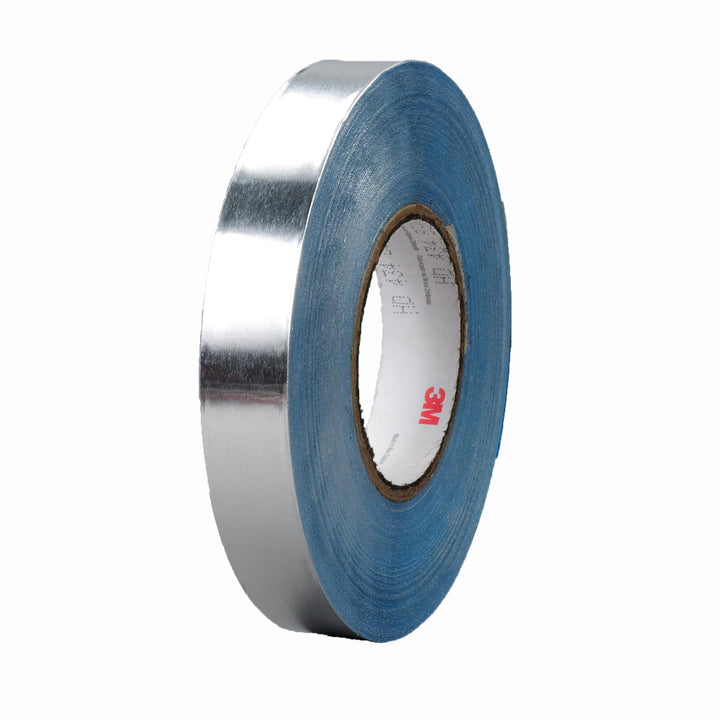

3M Vibration Damping Tape 435 is a low temperature, silver, dead soft aluminum foil tape. The aluminum foil constraining layer is coated with a pressure sensitive viscoelastic polymer on an easy release liner.This tape absorbs and dissipates vibration, reducing noise and fatigue.

Cold Temperature Vibration Damping
3M™ Vibration Damping Tape 435 is a 13.5 mil silver, dead soft aluminum foil backed anti-vibration tape. It is designed to reduce structure-borne noise and fatigue in metal and composite panels and support structures. It can achieve effective damping with as little as 10% surface coverage. This durable tape will resist moisture, weather, UV degradation and flame. It is a long aging tape designed to specifically perform in temperatures as low as -76°F/-60°C. The linered construction provides the ability to die cut this product. 3M™ Vibration Damping Tape 435 meets the requirements of F.A.R. 25.853(a).

Recommended Applications
  • Reduce unwanted resonant noise, vibration and fatigue in metal panels and support structures

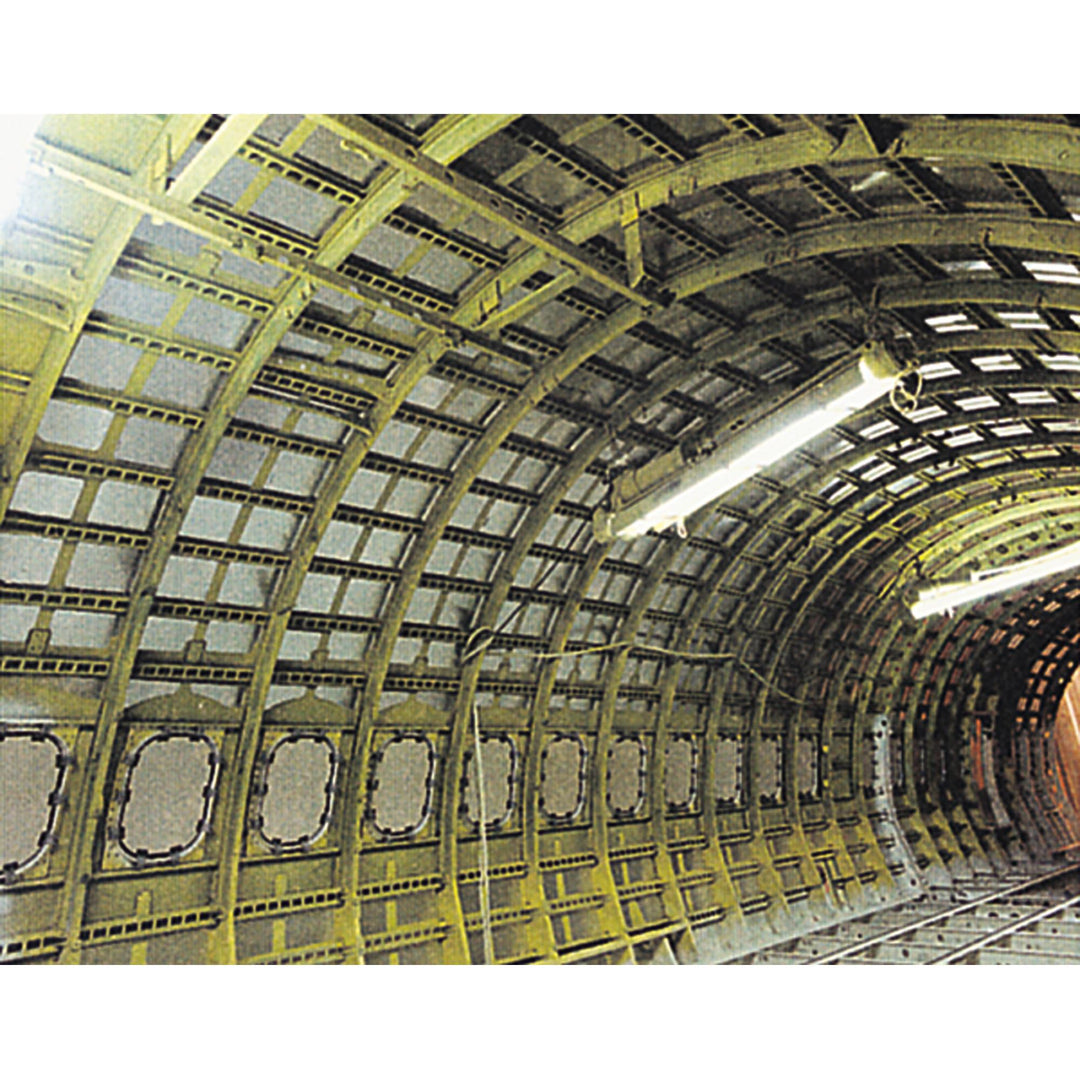

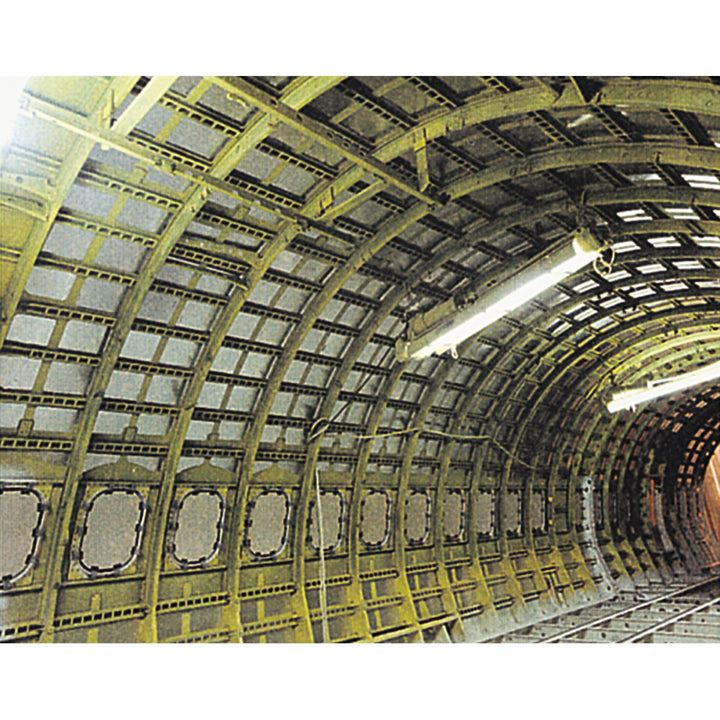

  • Lower temperature aerospace and industrial applications
Brand img

3M Vibration Damping Tape 435, Silver, 2 in x 36 yd, 13.5 mil

You may also like
Specifications
General Information
Brand
3M™
Adhesive Type
Viscoelastic Polymer
Country Of Origin
United States
Sold As
Case
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Dimensions and Specifications
Back Side Adhesive Thickness (Metric)
0.2 mm
Backing (Carrier) Thickness (Imperial)
8 mil
Backing (Carrier) Thickness (Metric)
0.2 mm
Maximum Operating Temperature (Celsius)
20 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
68 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
-60 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-76 Degree Fahrenheit
Overall Length (Imperial)
36 yd
Overall Length (Metric)
32.91 m
Overall Width (Imperial)
2 in
Overall Width (Metric)
50.8 mm
Tensile Strength (Imperial)
50.0 lb/in
Tensile Strength (Metric)
875 N/100mm
Total Tape Thickness Without Liner (Imperial)
8 mil
Total Tape Thickness Without Liner (Metric)
0.2 mm
Overall Length Imperial
36.0
Width
0.23 yd
0.21 m
Height
0.41 yd
0.37 m
Length
0.23 yd
0.21 m
Volume
1027.14 cubic inch
16831.9 cm3
Weight
19.39 lb
8.79 kg
Other Details
Elongation At Break
12.0 %
Industries
Transportation
Primary Liner
Polyethylene
Units Per Case
6.0
Tensile Strength Imperial
50.0
Usage Information
Application
Vibration Damping
Material and Composition
Backing Material
Aluminum Foil
Shelf Life
24 Month
Color and Appearance
Product Color
Silver
Resources
Datasheet
