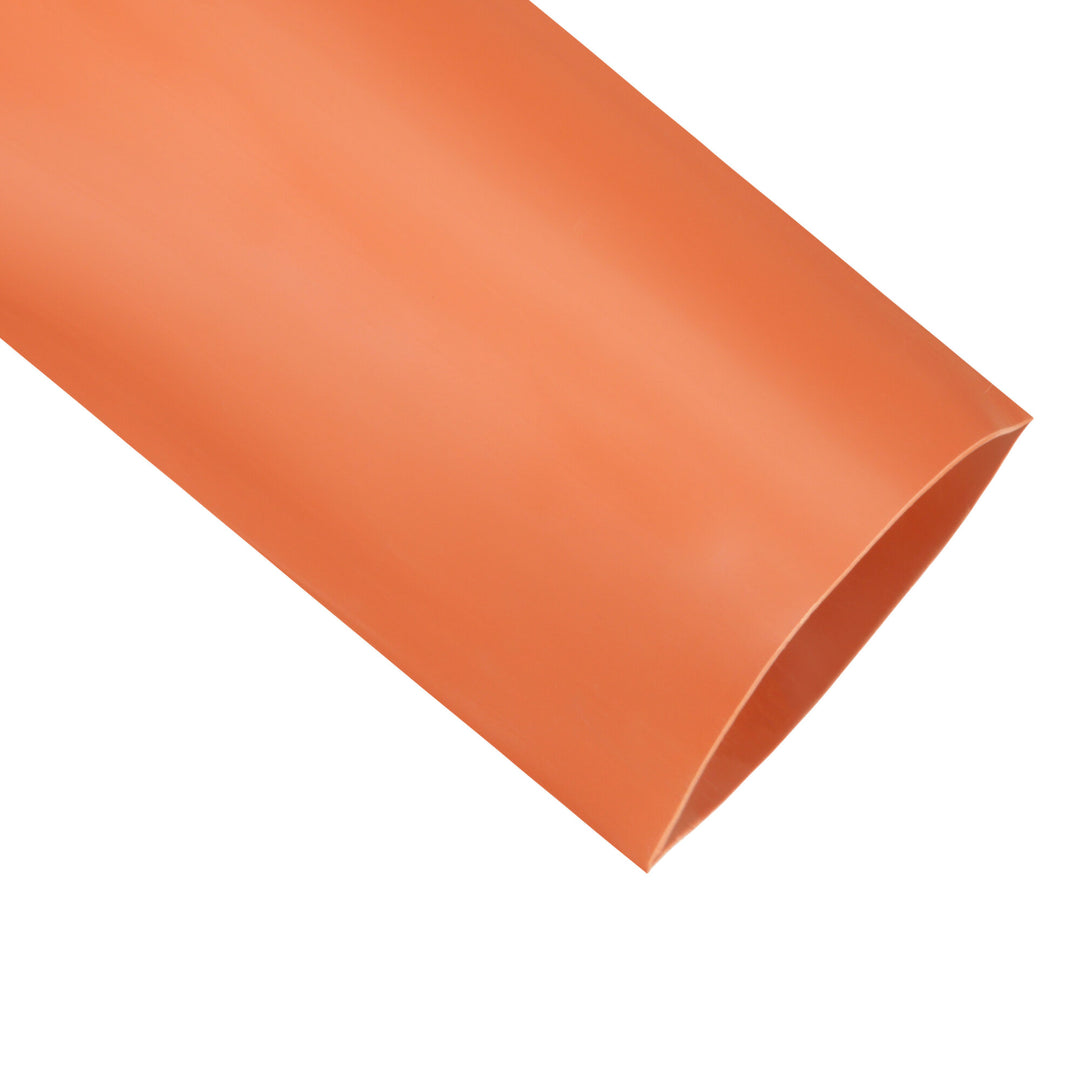

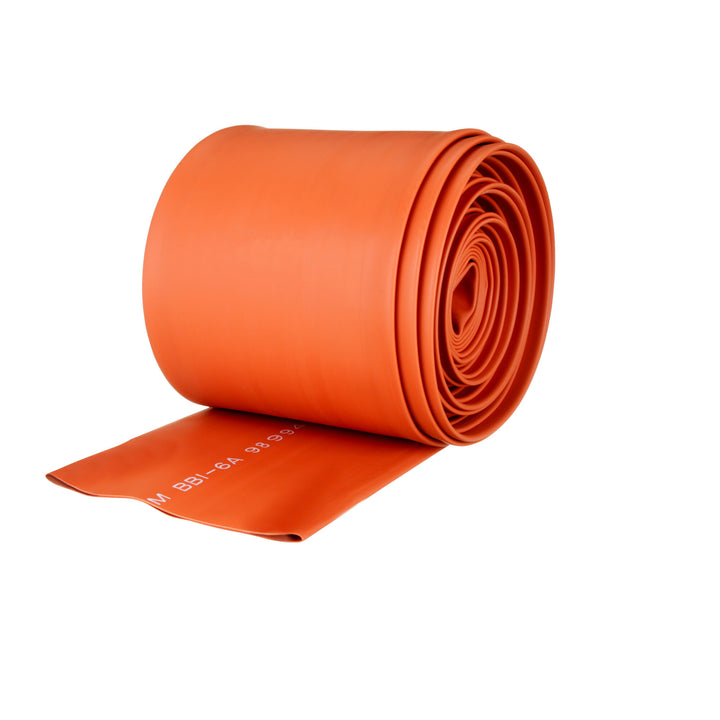

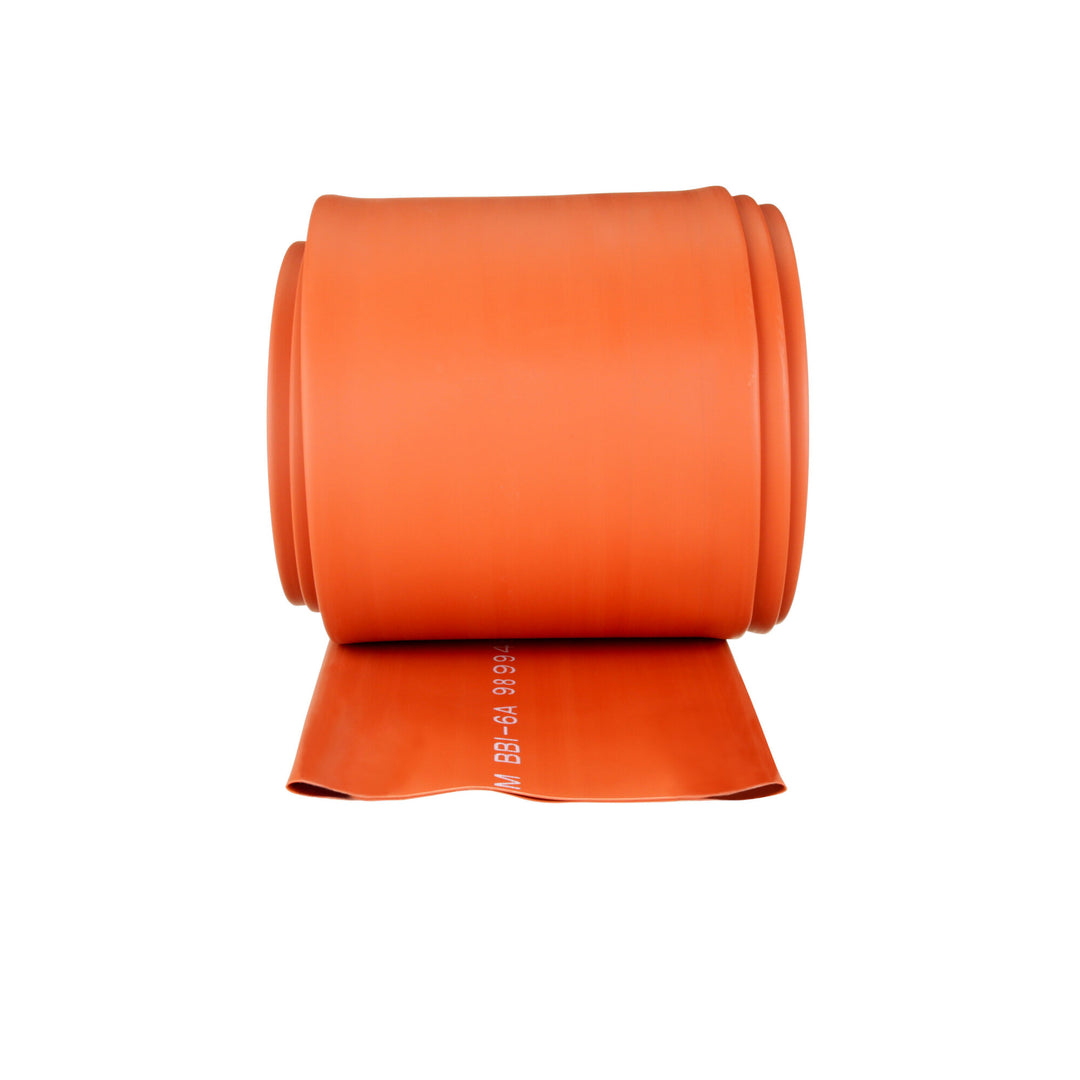

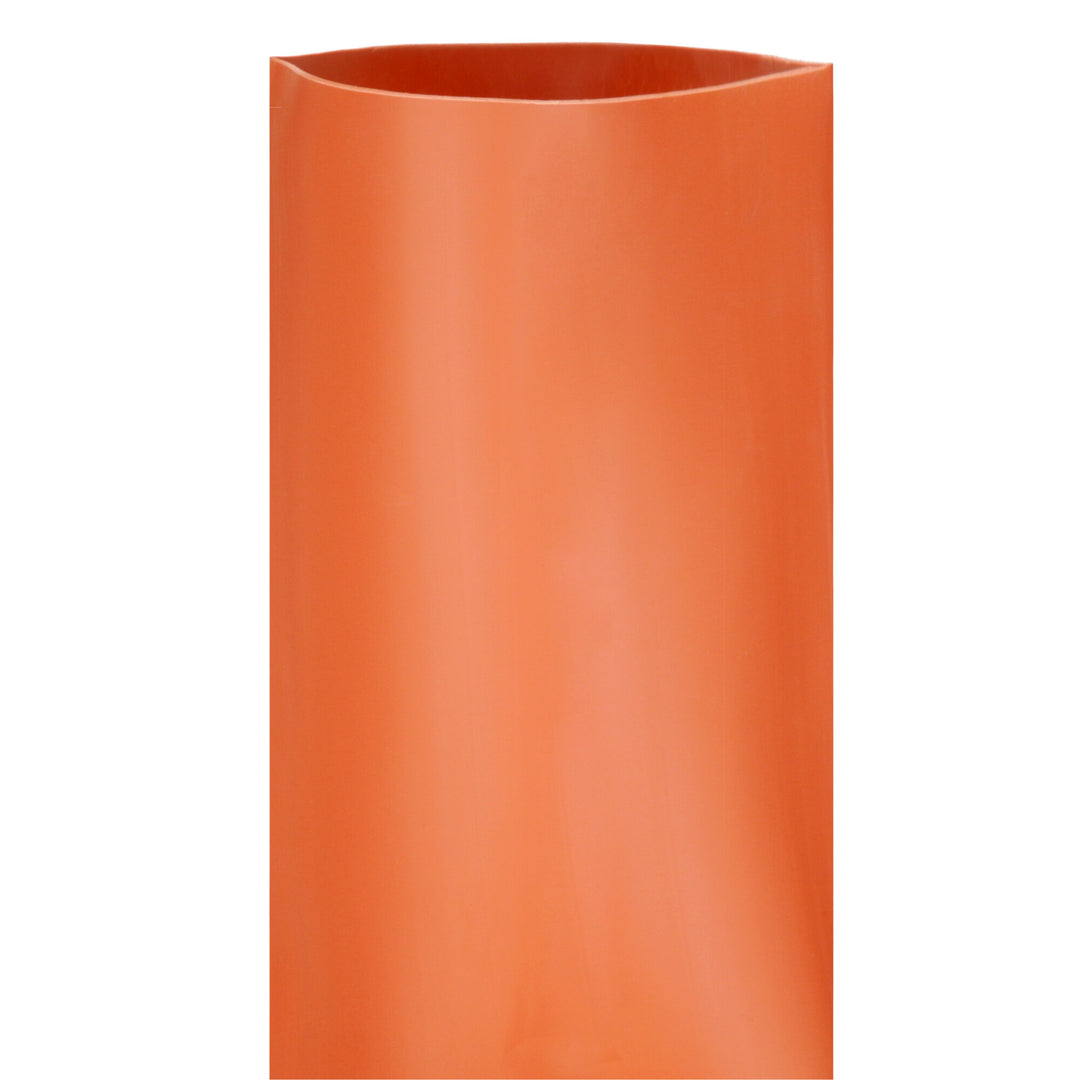

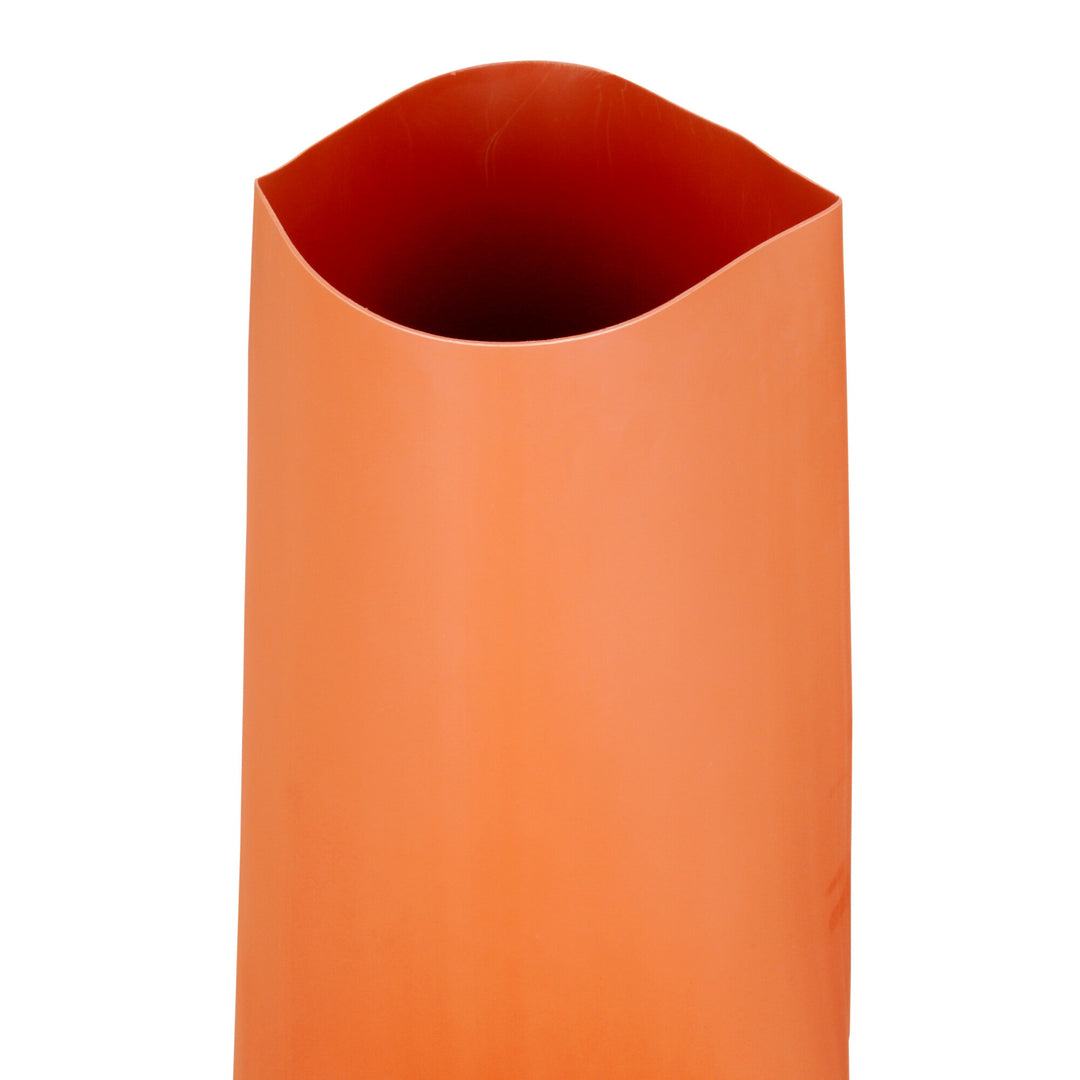

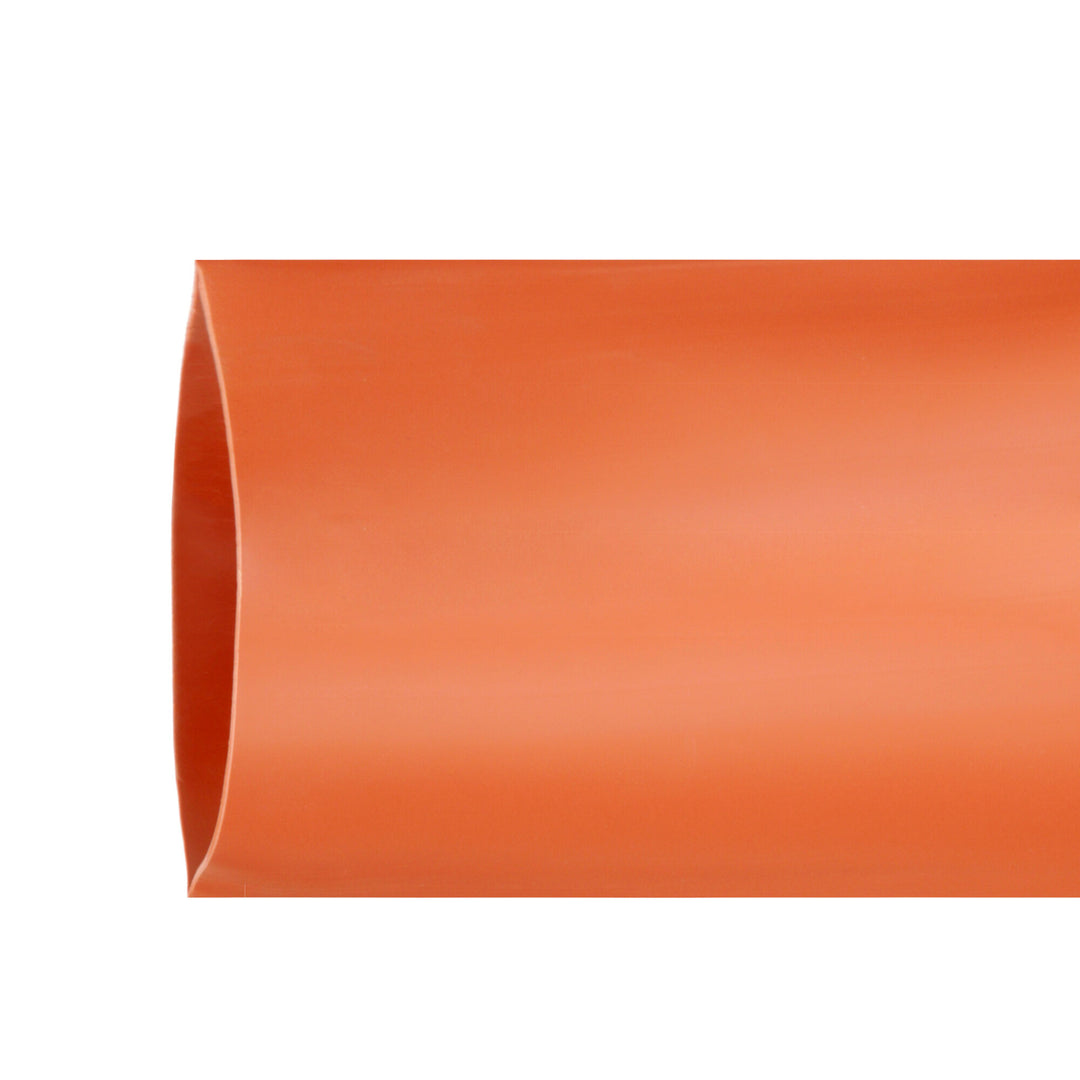

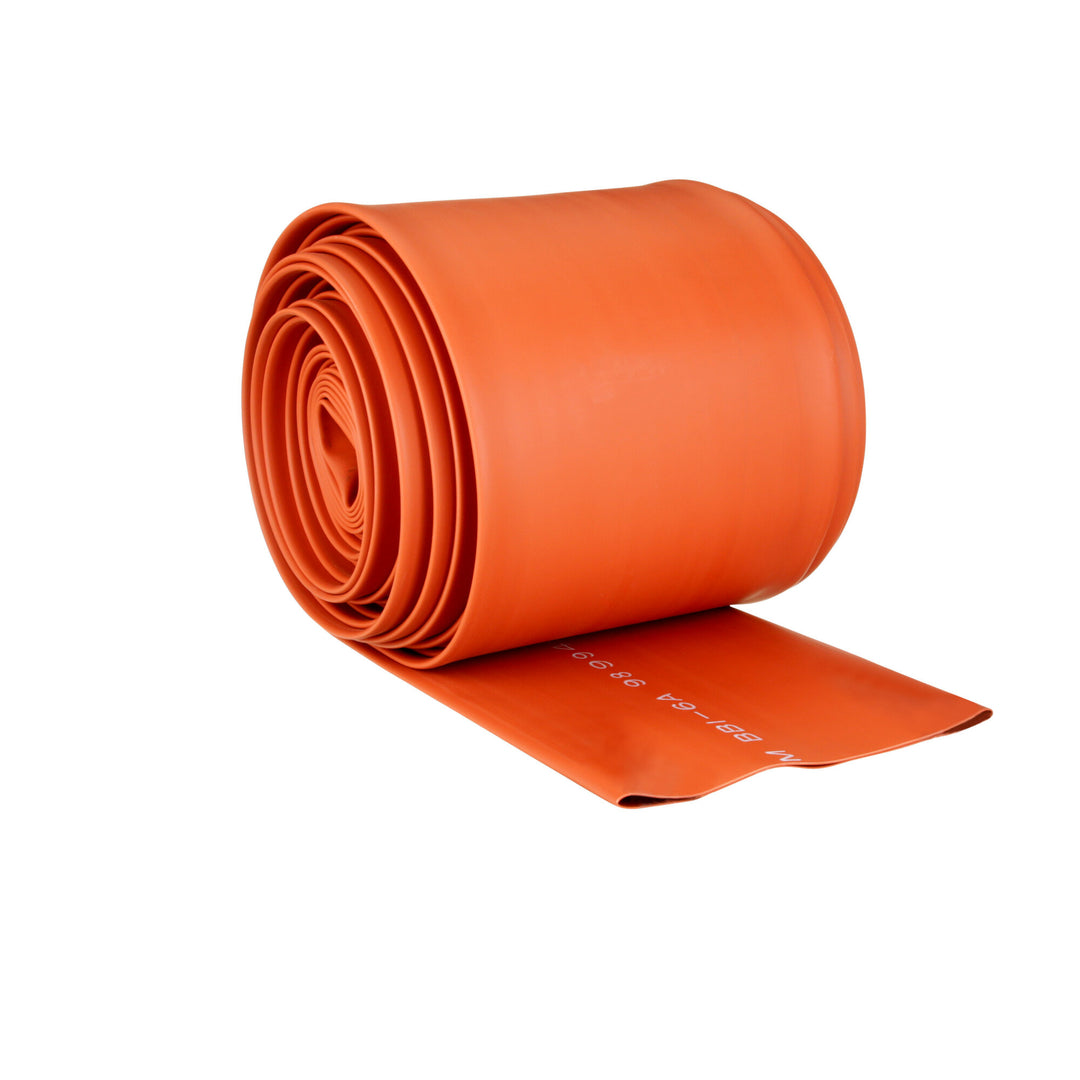

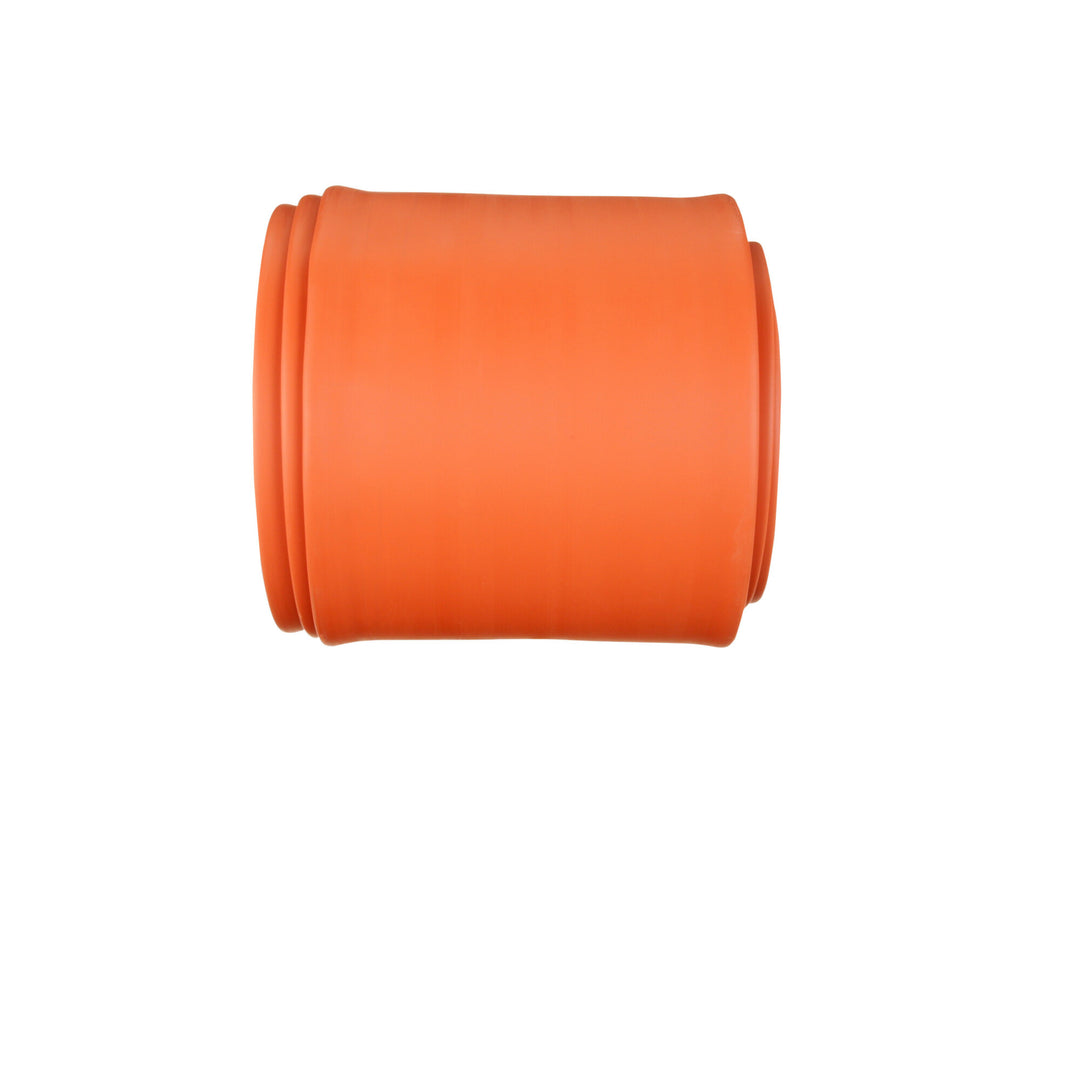

3M Bus Bar Tubing BBI-6A-50', O.D. 7.57 - 12.86 in

Regular price
/

$2,225.99 USD & FREE Shipping.
  • Suitable for copper or aluminum bus bars, metal-enclosed bus bars, metal-clad switchgear and substation switchgear
  • Made of red cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
Overview
Protect 5 to 25 kV-rated applications and provide appropriate and reliable insulation for them with this flame-retardant 3M Bus Bar Heat Shrink Tubing BBI-6A. This tubing's basic insulation level of 110 kV helps it withstand power surges that can cause damage, and its cross-linked polyolefin construction provides great tracking resistance.

3M Bus Bar Tubing BBI-6A-50', O.D. 7.57 - 12.86 in

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Product Type
Bus Bar Tubing
Country Of Origin
United States
Lead Time
2 days
California Residents
Dimensions and Specifications
Expanded Wall Thickness
0.046 in
Inner Diameter After Shrink (Imperial)
7.571 in
Inner Diameter After Shrink (Metric)
192.3 mm
Inner Diameter Before Shrink (Imperial)
12.858 in
Inner Diameter Before Shrink (Metric)
326.6 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Outside Diameter (Bar Circumference)
7.57 - 12.86 inch
Overall Length (Imperial)
50 ft
Overall Length (Metric)
15.24 m
Recovered Wall Thickness
0.117 in
Rectangular Size
(3-1/2 x 1/2) to (6 x 3/4) Inch (for 5 kV, 8 kV, 15 kV, 25 kV)
Round Size (Diameter)
See Sizing Chart on Data Sheet
Square Size
7.57 - 12.86 inch OD (for 25 kV)
Voltage
5 kV
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
50.0
Other Details
Halogen Free
No
Maximum Recovered Tubing I. D.
2.33 in
Minimum Expanded Tubing I. D.
5.9 in
Shrink Ratio
1.5 : 1
Solution
constructionbus
Units Per Case
1.0
With Inner Glue
No
Material and Composition
Material
Polyolefin
Shelf Life
3600
Color and Appearance
Product Color
Orange
Certifications and Standards
UL Approval
No
