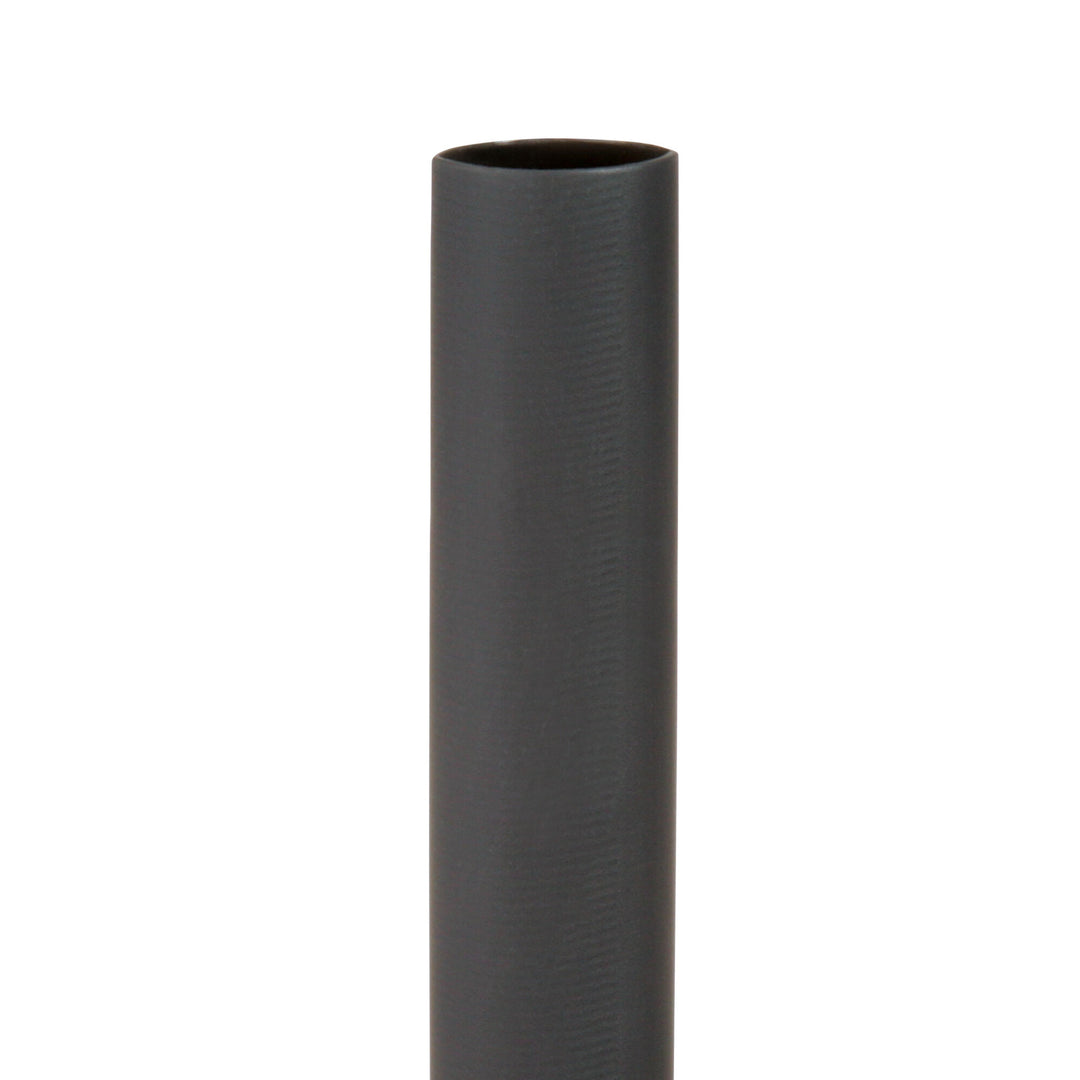

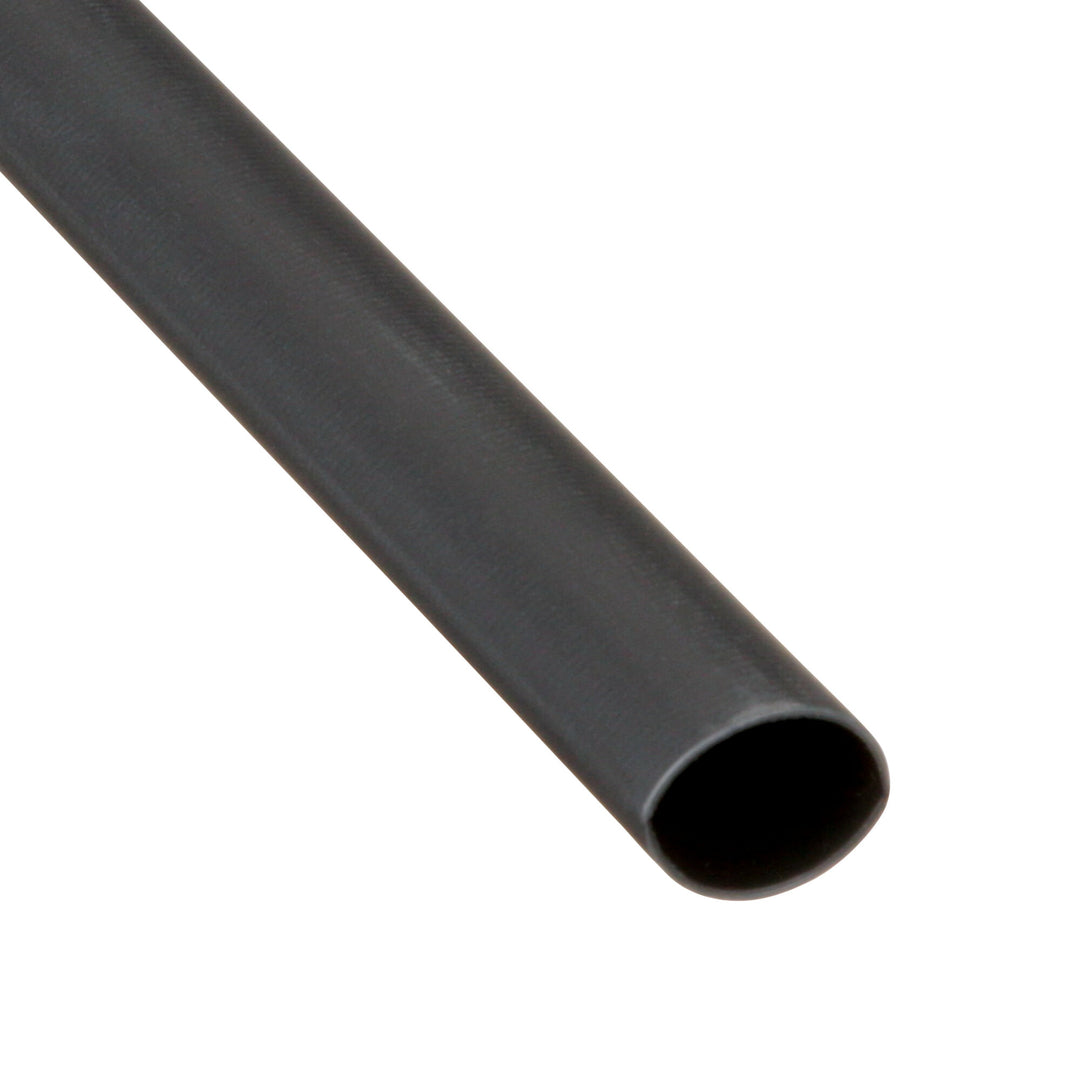

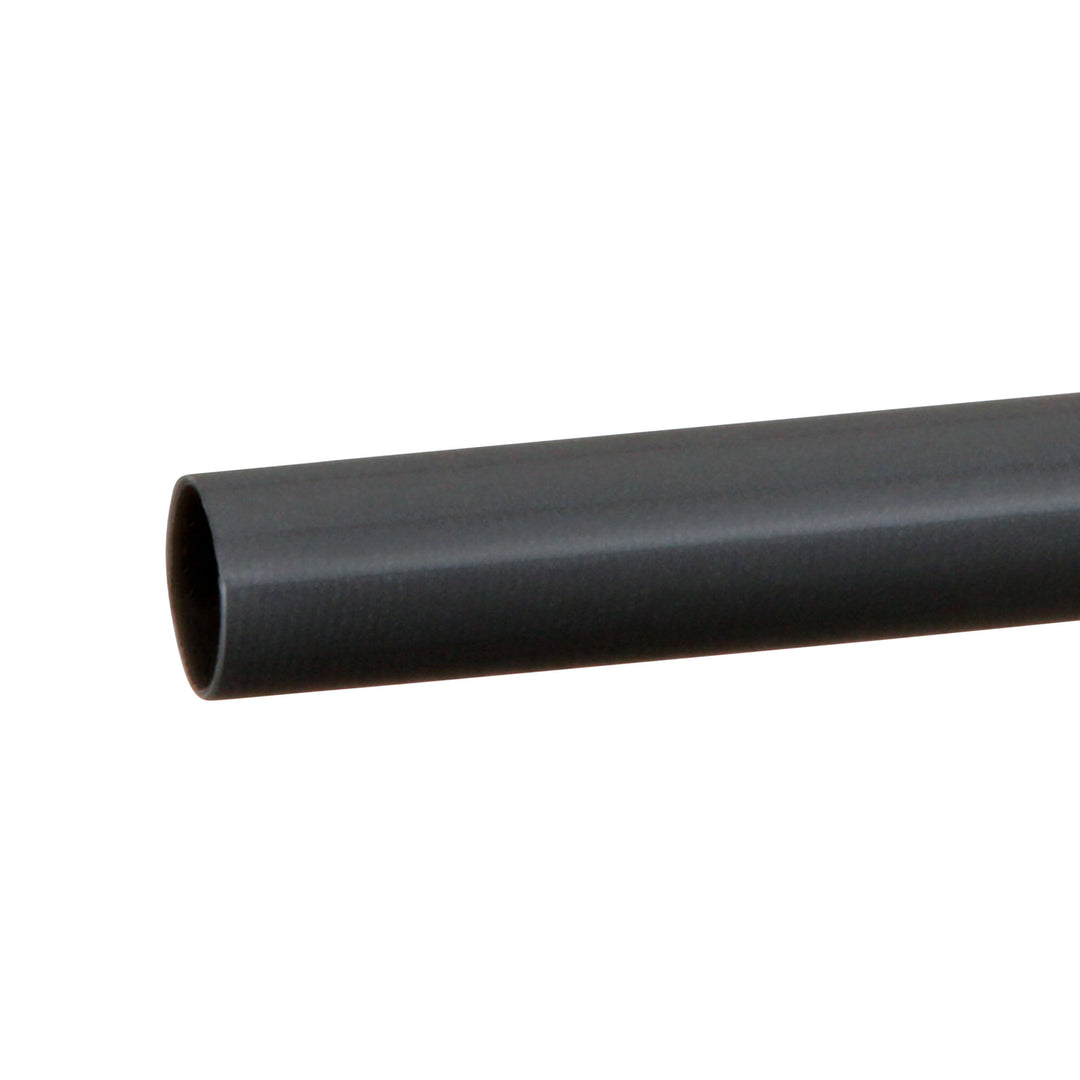

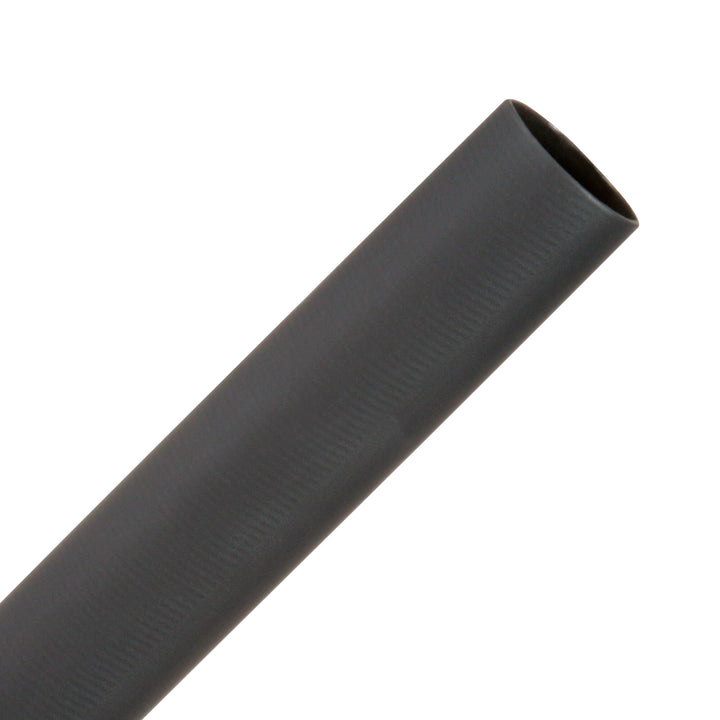

3M Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-6"-Black

/
$33.99 USD & FREE Shipping.
Extended Handling May Be Required
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
Overview
3M Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.3Mâ„¢ Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Brand img

3M Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-6"-Black

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Tubing Type
Dual Wall (Adhesive Lined)
Country Of Origin
United States
Sold As
Pack
California Residents
Proposition 65 Warning
Dimensions and Specifications
Expanded Inner Diameter
0.5 in
Expanded Inner Diameter (Metric)
12.70 mm
Inner Diameter After Shrink (Imperial)
0.16 in
Inner Diameter After Shrink (Metric)
4.06 mm
Inner Diameter Before Shrink (Imperial)
0.5 in
Inner Diameter Before Shrink (Metric)
12.7 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
6 in
Recovered Inner Diameter
0.16 in
Recovered Inner Diameter (Metric)
4.1 mm
Tensile Strength (Imperial)
2100 Pound-Force Per Square Inch
Operating Temperature Celsius
-55 °C to 110 °C
Overall Length Imperial
6.0
Volume
73.91 cubic inch
1211.2 cm3
Weight
3.26 oz
92.53 g
Other Details
Elongation
450 %
Flame Retardant
Yes
Minimum Expanded Tubing I. D.
0.5 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Access Network: xDSL
Units Per Case
10.0
Family
3Mâ„¢ Heat Shrink EPS-300
Tensile Strength Imperial
2100 Pound-Force Per Square Inch
Material and Composition
Material
Polyolefin
Shelf Life
3600
Certifications and Standards
Agency Approvals
CSA, UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test [jacket]
