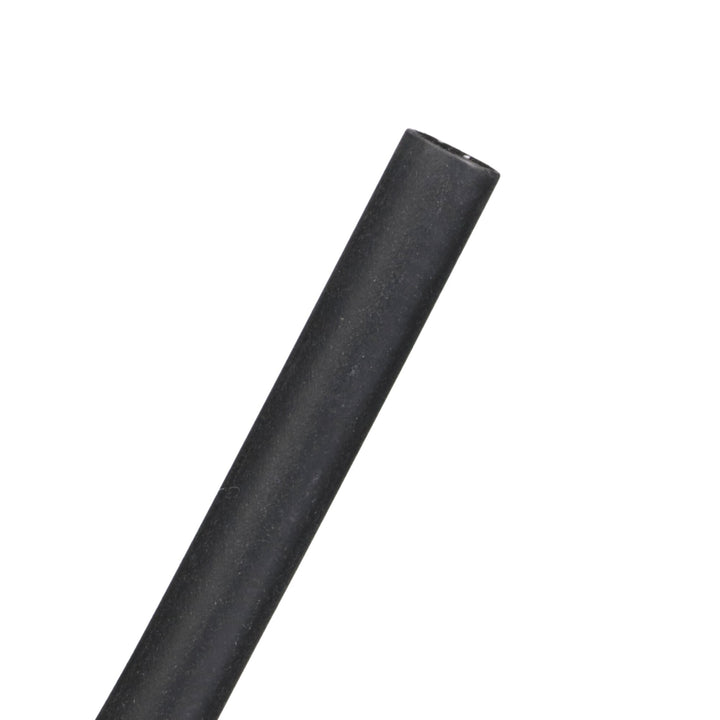

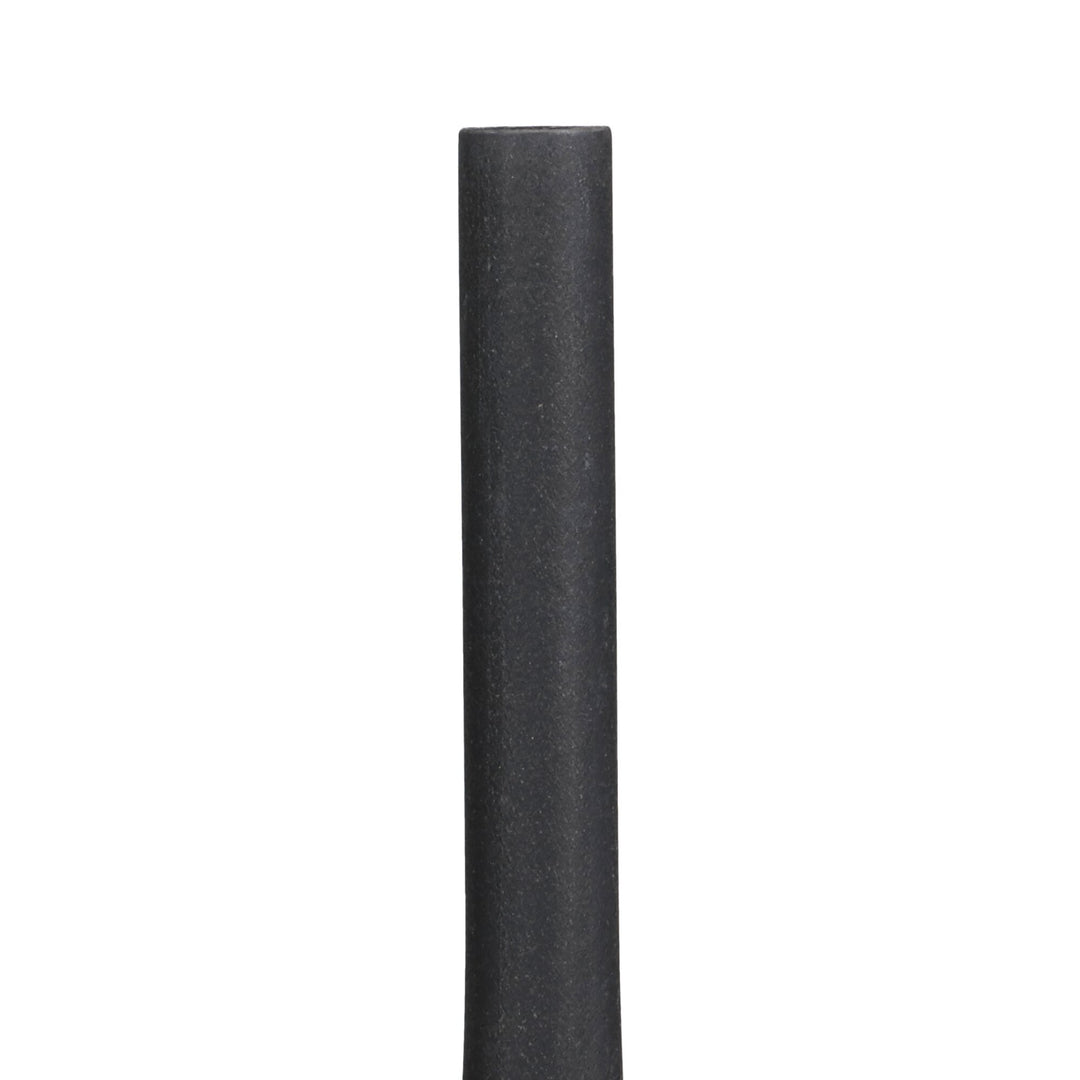

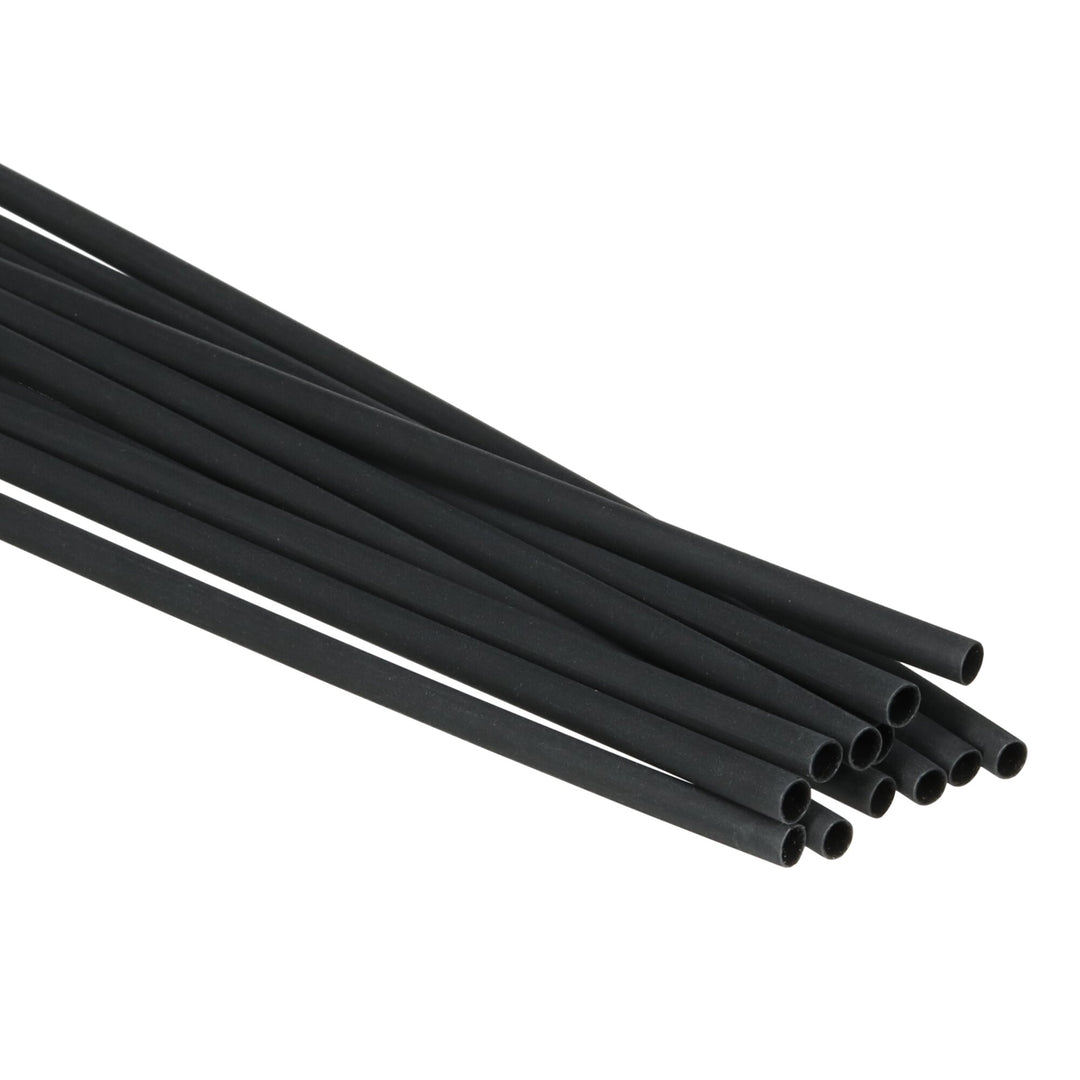

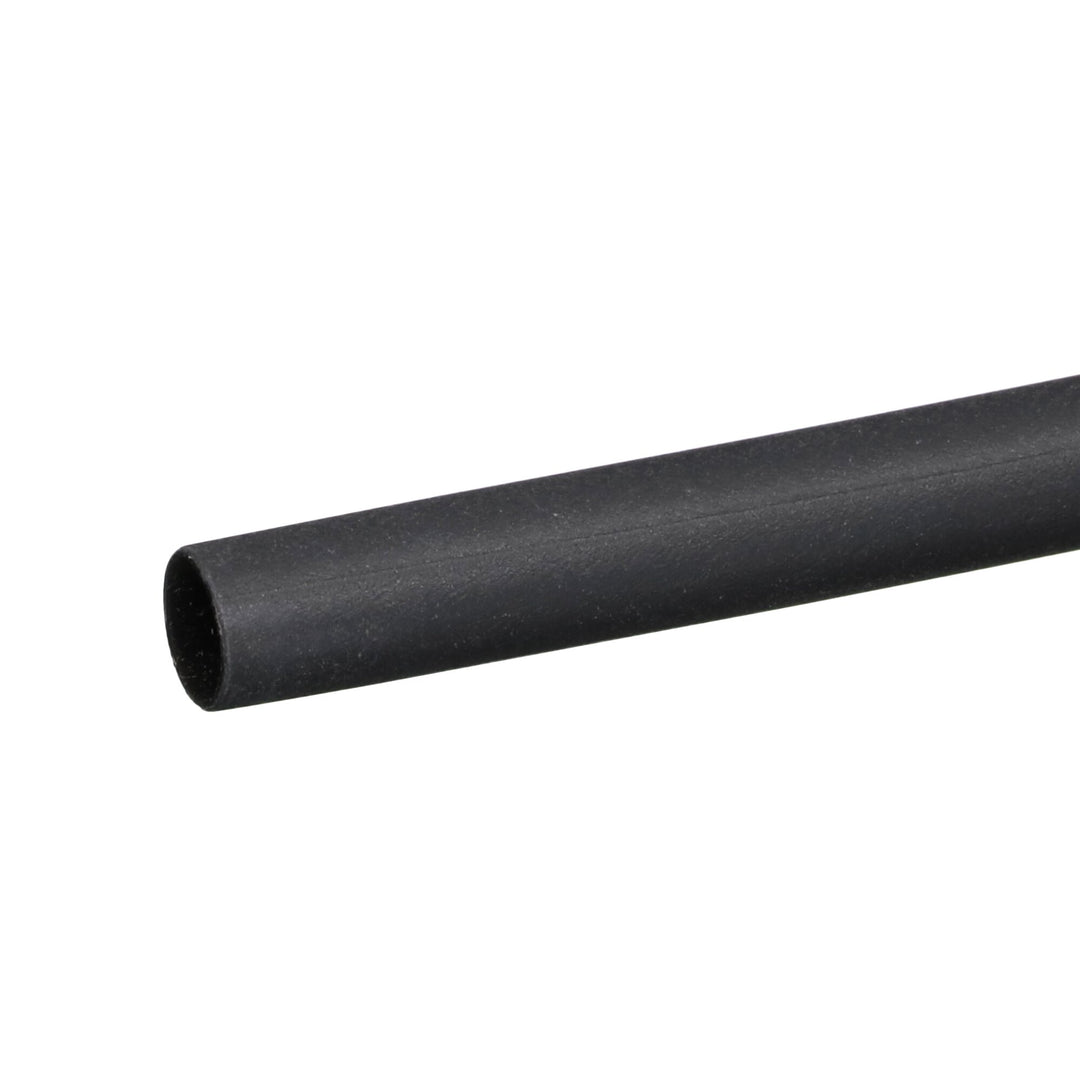

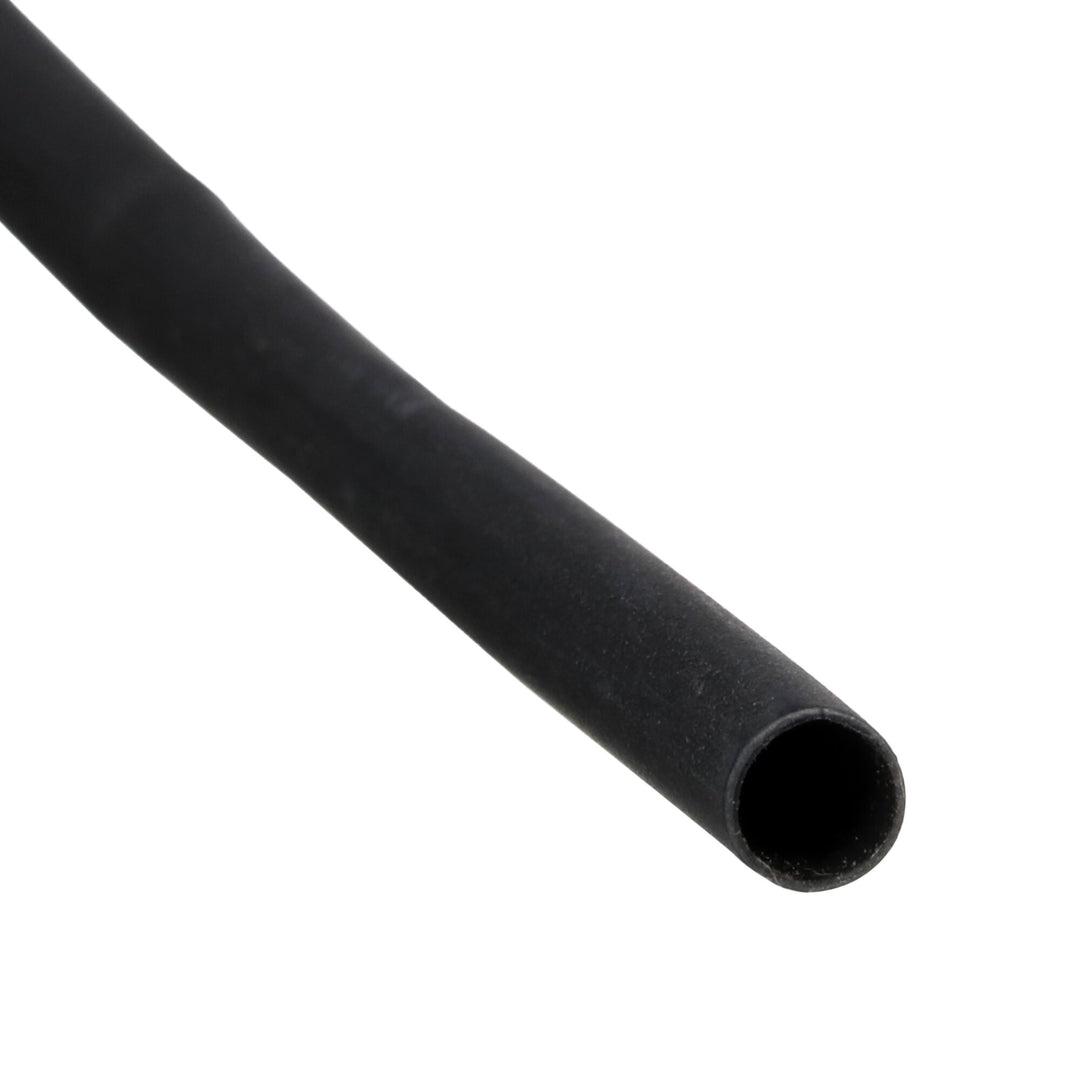

3M Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined,3/16-48"-Black-12 Pcs

/
$135.99 USD & FREE Shipping.
Extended Handling May Be Required
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
Overview
3Mâ„¢ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.3Mâ„¢ Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
Brand img

3M Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined,3/16-48"-Black-12 Pcs

Specifications
General Information
Brand
3Mâ„¢
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Tubing Type
Dual Wall (Adhesive Lined)
Country Of Origin
United States
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Expanded Inner Diameter
0.187 in
Expanded Inner Diameter (Metric)
4.8 mm
Inner Diameter After Shrink (Imperial)
0.062 in
Inner Diameter After Shrink (Metric)
1.57 mm
Inner Diameter Before Shrink (Imperial)
0.187 in
Inner Diameter Before Shrink (Metric)
4.75 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Operating Temperature (Celsius)
-55 °C to 110 °C
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
48 in
Recovered Inner Diameter
0.063 in
Recovered Inner Diameter (Metric)
1.6 mm
Tensile Strength (Imperial)
2100 Pound-Force Per Square Inch
Other Details
Elongation
450 %
Flame Retardant
Yes
Mil Spec
AMS-DTL-23053/5, Class 3
Minimum Expanded Tubing I. D.
0.187 in
Non-Corrosive
Yes
Shrink Ratio
3:1
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E-157227
Units Per Case
12.0
Material and Composition
Material
Polyolefin
Color and Appearance
Product Color
Black
Certifications and Standards
Agency Approvals
CSA, UL Recognized
Flammability Rating
UL 224 All Tubing Flame Test [jacket]
Why would you use this tool for ?
About manufacturer
3M

3M is one of many examples of the classic American success story. They went into business to mine a specific mineral and they didn’t have any luck with that, so instead, upon receiving lemons, they made life take the lemons back by innovating and creating new, unexpected products that eventually led to success. That spirit of innovation continues to this day as they have developed safety equipment, specialty construction and testing equipment, PPE, accessories for visibility and so much more! As avid tool users, handymen, construction workers and more, there are certainly many 3M products that will be of use to you Tool Junkies out there!
