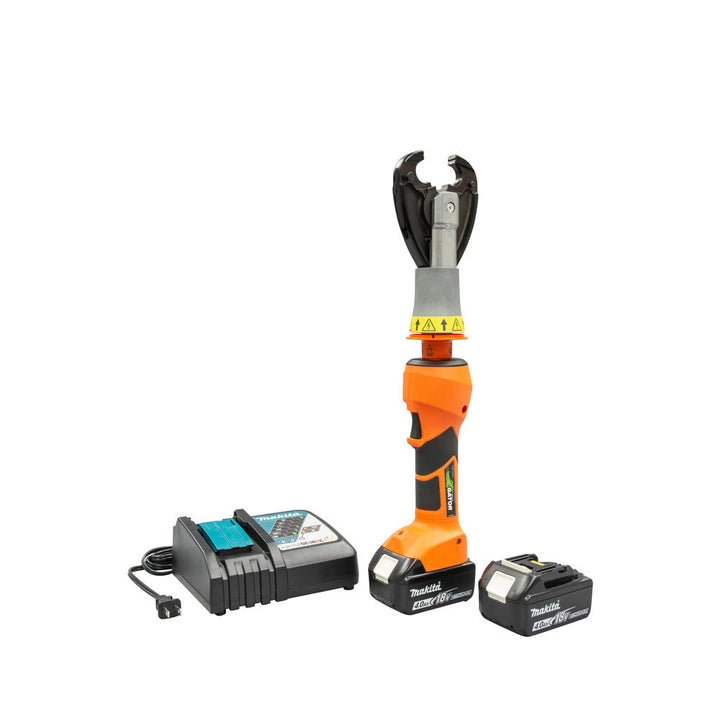

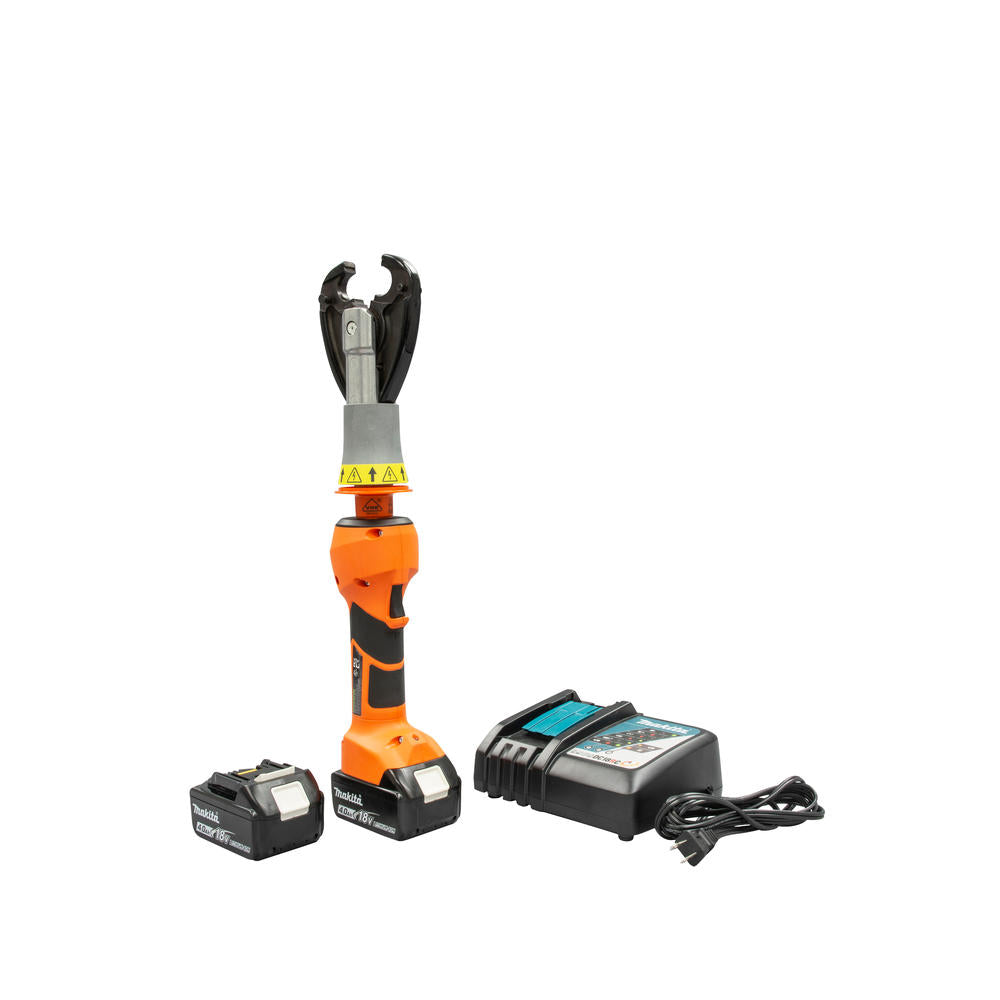

Greenlee EK425VXD22 6 Ton Insulated Crimper with CJDE Head and 230V Charger
Greenlee EK425VXD22 6 Ton Insulated Crimper with CJDE Head and 230V Charger

Greenlee EK425VXD22 6 Ton Insulated Crimper with CJDE Head and 230V Charger

Regular price
/

$2,284.82 USD & FREE Shipping.
  • 1000v Insulation
  • Brush guarded head - helps avoid accidental contact with conductors
  • Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
  • 360° Rotating head - For improved agility in confined work spaces
  • Double -tap safety feature option -Prevents unintentional operation
Overview
Greenlee Insulated Battery-Powered In-Line Crimpers are hand-held, self-contained crimping tools with removable jaws. These tools are insulated and will provide a secondary protection up to 1000 Volts when used with appropriate Personal Protection Equipment and safety procedures. These tools have Bluetooth® connectivity and an LCD screen. All specifications are nominal and may change as design improvements occur. These tools are protected by U.S. Patent Nos. 6,276,186, 6,401,515, 6,718,870, 7,086,979, 7,216,523 and 7,254,982.

Greenlee EK425VXD22 6 Ton Insulated Crimper with CJDE Head and 230V Charger

Specifications
General Information
Brand
Greenlee
Part Number
EK425VXD22
Product Type
Die style crimper
Application
6 Ton Crimping
Packaging
Retail
Country of Origin
Germany
UPC
783310042143
California Residents
Proposition 65 Warning
Physical Characteristics
Length
19" (482mm)
Weight
0.05 kg
0.12 lb
Details
Grip Type
In-Line Style with over molded rubber grip
Features
1000v Insulation
Brush guarded head - helps avoid accidental contact with conductors
Tri-insulation barrier - Provides three (3) layers of protection (Patent Pending)
360° Rotating head - For improved agility in confined work spaces
Double -tap safety feature option -Prevents unintentional operation
Bluetooth® communication Connects with Greenlee i-press® App
Equipped with Intelli-crimp technology

Sub Brand: Gator
Standard: C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested
Crimping Force: 12,000 lbs. (53 kN)
Crimping Capacity: Connector 10-1/0 AWG 5/8" Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
Connector Type: Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
Video
The world's first of their kind. Check out Greenlee's Gator® line with a tri-insulating barrier designed to prevent voltage discharge. Gator® line is a 1000v rated battery tool that has been individually tested to 10,000v.
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
