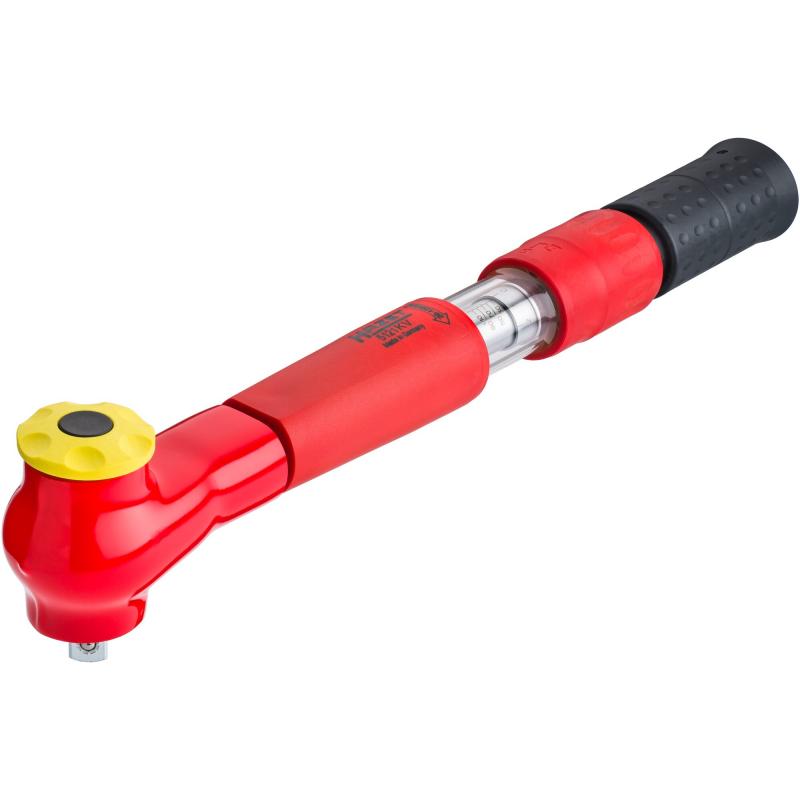

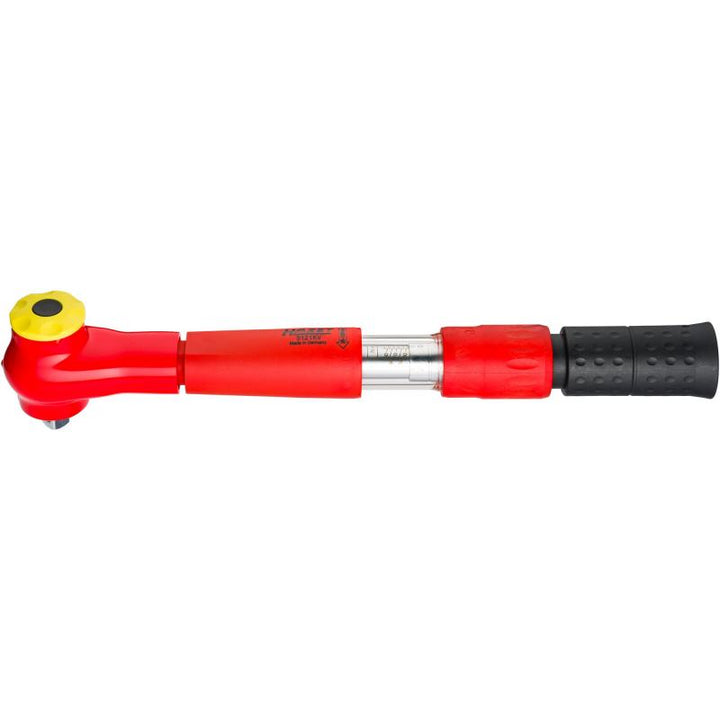

Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square
Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square
Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square
Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square

Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square

Regular price
/

$1,359.00 USD & FREE Shipping.
  • Can be calibrated
  • Long service life / high accuracy
  • Suitable for control of inspection and test equipment
  • Right/left release by plug-in square, thereby tightening at torque setting, both to the right and to the left within the specified tolerance
  • Low weight for good handling and fatigue-free work
Overview
  • Option of: removal, repair (if necessary), installation, adjustment, calibration
  • Safety:
    • Haptic (close-gap release)
    • Audible ("click" sound)
  • Slim design in strict accordance with the required insulating properties (material strength/overlaps)
  • Smooth transitions on switching and moving parts with ergonomic handle design and calibration notch
  • Uniform look even when using other components (e.g. red insulated sockets)
  • Attractive color design of the housing and head with signal colors red/yellow
  • Handle color in black to make a distinction with the color and to prevent it appearing dirty quickly
  • No disturbing projecting parts (e.g. shift lever)

Hazet 5121KV Torque Wrench with Protective Insulation, 20-120Nm, 12.5mm (1/2") Square

Specifications
General Information
Brand
Hazet
Part Number
5121KV
Product Type
Insulated torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896233397
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Red / Yellow
Length
420 mm
Details
Wrench Type
Torque
Type
Square, solid
Size
12.5 mm (1/2 inch)
Features
DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1, IEC 60900:2018
Tolerance: 4 %

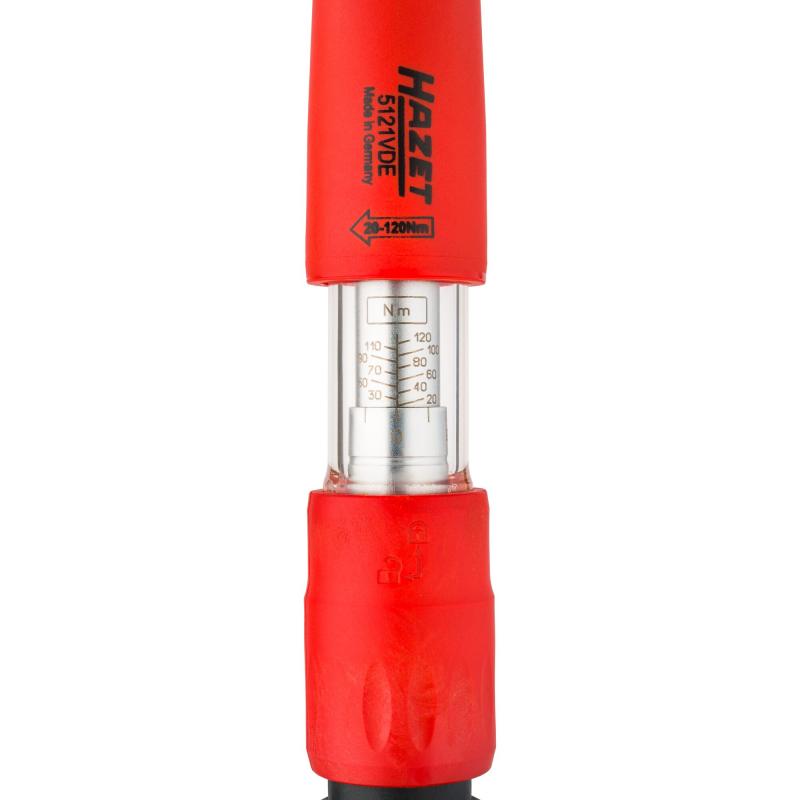

Scale Graduation (Nm): 1 Nm
Effective torque wrench length min.-max. I1 mm: 345.00 – 331.00 Nm
Actuating force min.-max. kg: 6.0 – 37.4 kg
Number of teeth: 32 (Opening angle 11.25°)
Torque Range Nm
20 – 120 Nm
Why would you use this tool for ?
About manufacturer
Hazet

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
