Wera 7870 Joker S Self-Setting Insert Spanner for Wrench Size 10 - 13 mm, Mounting 9 x 12 mm

NEW-ARRIVAL
/

$74.95 USD & FREE Shipping.
Extended Handling May Be Required
  • Square head insert tool 9x12 mm
  • For torque wrenches from the Click-Torque X series with 9x12 mm mounting
  • The adjustable 7870 Joker covers all metric and imperial dimensions in the respective field of application
  • With mechanical ratchet functionality for fast and consistent screwdriving without removing the spanner
  • Return angle of only 30° when using the corner-width rectangular prisms in the jaw
Overview

Self-setting insert spanner, for hexagon screw heads and bolts, for torque wrenches from the Click-Torque X and XP series with 9x12 mm mounting. Covers all metric and imperial dimensions in the respective field of application. With its continuous and parallel jaws, the tool replaces several single spanner sizes. The required size is automatically and continuously set when attaching the tool to the hexagon bolt or screw. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a return angle of only 30° can be achieved.

Brand img

Wera 7870 Joker S Self-Setting Insert Spanner for Wrench Size 10 - 13 mm, Mounting 9 x 12 mm

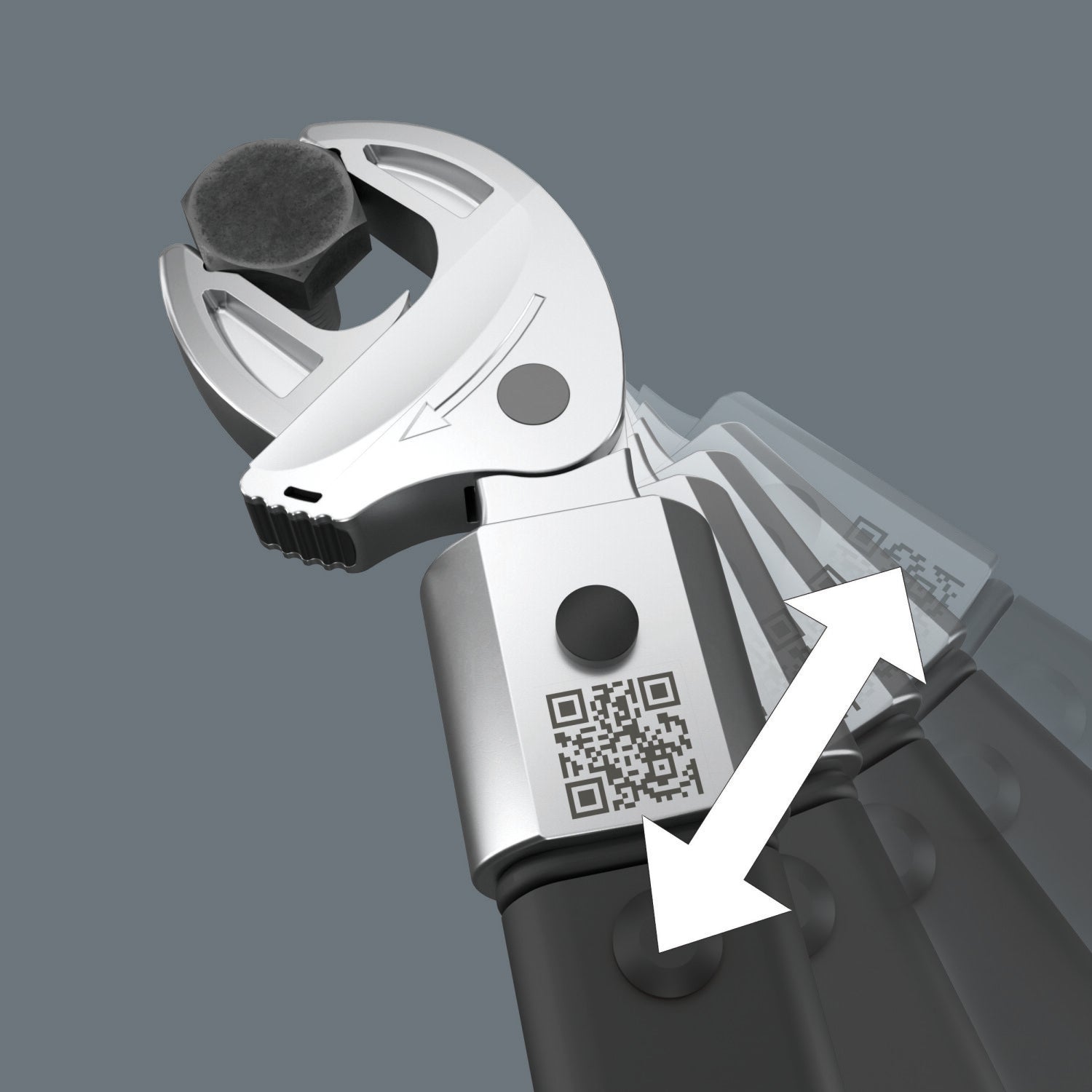

Ratchet Mechanism for Quick Working

The ratchet feature in the jaw ensures fast and consistent screwdriving without removing the tool

Automatically and Continuously Self-Setting

With its automatically and continuously gripping parallel jaws, the 7870 joker covers all dimensions within the potential operative range. The tool finds the required size itself when attaching it to the bolt or screw

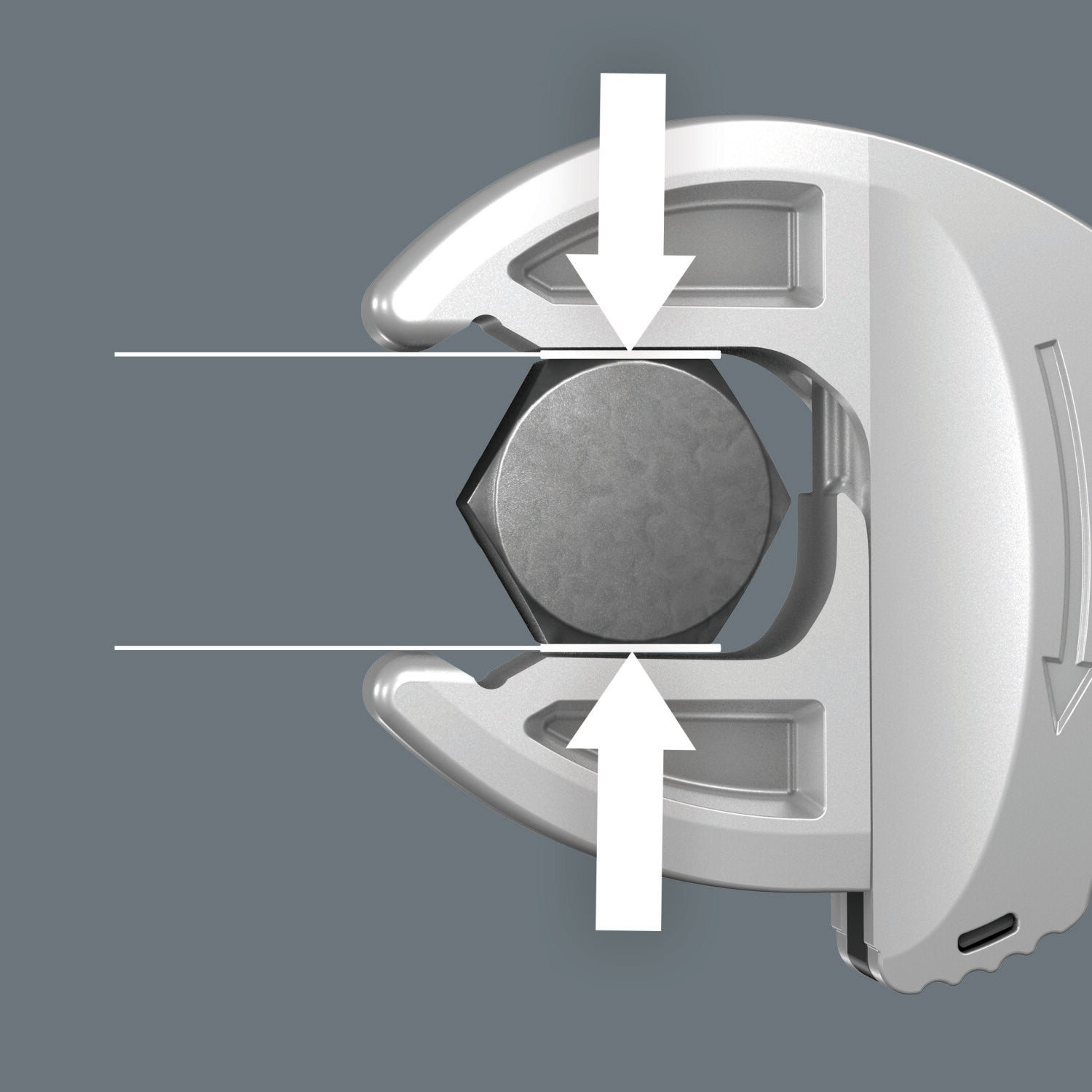

Gentle to the Screw

The smooth, parallel jaws of the 7870 Joker offer a seating stress which can prevent the nut or screw head from rounding, which can occur when power is transmitted over corners

Specifications
General Information
Brand
Wera
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288232953
California Residents
Proposition 65 Warning
Part Number
05020175001
Product Type
Double Spanner Head
Physical Characteristics
Length
2.28" (58 mm)
Width
1.46" (37 mm)
Height
0.39" (10 mm)
Weight
0.06 kg
0.13 lb
Color
Metallic
Material
Chrome Vanadium Steel
Details
Tip Type
Spanner
Features
Square head insert tool 9x12 mm

For torque wrenches from the Click-Torque X series with 9x12 mm mounting

The adjustable 7870 Joker covers all metric and imperial dimensions in the respective field of application

With mechanical ratchet functionality for fast and consistent screwdriving without removing the spanner

Return angle of only 30° when using the corner-width rectangular prisms in the jaw

The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used
Size
Size: 10 - 13 x 7/16" - 1/2" x 57.7 mm

Mounting: 9 x 12 mm
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
Wera

“Be a Tool Rebel” with Wera Tools! What makes using Wera Tools an act of rebellion? Most likely their radically different design aesthetic which often features vivid colors and organic contours incorporated into their tools. But Wera is more than just a pretty face, they make game-changing innovations to tools. A few of their innovations include the Kraftform handle which is ergonomic, following the natural positions of the hand, the Zyklop ratchet which features a swivel head eliminating one of the most frustrating aspects of using a ratchet and many more. Wera tools are well-made, handsomely packaged and designed to take the tool world by storm with tools that look and feel like the way of the future.
