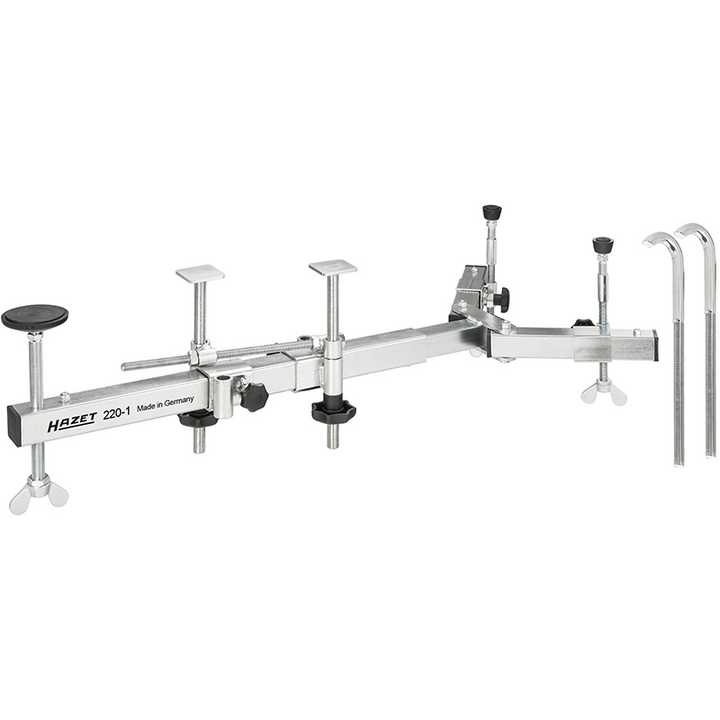

Hazet 220-1 Universal Engine Support

$1,378.24 USD & FREE Shipping.
/
Extended Handling May Be Required
  • For transverse engines
  • Suitable for nearly all vehicle types
  • Fully galvanized for optimal surface protection
  • Manual operation through T-handles or wing screws
  • Maximum loading capacity: 250 kg
Overview
After loosening the engine mount, the engine support safely holds the vehicle engine in the engine compartment (time savings and higher safety at work). Installation of the engine support underneath the motor vehicle allows optimal access during repair work (engine is supported from below), ensuring optimal working conditions in the engine compartment from above. Optimal work in the engine compartment (from above). The most important advantage compared to work with engine lifting beam or engine crane (both are mounted above the engine and may obstruct repair works) is that the engine compartment is freely accessible. Note for using engine lifting beams: The fenders of newer vehicles often slope or are made of plastic material. This means that, unlike with the HAZET universal engine support, classic engine lifting beams are often unsuitable and not mountable without damage.
Brand img

Hazet 220-1 Universal Engine Support

You may also like
Specifications
General Information
Brand
Hazet
Part Number
220-1
Product Type
Universal engine support
Application
Supporting the engine during maintenance work on thrust bearings, timing belts, water pumps or tensioner rollers
Packaging
Retail
Country of Origin
Germany
UPC
4000896191758
California Residents
Proposition 65 Warning
Physical Characteristics
Length
620 – 900 mm
Weight
8.90 kg
19.62 lb
Details
Features
For transverse engines
Suitable for nearly all vehicle types
After loosening the engine mount, the engine support safely holds the vehicle engine in the engine compartment (time savings and higher safety at work)

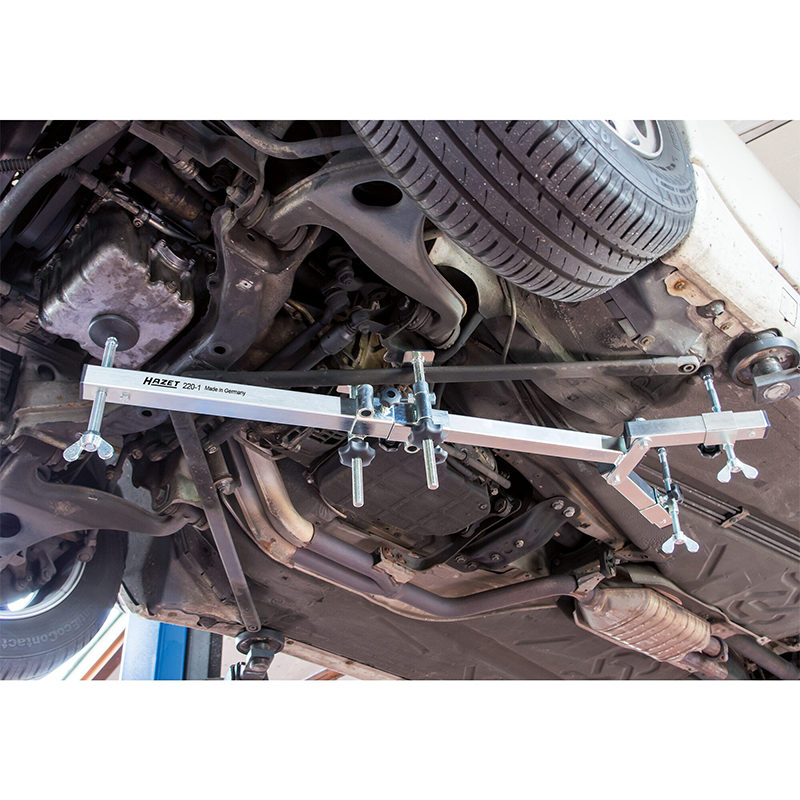

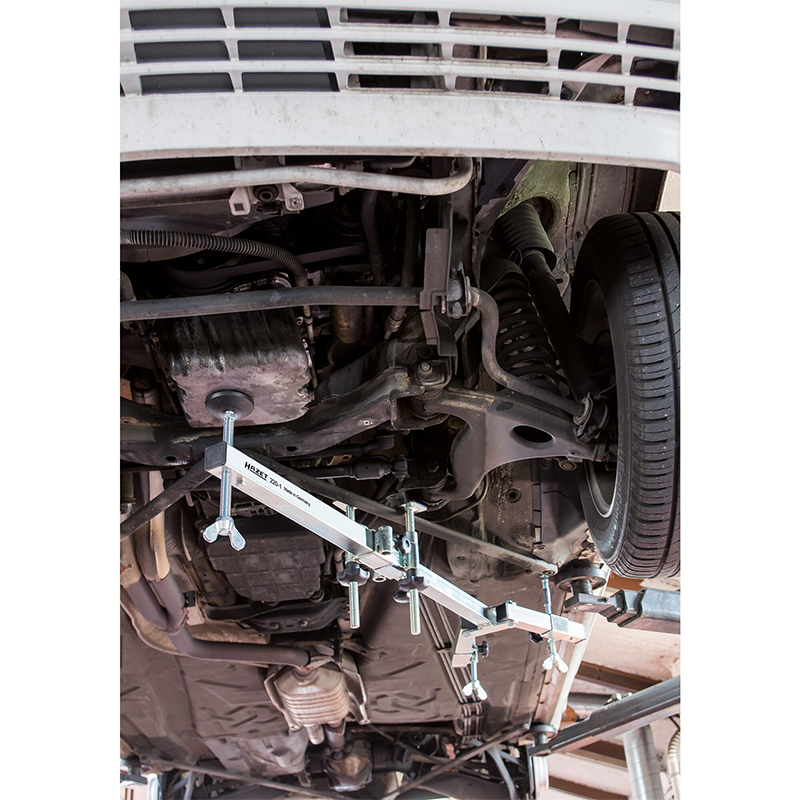

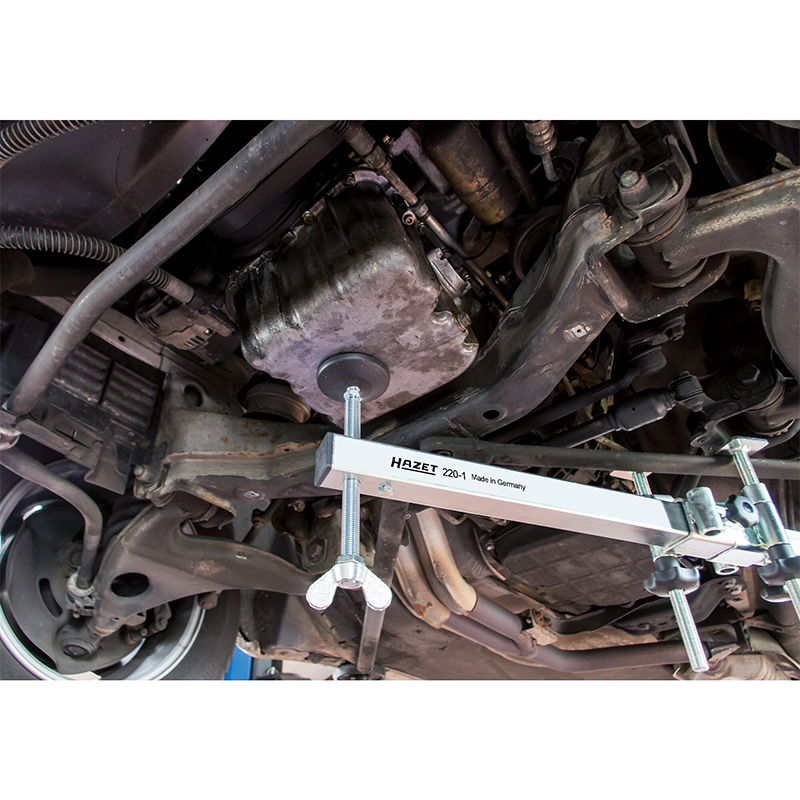

Installation of the engine support underneath the motor vehicle allows optimal access during repair work (engine is supported from below), ensuring optimal working conditions in the engine compartment from above. Optimal work in the engine compartment (from above)
The most important advantage compared to work with engine lifting beam or engine crane (both are mounted above the engine and may obstruct repair works) is that the engine compartment is freely accessible
Note for using engine lifting beams:
The fenders of newer vehicles often slope or are made of plastic material. This means that, unlike with the HAZET universal engine support, classic engine lifting beams are often unsuitable and not mountable without damage
Rubber covered feet with ball bearings allow flexible adjustment of the engine support
Including 2 assembly holders
Fully galvanised for optimal surface protection
Manual operation through T-handles or wing screws
Maximum loading capacity: 250 kg
