Stahlwille 50010004 9mm x 12mm Manoskop Torque Wrench

$233.93 USD & FREE Shipping.
/
Extended Handling May Be Required
  • clicking type with dual stop signal
  • for work on assembly lines or for repetitive production tasks.
  • no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
  • with holder for interchangeable insert tools
  • particularly slim design
Overview

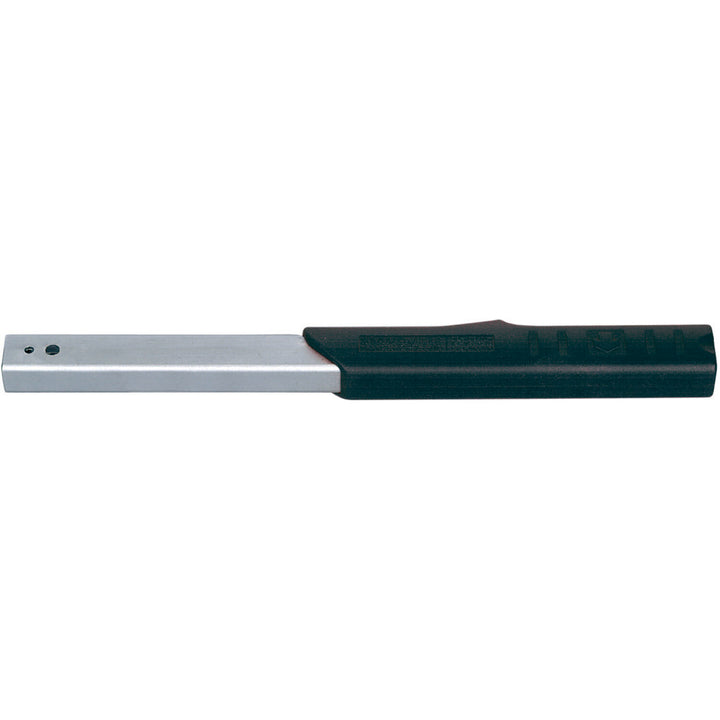

The Manoskop Torque Wrench is a clicking-type wrench with a dual stop signal, ideal for assembly lines or repetitive production tasks. With no adjustment scale, it requires calibration using test equipment such as STAHLWILLE test devices No. 7707 W, SmartCheck, or perfectControl® calibration system No. 7794. The wrench features a holder for interchangeable insert tools, a slim design, and a handle and shaft made from square steel pipe for enhanced durability. Its trigger mechanism is protected from damage by further loading after clicking or reverse loads (up to the max measurement range). Counter-clockwise tightening is easily achieved by turning the insert tool over. The wrench can be pre-set at a defined torque value and certified (additional charge applies), offering precise control for critical applications.

Brand img

Stahlwille 50010004 9mm x 12mm Manoskop Torque Wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754031603
California Residents
Proposition 65 Warning
Part Number
50010004
Physical Characteristics
Material
Steel
Length
201 mm
Width
22 mm
Height
18 mm
Weight
0.06 kg
0.14 lb
Details
Wrench Type
Torque
Torque Range ft lbs
4ft lb - 30ft lb
Torque Range Nm
4Nm - 40Nm
Type
Square
Size
4 mm
Features
clicking type with dual stop signal
for work on assembly lines or for repetitive production tasks.
no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
with holder for interchangeable insert tools
particularly slim design
handle and shaft made of square steel pipe
Further loading after clicking or loads in the opposite direction of operation (up to the max. measurement range of the torque wrench) do not affect the trigger mechanism, which protects it from damage
counter-clockwise tightening by turning the insert tool over
can be supplied pre-set at defined torque value and with certification (additional charge applies)
