Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm
Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm
Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm
Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm
Stahlwille logo

Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm

$325.27 USD & FREE Shipping.
/
Extended Handling May Be Required
  • For work on assembly lines or for repetitive production tasks.
  • no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
  • measurements are independent of the point of application of force
  • for controlled clockwise tightening
  • with permanently installed ratchet
Overview
This clicking-type torque wrench features a dual stop signal, making it suitable for work on assembly lines or repetitive production tasks. It is designed for controlled clockwise tightening and comes with a permanently installed ratchet The wrench has 22 teeth and a particularly slim design, with handle and shaft made of square steel pipe. Measurements are independent of the point of application of force, and the clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range of the torque wrench It has no adjustment scale; therefore, adjustment with test equipment is required, such as STAHLWILLE test devices No. 7707 W, SmartCheck, the perfectControl® calibration system No. 7794, or calibration systems No. 7706 and 7791. The wrench can be supplied pre-set at a defined torque value with certification (additional charge applies) and offers an accuracy of ±4%.
Brand img

Stahlwille 50100001 1/4" MANOSKOP Torque Wrench 1.5Nm - 12.5Nm

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754096268
California Residents
Proposition 65 Warning
Part Number
50100001
Physical Characteristics
Material
Steel

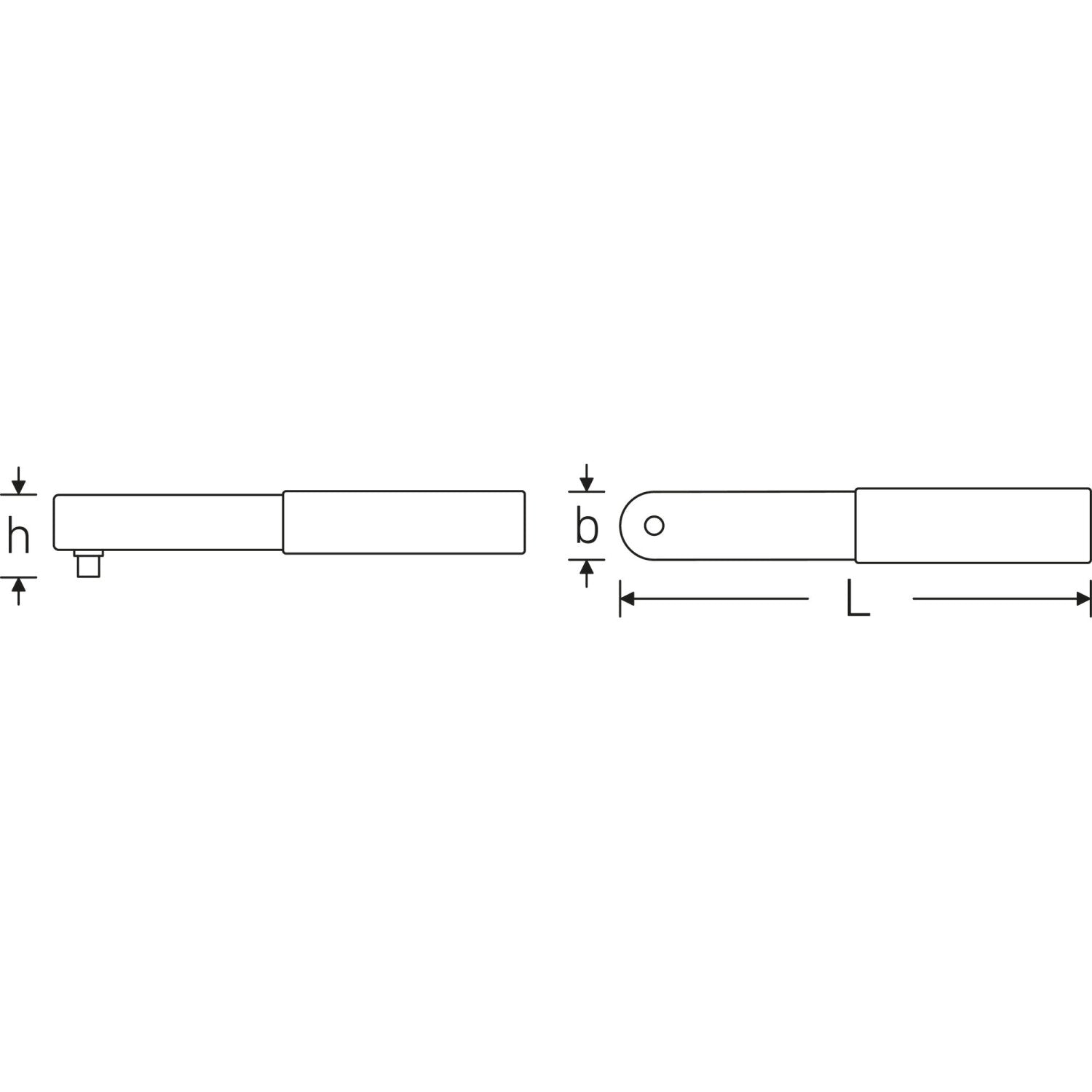

Length
173.5 mm
Width
22 mm
Height
18 mm
Weight
1.21 kg
2.67 lb
Details
Wrench Type
Torque
Torque Range ft lbs
1ft lb - 9ft lb
Torque Range Nm
1.5Nm - 12.5Nm
Torque Accuracy
± 4%
Type
Square
Features
clicking type with dual stop signal
for work on assembly lines or for repetitive production tasks.
no adjustment scale; therefore adjustment with test equipment is required, e.g. with the STAHLWILLE test devices No. 7707 W, SmartCheck or the perfectControl® calibration system No. 7794, or calibration systems No. 7706. 7791)
measurements are independent of the point of application of force
for controlled clockwise tightening
with permanently installed ratchet
22 teeth
particularly slim design
handle and shaft made of square steel pipe
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
can be supplied pre-set at defined torque value and with certification (additional charge applies)
accuracy ± 4%
Drive Connector Size
1/4 Inches
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
