Stahlwille 50184002 730/2 Quick MANOSKOP Torque Wrench for inserts
Stahlwille 50184002 730/2 Quick MANOSKOP Torque Wrench for inserts
Stahlwille 50184002 730/2 Quick MANOSKOP Torque Wrench for inserts

Stahlwille 50184002 730/2 Quick MANOSKOP Torque Wrench for inserts


Regular price$400.94 USD & FREE Shipping.
/

  • clicking type with dual stop signal
  • no reset to "0" required
  • the measuring element is only under load when a force is applied.
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
Overview
730/2 Quick MANOSKOP torque wrench for inserts, clicking type with dual stop signal. No reset to “0” required, as the measuring element is only under load when a force is applied. Features a mount for interchangeable insert tools with QuickRelease safety lock, non-slip adjuster with thumb recess, and fine, tapered pointers. Allows counter-clockwise tightening by reversing the insert tool. Clicking mechanism is resistant to continuous and counter-loads. Compatible with perfectControl® calibration systems No. 7794, 7706, and 7791, with easy adjustment via two external screws without disassembly. Equipped with a 2-component handle and supplied with a calibration certificate according to DIN EN ISO 6789-2:2017.

Stahlwille 50184002 730/2 Quick MANOSKOP Torque Wrench for inserts

Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754292653
California Residents
Proposition 65 Warning
Part Number
50184002

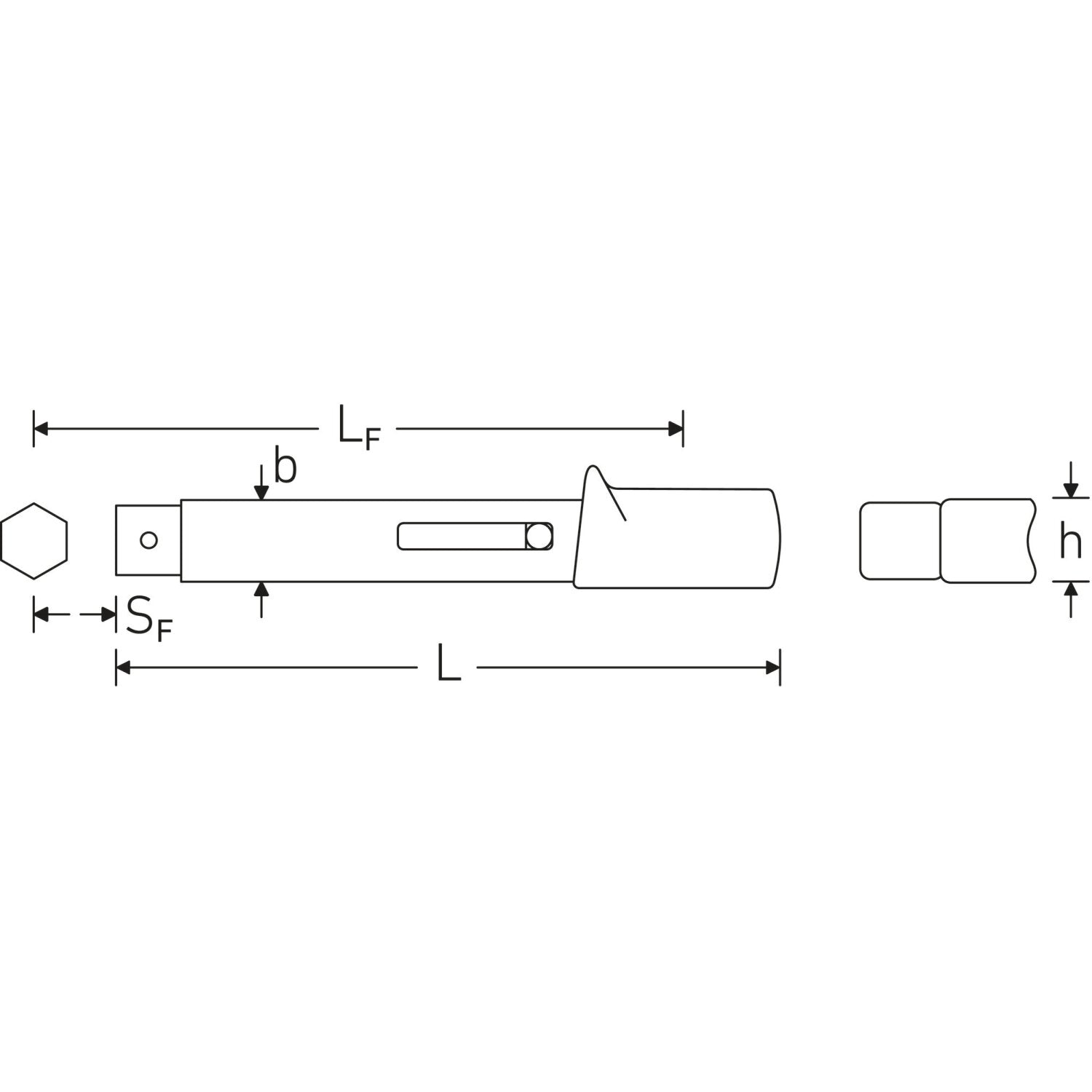

Physical Characteristics
Length
179 mm
Width
27.5 mm
Height
30 mm
Weight
0.87 kg
1.91 lb
Details
Wrench Type
Torque
Torque Range Nm
4-20 Nm
Torque Accuracy
± 4%
Size
2
Features
clicking type with dual stop signal
no reset to "0" required
the measuring element is only under load when a force is applied.
mount for interchangeable insert tools
with QuickRelease safety lock
non-slip adjuster with thumb recess for quick torque adjustment
fine, tapered pointers
counter-clockwise tightening by turning the insert tool over
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

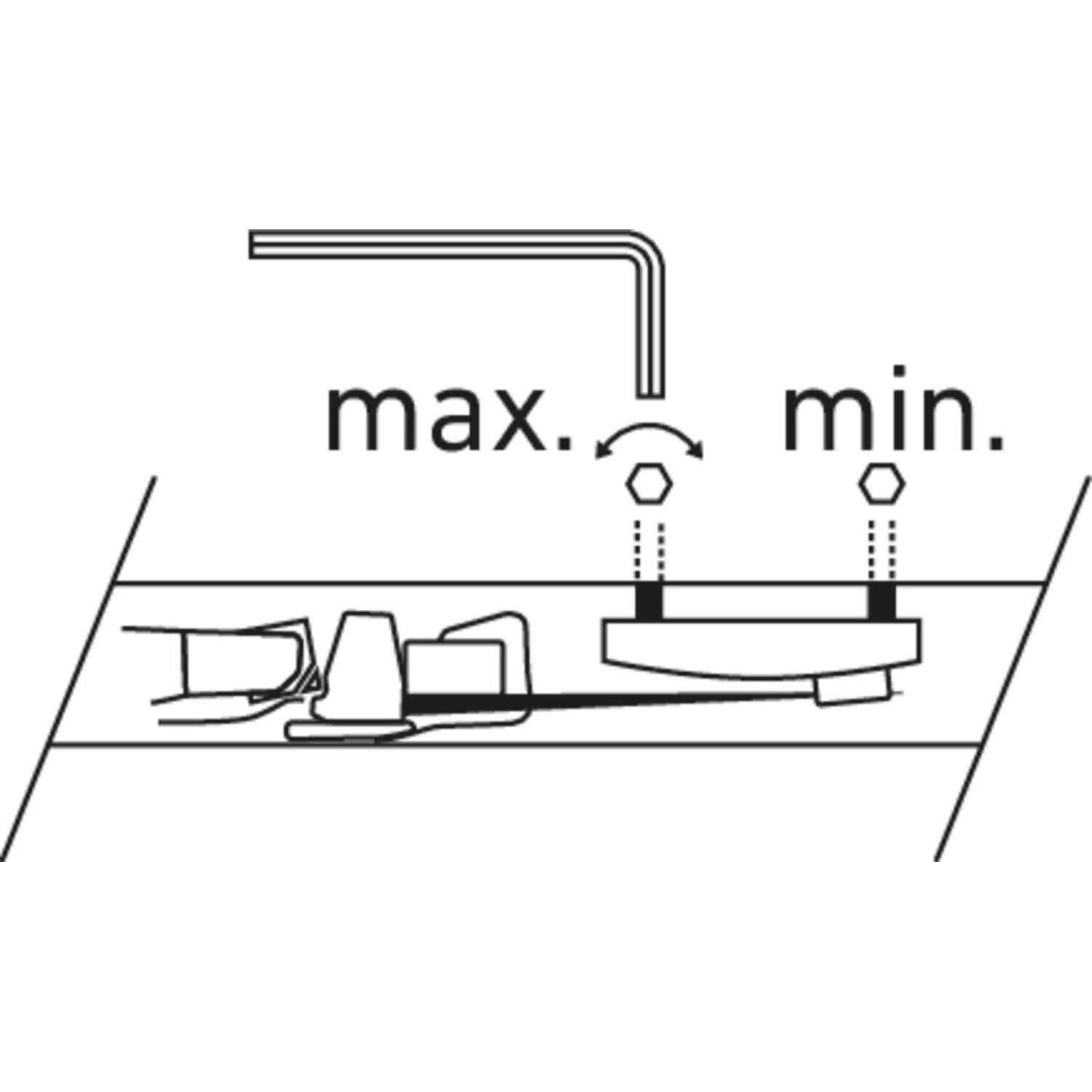

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
