$481.99 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • clicking type with dual stop signal
  • no reset to "0" required
  • the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
Overview

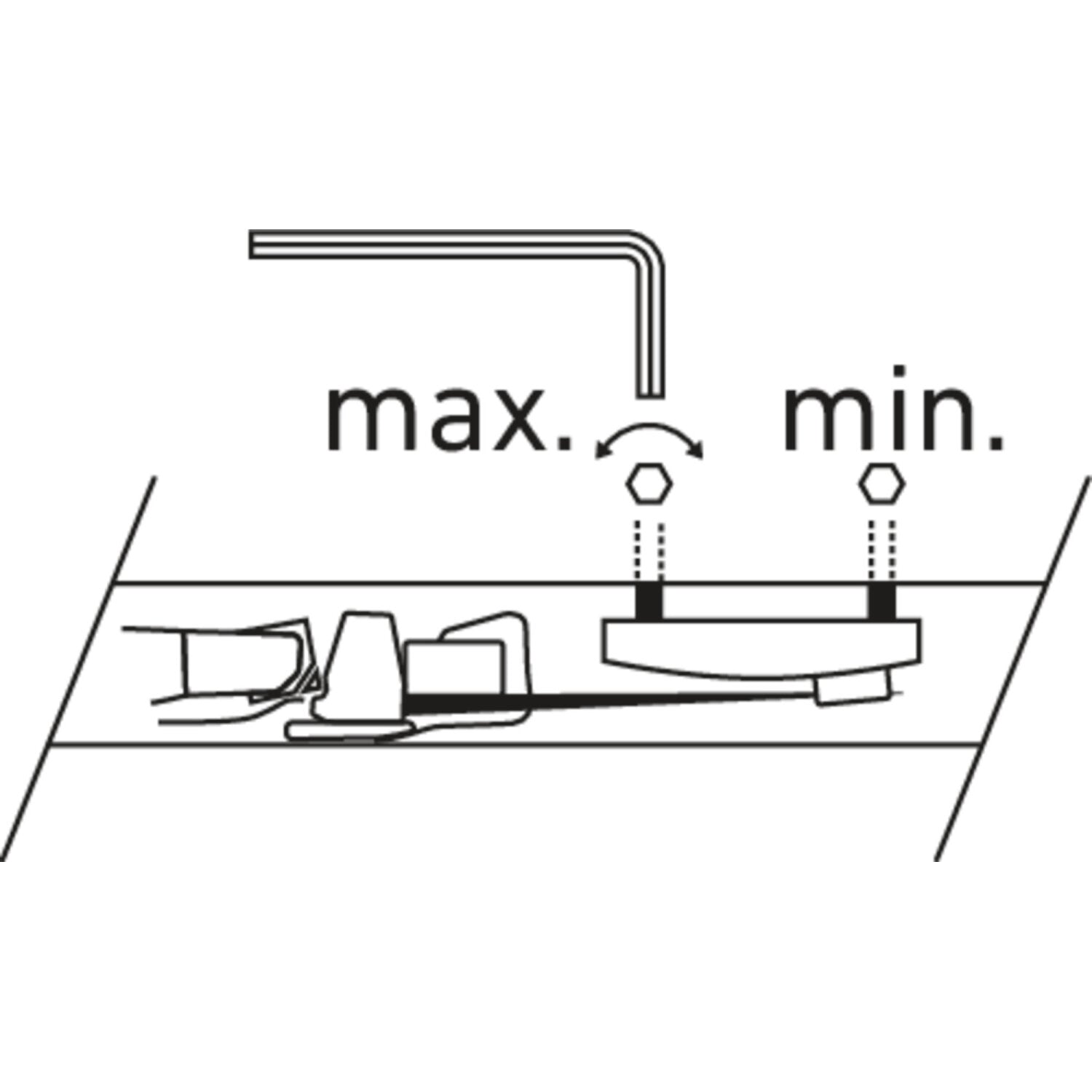

This torque wrench features a clicking type mechanism with a dual stop signal and does not require a reset to "0". The measuring element is only under load when a force is applied. It includes a mount for interchangeable insert tools, a QuickRelease safety lock, and fast, precise adjustment with QuickSelect quick adjustment. The wrench has a dual scale in ft·lb/in·lb and a clicking mechanism that is insensitive to continuous loads and counter-loads up to the maximum measurement range. Counter-clockwise tightening is possible by turning the insert tools over. Optimal calibration can be achieved with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment is possible without disassembly via two external adjustment screws. The tool comes with a 2-component handle and a calibration certificate in accordance with DIN EN ISO 6789-2:2017. It offers an accuracy of ±3% (size a/2: 4%).
Brand img

Stahlwille 50581005 730N Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754139569
California Residents
Proposition 65 Warning
Part Number
50581005

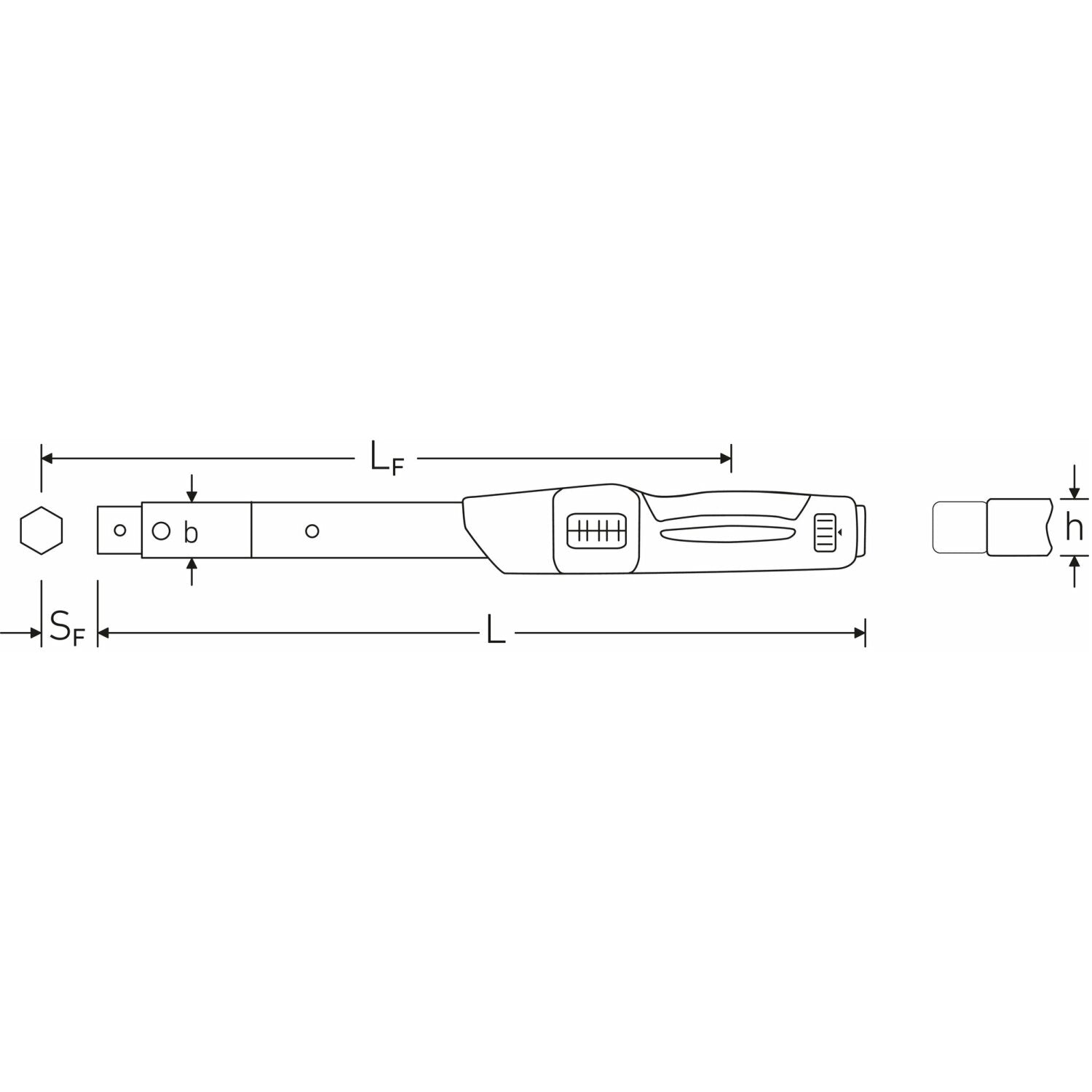

Physical Characteristics
Length
330 mm
Width
28 mm
Height
23 mm
Weight
0.68 kg
1.49 lb
Details
Wrench Type
Torque
Torque Range ft lbs
7-37 ft lb
Torque Range Nm
90-450 Nm
Size
a/5
Features
Clicking type with dual stop signal
no reset to "0" required
the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
