Stahlwille 50581040 730N Service MANOSKOP torque wrench

$803.98 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • clicking type with dual stop signal
  • no reset to "0" required
  • the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
Overview

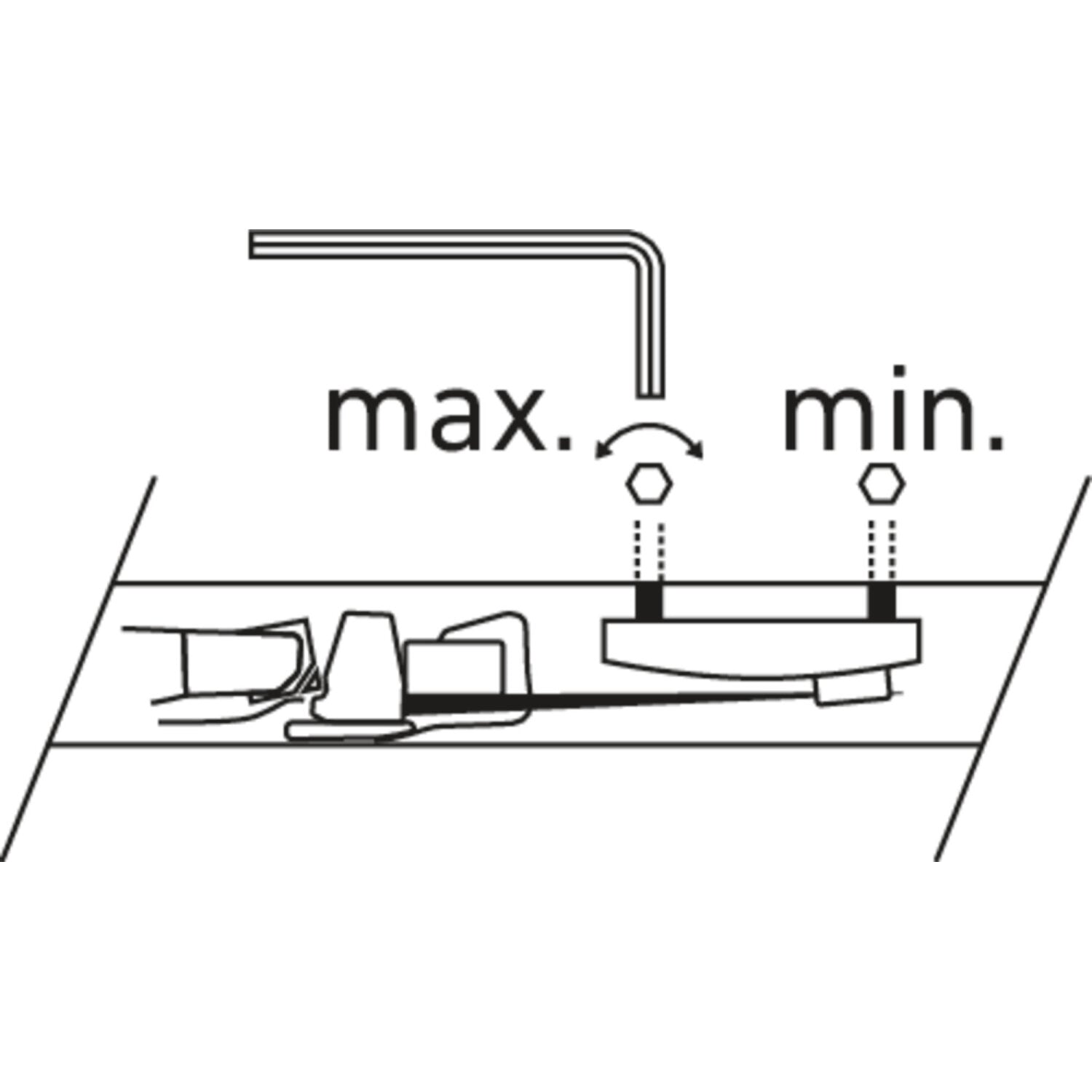

Clicking-type torque wrench with dual stop signal, requiring no reset to "0". The measuring element is only under load when a force is applied. Equipped with a mount for interchangeable insert tools and QuickRelease safety lock. Features fast, precise adjustment with QuickSelect quick adjustment and dual scale in ft·lb/in·lb. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range of the torque wrench. Counter-clockwise tightening is possible by turning the insert tools over. Ensures optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment without disassembly via 2 external adjustment screws. Includes a 2-component handle and calibration certificate in accordance with DIN EN ISO 6789‑2:2017. Accuracy ±3% (size a/2: 4%).
Brand img

Stahlwille 50581040 730N Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754164004
California Residents
Proposition 65 Warning
Part Number
50581040

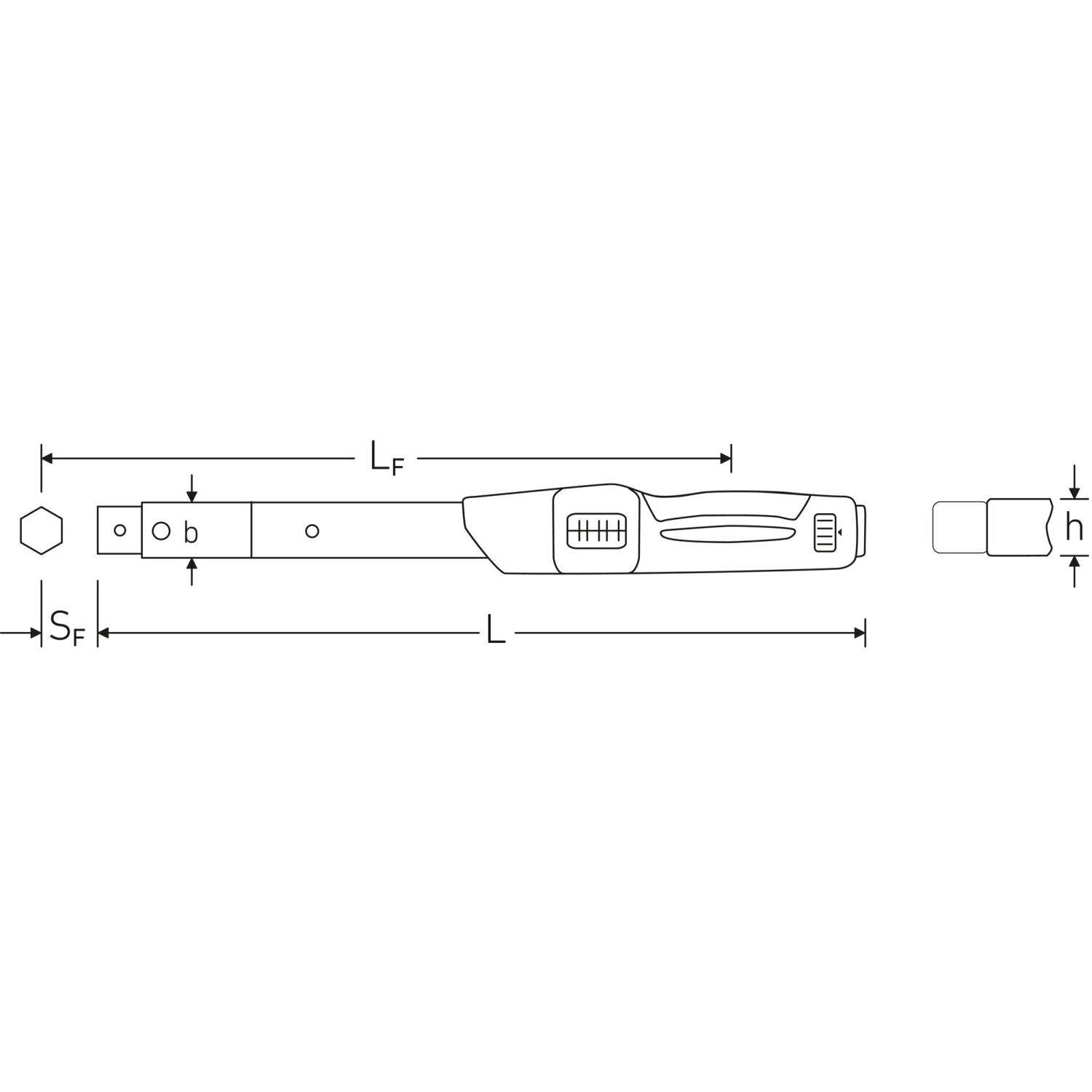

Physical Characteristics
Length
607 mm
Width
28 mm
Height
23 mm
Weight
1.21 kg
2.67 lb
Details
Wrench Type
Torque
Torque Range ft lbs
60-300 ft lb
Torque Range Nm
800-3600 Nm
Size
a/40
Features
clicking type with dual stop signal
no reset to "0" required
the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
