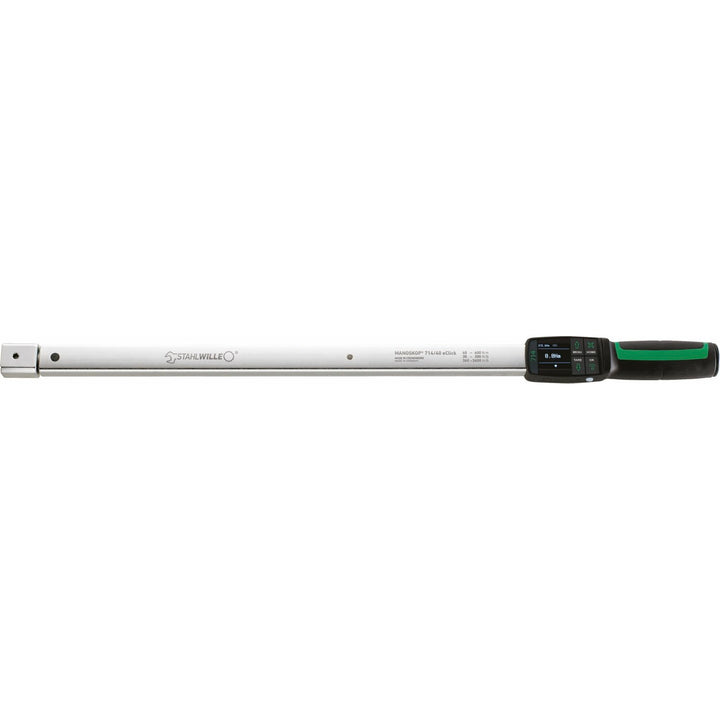

Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench
Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench
Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench
Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench
Stahlwille logo

Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench

$2,361.09 USD & FREE Shipping.
/
Extended Handling May Be Required
  • An angle and torque wrench for bolted joints in accordance with the torque, angle of rotation, torque with "angle of rotation" monitoring variable and angle of rotation with "torque" monitoring variable tightening method.
  • Electromechanically displaying (with electronic measurement) and triggering (with the familiar mechanical “click”).
  • Visual evaluation of the bolted joint.
  • Simple documentation of the recorded measurements on the PC via the USB interface and via an optional Bluetooth Low Energy module.
  • Thanks to the combination of the patented electromechanical triggering and the display and acoustic feedback, the wrench provides signalling with maximum optimisation.
Overview
STAHLWILLE 714 MANOSKOP Tightening Angle and torque wrench designed for bolted joints using torque, angle of rotation, torque with angle monitoring, and angle with torque monitoring tightening methods. It features electromechanical display with electronic measurement and mechanical “click” triggering, allowing visual evaluation of the bolted joint. Recorded measurements can be easily documented on a PC via the USB interface or an optional Bluetooth Low Energy module. The combination of patented electromechanical triggering with display and acoustic feedback ensures clear signalling and optimized operation.
Brand img

Stahlwille 96500940 714 MANOSKOP tightening angle torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754222841
California Residents
Proposition 65 Warning
Part Number
96500940
Return Policy
NCNR - Non-Cancellable / Non-Returnable

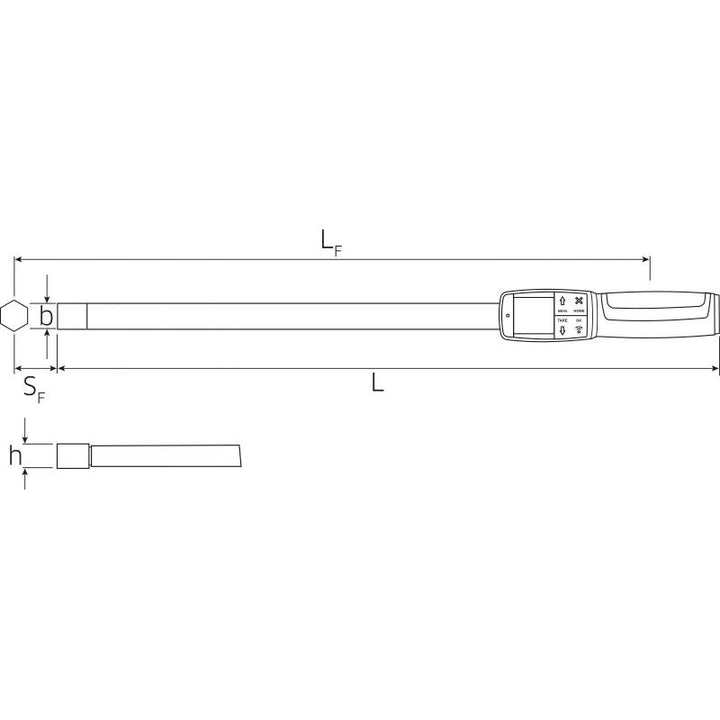

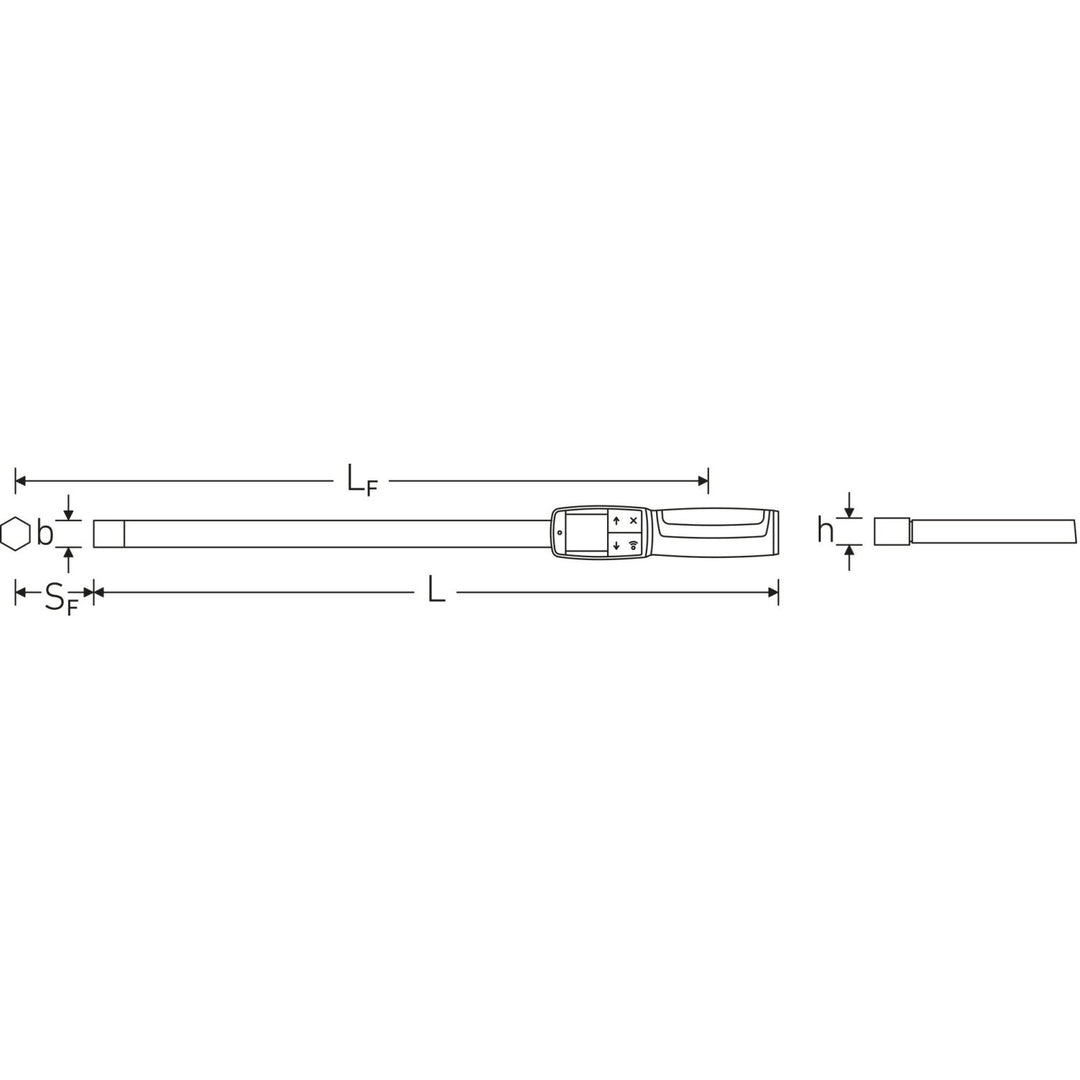

Physical Characteristics
Length
687 mm
Width
85 mm
Height
65 mm
Weight
1.66 kg
3.65 lb
Details
Wrench Type
Torque
Torque Range ft lbs
30-300 ft lb
Torque Range Nm
40-400 Nm
Torque Display Scale
±1%, ±1 digit
Batteries
1.5 V. AAA, 1.2 V
Size
40, 14x18 mm
Features
An angle and torque wrench for bolted joints in accordance with the torque, angle of rotation, torque with "angle of rotation" monitoring variable and angle of rotation with "torque" monitoring variable tightening method.
Electromechanically displaying (with electronic measurement) and triggering (with the familiar mechanical “click”).
Visual evaluation of the bolted joint.
Simple documentation of the recorded measurements on the PC via the USB interface and via an optional Bluetooth Low Energy module.
Thanks to the combination of the patented electromechanical triggering and the display and acoustic feedback, the wrench provides signalling with maximum optimisation.
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
