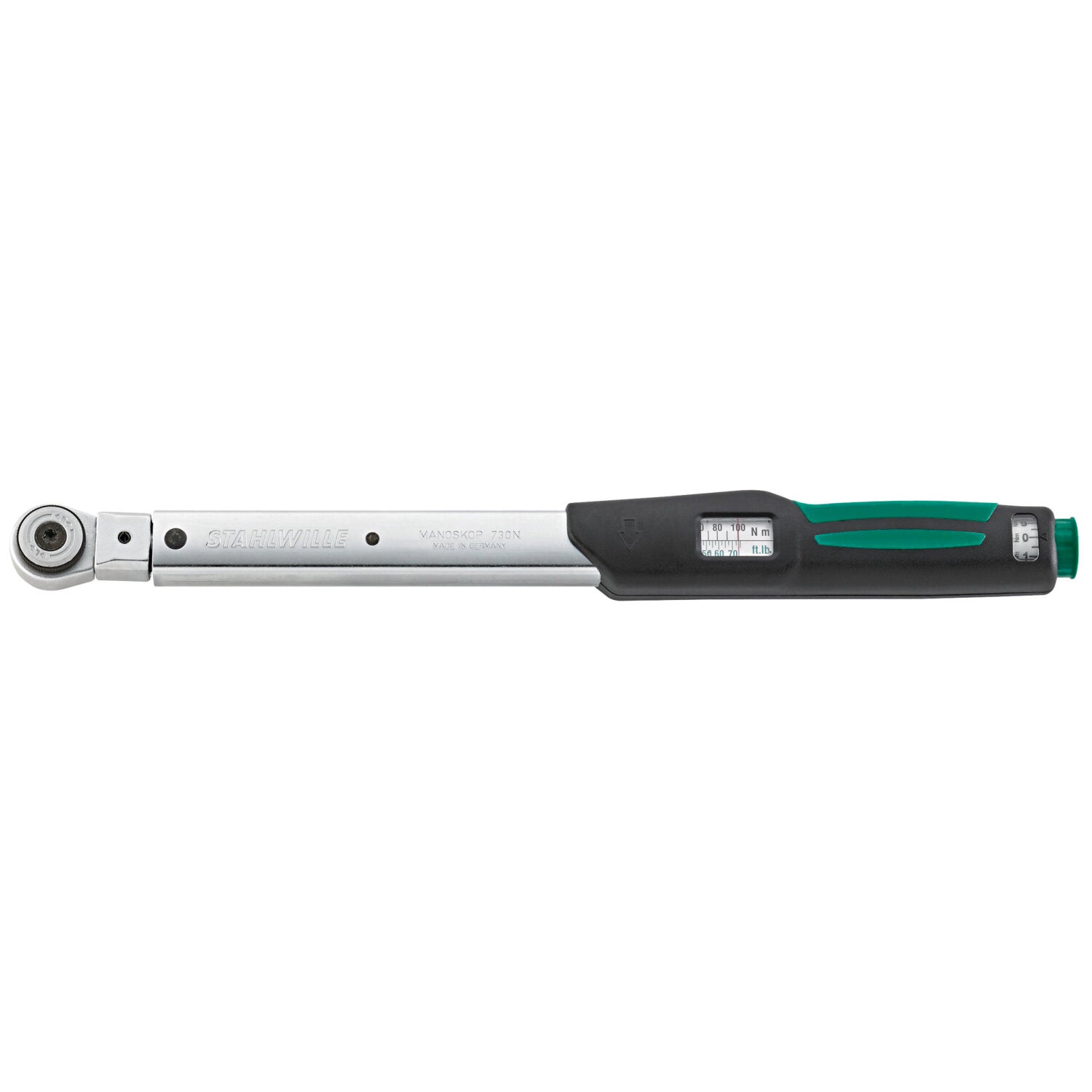

Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille 96503110 730NR Service MANOSKOP torque wrench
Stahlwille logo

Stahlwille 96503110 730NR Service MANOSKOP torque wrench

$666.73 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • clicking type with dual stop signal
  • no reset to '0' required
  • the measuring element is only under load when a force is applied
  • with permanently installed fine-tooth ratchet
  • fast, precise adjustment with QuickSelect quick adjustment
Overview
The MANOSKOP torque wrench (clicking type) with dual stop signal provides precise and reliable torque control without requiring a reset to “0”, as the measuring element is only under load when force is applied. It features a permanently installed fine-tooth ratchet and allows fast, accurate setting via the QuickSelect quick adjustment system, with a clear dual scale in N·m/ft·lb. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. Calibration is optimized with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791, and adjustment is easily carried out without disassembly using two external adjustment screws. Supplied in a sturdy plastic box (size 65 in sheet steel box) with a 2-component handle, it includes a calibration certificate in accordance with DIN EN ISO 6789-2:2017.
Brand img

Stahlwille 96503110 730NR Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754229383
California Residents
Proposition 65 Warning
Part Number
96503110

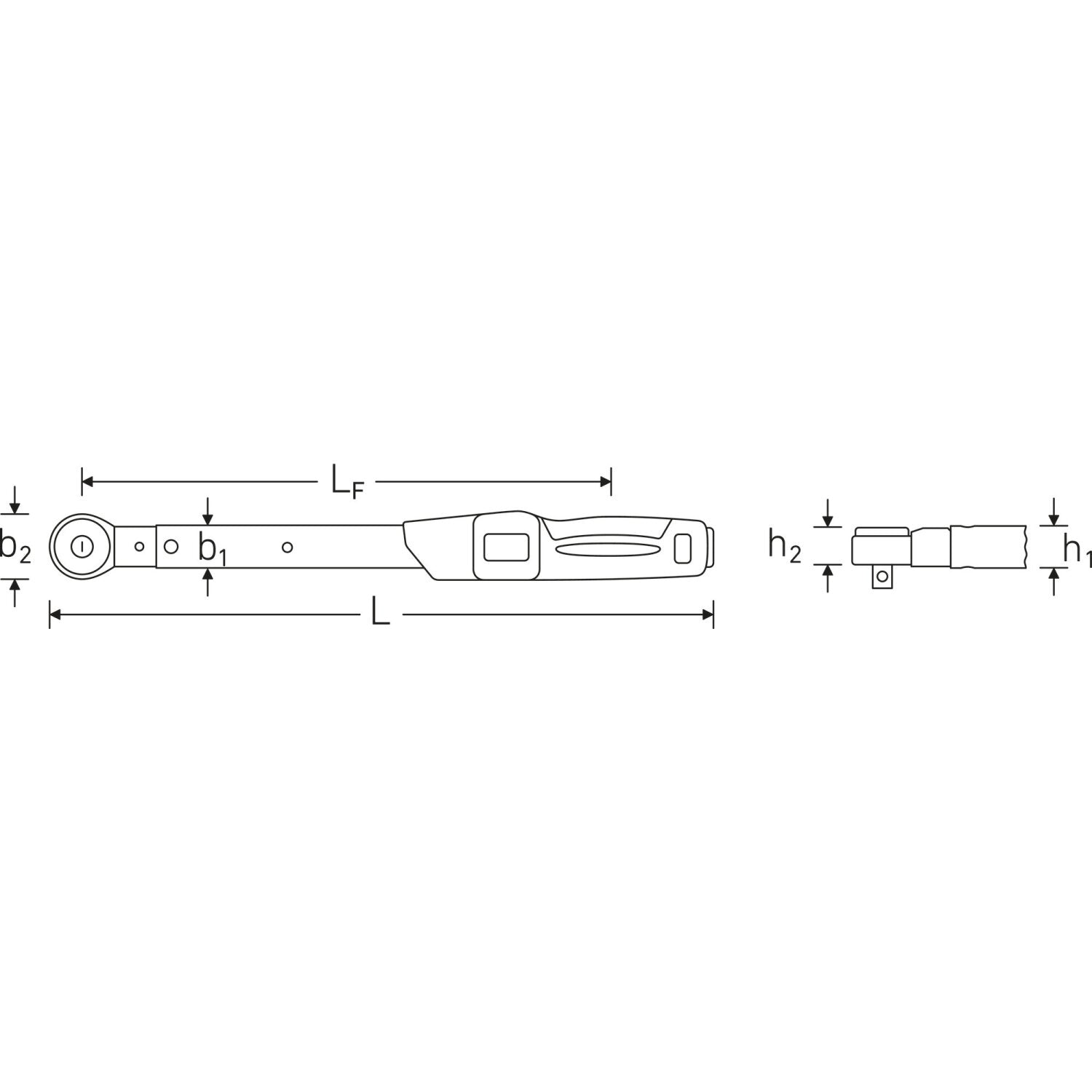

Physical Characteristics
Length
420 mm
Width
33 mm
Height
24 mm
Weight
11.00 kg
24.25 lb
Details
Torque Range ft lbs
15-75 ft lb
Torque Range Nm
20-100 Nm
Size
10 FK
Features
clicking type with dual stop signal
no reset to '0' required
the measuring element is only under load when a force is applied
with permanently installed fine-tooth ratchet
fast, precise adjustment with QuickSelect quick adjustment
dual scale N·m/ft·lb
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

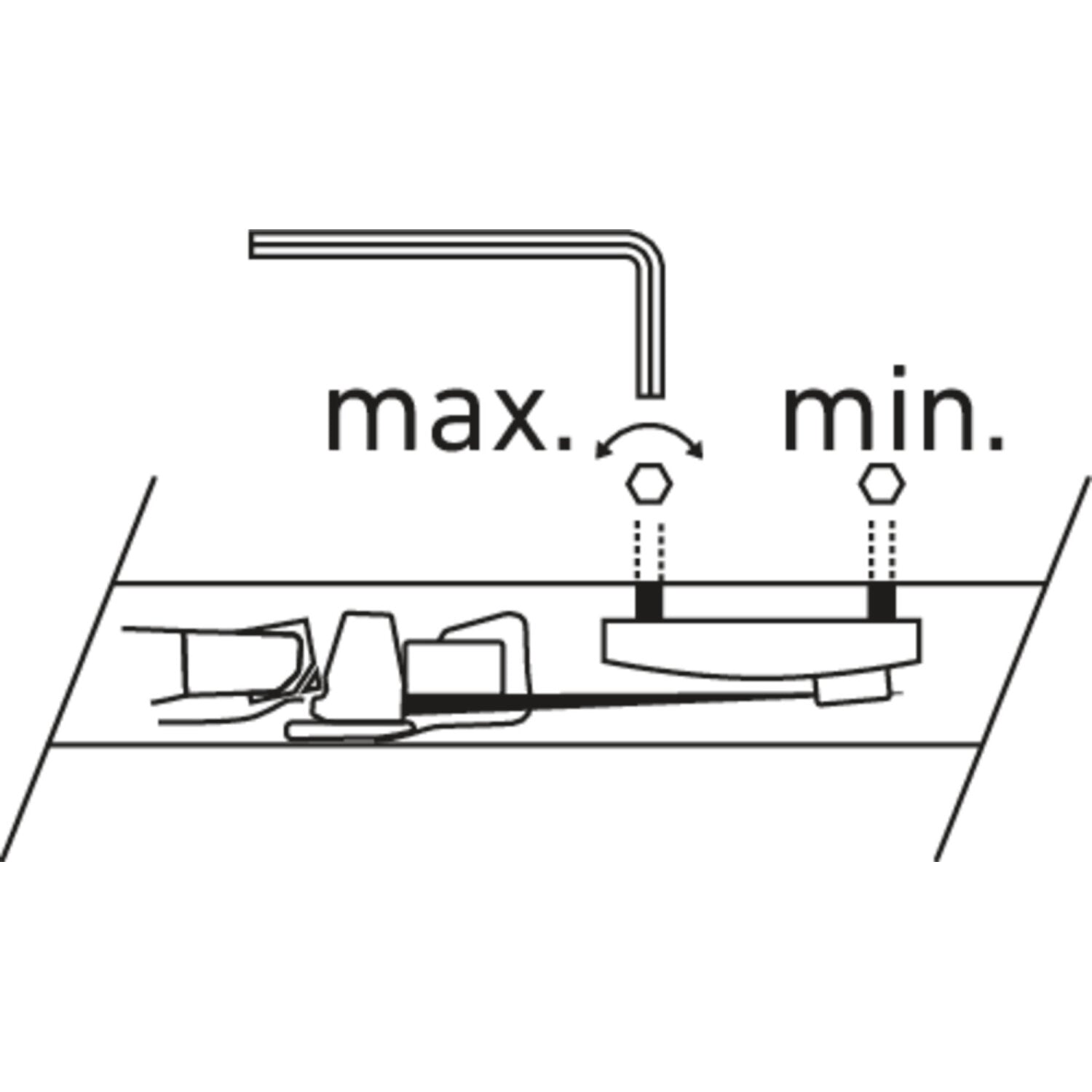

easy adjustment without disassembly via 2 external adjustment screws
in sturdy plastic box (size 65 in sheet steel box)
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
