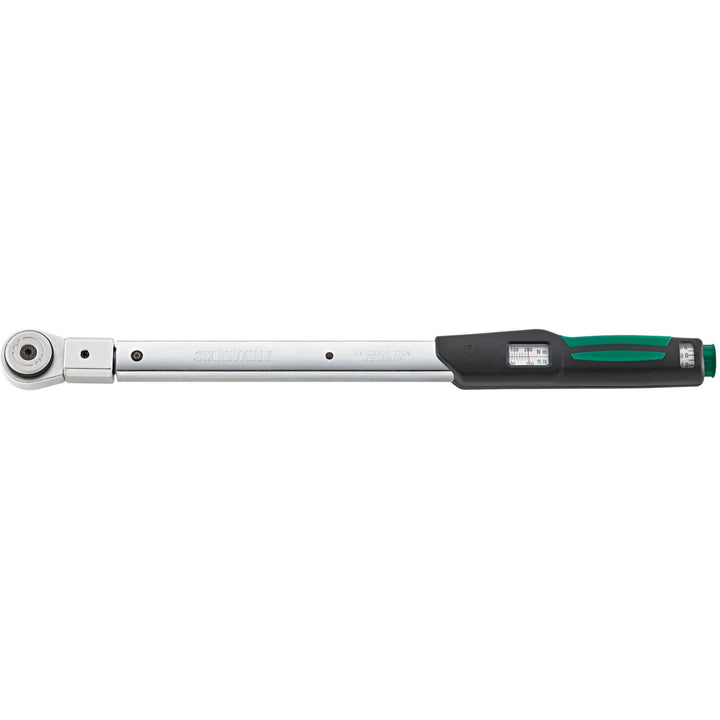

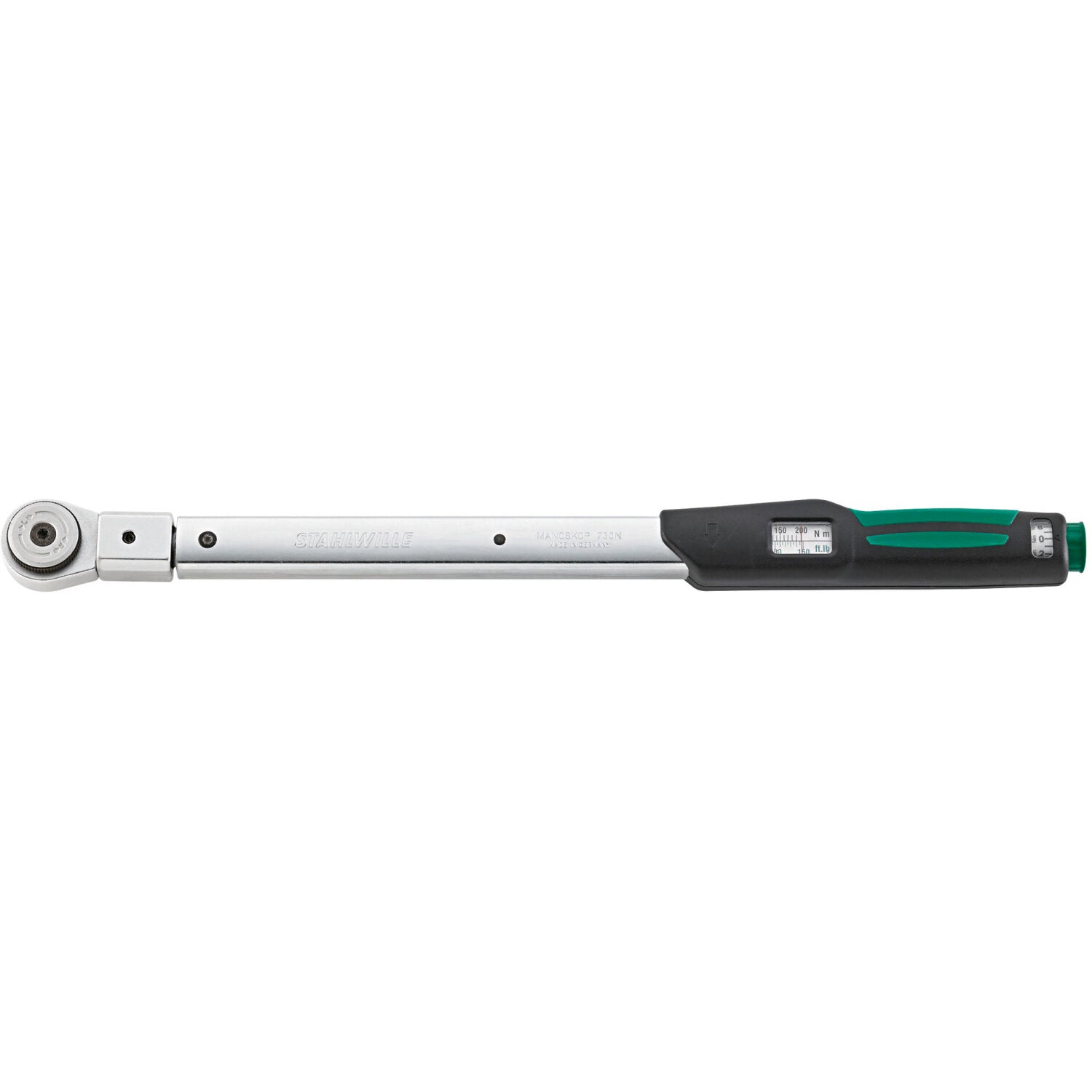

Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille 96503120 730NR Service MANOSKOP torque wrench
Stahlwille logo

Stahlwille 96503120 730NR Service MANOSKOP torque wrench

$759.23 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Clicking type with dual stop signal
  • No reset to '0' required
  • The measuring element is only under load when a force is applied
  • With permanently installed fine-tooth ratchet
  • Fast, precise adjustment with QuickSelect quick adjustment
Overview

This clicking type torque wrench features a dual stop signal and does not require resetting to “0”. The measuring element is only under load when force is applied and it is equipped with a permanently installed fine-tooth ratchet. Fast and precise adjustment is enabled by the QuickSelect quick adjustment system, and the dual scale displays values in N·m and ft·lb. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range of the torque wrench. Optimal calibration can be carried out with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791. Adjustment is easy and possible without disassembly via two external adjustment screws. Supplied in a sturdy plastic box (size 65 in sheet steel box) and fitted with a 2-component handle. Includes a calibration certificate in accordance with DIN EN ISO 6789-2:2017. Accuracy ± 4%.

Brand img

Stahlwille 96503120 730NR Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754229390
California Residents
Proposition 65 Warning
Part Number
96503120
Physical Characteristics

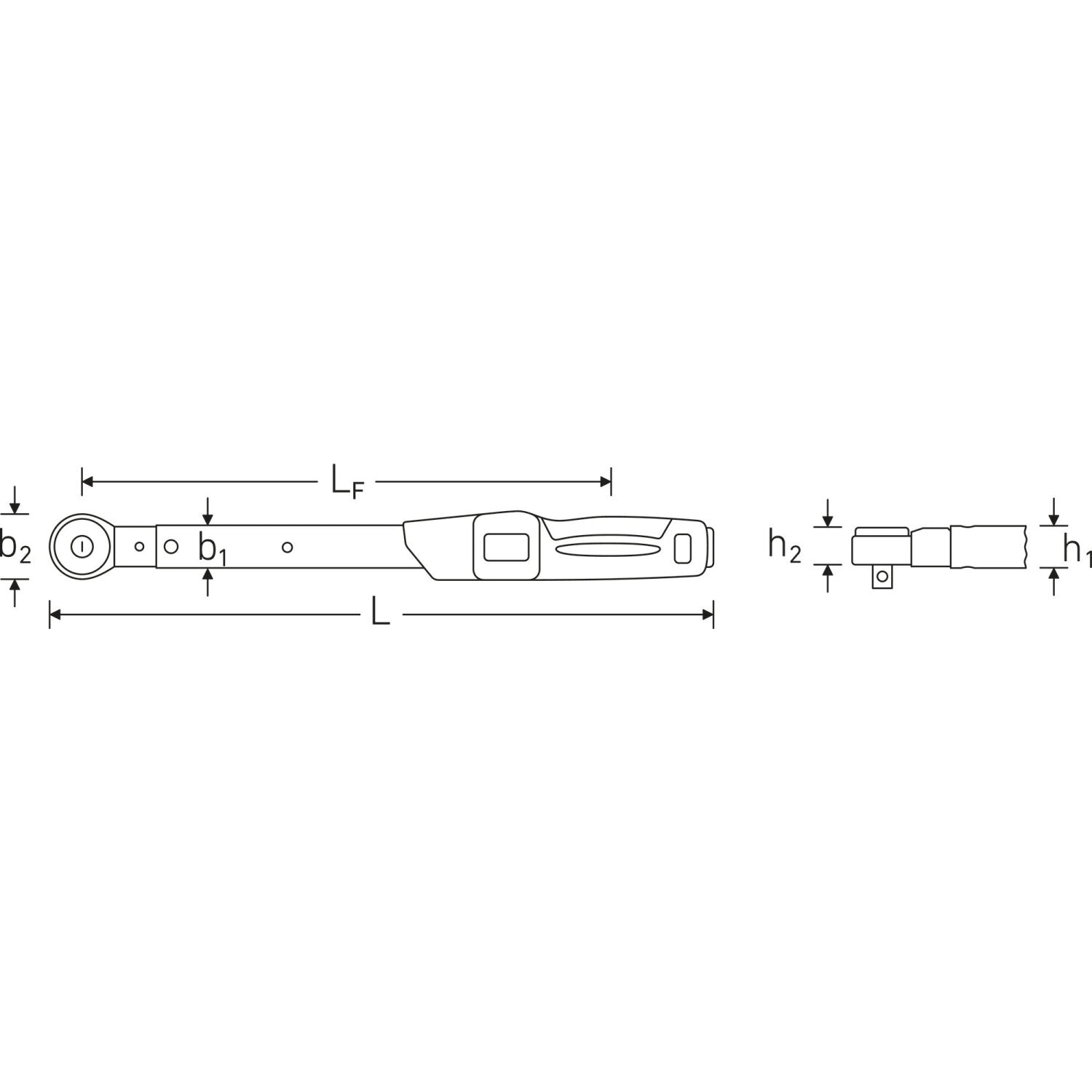

Length
513.5 mm
Width
43 mm
Height
26 mm
Weight
1.57 kg
3.47 lb
Details
Wrench Type
Torque
Torque Range ft lbs
30-150 ft lb
Torque Range Nm
40-200 Nm
Size
20 FK
Features
clicking type with dual stop signal
no reset to '0' required
the measuring element is only under load when a force is applied
with permanently installed fine-tooth ratchet
fast, precise adjustment with QuickSelect quick adjustment
dual scale N·m/ft·lb
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

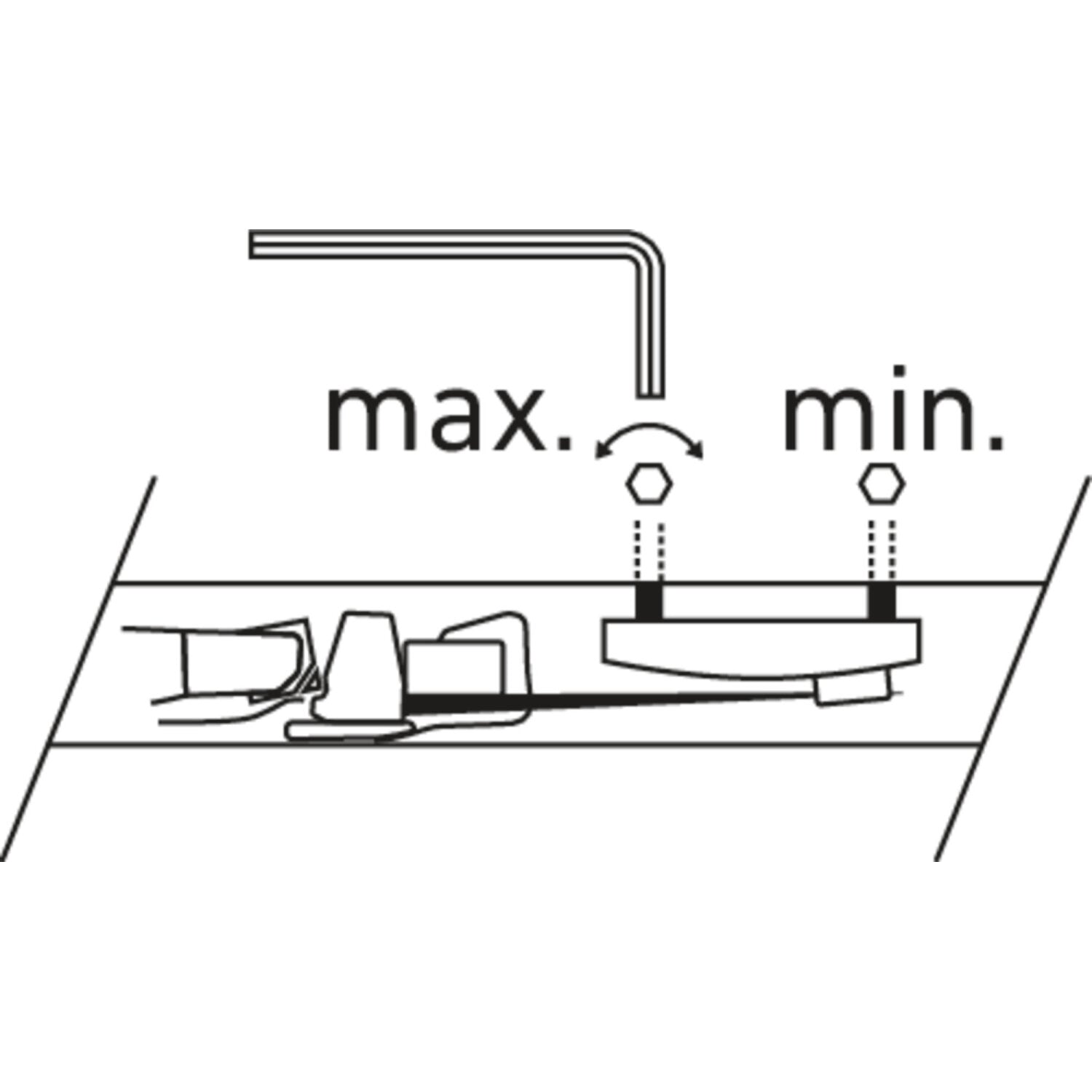

easy adjustment without disassembly via 2 external adjustment screws
in sturdy plastic box (size 65 in sheet steel box)
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 4%
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
