Stahlwille 96583020 730 Fix Service MANOSKOP torque wrench

$699.35 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • for work on assembly lines or for repetitive production tasks
  • clicking type with dual stop signal
  • adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
  • the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
  • no reset to '0' required
Overview

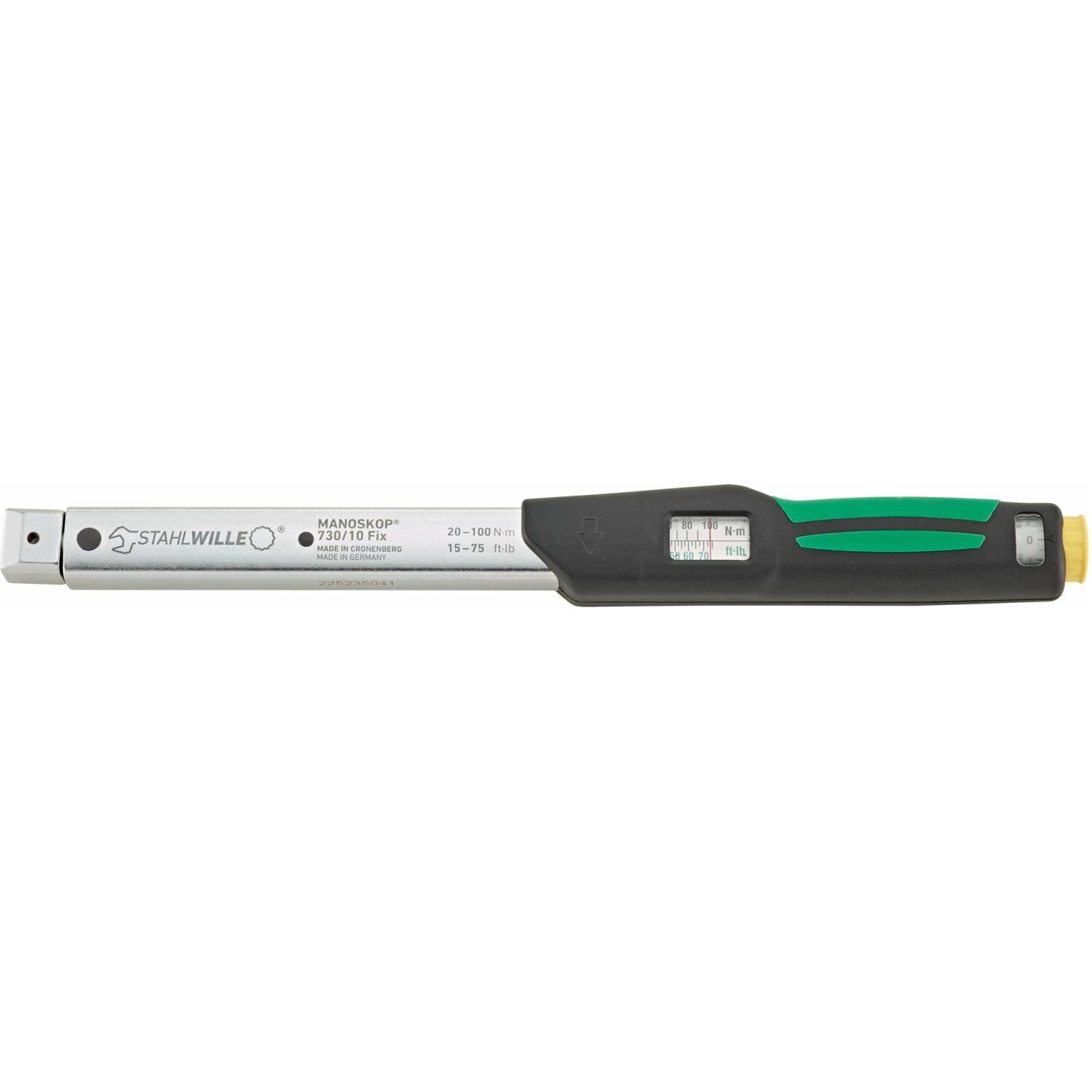

The STAHLWILLE Fix Service MANOSKOP Torque Wrench is ideal for assembly line and repetitive production tasks. This clicking-type wrench features a dual stop signal and QuickSelect quick adjustment for fast, precise torque setting. The adjustment knob can be locked after setting, and TORX® Tamper Resistant screws with self-adhesive seals prevent unauthorized changes. No reset to zero is required, as the measuring element only engages under load. It offers dual ft·lb/in·lb scales, a mount for interchangeable insert tools, and a QuickRelease safety lock. The clicking mechanism is insensitive to continuous and counter-loads, and counter-clockwise tightening is possible by turning the insert tools. Easy calibration is ensured with perfectControl® systems (No. 7794, 7706, 7791) and adjustment via two external screws without disassembly. With a comfortable 2-component handle and supplied with a calibration certificate per DIN EN ISO 6789-2:2017, this torque wrench delivers precise, reliable performance for professional use.

Brand img

Stahlwille 96583020 730 Fix Service MANOSKOP torque wrench

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754269808
California Residents
Proposition 65 Warning
Part Number
96583020

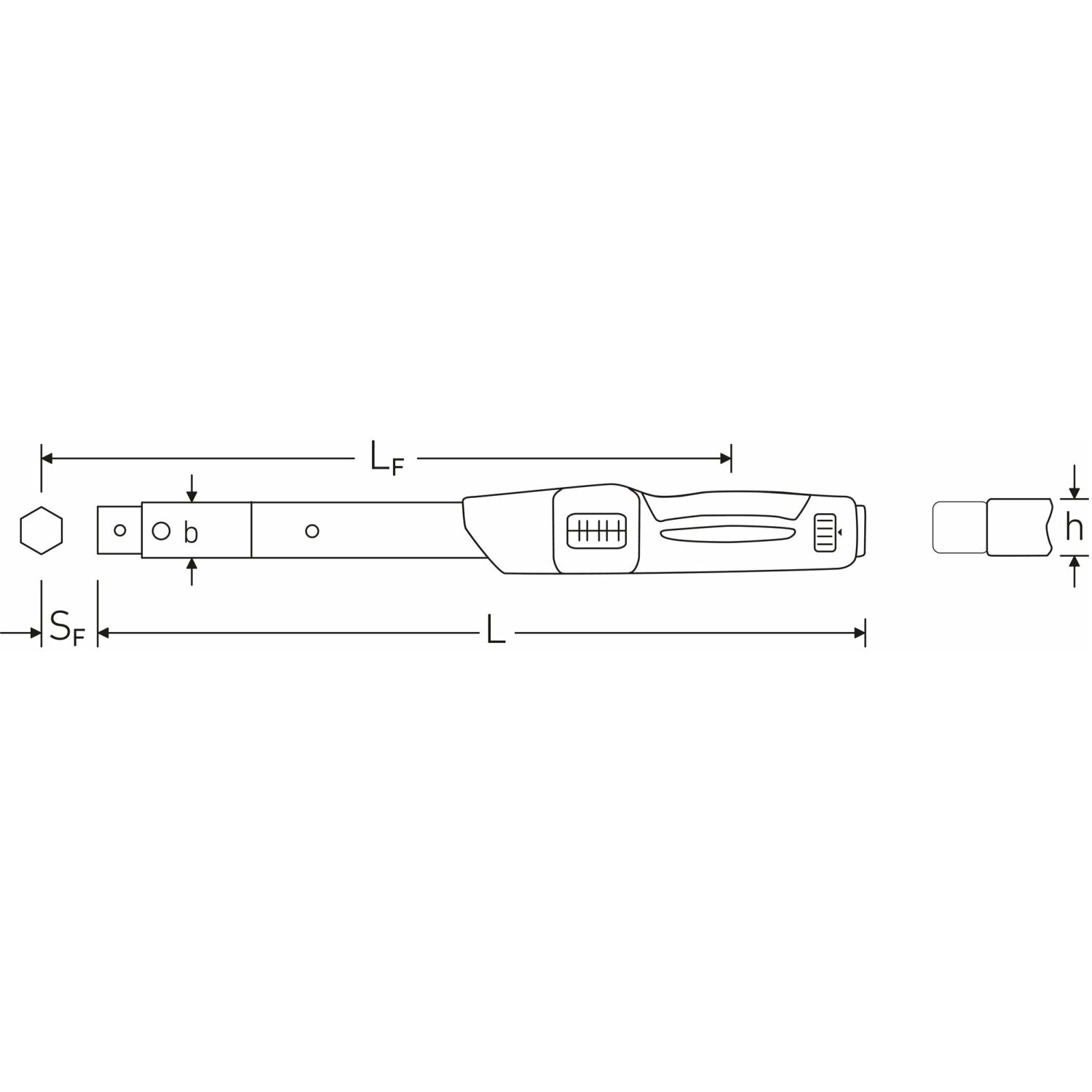

Physical Characteristics
Length
467 mm
Width
28 mm
Height
23 mm
Weight
1.64 kg
3.61 lb
Details
Wrench Type
Torque
Size
a/20
Features
for work on assembly lines or for repetitive production tasks
clicking type with dual stop signal
adjustment knob can be unscrewed after setting the desired torque value- subsequent changing of the setting is thus prevented
the included TORX® Tamper Resistant locking screw also protects against tampering, as well as the included self-adhesive seals. no adjustment is possible without breaking the seal
no reset to '0' required
the measuring element is only under load when a force is applied
fast, precise adjustment with QuickSelect quick adjustment
dual scale ft·lb/in·lb
mount for interchangeable insert tools
with QuickRelease safety lock
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
counter-clockwise tightening by turning the insert tools over
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

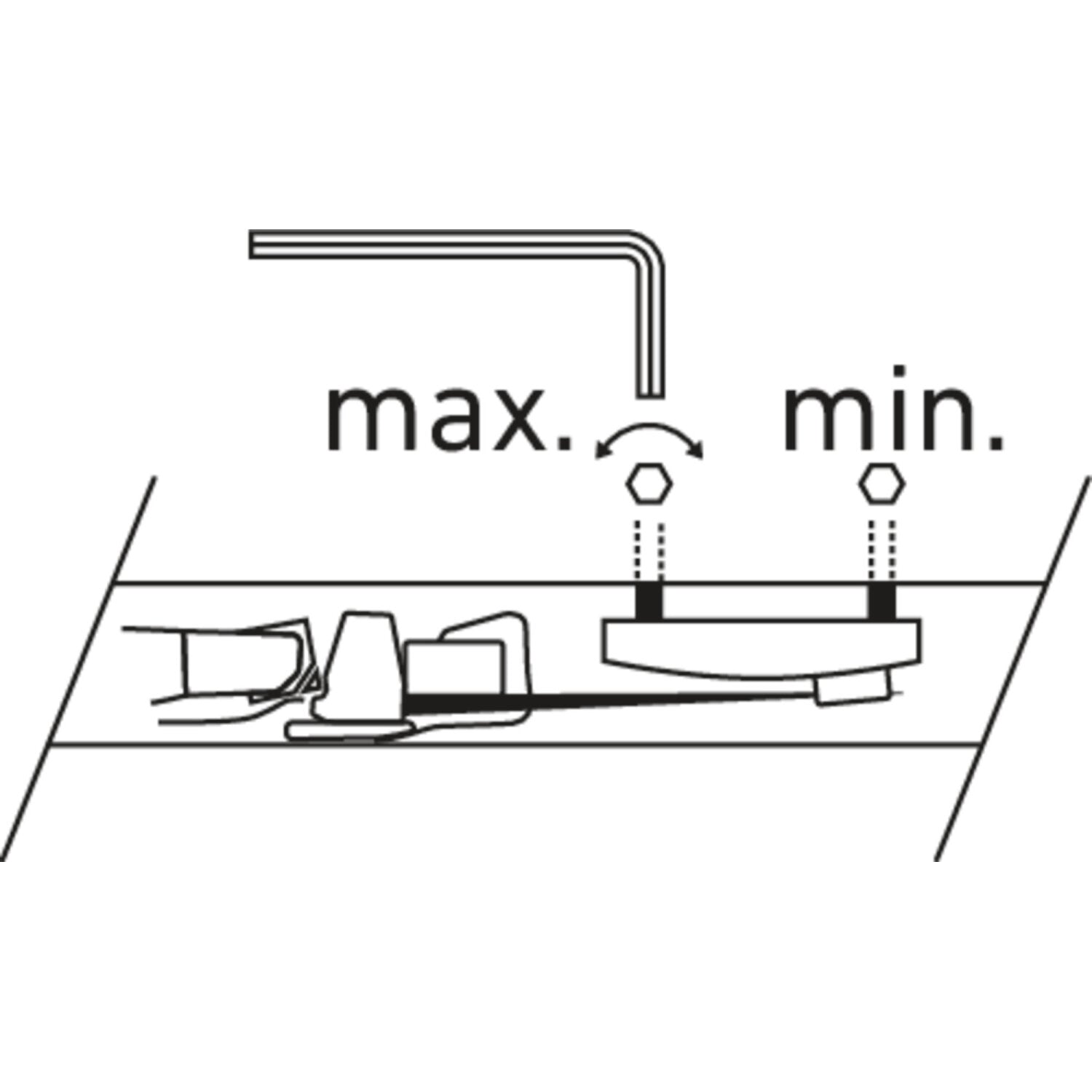

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
