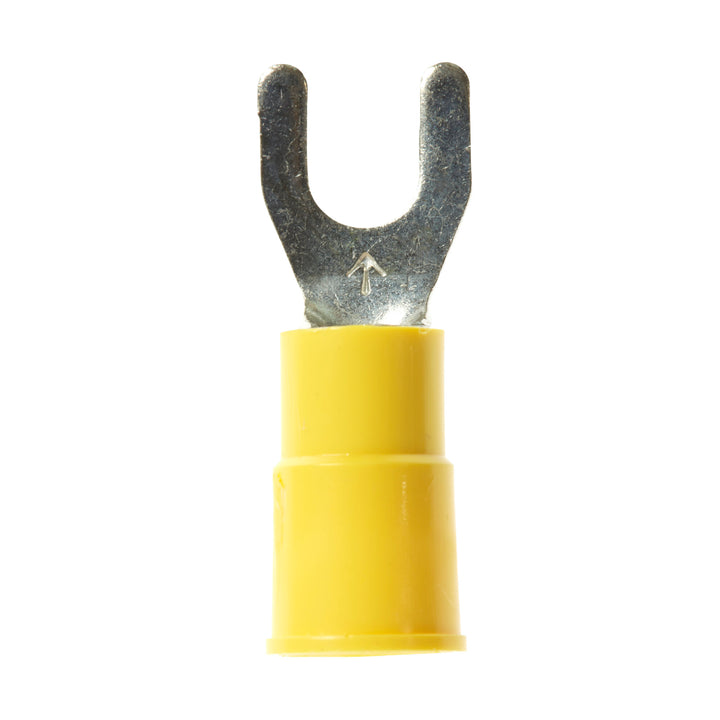

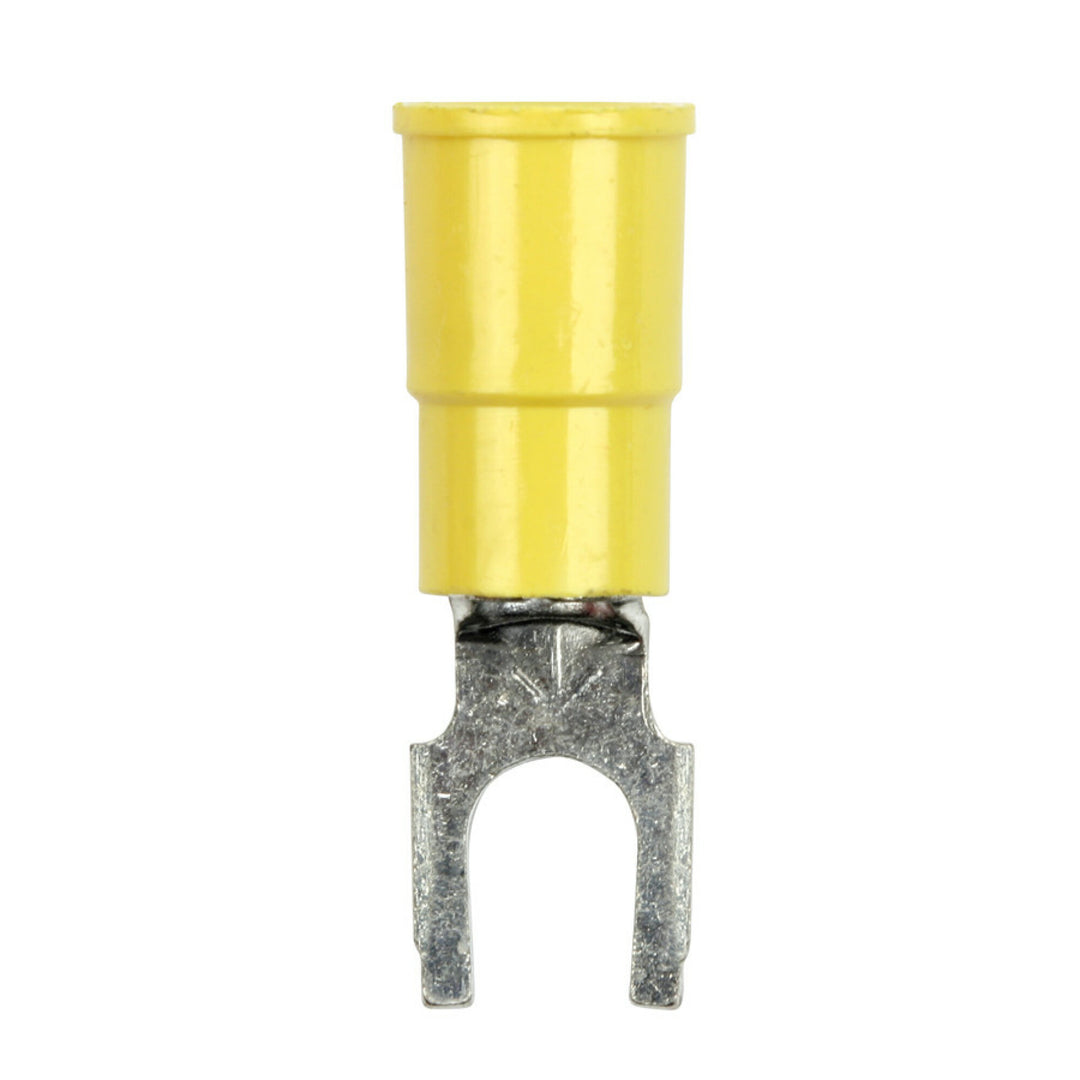

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU10-10FLK,Stud Size 10
3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU10-10FLK,Stud Size 10

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU10-10FLK,Stud Size 10

Regular price
/

$199.99 USD & FREE Shipping.
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview
3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3Mâ„¢ Scotchlokâ„¢ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU10-10FLK,Stud Size 10

Specifications
General Information
Brand
Scotchlokâ„¢
Barrel Style
Butted
Fork Type
Locking
Terminal Style
Locking
Terminal Type
Fork
Country Of Origin
United States
Sold As
Case
Lead Time
8 days
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.135 Inch
Barrel Length (Imperial)
0.25 Inch
Maximum Conductor Size (Imperial)
10 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Maximum Insulation Outer Diameter (Imperial)
0.25 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Lock Width
0.36 Inch
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Minimum Conductor Size (Imperial)
12 AWG
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
1.03 in
Overall Length (Metric)
26.16 mm
Overall Width (Imperial)
0.32 in
Overall Width (Metric)
8.12 mm
Stud Diameter (Imperial)
0.19 in
Stud Diameter (Metric)
4.826 mm
Stud Size
#10
Barrel Length Imperial
0.25 Inch
Maximum Conductor Size Imperial
10 AWG
Maximum Conductor Size Metric
5.26 mm²
Maximum Insulation Outer Diameter Metric
3.7
Minimum Conductor Size Imperial
12 AWG
Minimum Conductor Size Metric
3.31 mm²
Overall Length Imperial
1.03
Width
4.63 in
11.75 cm
Height
3.13 in
7.94 cm
Length
5.13 in
13.02 cm
Volume
74.07 cubic inch
1213.83 cm3
Weight
32.48 oz
920.79 g
Other Details
CSA File Number
LR22190
Clearance (C)
0.28 Inch
Dimension E
0.83 Inch
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E23438
Units Per Case
500.0
Material and Composition
Insulation Material
Vinyl
Material
Plastic
Color and Appearance
Product Color
Yellow
Packaging and Shipping
Packaging
500 per bulk box
