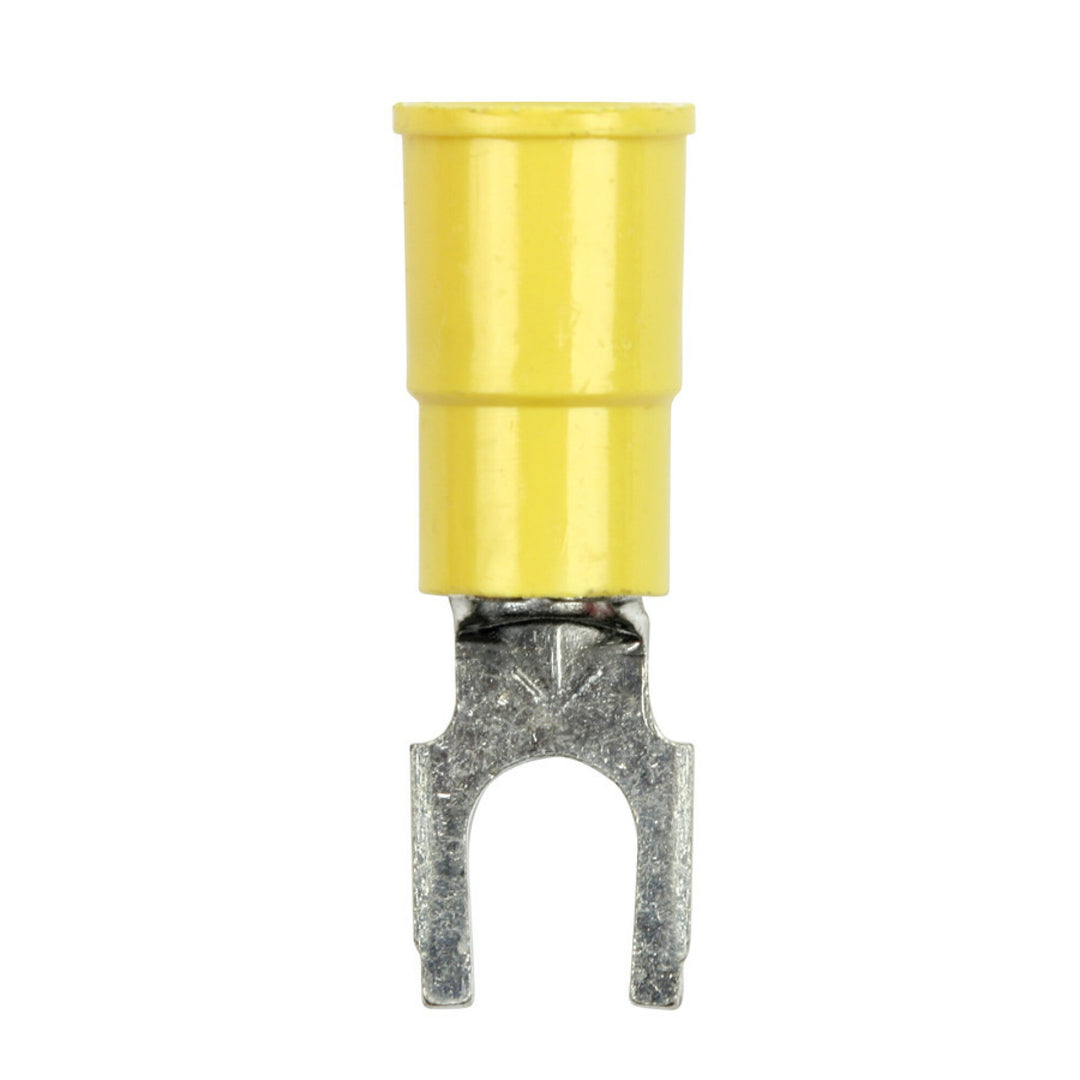

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU14-8FLK,Stud Size 8
3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU14-8FLK,Stud Size 8

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU14-8FLK,Stud Size 8

Regular price
/

$265.99 USD & FREE Shipping.
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Overview
3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3Mâ„¢ Scotchlokâ„¢ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

3M Scotchlok Locking Fork, Vinyl Insulated Butted Seam MVU14-8FLK,Stud Size 8

Specifications
General Information
Brand
Scotchlokâ„¢
Barrel Style
Butted
Fork Type
Locking
Terminal Style
Locking
Terminal Type
Fork
Country Of Origin
United States
Sold As
Case
California Residents
Dimensions and Specifications
Barrel Inside Diameter
0.09 Inch
Barrel Length (Imperial)
0.25 Inch
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Maximum Insulation Outer Diameter (Imperial)
0.17 in
Maximum Lock Width
0.34 Inch
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.88 in
Overall Width (Imperial)
0.3 in
Stud Diameter (Imperial)
0.164 in
Stud Diameter (Metric)
4.166 mm
Stud Size
#8
Barrel Length Imperial
0.25 Inch
Maximum Conductor Size Imperial
14 AWG
Maximum Conductor Size Metric
2.08 mm²
Minimum Conductor Size Imperial
16 AWG
Minimum Conductor Size Metric
1.31 mm²
Overall Length Imperial
0.88
Width
4.62 in
11.75 cm
Height
3.12 in
7.94 cm
Length
5.12 in
13.02 cm
Volume
74.06 cubic inch
1213.65 cm3
Weight
36.48 oz
1034.19 g
Other Details
CSA File Number
LR22190
Clearance (C)
0.25 Inch
Dimension E
0.7 Inch
Solution For
Wireless Network: Infrastructure Accessories
UL File Number
E23438
Units Per Case
1000.0
Material and Composition
Insulation Material
Vinyl
Packaging and Shipping
Packaging
1000 per bulk box
