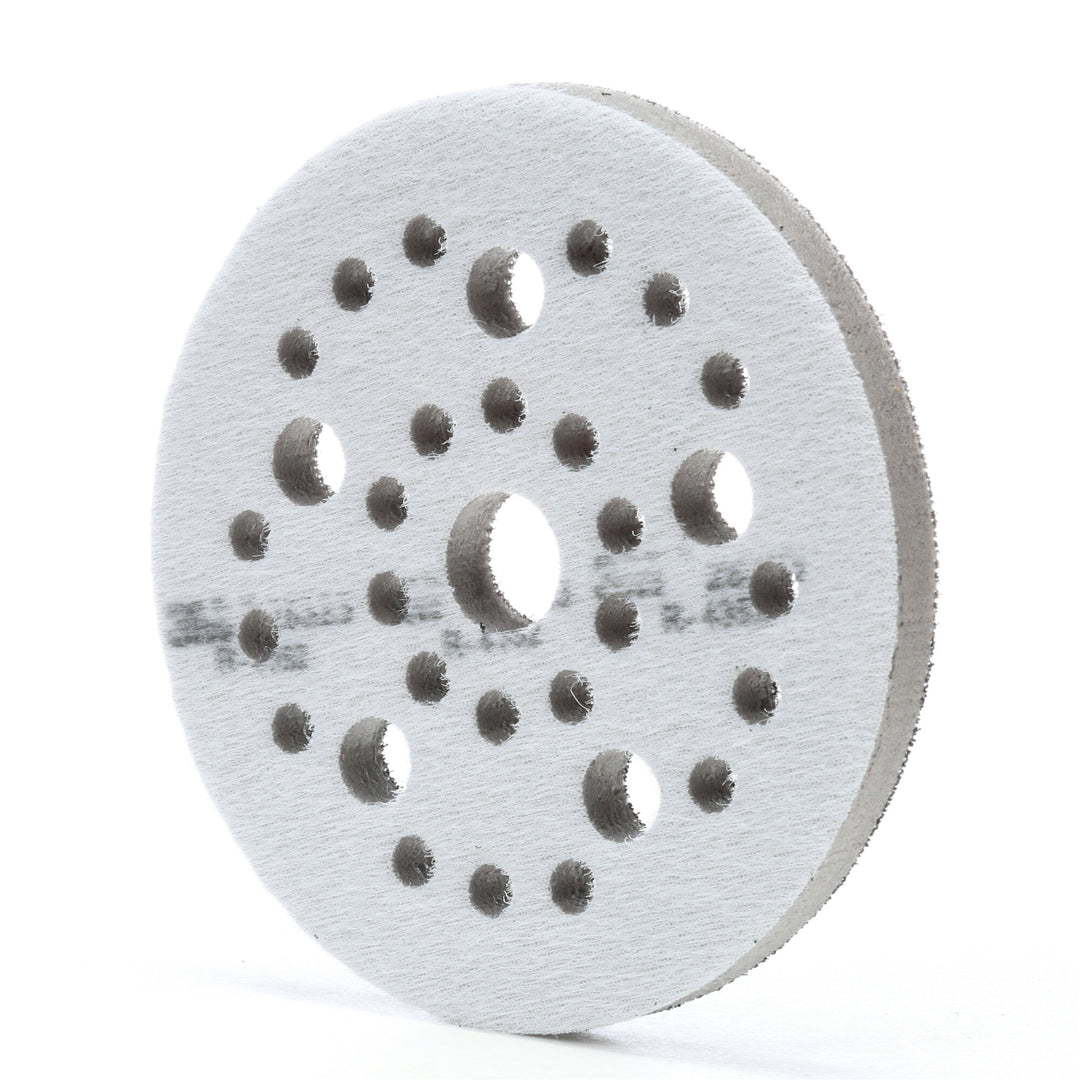

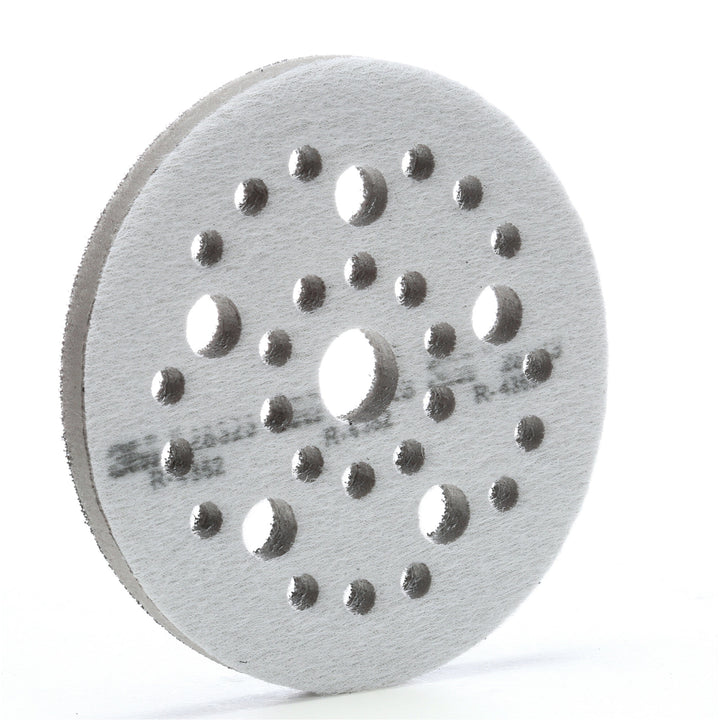

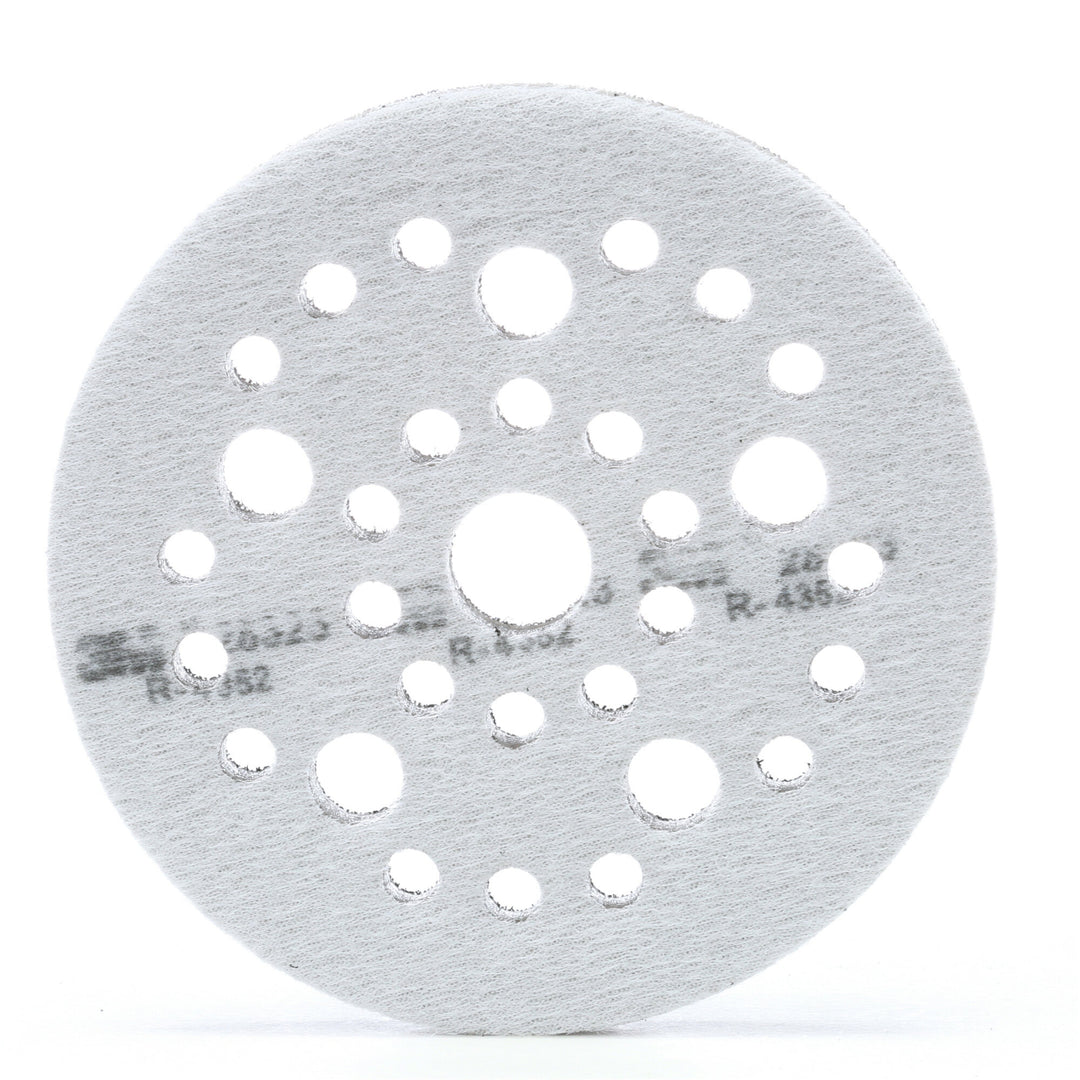

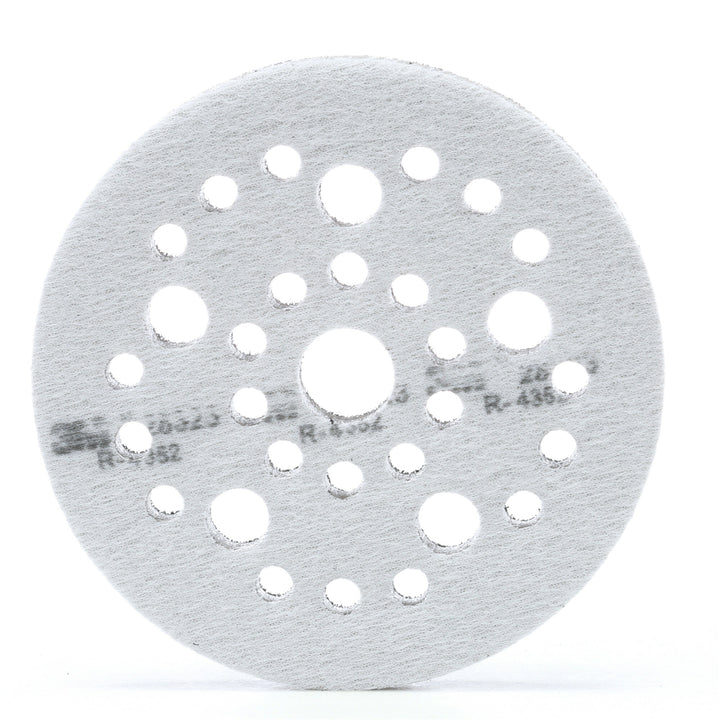

3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes
3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes
3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes
3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes
3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes

3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes

Regular price
/

$154.99 USD & FREE Shipping.
  • Medium density foam provides additional flexibility on contours
  • Ideal for sanding curves, angles and contours
  • Applies effortlessly between Hookitâ„¢ discs and Hookitâ„¢ back-up pads for quick changeouts
  • May include Clean Sanding hole configuration to clear dust from the work surface, increasing disc life
Overview

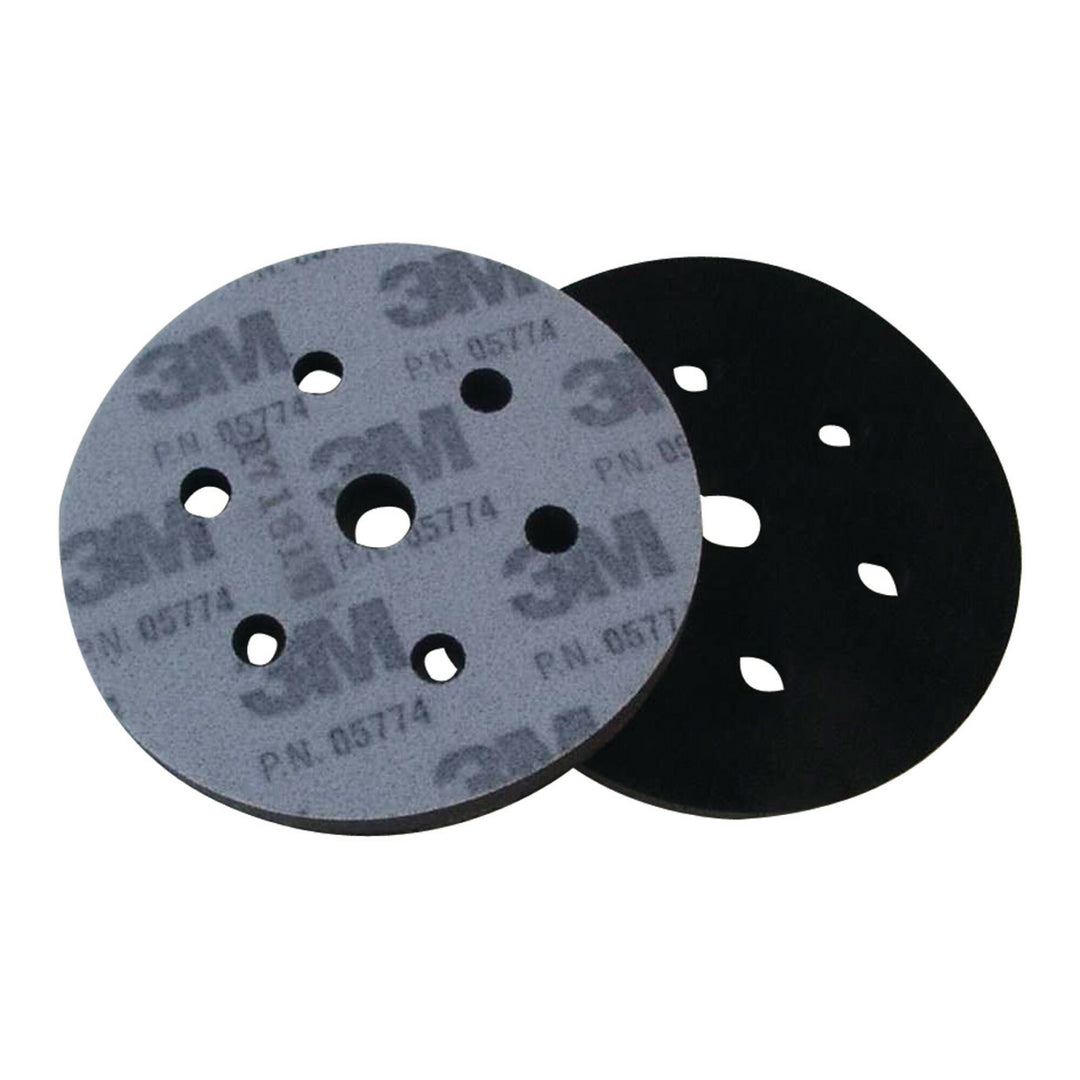

The 3M Interface Pad is a 1/2-inch thick, medium density foam pad that provides additional surface conformability when used with a 3M Hookit backup pad on a 3M Random Orbital Sander. The additional conformability helps when sanding critical surfaces with fine grade abrasives, after leveling and refining sanding steps are complete, but before final surface finishing steps.

Conformability Protects Your Tools and Your Work Surface
Placed between the backup pad and the abrasive disc or sheet, the 3M™ Interface Pad provides additional conformability when sanding rounds and profiles, and helps operators reach internal angles.

The Clean Sanding Option – No Alignment Required
Some of these interface pads are designed to work with our 3M Clean Sanding system to maximize dust extraction, and must be used with a 3M™ Clean Sanding Backup Pad on a self-generated or central vacuum tool. Our 3M™ Clean Sanding dust-management system evacuates dust from the work surface better than 5 or 6-hole products, dramatically increasing disc life and maximizing cut-rate. Optimized with a self-generated vacuum sanding tool fitted with a Clean Sanding filter bag (sold separately), or a when used with a central vacuum system, the Clean Sanding system provides dust extraction from the air surrounding the tool, as well as directly from the work surface. This reduces loading of the disc and adds life to the abrasive. Additionally, reducing dust in the air improves working conditions.

3M™ Clean Sanding Interface Pad is available for use with 5 inch Clean Sanding Disc Pads and discs or 3x4” Clean Sanding Pads and sheets. Both feature a unique multi-hole pattern designed to maximize dust evacuation, extending the abrasive's life, improving results and keeping the air clean as well. For maximum dust extraction when using 3M™ Clean Sanding Interface Pads, align the holes in the interface pad with the holes in the back up pad, when installing the interface pad. The unique, multi-hole design of 3M™ Clean Sanding Abrasive sanding discs do not require alignment on the backup pad or interface pad, further saving you time and hassle.

The 3M™ Hookit™ System
We integrated the Hookit™ attachment system to make abrasive changes quick and easy, enabling repeated use and reducing material consumption.

3M Science Optimizes Industrial Abrasives
At 3M, we pay attention to every detail of the abrasive process, from discs to tools to all the accessories in between. Engineered with quality foam construction, Hookit™ backing and the unique hole design on the Clean Sanding options, 3M™ Interface Pads are an excellent example of how 3M uses science to continually improve abrasive operations and help businesses like yours operate faster, better and more efficiently.

3M Xtract Interface Disc Pad 28323, 5 in x 1/2 in x 3/4 in 31 Holes

Specifications
General Information
Brand
3Mâ„¢
Abrasive Attachment Type
Hook & Loop
Function/Attachment Style
Hook & Loop, Coated Abrasives
Hook Type
3
Product Type
Back-up Pad
Type
Dust Control
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Dimensions and Specifications
Center Hole Diameter (Imperial)
0.75 in
Center Hole Diameter (Metric)
19.05 mm
Maximum Speed
12000 mps
Net Weight (Imperial)
0.04 lb
Net Weight (Metric)
18.14 g
Overall Diameter (Imperial)
5 in
Overall Diameter (Metric)
127 mm
Overall Length (Imperial)
0.5 in
Overall Length (Metric)
1.27 cm
Overall Thickness (Imperial)
0.5 in
Overall Thickness (Metric)
12.7 mm
Overall Width (Imperial)
6.5 in
Overall Width (Metric)
16.51 cm
Overall Length Imperial
0.5
Width
6.89 in
17.5 cm
Height
5.87 in
14.9 cm
Length
6.89 in
17.5 cm
Volume
278.46 cubic inch
4563.13 cm3
Weight
9.6 oz
272.2 g
Other Details
Industries
Woodworking
Number Of Holes
31
Sub Industries
Custom Woodworking and Millwork
Usage Information
Application
Polishing
Equipment - Machines
Random Orbital Sanders
Equipment Machines
Random Orbital Sanders
Color and Appearance
Front Color
Black
Product Color
Gray
Certifications and Standards
Density Rating
Medium
