Greenlee CTR100 Medium Duty Cable Roller

$554.90 USD & FREE Shipping.
/
Extended Handling May Be Required
  • 2 times faster setup and disconnect
  • No loose pieces
  • Quick adjust tilted thread nut to tightly fasten onto tray

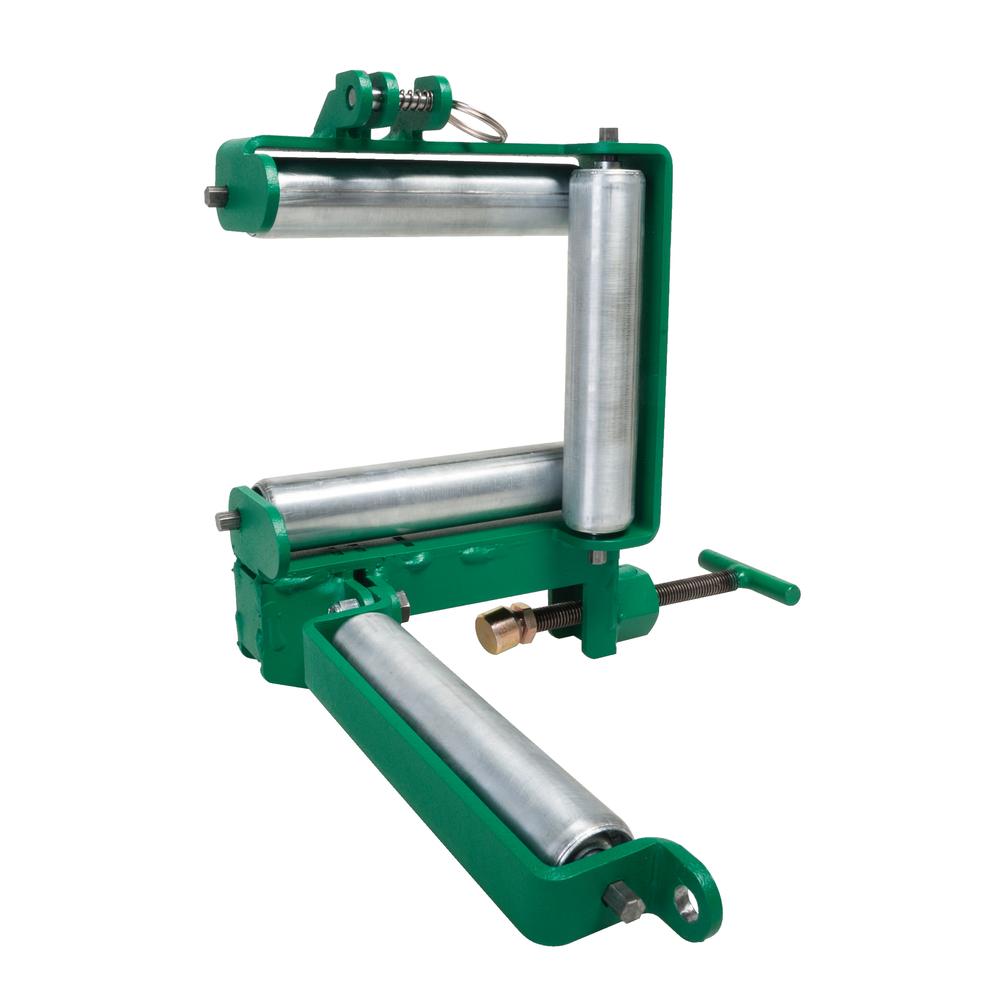

  • 4 conveyer roller guide with retained spring pull-pin release to easily remove cable
  • Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Overview

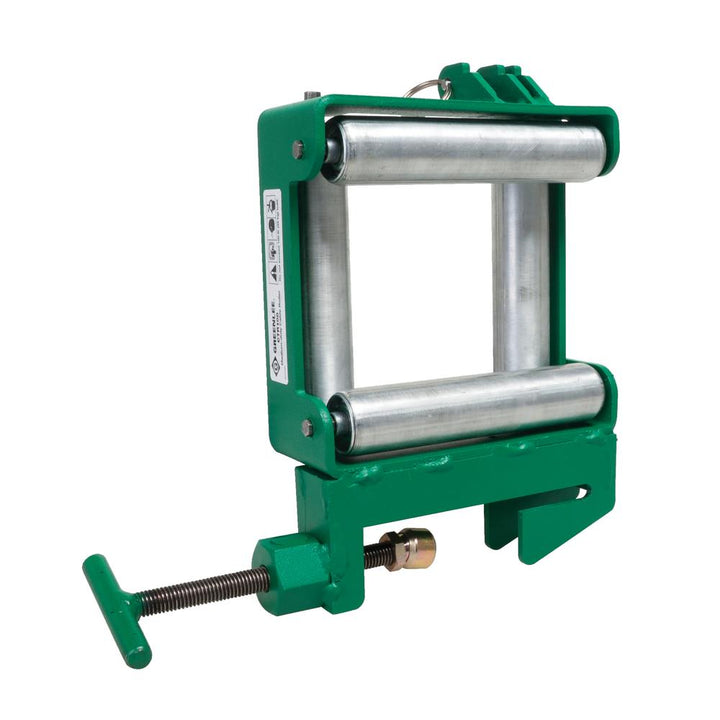

The Greenlee CTR100 Medium-duty Cable Roller is intended for the installation of cables in cable tray. It is intended for non basket-style cable tray.
Brand img

Greenlee CTR100 Medium Duty Cable Roller

You may also like
Specifications
General Information
Brand
Greenlee
Part Number
CTR100
Product Type
Cable Roller
Application
Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets.
Packaging
Retail
Country of Origin
United States
UPC
783310028109
California Residents
Proposition 65 Warning
Physical Characteristics
Length
Retracted: 9-1/4'' (235 mm), Extended: 13-3/4'' (349.3 mm)
Height
11-1/8'' (282.6 mm)
Weight
4.62 kg
10.18 lb
Material
Steel
Details
Size
Roller Opening Size: 4'' (101.6 mm) square
Features
2 times faster setup and disconnect
No loose pieces
Quick adjust tilted thread nut to tightly fasten onto tray
4 conveyer roller guide with retained spring pull-pin release to easily remove cable
Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Easily handle forces of up to 100 lbs (45.4 kg)
