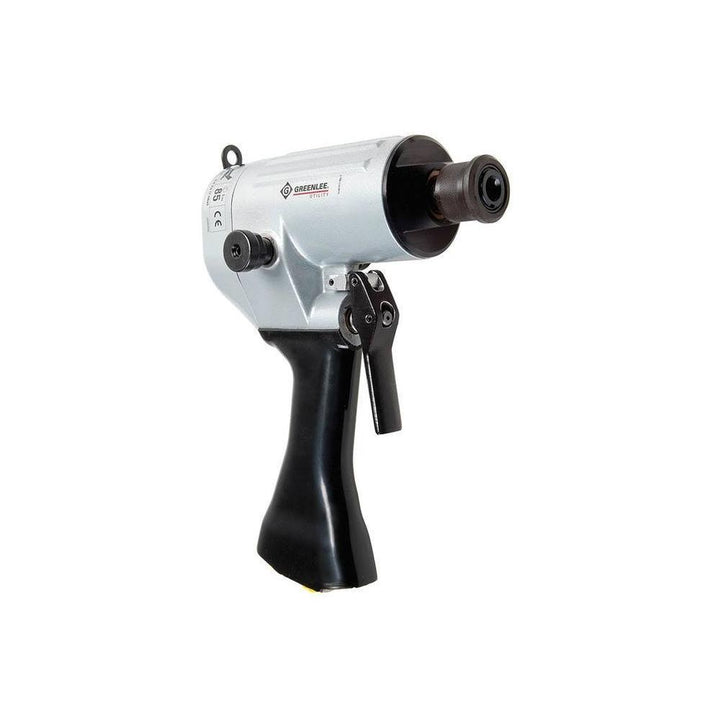

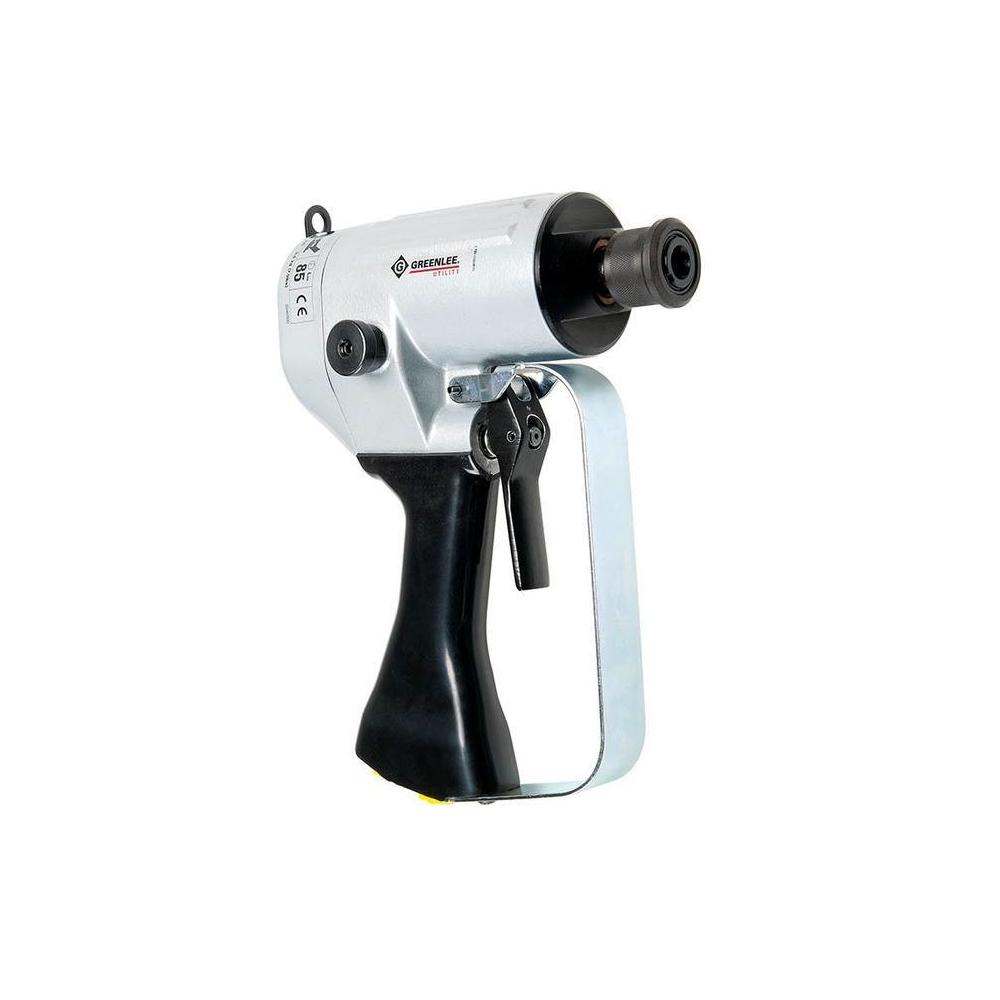

Greenlee H8508-1 Impact Wrench - 1/2" 7/16 Hex QC
Greenlee H8508-1 Impact Wrench - 1/2" 7/16 Hex QC

Greenlee H8508-1 Impact Wrench - 1/2" 7/16 Hex QC

Regular price
/

$1,123.12 USD & FREE Shipping.
  • Twin-hammer impact mechanism provides high performance and reliability
  • Button to switch between forward and reverse rotation
  • One-piece handle and impact housing casting provide long life
  • Super Spool permits quick switches between open center and closed-center hydraulic systems
  • Heat-insulated handle, ergonomically positioned for comfort
Overview
Hydraulic Impact Wrenches are intended to be used to tighten nuts, install lag screws, or as a wood drill in most any utility or construction application. The trigger spool design contains a center spool that can be rotated to allow the impact wrench to be used with either an open-center or closed-center hydraulic system.

Greenlee H8508-1 Impact Wrench - 1/2" 7/16 Hex QC

Specifications
General Information
Brand
Greenlee
Part Number
H8508-1
Product Type
Impact Wrench
What's Included
49314 Heavy Duty 1/2" Square Drive Adapter
Packaging
Retail
Country of Origin
United States
UPC
783310126829
California Residents
Proposition 65 Warning
Physical Characteristics
Length
8.200" (208.000 mm)
Width
4.200" (107.000 mm)
Height
10.600" (269.000 mm)
Weight
4.03 kg
8.89 lb
Details
Grip Type
Heat-Insulated
Features
Twin-hammer impact mechanism provides high performance and reliability
Button to switch between forward and reverse rotation
One-piece handle and impact housing casting provide long life
Super Spool permits quick switches between open center and closed-center hydraulic systems
Heat-insulated handle, ergonomically positioned for comfort
Well balanced for comfortable operation
Most durable and longest life of any 1/2" wrench on the market
Includes the 49314 heavy duty 1/2" square drive adapter, toughest adapter on the market

Capacity: 7/16"
Flow Range: 4 - 10 GPM (15 - 38 LPM)
Hydraulic System: Super Spool Selector For Either Open-Center Or Closed-Center
Operating Pressure: 1000 - 2000 PSI (69 - 140 BAR)
Optimum Flow Range: 5 - 8 GPM (19 - 30 LPM)
Pressure Port: 3/4 - 16 SAE O-Ring
Return Port: 3/4 - 16 SAE O-Ring
Torque Range ft lbs
400 ft lb At 8 GPM
Torque Range Nm
542 Nm AT 30 LPM
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
