EZ-RJ45 Pass-Through RJ45 Connectors, CAT6 Unshielded — 50pcs in Clamshell.

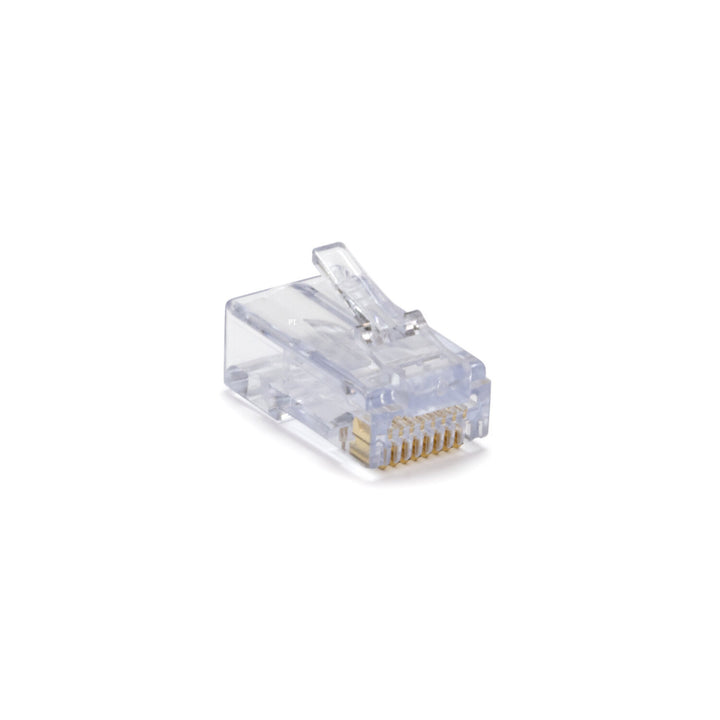

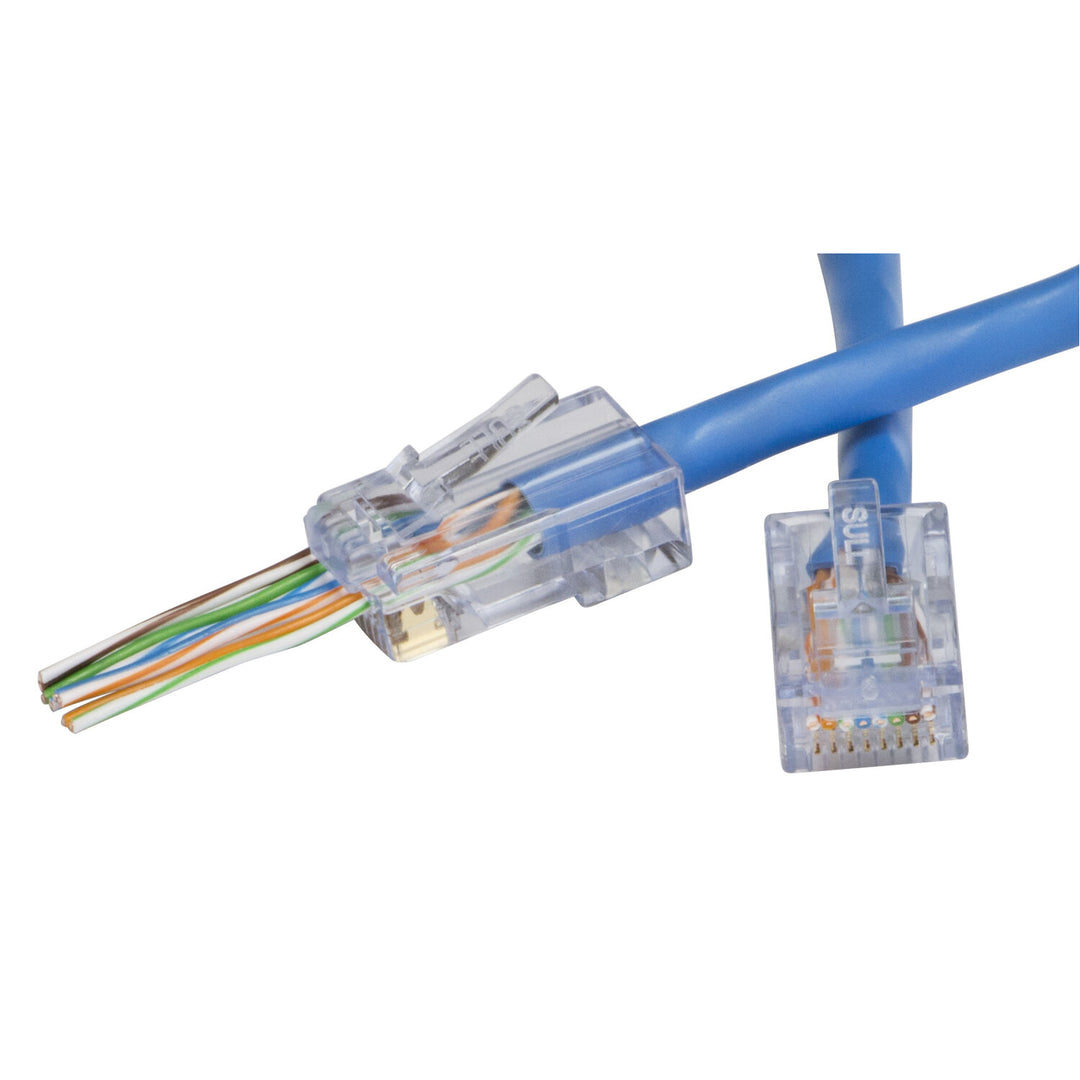

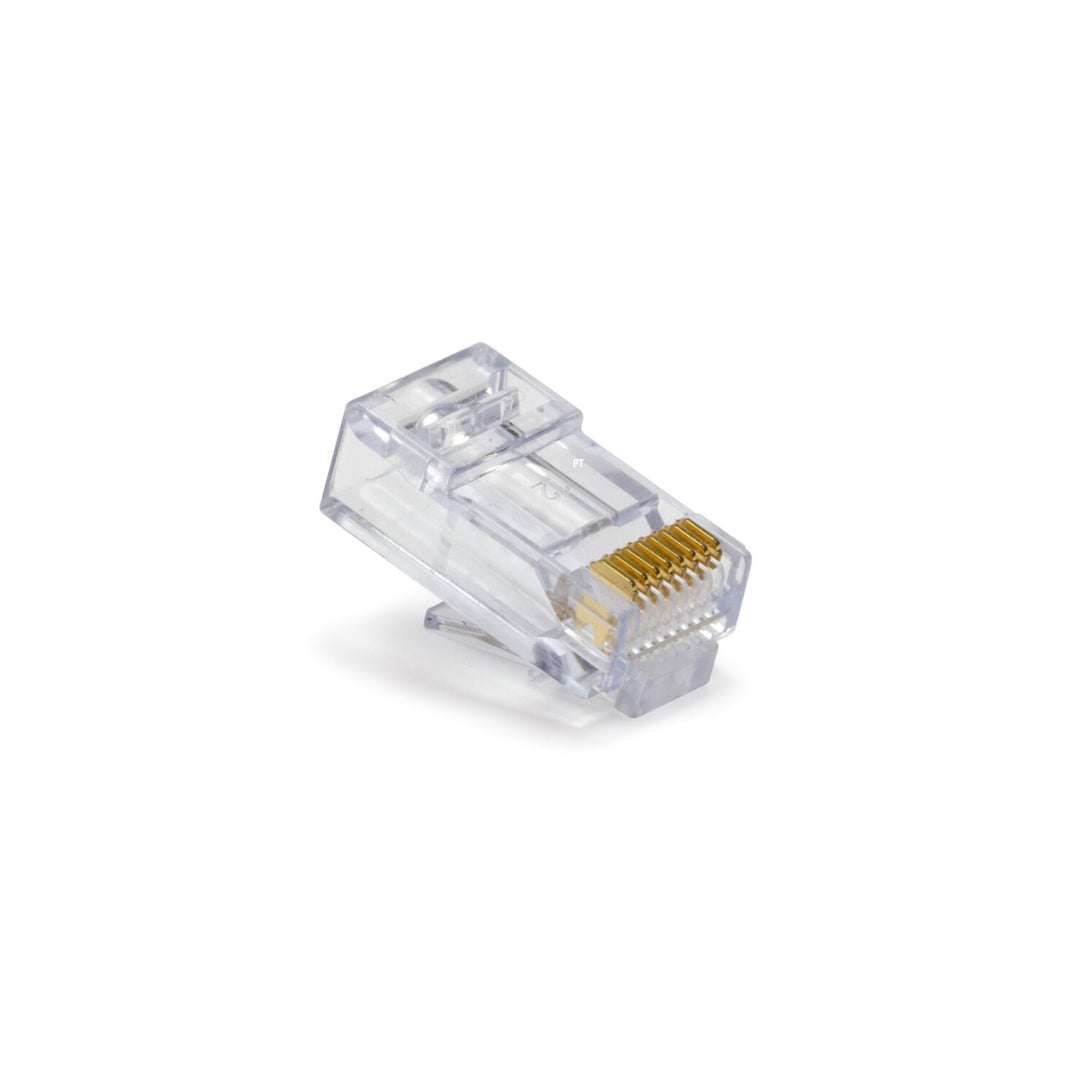

Platinum Tools 100010C EZ-RJ45 Pass-Through RJ45 Connectors, CAT6 Unshielded — 50pcs in Clamshell
- Cable Connectors
- Platinum Tools
- 100010C
You may also like
Specifications
General Information
Brand
Platinum Tools
Number of Pieces
50 Pcs
Country of Origin
United States
UPC
899740000414
California Residents
Part Number
100010C
Product Type
Pass-Through (EZ) RJ45 Connectors
Physical Characteristics
Weight
0.10 kg
0.21 lb
Color
Clear
Material
Polycarbonate
Details
AWG
24 - 23AWG
Features
EZ-RJ45 pass-through RJ45 connectors
Unshielded
Package includes 50 pieces
Retail-ready clamshell packaging
0.275” (6.98mm) max cable outer diameter
0.040” (1.016mm) max insulation diameter (conductors)
Compatible with solid or stranded 24 - 23AWG twisted pair cable
50 micron gold plated contacts
Clear (transparent) plastic
Recommended for data applications only
Not recommended for PoE applications
Rated for up to 1G bandwidth
Meets ANSI/EIA/TIA/TAA specifications
UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
Recommended crimp tools: 100062, 100054 or 100004
Unshielded
Package includes 50 pieces
Retail-ready clamshell packaging
0.275” (6.98mm) max cable outer diameter
0.040” (1.016mm) max insulation diameter (conductors)
Compatible with solid or stranded 24 - 23AWG twisted pair cable
50 micron gold plated contacts
Clear (transparent) plastic
Recommended for data applications only
Not recommended for PoE applications
Rated for up to 1G bandwidth
Meets ANSI/EIA/TIA/TAA specifications
UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
Recommended crimp tools: 100062, 100054 or 100004
Grip Type
Ergonomic
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
Platinum Tools has been making test and installation equipment for telecom and internet since the early days of the internet, 1997. Having lasted this long is a testament to the quality that their tools bring to the table. Every Platinum Tools product must meet the standards of “utility of function, quality of function and economic value.” This dedication is the reason why Platinum Products make every telecom install a success, they help you get the job done right the first time. With high quality crimpers, high accuracy testers, Platinum Tools takes the headaches out of telecom work.
