Overview
Features

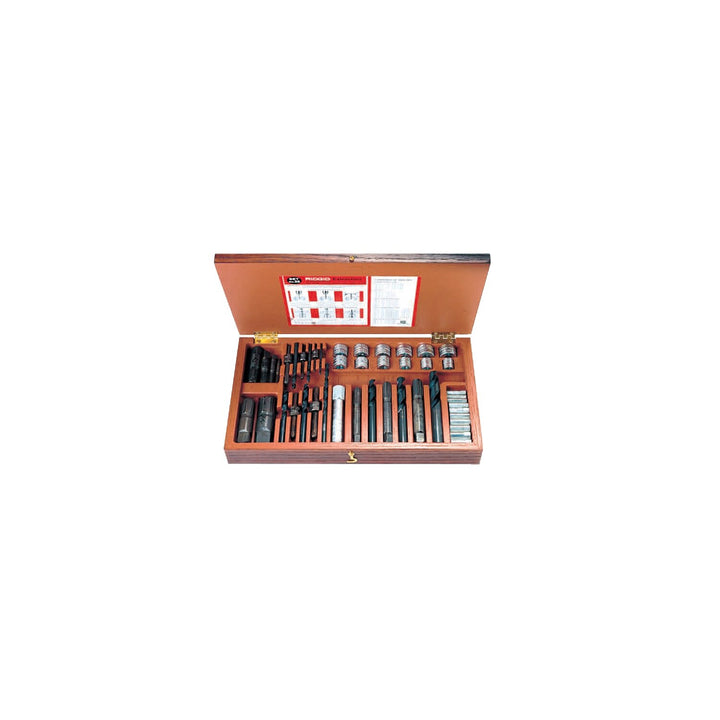

This RIDGID Model 25 Screw & Pipe Extractor Set contains one each of screw extractors Models 1 to 8 inclusive (Models 1 to 5 Extractors with turnuts); Drill Models 1 to 8 inclusive, and one Model 36; and complete set of drill guides and bushings, everything a professional tradesperson needs to get the job done right. Maximum depth extractor range 1" to 3". Pipe extractors Models 80 to 85 also included. These precision tools are packed in a fitted compartment box.
You may also like
Specifications
General Information
Brand
Ridgid
Number of Pieces
48
What's Included
Screw Extractors, Drills, Drill Guides (Solid Type), Drill Guides (Sleeve Type), Pipe and Plug Extractors
Packaging
Retail
Country of Origin
United States
UPC
095691355904
California Residents
Part Number
35590
Product Type
Screw and Pipe Extractor Set
Physical Characteristics
Weight
4.21 kg
9.29 lb
Color
Black, Silver & Bronze
Material
Alloy Steel
Details
Size
Screw Extractors:
1 x No. 1 1/4" Diam Screw
1 x No. 2 5/16" Diam Screw
1 x No. 3 3/8" Diam Screw
1 x No. 4 7/16" Diam Screw
1 x No. 5 1/2" Diam Screw
1 x No. 6 5/8" Diam Screw
1 x No. 7 3/4" Diam Screw
1 x No. 8 1" Diam Screw
Drills:
1 x No. 1 1/8" x 2-1/2"
1 x No. 2 3/16" x 3"
1 x No. 3 1/4" x 3 1/2"
1 x No. 4 5/16" x 4"
1 x No. 5 11/32" x 4-1/2"
1 x No. 6 7/16" x 4-3/4""
1 x No. 7 1/2" x 5"
1 x No. 8 5/8" x 5-1/2"
1 x No. 36 1/4" x 6"
Drill Guides (Solid Type)
1 x No. 921 9/32" x 1-3/16"
1 x No. 1021 5/16" x 1-3/16"
1 x No. 1121 11/32" x 1-3/16"
1 x No. 1221 3/8" x 1-3/16"
1 x No. 1321 13/32" x 1-3/16"
1 x No. 1421 7/16" x 1-3/16"
1 x No. 1521 15/32" x 1-3/16"
1 x No. 1621 1/2" x 1-3/16"
1 x No. 1721 17/32" x 1-3/16"
1 x No. 1821 9/16" x 1-3/16"
Drill Guides (Sleeve Type)
1 x No. 34 Sleeve 5/8" O.D.
1 x No. 33A Sleeve Nut 3/4" O.D.
4 x No. 33B Sleeve Spacers 5/8" O.D.
2 x No. 2133 Sleeve Bushing 21/32" O.D.
2 x No. 2233 Sleeve Bushing 11/16" O.D.
2 x No. 2333 Sleeve Bushing 23/32" O.D.
2 x No. 2533 Sleeve Bushing 25/32" O.D.
2 x No. 2633 Sleeve Bushing 13/16" O.D.
2 x No. 2733 Sleeve Bushing 27/32" O.D.
2 x No. 2933 Sleeve Bushing 29/32" O.D.
2 x No. 3033 Sleeve Bushing 15/16" O.D.
2 x No. 3133 Sleeve Bushing 31/32" O.D.
2 x No. 3333 Sleeve Bushing 1-1/32" O.D.
2 x No. 3433 Sleeve Bushing 1-1/16" O.D.
2 x No. 3533 Sleeve Bushing 1-3/32" O.D.
Pipe and Plug Extractors
1 x No. 80 1/8" STD. Pipe
1 x No. 81 1/4" STD. Pipe
1 x No. 82 3/8" STD. Pipe
1 x No. 83 1/2" STD. Pipe
1 x No. 84 3/4" STD. Pipe
1 x No. 85 1' STD. Pip
1 x No. 1 1/4" Diam Screw
1 x No. 2 5/16" Diam Screw
1 x No. 3 3/8" Diam Screw
1 x No. 4 7/16" Diam Screw
1 x No. 5 1/2" Diam Screw
1 x No. 6 5/8" Diam Screw
1 x No. 7 3/4" Diam Screw
1 x No. 8 1" Diam Screw
Drills:
1 x No. 1 1/8" x 2-1/2"
1 x No. 2 3/16" x 3"
1 x No. 3 1/4" x 3 1/2"
1 x No. 4 5/16" x 4"
1 x No. 5 11/32" x 4-1/2"
1 x No. 6 7/16" x 4-3/4""
1 x No. 7 1/2" x 5"
1 x No. 8 5/8" x 5-1/2"
1 x No. 36 1/4" x 6"
Drill Guides (Solid Type)
1 x No. 921 9/32" x 1-3/16"
1 x No. 1021 5/16" x 1-3/16"
1 x No. 1121 11/32" x 1-3/16"
1 x No. 1221 3/8" x 1-3/16"
1 x No. 1321 13/32" x 1-3/16"
1 x No. 1421 7/16" x 1-3/16"
1 x No. 1521 15/32" x 1-3/16"
1 x No. 1621 1/2" x 1-3/16"
1 x No. 1721 17/32" x 1-3/16"
1 x No. 1821 9/16" x 1-3/16"
Drill Guides (Sleeve Type)
1 x No. 34 Sleeve 5/8" O.D.
1 x No. 33A Sleeve Nut 3/4" O.D.
4 x No. 33B Sleeve Spacers 5/8" O.D.
2 x No. 2133 Sleeve Bushing 21/32" O.D.
2 x No. 2233 Sleeve Bushing 11/16" O.D.
2 x No. 2333 Sleeve Bushing 23/32" O.D.
2 x No. 2533 Sleeve Bushing 25/32" O.D.
2 x No. 2633 Sleeve Bushing 13/16" O.D.
2 x No. 2733 Sleeve Bushing 27/32" O.D.
2 x No. 2933 Sleeve Bushing 29/32" O.D.
2 x No. 3033 Sleeve Bushing 15/16" O.D.
2 x No. 3133 Sleeve Bushing 31/32" O.D.
2 x No. 3333 Sleeve Bushing 1-1/32" O.D.
2 x No. 3433 Sleeve Bushing 1-1/16" O.D.
2 x No. 3533 Sleeve Bushing 1-3/32" O.D.
Pipe and Plug Extractors
1 x No. 80 1/8" STD. Pipe
1 x No. 81 1/4" STD. Pipe
1 x No. 82 3/8" STD. Pipe
1 x No. 83 1/2" STD. Pipe
1 x No. 84 3/4" STD. Pipe
1 x No. 85 1' STD. Pip
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
RIDGID stands as a leading brand in high-performance tools crafted for professionals and dedicated DIYers. Renowned for its innovative plumbing, electrical, and HVAC tools, RIDGID products are built to endure tough environments and deliver reliable, precise results. With a commitment to quality and engineering excellence, RIDGID is the trusted choice for anyone who needs dependable tools to get the job done right.
