Wera Kraftform Kompakt VDE Safe-Torque Speed Control Cabinet Set 1, 23 Pc.

Wera Kraftform Kompakt VDE Safe-Torque Speed Control Cabinet Set 1, 23 Pc.

Name: Wera Kraftform Kompakt VDE Safe-Torque Speed Control Cabinet Set 1, 23 Pc.
Brand: Wera
SKU: WERA-05006633001
Price: 349.65 USD
Availability: InStock

Quantity

$349.65 USD & FREE Shipping.

Extended Handling May Be Required

Individually tested tools as per IEC 60900
VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)
VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)
Speed: Extremely fast setting of desired torque values
Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation

Overview

Features

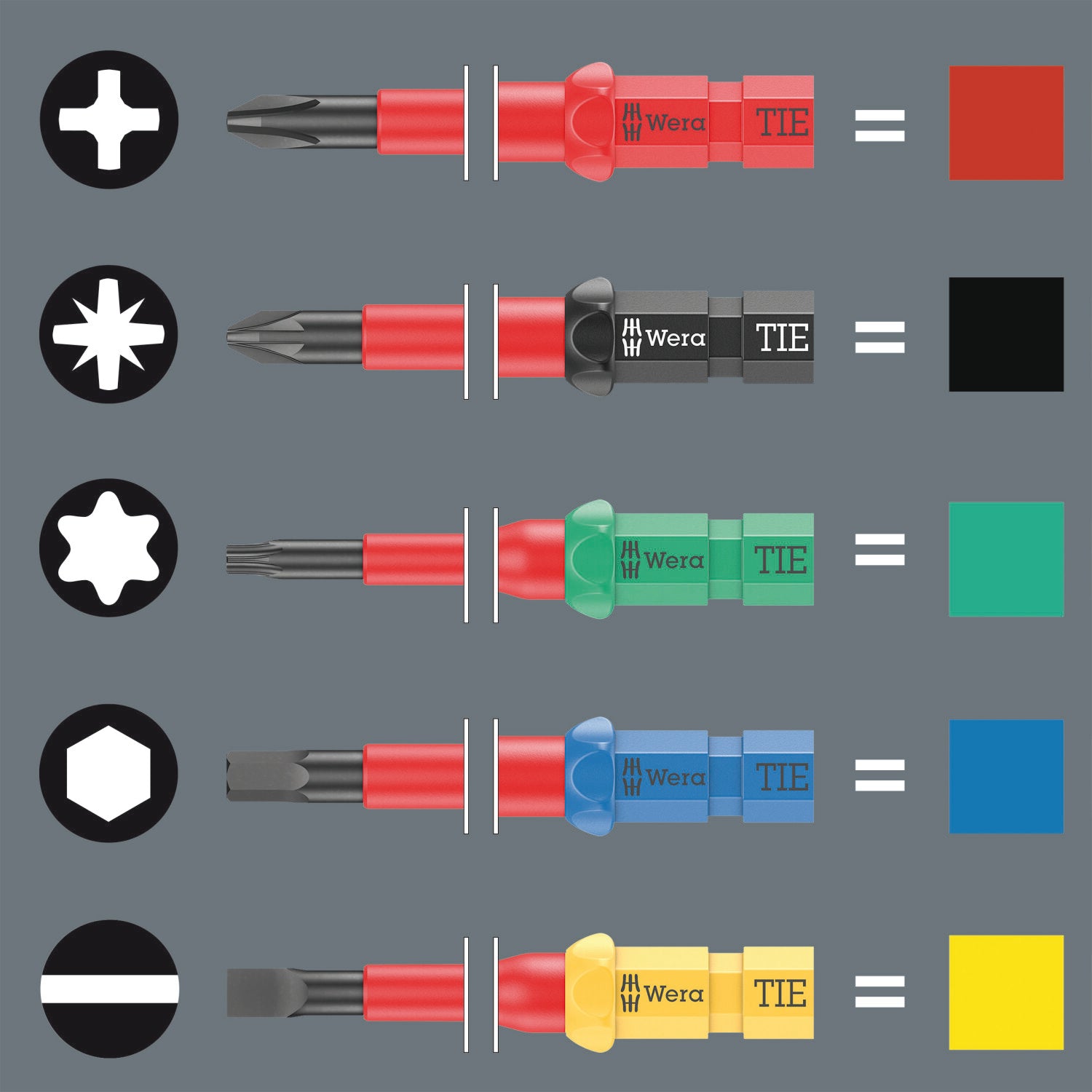

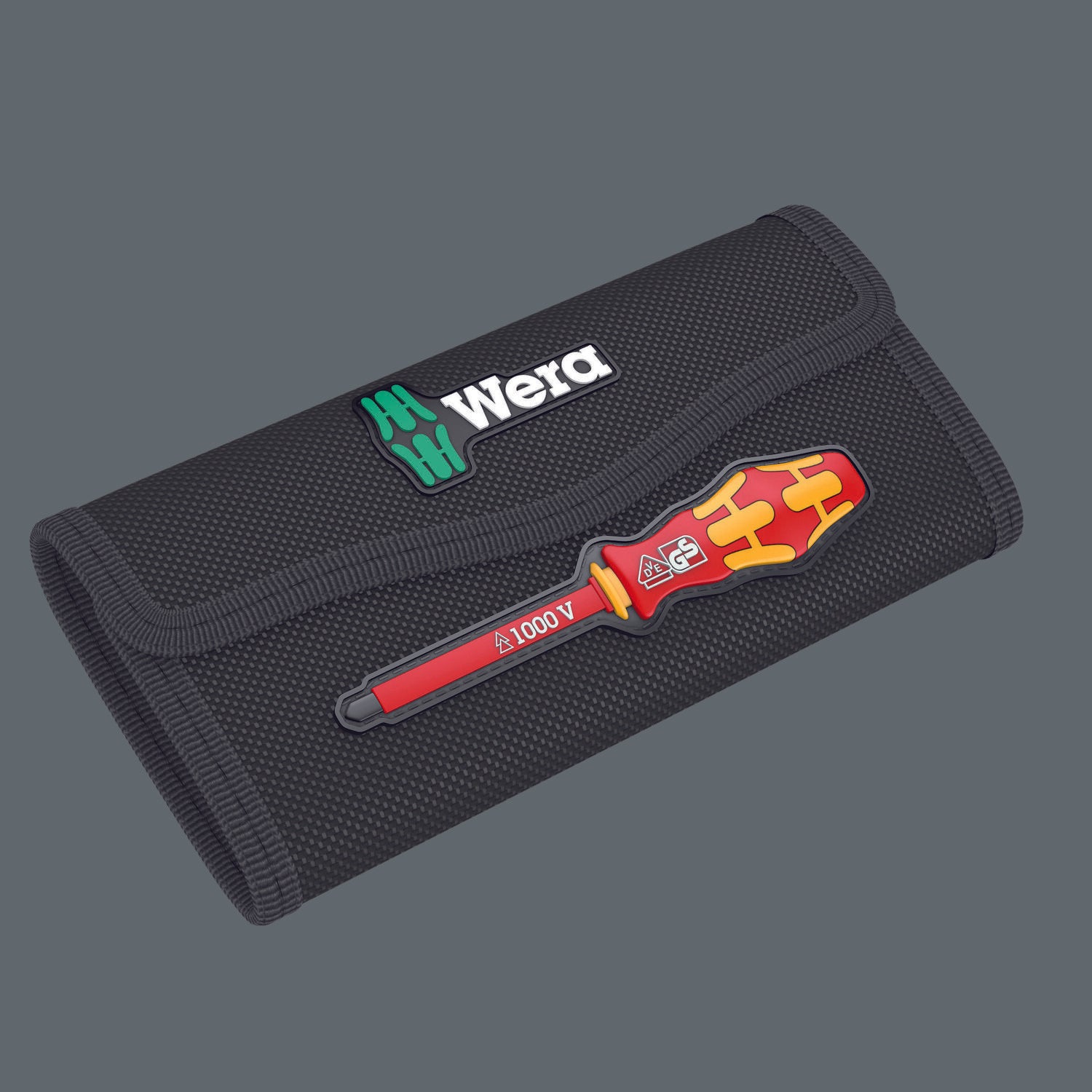

23-piece Kraftform Kompakt VDE set. One Safe-Torque Speed 7508 VDE torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), one 7516 VDE Safe-Torque Speed torque wrench with five selectable maximum tightening torques (0.4; 0.8; 1.2; 1.6; 2.0 Nm), each with a fixed position (Torque Lock) for unlimited loosening and tightening moments, digital torque value display, reliable slip-over mechanism when the set torque is reached, one 817 VDE bladeholding screwdriver. Torque wrenches and bladeholding screwdriver solely for Wera VDE blades. 20 VDE blades (each 157 mm length) with Take it easy tool finder: colour coding by profile and laser-engraved size indication, most of which with reduced blade diameter, so that even low-lying screw and spring elements can be easily reached and operated. In a robust textile box for neat storage and convenient transport.

Wera Kraftform Kompakt VDE Safe-Torque Speed Control Cabinet Set 1, 23 Pc.

Category Bit-Holding Screwdrivers
Brand Wera
Part # 05006633001

VDE Interchangeable Blade with Reduced Shaft Diameter

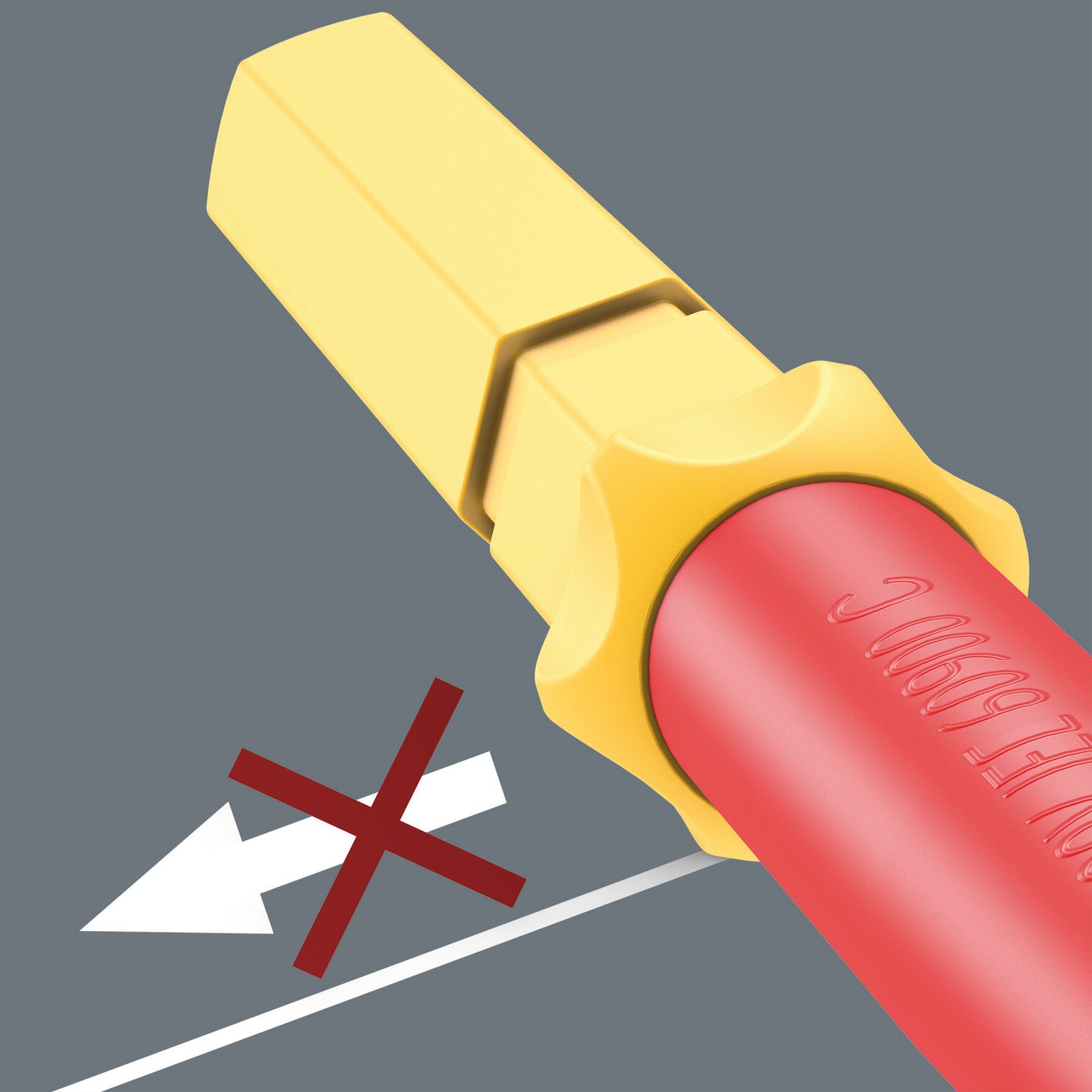

Reduced blade diameter with integrated protective insulation allows sunken screws and spring elements to be accessed and actuated, individually tested as per IEC 60900

Safe Torque Transfer

The slip-over torque mechanism for clockwise/counterclockwise torque operation prevents unintentional application of excessive torque

Interchangeable Blade System

The interchangeable blade system allows for rapid exchange of blades to meet the needs of various demanding applications

You may also like

Wera Kraftform Kompakt VDE Safe-Torque Speed Control Cabinet Set 1, 23 Pc.

Wera

$349.65 USD

Specifications

General Information

Brand

Wera

Number of Pieces

Packaging

Retail

Country of Origin

Czech Republic

UPC

4013288234261

California Residents

Proposition 65 Warning

Part Number

05006633001

Product Type

Insulated Torque Screwdriver & Blades

Physical Characteristics

Length

8.31" (211 mm)

Width

9.37" (238 mm)

Height

2.28" (58 mm)

Weight

1.01 kg

2.22 lb

Color

Red & Yellow, Color-Coded

Finish

Insulated

Material

Chrome Vanadium Steel

Details

Tip Type

Phillips, Pozidriv, PH/S, PZ/S, TORX, Slotted, Hex

Features

Individually tested tools as per IEC 60900

VDE bladeholding torque screwdriver 7508 VDE with 5 pre-set values (0.4; 0.8; 1.2; 1.6; 2.0 Nm)

VDE bladeholding torque screwdriver 7516 with 5 pre-set values (2.4; 2.8; 3.2; 3.6; 4.0 Nm)

Speed: Extremely fast setting of desired torque values

Safe: Slip-over torque function which can not be overtightened - for clockwise/counterclockwise torque operation

Torque Lock function: for high tightening and loosening moments without torque

817 VDE handle for Kraftform Kompakt interchangeable blades

Size

7508 VDE Kraftform Safe-Torque Speed Torque screwdriver, 0.4-2.0 Nm: 9 x 0.4 Nm x 0.8 Nm x 1.2 Nm x 1.6 Nm x 2.0 Nm x 192 mm

7516 VDE Kraftform Safe-Torque Speed Torque screwdriver, 2.4-4.0 Nm: 9 x 2.4 Nm x 2.8 Nm x 3.2 Nm x 3.6 Nm x 4.0 Nm x 192 mm

817 VDE Kraftform blade-holding handle: 9 x 98 mm

Kraftform Kompakt VDE 62 iS Take it easy:
PH1 x 157 mm
PH2 x 157 mm

Kraftform Kompakt VDE 65 iS Take it easy:
PZ1 x 157 mm
PZ2 x 157 mm

Kraftform Kompakt VDE 62 iS PH/S Take it easy:
#1 x 157 mm
#2 x 157 mm

Kraftform Kompakt VDE 65 iS PZ/S Take it easy:
#1 x 157 mm
#2 x 157 mm

Kraftform Kompakt VDE 67 iS TORX Take it easy:
T15 x 157 mm
T20 x 157 mm
T25 x 157 mm

Kraftform Kompakt VDE 67 i TORX Take it easy:
T10 x 157 mm
T30 x 157 mm

Kraftform Kompakt VDE 64 i Take it easy:
2.5 x 157 mm
3 x 157 mm
4 x 157 mm
5 x 157 mm

Kraftform Kompakt VDE 60 iS Take it easy:
0.6 x 3.5 x 157 mm
0.8 x 4 x 157 mm
1 x 5.5 x 157 mm

Grip Type

Kraftform

Resources

Datasheet

Video

Produkte im Video:

7508 VDE Safe-Torque Speed Drehmo-

mentschraubendreher, 0,4-2,0 Nm

7516 VDE Safe-Torque Speed Drehmo-

mentschraubendreher, 2,4-4,0 Nm

Why would you use this tool for ?

About manufacturer

“Be a Tool Rebel” with Wera Tools! What makes using Wera Tools an act of rebellion? Most likely their radically different design aesthetic which often features vivid colors and organic contours incorporated into their tools. But Wera is more than just a pretty face, they make game-changing innovations to tools. A few of their innovations include the Kraftform handle which is ergonomic, following the natural positions of the hand, the Zyklop ratchet which features a swivel head eliminating one of the most frustrating aspects of using a ratchet and many more. Wera tools are well-made, handsomely packaged and designed to take the tool world by storm with tools that look and feel like the way of the future.
