Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm
Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm
Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm
Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm
Stahlwille logo

Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm

$152.54 USD & FREE Shipping.
/
  • for torque wrenches with interchangeable insert system
  • reversible
  • with internal hex, 1/4" or 5/16", DIN 3126 / ISO 1173 D 6.3 or D8
  • for direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8 (size 4: 22 teeth, size 5: 30 teeth)
  • hex with collar-thrust spring
Overview
Designed for torque wrenches with an interchangeable insert system, this reversible insert ensures maximum flexibility and secure performance. It features an internal hex of 1/4" or 5/16" in accordance with DIN 3126 / ISO 1173 D 6.3 or D 8 standards, allowing direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8. Available in size 4 (22 teeth) and size 5 (30 teeth), it includes a hex with collar-thrust spring for reliable retention. Bits are easy to insert, lock securely into place, and can be removed effortlessly. Compatible with hex bits featuring a wide groove (Form E, DIN 3126 / ISO 1173), it ensures versatile and dependable operation.
Brand img

Stahlwille 58255005 725B 5/16" Bit ratchet insert tool, size 5, 9x12 mm

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754154715
California Residents
Proposition 65 Warning
Part Number
58255005

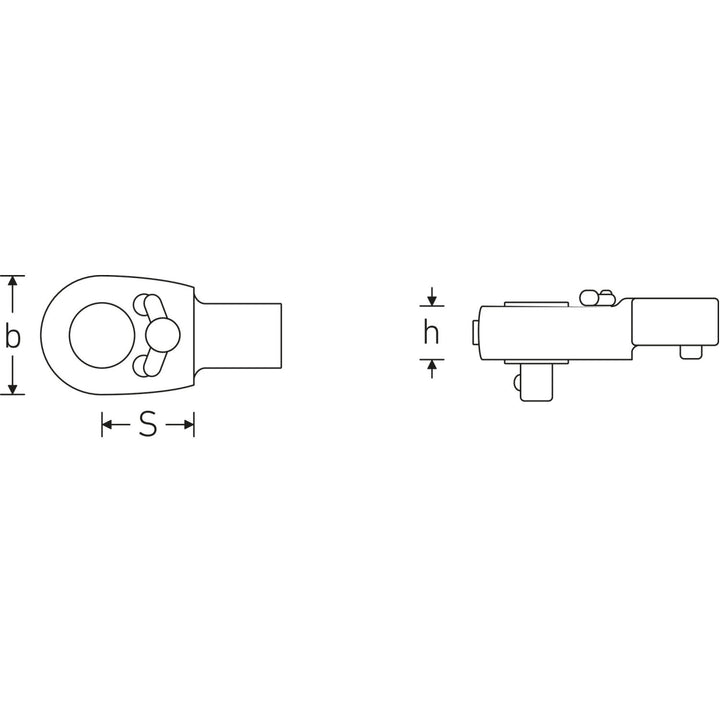

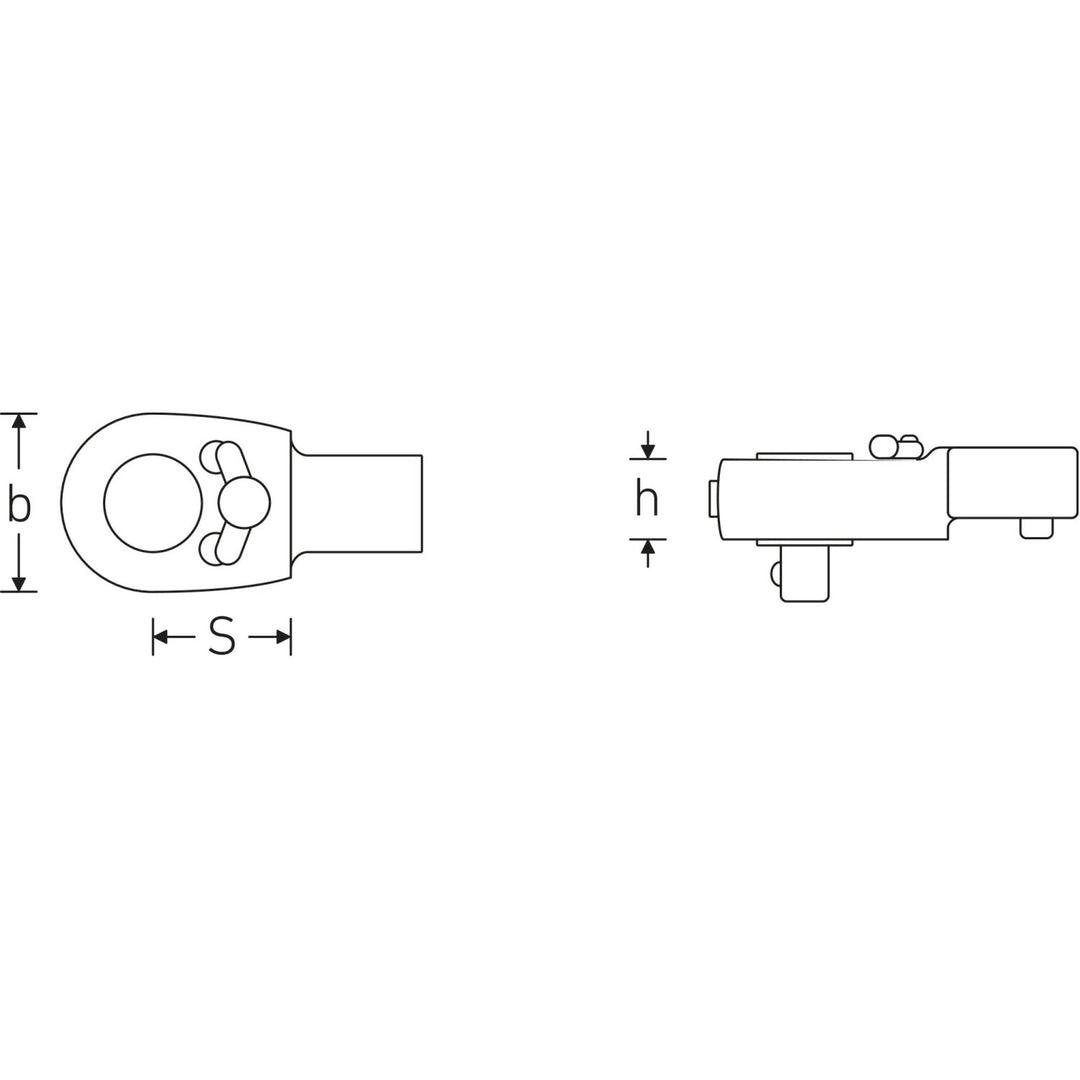

Physical Characteristics
Length
65 mm
Width
35 mm
Height
19 mm
Weight
0.06 kg
0.13 lb
Details
Wrench Type
Torque
Size
5
Features
for torque wrenches with interchangeable insert system
reversible
with internal hex, 1/4" or 5/16", DIN 3126 / ISO 1173 D 6.3 or D8
for direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8 (size 4: 22 teeth, size 5: 30 teeth)
hex with collar-thrust spring
bits are easy to insert, lock securely into place, and can be easily pulled out again; also hex with wide groove (Form E, DIN 3126 / ISO 1173)
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
