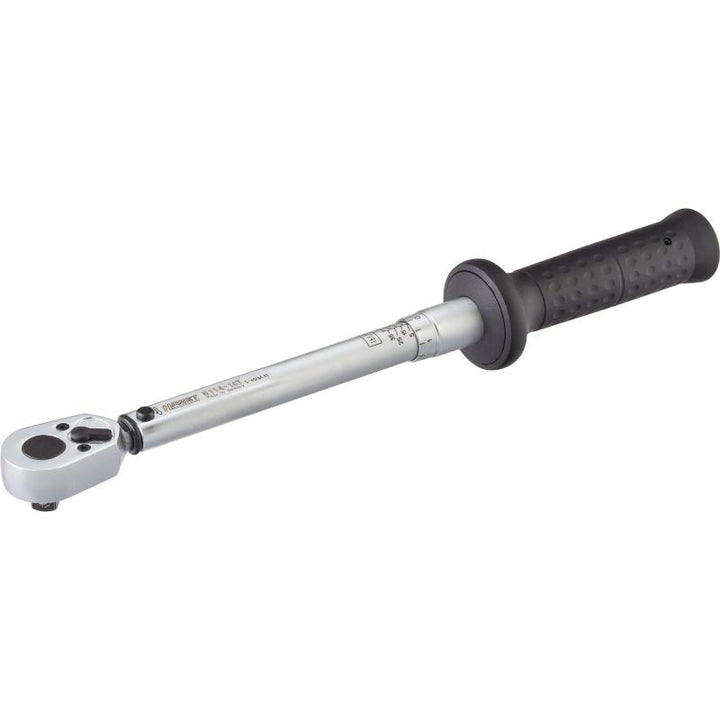

Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square
Hazet logo

Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square

$993.99 USD & FREE Shipping.
/
Extended Handling May Be Required
  • According to US standards
  • Scale graduation in lbf.ft
  • ± 3 % accuracy of scale value (in direction of actuation)
  • Output: Square, solid 10 mm (3/8 inch)
  • lbf min-max: 5 – 40 lbf.ft
Overview
  • Safety:
    • Haptic (close-gap release)
    • Audible ("click" sound)
  • Easy and safe adjustment of the desired torque value by turning the handle
  • Reversible ratchet
  • Knob for additionally locking the set value
  • 6127-1 CT – 6128-1 CT: shift lever with idle function – reduces risk of injury and malfunction
  • Secure storage in safe box with display window
  • With calibration certificate and serial number
  • No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
Brand img

Hazet 6114-1CT Torque Wrench, US Standard, 5–40 lbf.ft, 10mm (3/8") Square

You may also like
Specifications
General Information
Brand
Hazet
Part Number
6114-1CT
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896078424
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black
Length
333 mm
Weight
0.56 kg
1.23 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
10 mm (3/8 inch)
Features
Scale Graduation (lbf.ft): 0.5 lbf.ft

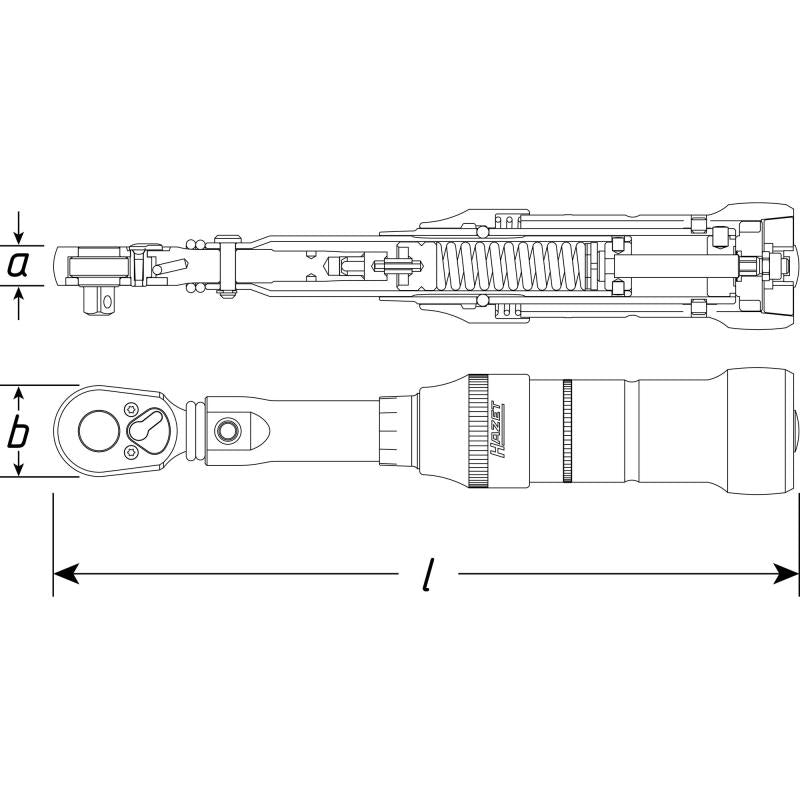

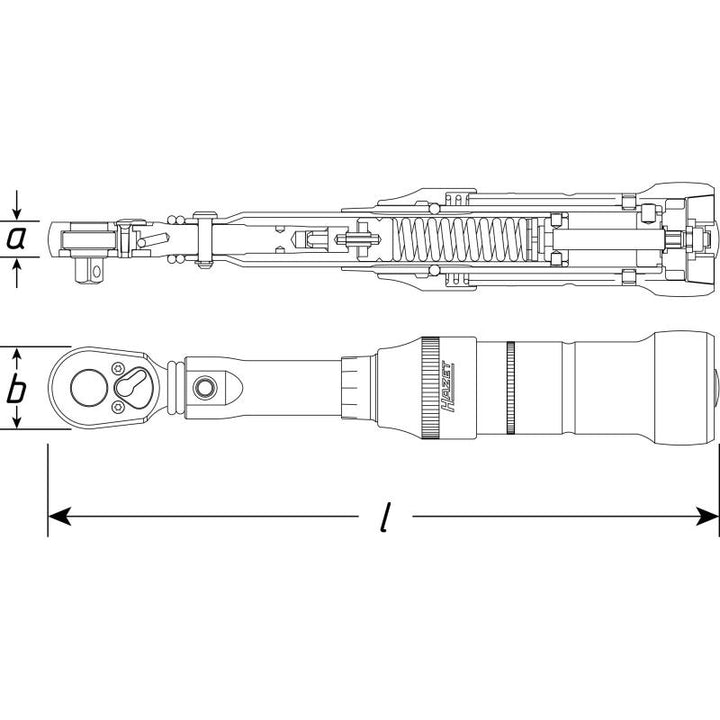

Effective torque wrench length min.-max. I1 mm: 264.52 – 254.02 Nm
Actuating force min.-max. kg: 2.6 – 21.8 kg
Number of teeth: 30 (Opening angle 12°)
Head Thickness a: 14.5 mm
Head Width b: 32 mm
Torque Range ft lbs
5 – 40 lbf.ft
Torque Range Nm
6.8 – 54.2 Nm
Torque Accuracy
± 3 % accuracy of scale value (in direction of actuation)
About Manufacturer
Hazet

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
