Wera Kraftform Kompakt VDE 24 Allrounder Set 1, 25 pieces

$487.99 USD & FREE Shipping.
/
  • The all-rounder set of tools for VDE applications
  • Individually tested tools as per IEC 60900
  • One driver with ratchet functionality (40 teeth, 9 degree return angle) and one fixed driver for interchangeable blades

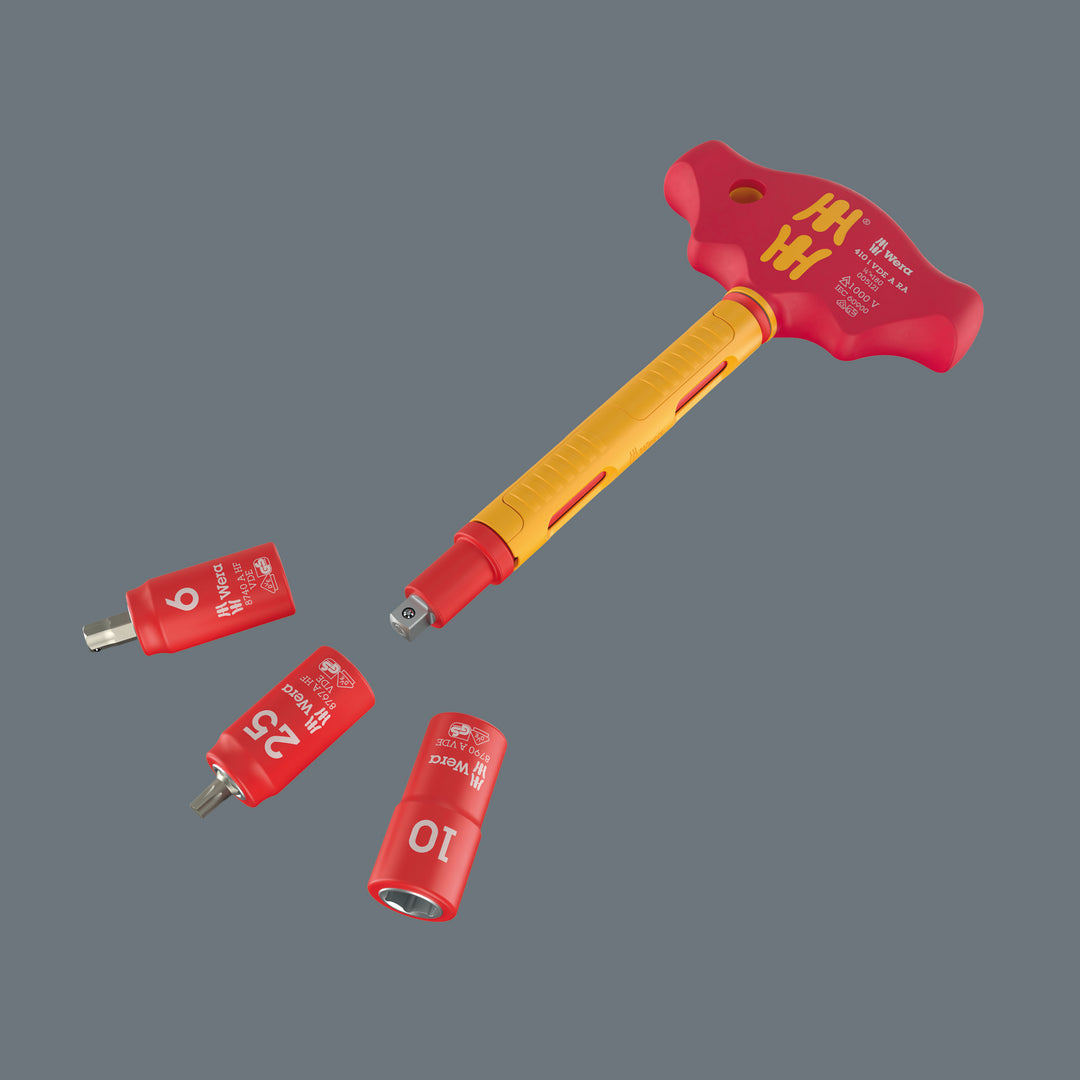

  • One T-handle adapter screwdriver with ratchet functionality for 1/4" sockets and 1/4" bit sockets
  • One adapter blade (1/4" external hexagon to 9 mm external hexagon) for 1/4" sockets and bit sockets
Overview

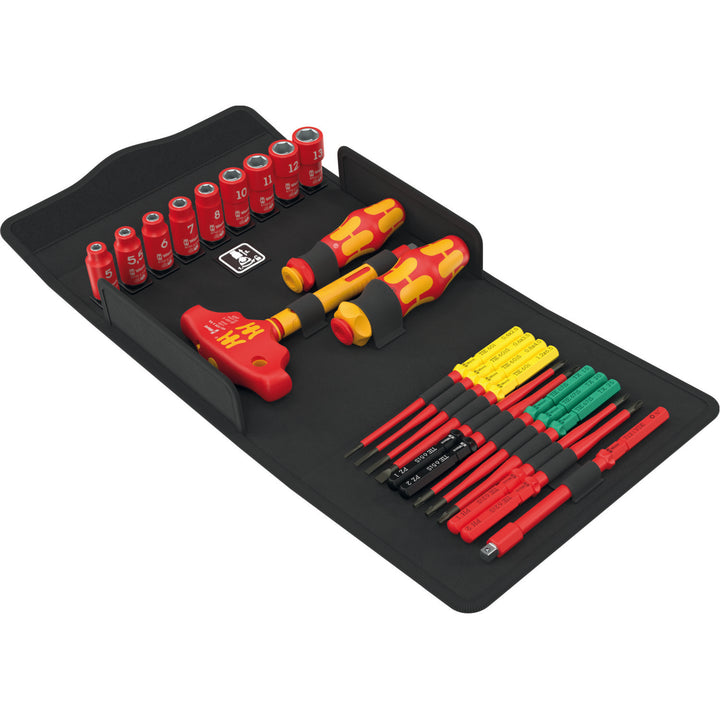

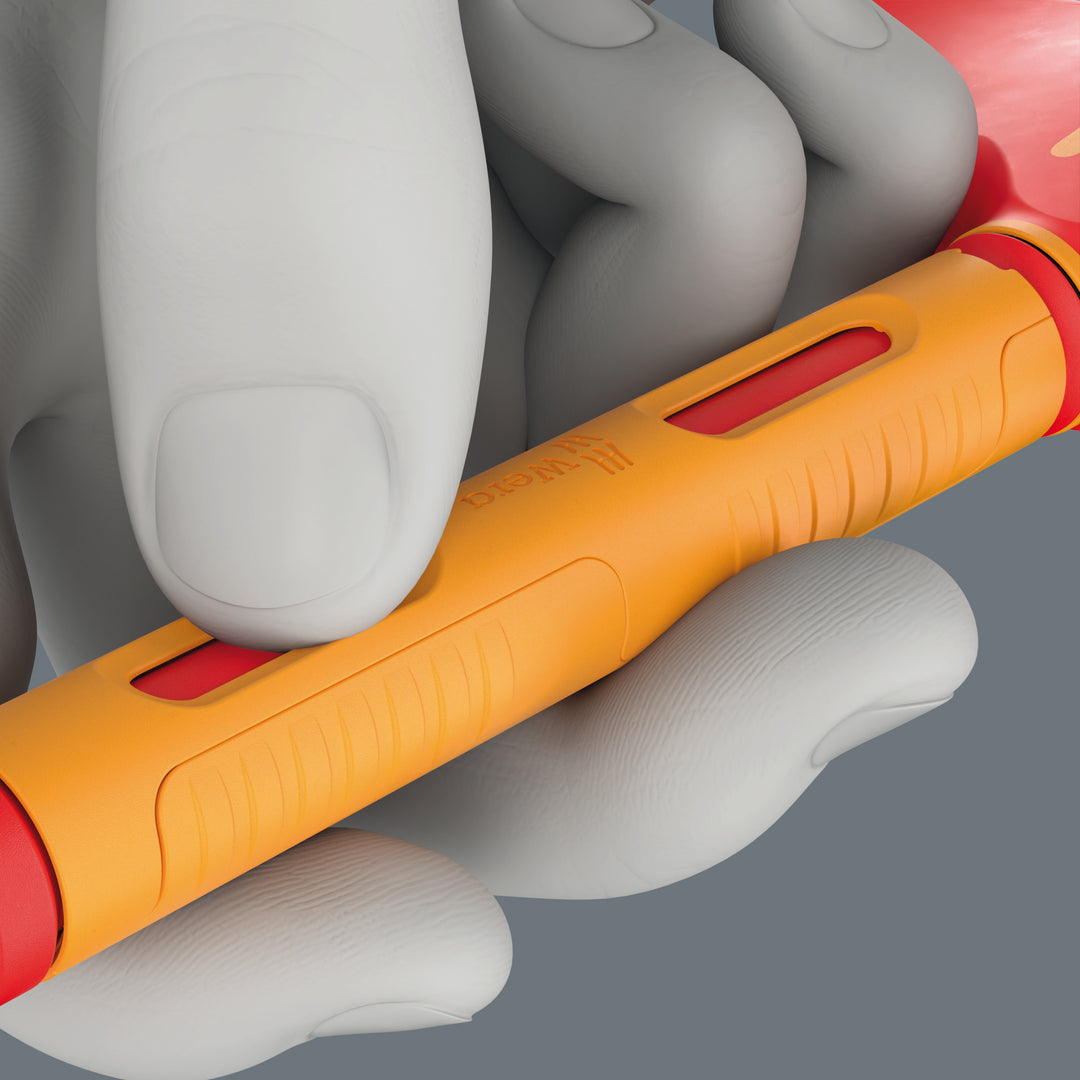

The all-rounder set for VDE applications. Two bitholding screwdrivers 837 i RA and 817 VDE for Kraftform Kompakt VDE blades (837 i RA with ratchet functionality for accelerated screwdriving). 11 Kraftform Kompakt blades for slotted screws, Phillips-head screws (Phillips and Pozidriv) and TORX® screws. Even low-lying screw and spring elements can be reached thanks to the reduced blade diameter. The Take it easy tool finder (colour coding by profile as well as laser-engraved size indication) makes it easy to reach for the required blade. One T-handle with ratchet functionality for 1/4" sockets. The recesses in the fast-rotating sleeve on the blade allow resistance to be generated by finger force which allows the ratchet mechanism to be used even at low resistance of the screw. 9 sockets offer increased safety thanks to the 2-component insulation with a yellow insulation core under an outer red insulation layer. The inner yellow insulation layer becomes visible if the outer red VDE insulation layer is damaged. All tools are individually tested at 10,000 Volt as per IEC 60900. Space-saving and safe storage in a textile box. The textile box can be docked directly onto the Wera 2go transport system or attached to the workshop trolley, tool wall, etc with the included hook and loop fastener strip.

Brand img

Wera Kraftform Kompakt VDE 24 Allrounder Set 1, 25 pieces

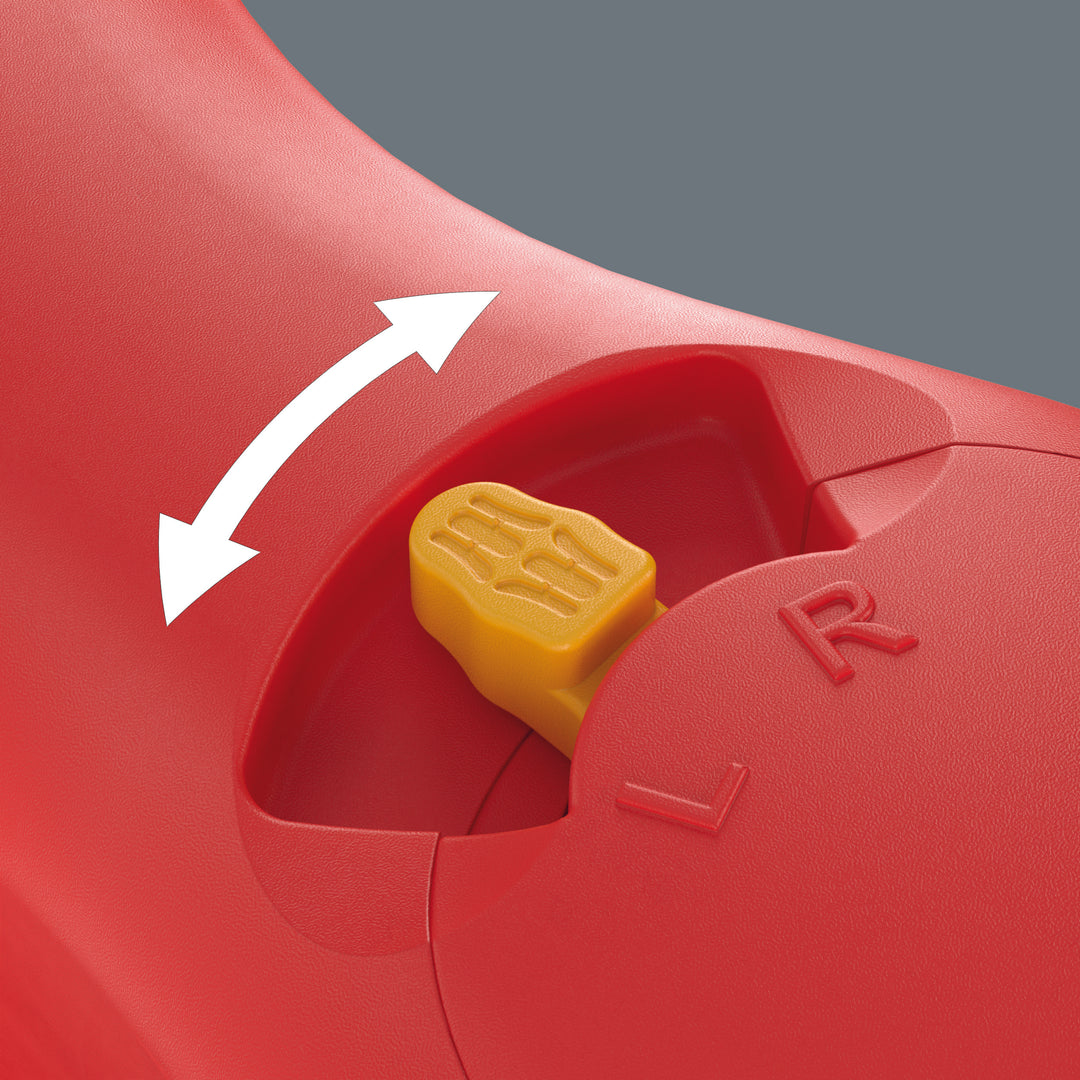

Reversable Clockwise/Counterclockwise

The direction of the fine-toothed ratchet mechanism can easily be changed using the smooth switch lever

The 817 VDE Bladeholding Screwdriver

The bitholding screwdriver is exclusively designed for Wera VDE blades. Kraftform handle maximizes comfort. Features hard handle zones for high working speeds, and soft handle zones for high torque transfer.

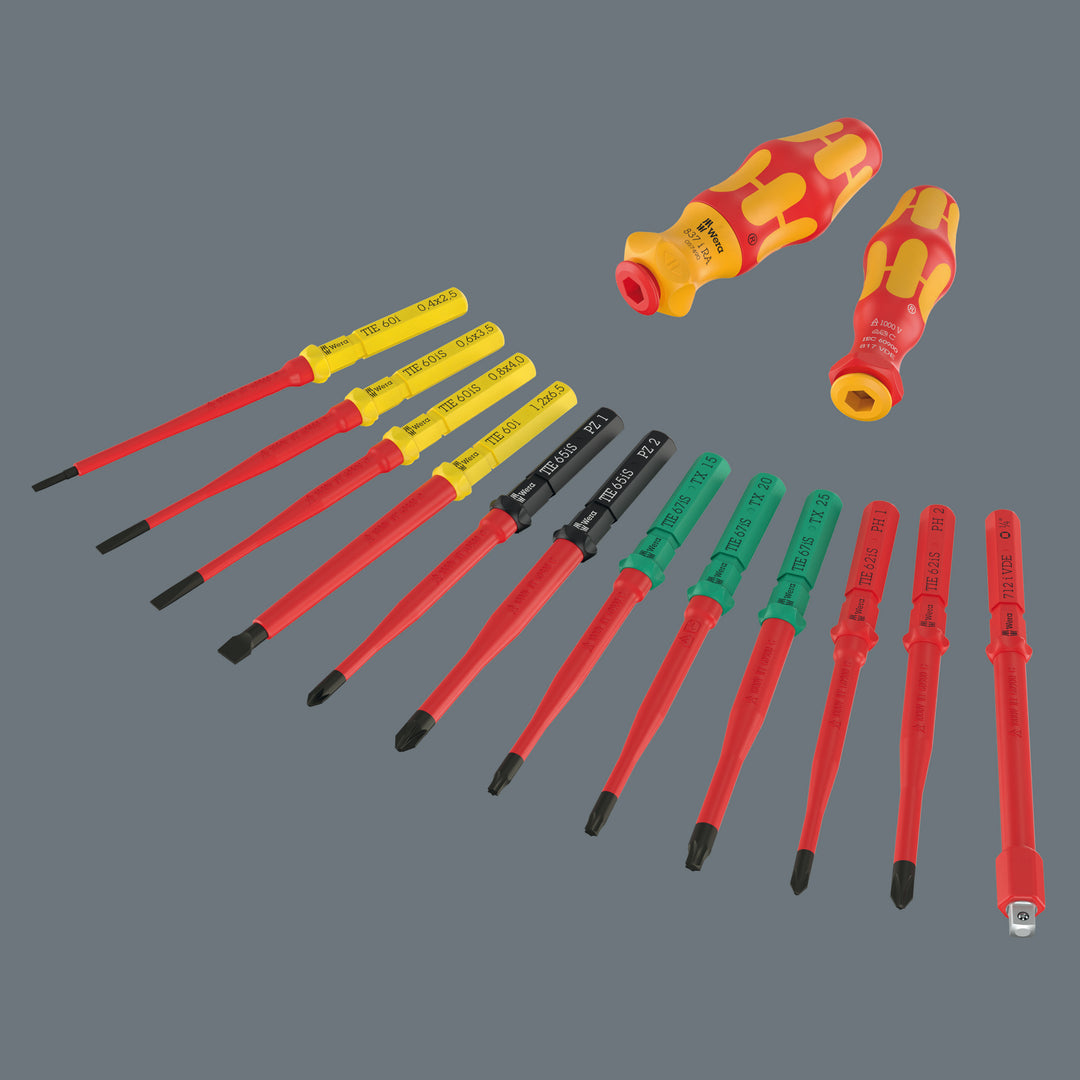

Kraftform Kompakt VDE Blades

The 157 mm length VDE blades are apt for Wera Kraftform Kompakt handles with 9 mm hexagonal blade mounting.

You may also like
Specifications
General Information
Brand
Wera
What's Included
837 i RA Kraftform blade-holding handle with ratchet functionality

050574900011x 9 x 115 mm
817 VDE Kraftform blade-holding handle

050039900011x 9 x 98 mm
410 i VDE A RA VDE-insulated T-handle adapter screwdriver with ratchet functionality for 1/4" sockets

050051210011x 1/4" x 130 mm
Kraftform Kompakt VDE 60 i Take it easy

050065000011x 0.4 x 2.5 x 157 mm
050065050011x 1.2 x 6.5 x 157 mm
Kraftform Kompakt VDE 60 iS Take it easy

050065060011x 0.6 x 3.5 x 157 mm
050065070011x 0.8 x 4 x 157 mm
Kraftform Kompakt VDE 62 iS Take it easy

050065120011x PH 1 x 157 mm
050065130011x PH 2 x 157 mm
Kraftform Kompakt VDE 65 iS Take it easy

050065260011x PZ 1 x 157 mm
050065270011x PZ 2 x 157 mm
Kraftform Kompakt VDE 67 iS TORX® Take it easy

050065400011x TX 15 x 157 mm
050065410011x TX 20 x 157 mm
050065420011x TX 25 x 157 mm
Kraftform Kompakt A VDE 712 i Adapter blade, insulated, for 1/4" sockets

050066420011x 1/4" x 154 mm
8790 A VDE Zyklop Socket, insulated, with 1/4" drive

050059310011x 5 x 41 mm
050059320011x 5.5 x 41 mm
050059330011x 6 x 41 mm
050059340011x 7 x 41 mm
050059350011x 8 x 41 mm
050059360011x 10 x 41 mm
050059370011x 11 x 41 mm
050059380011x 12 x 41 mm
050059390011x 13 x 41 mm
9575 Textile box Kraftform Kompakt VDE 24 Allrounder 1, without tools

1x 230x105x50 mm
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288234131
California Residents
Proposition 65 Warning
Part Number
05006610001
Product Type
Tool Set
Physical Characteristics
Length
6.89"
Width
9.37"
Height
2.8"
Weight
1.17 kg
2.59 lb
Details
Features
The all-rounder set of tools for VDE applications

Individually tested tools as per IEC 60900

One driver with ratchet functionality (40 teeth, 9 degree return angle) and one fixed driver for interchangeable blades

One T-handle adapter screwdriver with ratchet functionality for 1/4" sockets and 1/4" bit sockets

One adapter blade (1/4" external hexagon to 9 mm external hexagon) for 1/4" sockets and bit sockets

VDE blades (157 mm length) with practical spinning function, anti-roll protection and Take it easy toolfinder: color coding by profile and laser-engraved size indication

9 Zyklop sockets with 2-component insulation (yellow insulation core, which becomes visible if the outer red VDE insulation layer is damaged)

Space-saving and safe storage in a textile box, which can also be docked onto the Wera 2go system
Size
Phillips: #1 and #2
PoziDriv: #1 and #2
Slotted: 2.5, 3.5, 4.0 and 6.5
Torx: T15, T20 and T25
