Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera
Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera
Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera
Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera
Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera

Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera

Regular price
/

$3,000.99 USD & FREE Shipping.
  • Improved accuracy of detail thanks to HD camera
  • Smaller probe diameter 3.9 mm
  • Compatible with basic unit 4812-23G and 4812-11G

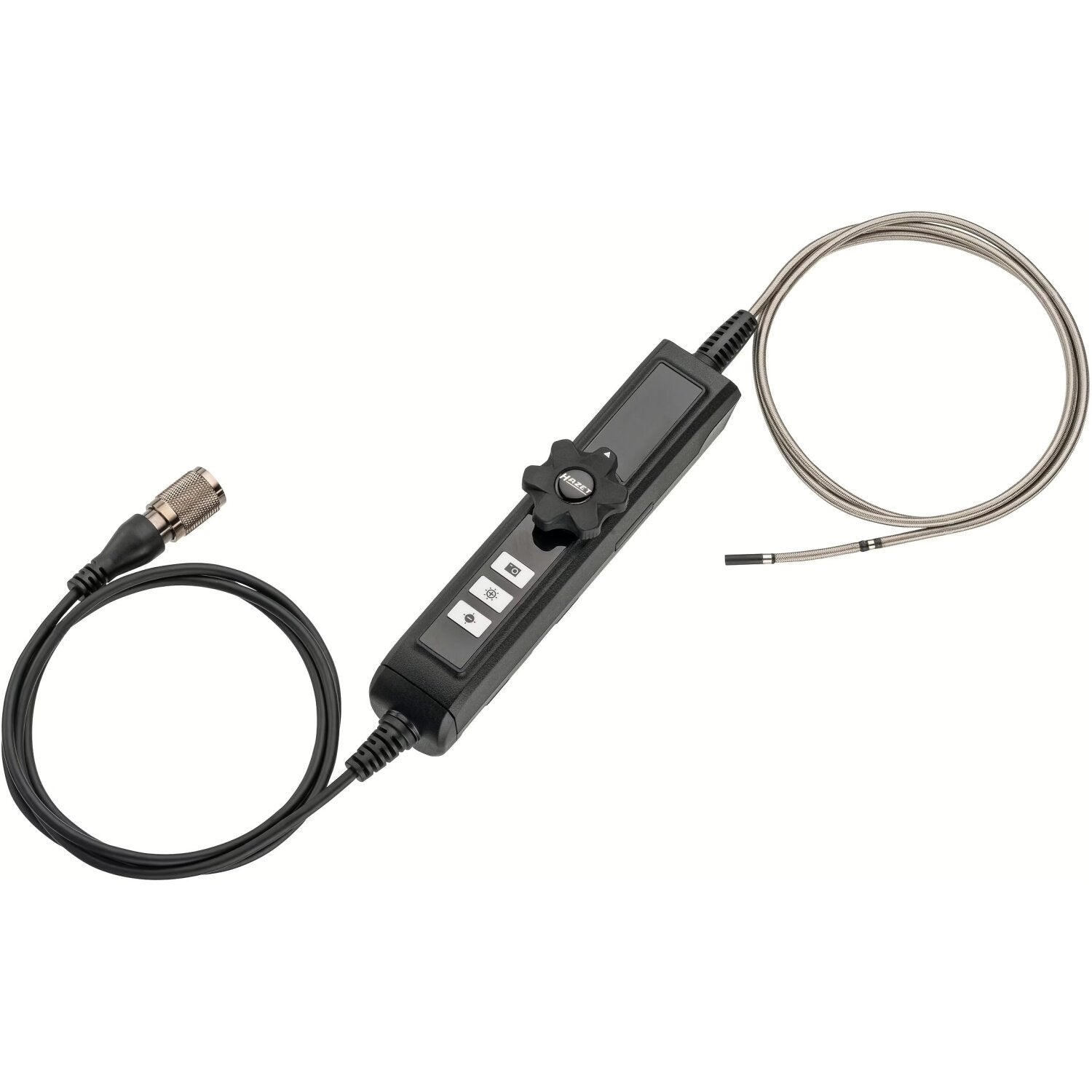

  • Including control unit to operate articulation, video recording, brightness control
  • Bending radius approx. 35 mm (-30% compared to conventional designs)
Overview

HD swivelling probe 180° ∙ ⌀ 3.9 mm ∙ front camera Diagnosis and documentation of cavities for damage assessment.

Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera

Specifications
Physical Characteristics
Color
Black
Length
2589 mm
Width
35.4 mm
Height
51.1 mm
Weight
0.61 kg
1.34 lb
Details
Measurement Standard
Metric
Batteries
internal rechargeable battery
Cable Type
Probe cable
Temperature Range
-10° C to 60° C
Features
Diagnosis and documentation of cavities for damage assessment
Improved accuracy of detail thanks to HD camera
Smaller probe diameter 3.9 mm
Compatible with basic unit 4812-23G and 4812-11G
Including control unit to operate articulation, video recording, brightness control
Bending radius approx. 35 mm (-30% compared to conventional designs)
High mobility due to bilateral articulation

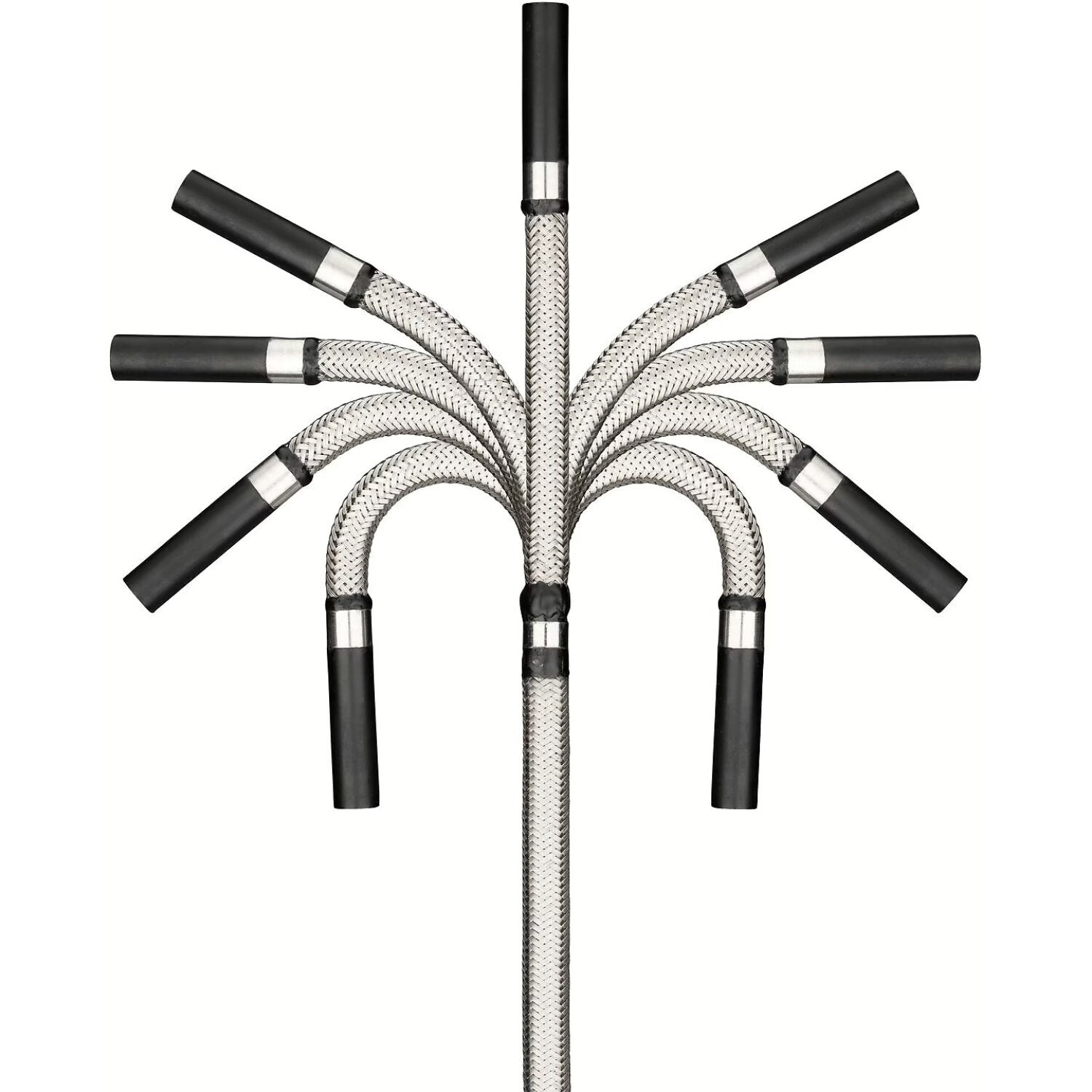

Full swivel up to 180° on both sides enables e.g. a real reverse view onto valves in the cylinder head

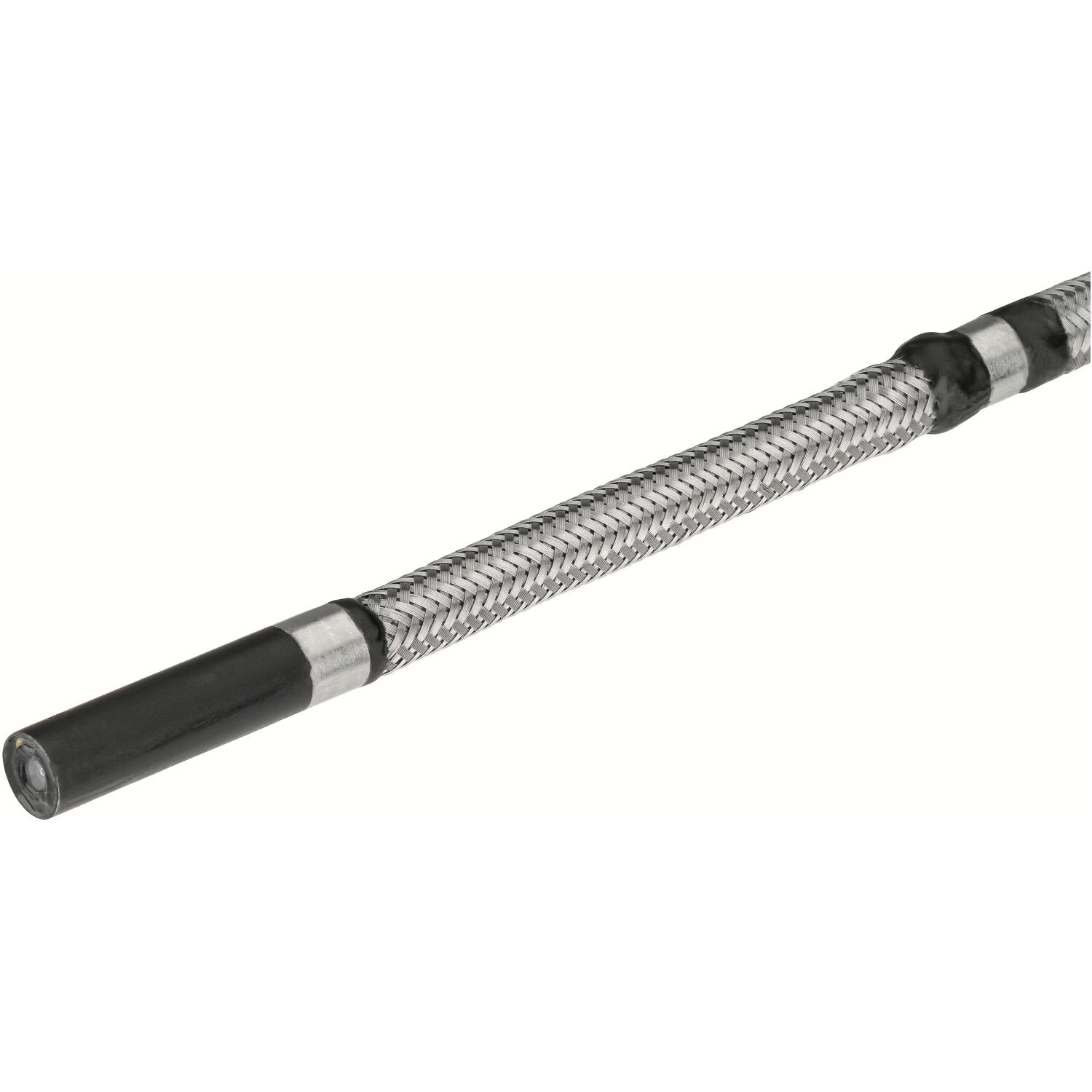

Front camera
Twofold dimmable LED light source
Light intensity: front LED 200 – 300 Lux (measured at 5 cm distance)

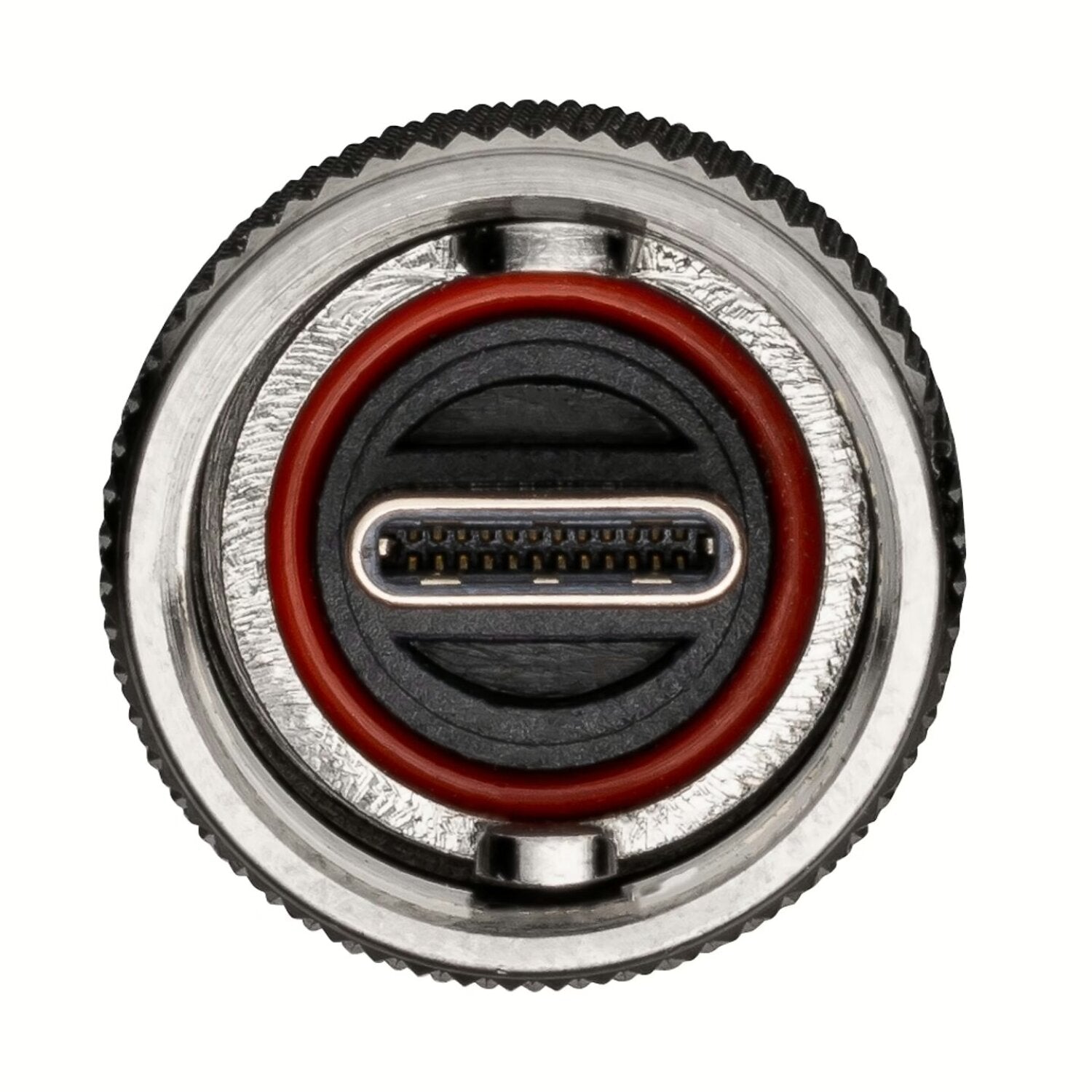

Digital interface to basic unit: USB-C
Viewing angle (FOV): 90°
Depth of focus (DOV): 10 – 100 mm
Resolution: HD 1280(H) x 720(V) pixels
Compression format: H.264
Operating temperature: -10° C to 60° C
Probe protection rating: IP67
Weight: 307 g
Improved accuracy of detail thanks to HD camera
Diagnosis of cavities for damage assessment
Image format: Jpeg
Video format: MOV
Protection rating probe: IP67 (when connected)
Probe cable: 1 m
Dimensions: 35.4 x 51.1 mm 2589 mm (W x H x L)
General Information
Brand
Hazet
California Residents
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
4812-23AF
Product Type
HD swivelling probe
UPC
4000896249602
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
Hazet

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
