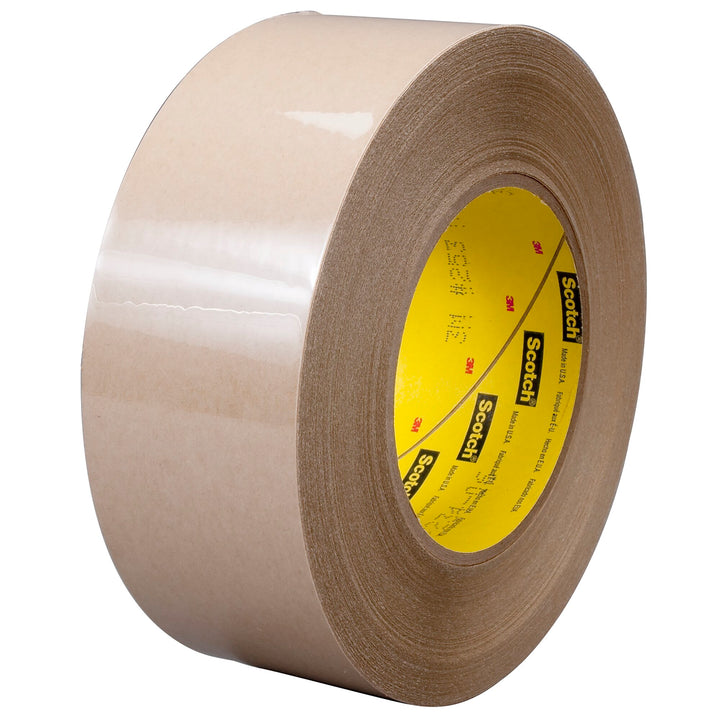

3M Splicing Tape 253, Tan, 13 in x 60 yd, 4.6 mil
3M Splicing Tape 253, Tan, 13 in x 60 yd, 4.6 mil

3M Splicing Tape 253, Tan, 13 in x 60 yd, 4.6 mil

Regular price
/

$1,950.99 USD & FREE Shipping.
  • Special silicone adhesive exhibits good "web-grab" and peel adhesion to many silicone treated materials
  • Silicone-coated backing enables the splice to be functional
  • Liner helps ensure roll quality, ease of unwind and protection of adhesive against contamination until splice is ready to be made
  • Materials release from the tape backing as easily as from the material itself for clean removal of tape and adhesive
Overview
3M Splicing Tape 253 is a single-coated paper tape with a modified poly liner implemented on the face side of the tape to help ensure roll quality and provide protection against contamination. This tape is ideal for silicone and plastic based material splicing and butt splicing applications.

Solutions for Silicone Splicing Applications
3M™ Splicing Tape 253 is a 4.6 mil, tan, single-coated paper tape with a modified poly liner. The tape itself is a treated flatstock paper backing coated with a silicone adhesive. We've implemented a modified poly liner on the face side of the tape to help ensure roll quality and provide protection for the adhesive against contamination until the splice is ready to be made. The release liner also helps create an easy and controlled unwind for easy manipulation and deployment of the tape. 3M™ Splicing Tape 253 is designed to perform at temperatures up to 150°F/66°C.

Recommended Applications

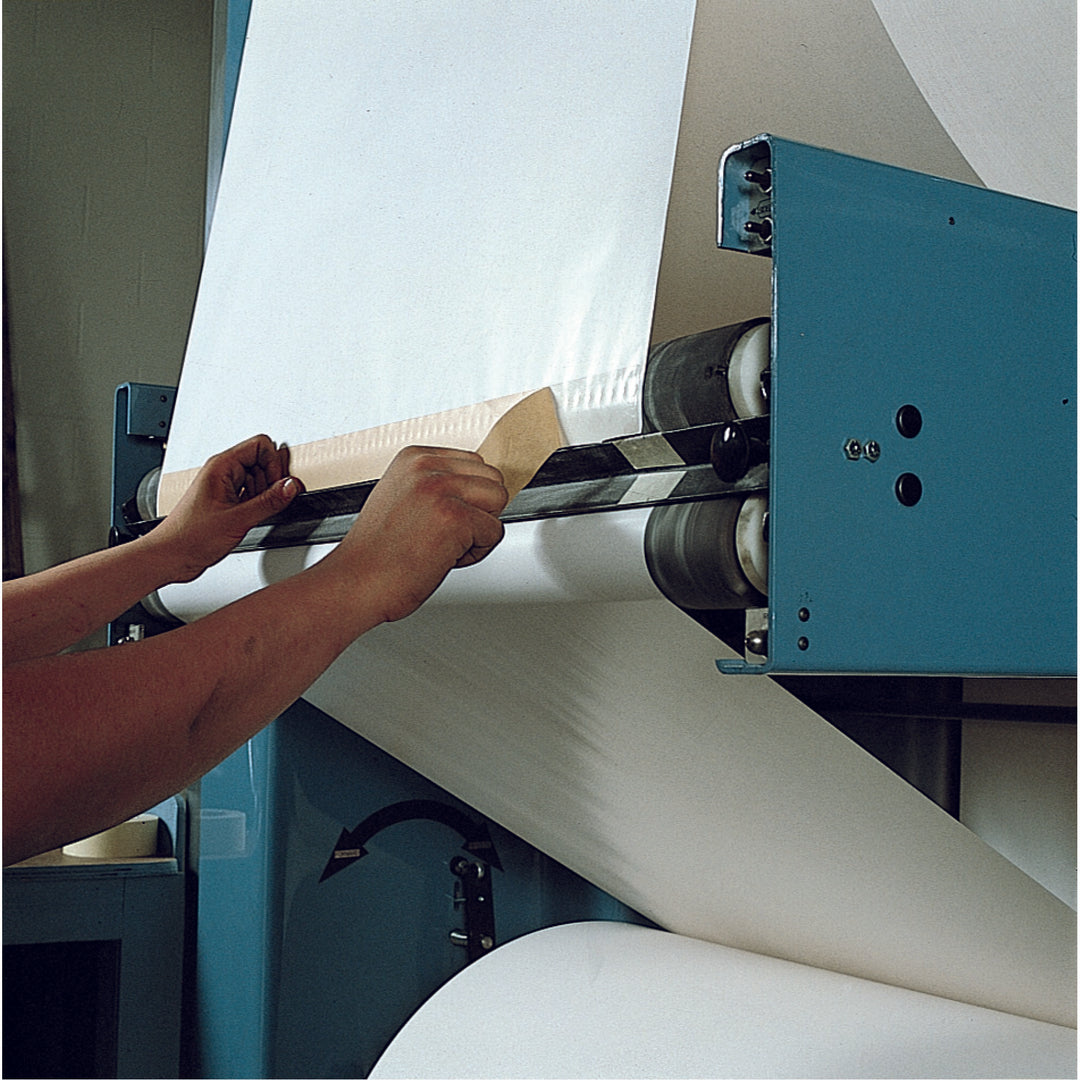

  • Butt splicing many paper and plastic based materials
  • Splicing many silicone treated materials

Clean Application and Removal with Silicone
The tape features an adhesive that is long-aging to allow the tape to remain adhered and flexible. Silicone adhesives stick well to difficult surfaces such as silicone liners and silicone coated surfaces. When finished this tape removes cleanly and easily to eliminate time consuming cleaning processes. This tape will remove cleanly from a variety of substrates.

3M Splicing Tape 253, Tan, 13 in x 60 yd, 4.6 mil

Specifications
General Information
Brand
3Mâ„¢
Adhesive Type
Silicone
Country Of Origin
United States
Sold As
Case
California Residents
Dimensions and Specifications
Maximum Operating Temperature (Celsius)
66 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
150 Degree Fahrenheit
Overall Length (Imperial)
60 yd
Overall Length (Metric)
54.86 m
Overall Thickness (Imperial)
4.6 mil
Overall Width (Imperial)
13 in
Overall Width (Metric)
330.2 mm
Total Tape Thickness Without Liner (Imperial)
4.6 mil
Total Tape Thickness Without Liner (Metric)
0.117 mm
Maximum Operating Temperature Celsius
66.0
Overall Length Imperial
60.0
Width
8.4 in
21.34 cm
Height
14.6 in
37.08 cm
Length
8.4 in
21.34 cm
Volume
1030.18 cubic inch
16881.56 cm3
Weight
152.95 oz
4336.03 g
Other Details
Adhesion Strength (metric)
54 N/100mm
Industries
Print
Shelf Life In Months (From Date Of Manufacture)
12
Units Per Case
1.0
Adhesion Strength
49
Usage Information
Application
Butt Splices
Material and Composition
Product Form
Roll
Shelf Life
12 Month
Color and Appearance
Product Color
Tan
