Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit
Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit
Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit
Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit
STABILA logo

Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit

NEW-ARRIVAL
$699.00 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Cross-lines and plumb dots allow a wide range of uses across many different tasks
  • Exceptional indoor visibility and reliable operation without the need for a receiver in normal indoor conditions
  • GREENBEAM technology delivers highly visible lines with receiver-assisted outdoor readability up to 330'
  • Powerful receiver for pulse modulated laser lines (green/red) to extend the working area
  • Integrated magnet system on the upper edge of the housing
Overview

Stabila LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit.

Brand img

Stabila 03521 LAX500G + REC230RG Cross-Line & Plumb Dots Laser & Line Receiver Kit

You may also like
Specifications
General Information
Brand
STABILA

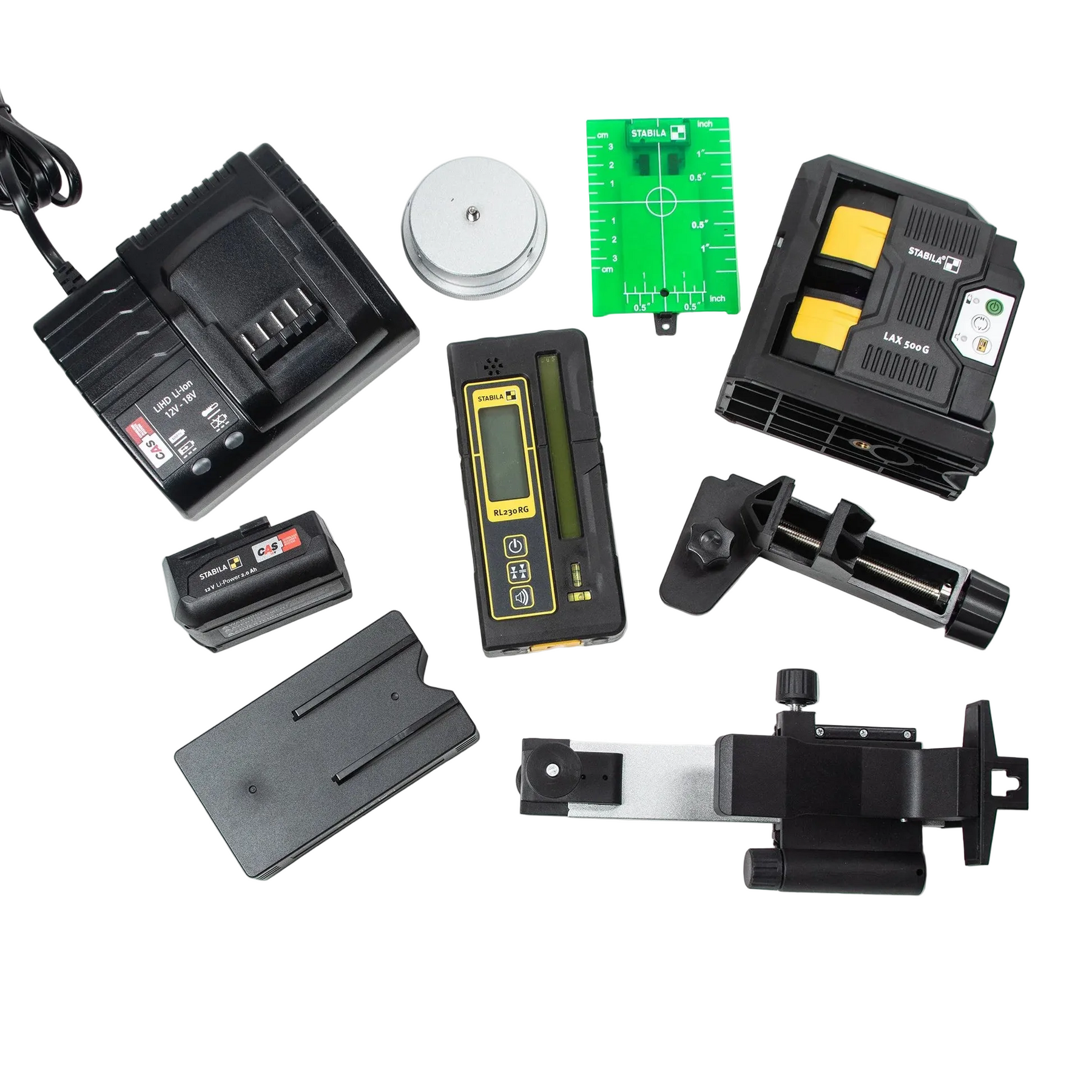

What's Included
(1) LAX 500G Cross Line and Plumb Laser
(1) REC 230 RG Line Receiver
(1) 12V Li-Power 2.0 Ah Battery (07626)
(1) SC30CAS Charger
(1) Laser Base
(1) Wall Bracket
(1) Target Plate

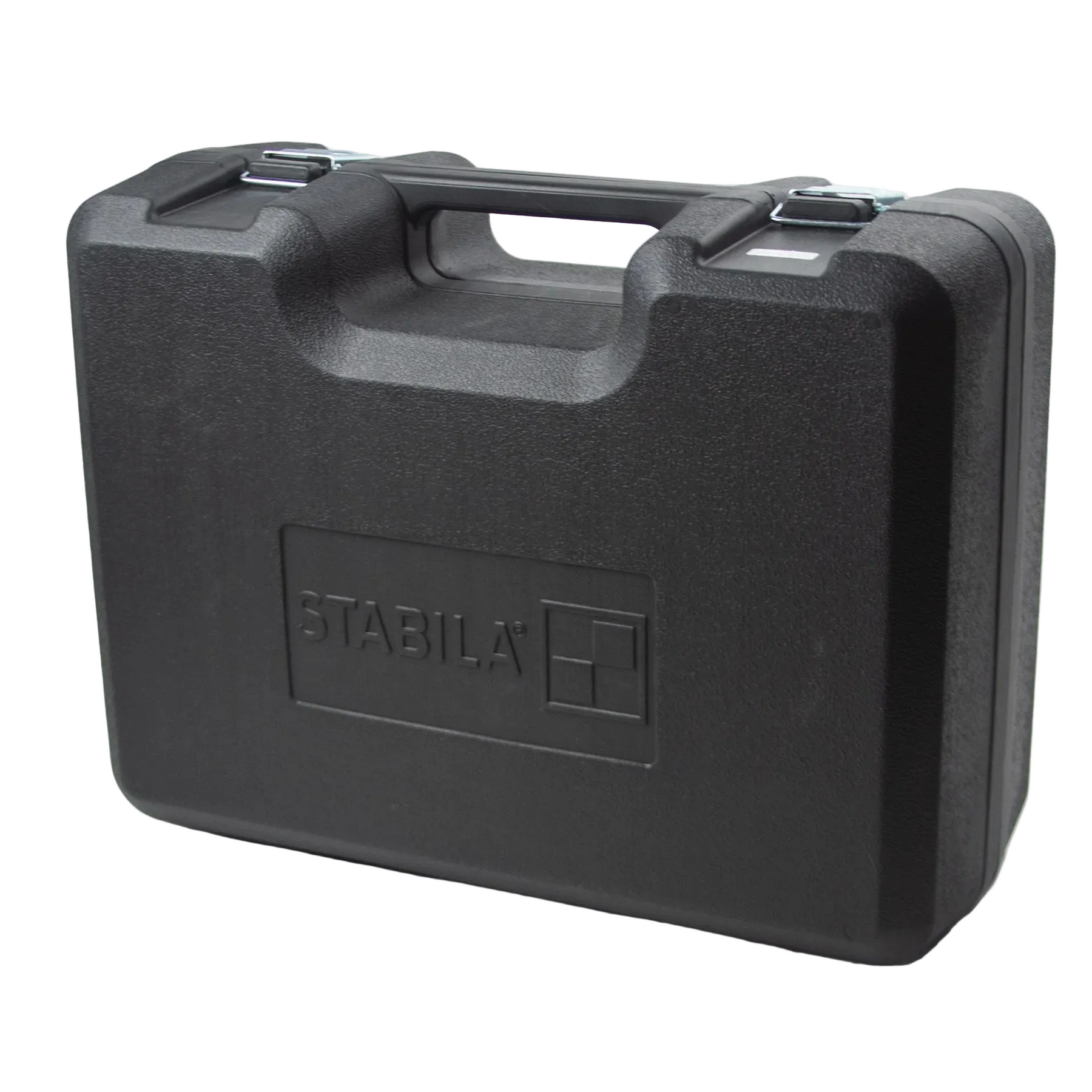

(1) Carrying Case
Packaging
Retail
UPC
089634035213
California Residents
Proposition 65 Warning
Part Number
03521
Product Type
Laser & Line Level Kit
Physical Characteristics
Weight
6.30 kg
13.90 lb
Color
Black & Yellow
Material
ABS
Details
Features
Laser Features:

Self-leveling cross-line laser with plumb dots for horizontal and vertical applications
GREENBEAM technology for bright, razor-sharp lines up to 130 ft (40 m)
High-performance diodes provide extended vertical line coverage
Manual mode allows positioning at any angle with pendulum lock
Pulse-modulated lines compatible with line receivers
Long runtime up to 20 hours with 12V Li-Power battery
Fast recharge time of approximately 45 minutes
Shock-absorbing protective housing with soft grip and protective sliders
Removable base for working over tracks and base plates
Multiple mounting options including 1/4 in thread, magnets, and wall bracket

Receiver Features:

Detects pulse-modulated laser lines (green or red) over long distances
Dual-sided illuminated digital display for easy reading
Visual arrow indicators for precise alignment
Adjustable acoustic signals with volume control (loud and quiet modes)
Two sensitivity settings: Fine (±1/32 in) and Coarse (±1/8 in)
Waterproof and dustproof with IP66 rating
Integrated magnet system and mounting bracket for versatile use
Battery status indicator
Up to 45 hours operating time
Size
Technical Data:

Laser Type: Cross-line with Plumb Dots
Working Range: Up to 130 ft (40 m)
Battery Type: 12V Li-Power 2.0 Ah
Runtime: Up to 20 Hours
Charging Time: Approx. 45 minutes

Receiver Sensitivity: ±1/32 in (Fine), ±1/8 in (Coarse)
Receiver Protection Rating: IP66
Receiver Line Height: 3-1/2 in (90 mm)
Receiver Runtime: Up to 45 hours

Self-Levelling Range: +/- 5°
Levelling Accuracy: +/- 18 in at 30 ft
Laser Wavelength: 510 - 530 nm
Measuring Range of Visible Line: 330' with Receiver
Laser Class: 2
About Manufacturer
STABILA

STABILA is a world-renowned German manufacturer of professional measuring tools, trusted for their exceptional precision and durability. Founded in 1889, STABILA has continually set industry standards through innovation and quality engineering. Their extensive range includes spirit levels, laser distance measurers, tape measures, and folding rulers, all designed to deliver accurate results even in the toughest job-site conditions. With over a century of experience, STABILA remains a symbol of reliability and craftsmanship for builders, engineers, and craftsmen around the globe.
