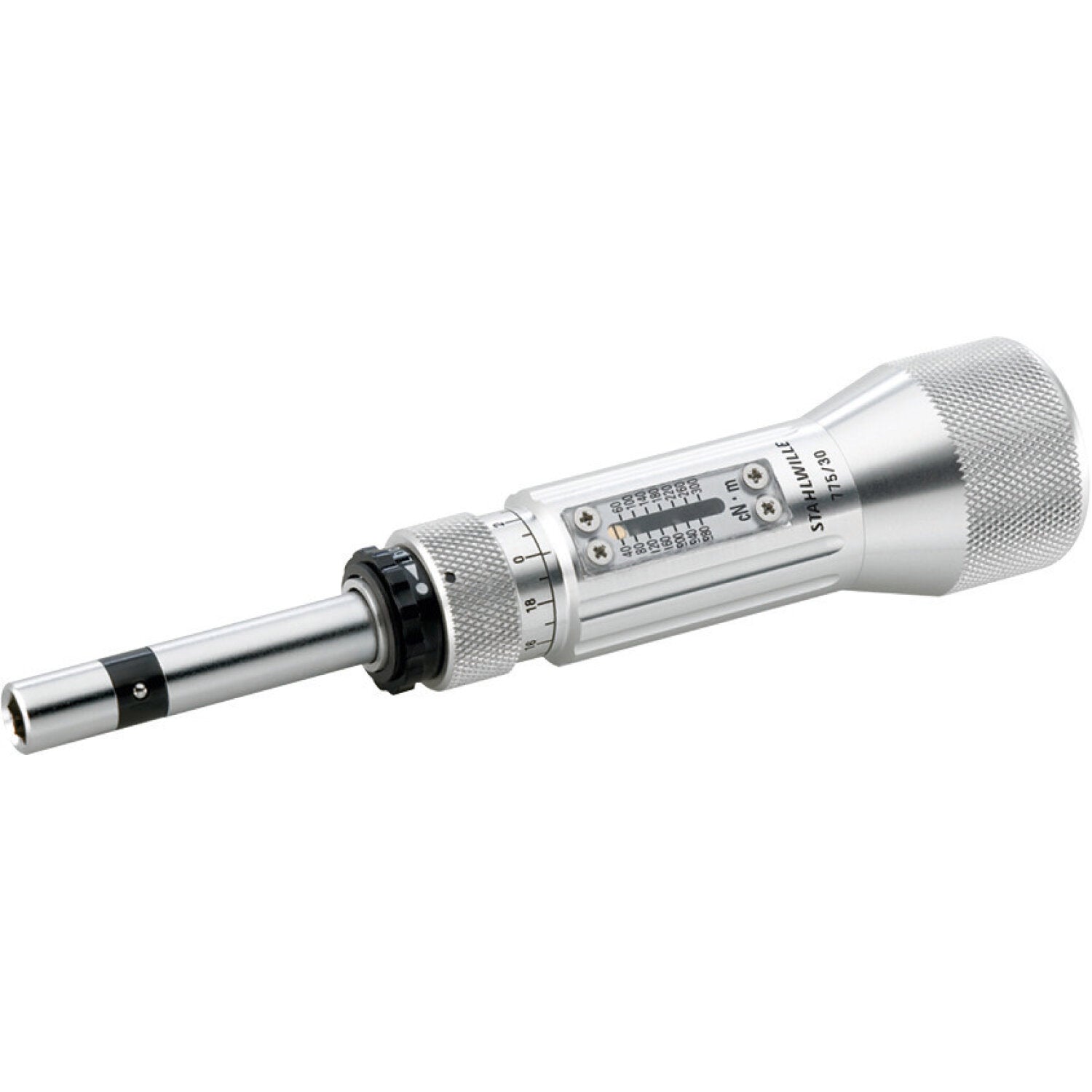

Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30
Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30
Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30
Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30
Stahlwille logo

Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30

$553.88 USD & FREE Shipping.
/
Extended Handling May Be Required
  • For controlled screw tightening in the cN·m and in·lb ranges
  • for both single tightenings and for repetitive production tasks
  • for clockwise and counter-clockwise tightening
  • with 1/4" internal hex drive (F 6,3 DIN 3126 / ISO1173)
  • adjustable setting via micrometer scale (rotating scale)
Overview
This clicking type torque tool is designed for controlled screw tightening in the cN·m and in·lb ranges, suitable for both single tightenings and repetitive production tasks. It enables clockwise and counter-clockwise tightening and features a 1/4" internal hex drive (F 6.3 DIN 3126 / ISO 1173) The adjustable setting is carried out via a micrometer scale with a rotating scale. A disengaging clutch prevents overtightening of the fastener. The specially designed handle ensures safe transmission of torque It is compatible with insert tools and all bits with 1/4" hex E 6.3, such as PHILLIPS®, slotted, TORX®, hex, and POZIDRIV®. A calibration certificate in accordance with DIN EN ISO 6789-2:2017 is included. Accuracy: ± 6%.
Brand img

Stahlwille 51060030 775 Torque screwdriver TORSIOMAX, size 30

You may also like
Specifications
General Information
Brand
Stahlwille
UPC
4018754150946
Packaging
Bulk
Country of Origin
Germany
California Residents
Proposition 65 Warning
Part Number
51060030
Product Type
Torque Wrenches
Physical Characteristics

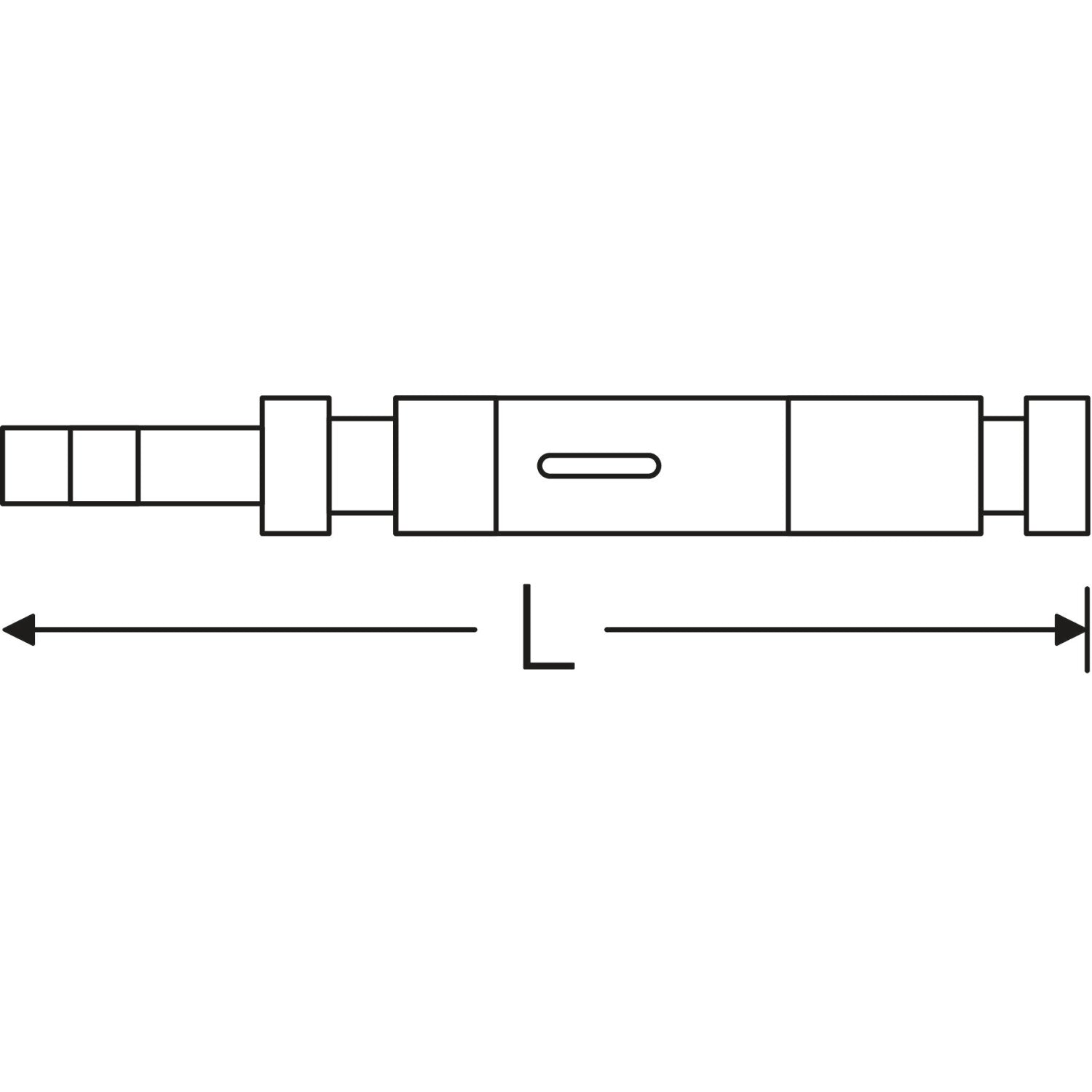

Length
160 mm
Width
52 mm
Height
52 mm
Weight
0.24 kg
0.53 lb
Details
Tip Type
Hex
Torque Accuracy
± 6%
Size
30
Drive Connector Size
1/4 Inches
Features
For controlled screw tightening in the cN·m and in·lb ranges
for both single tightenings and for repetitive production tasks
for clockwise and counter-clockwise tightening
with 1/4" internal hex drive (F 6,3 DIN 3126 / ISO1173)
adjustable setting via micrometer scale (rotating scale)
Torque Range Nm
40–300 cN·m
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
