Stahlwille 96521069 7706-9PC Complete calibration system, 3/4" Drive

$13,838.40 USD & FREE Shipping.
/
Extended Handling May Be Required
  • the special power transmission system prevents the force application point from shifting
  • the handwheel drives a lever linearly via a spindle, whereby this movement is converted into a rotary movement for the transducer
  • 2 ball-bearing bushings ensure a friction-free contact surface and enable the horizontal alignment of the wrench
  • the torque wrench remains in position whilst the load is being applied
  • minimal transverse forces and reduced friction minimise measurement errors
Overview

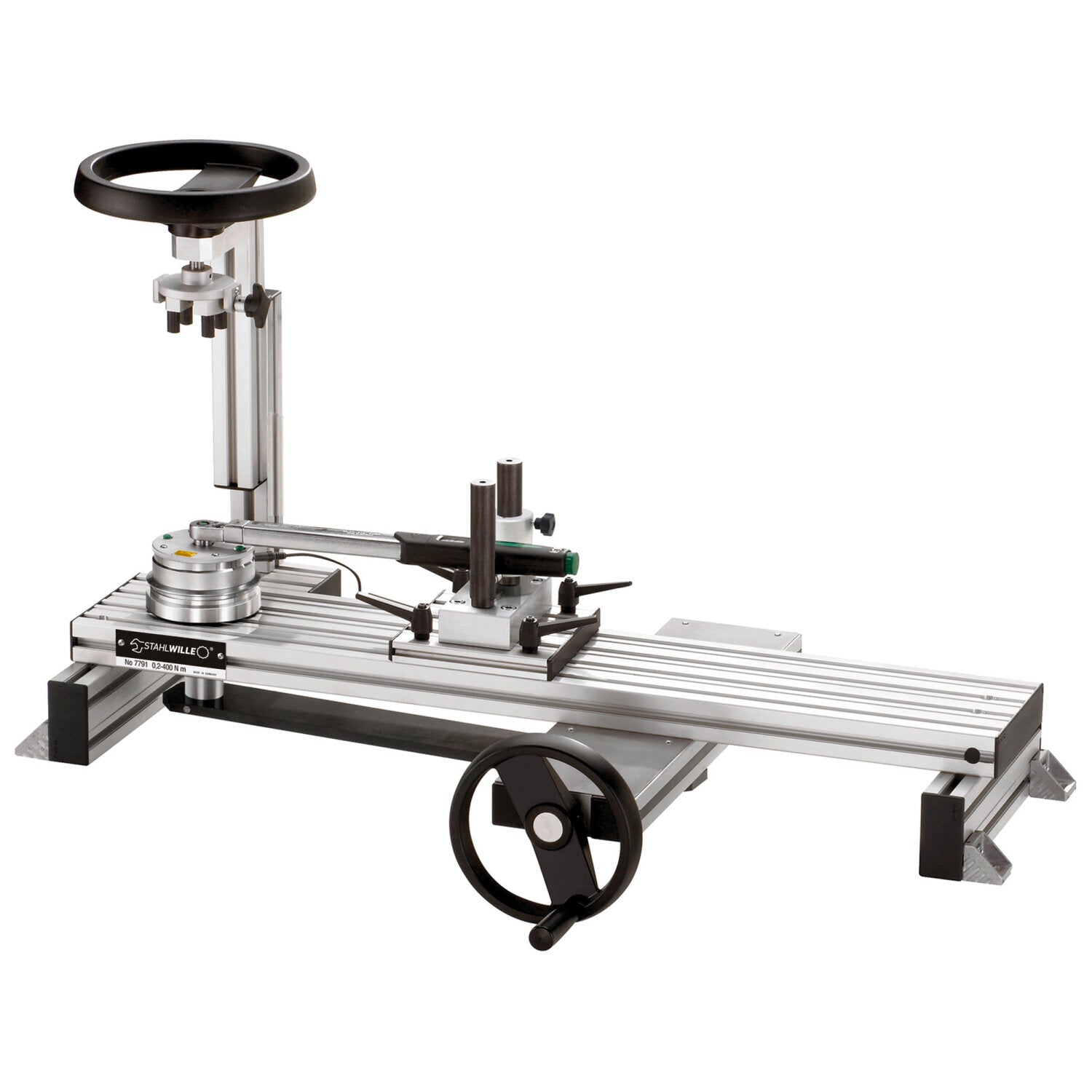

The complete calibration system features a special power transmission mechanism that prevents the force application point from shifting, ensuring highly accurate measurements. A handwheel drives a lever linearly via a spindle, converting this motion into precise rotary movement for the transducer. Two ball-bearing bushings provide a friction-free contact surface and allow horizontal alignment of the torque wrench, which remains securely in position while the load is applied. Minimal transverse forces and reduced friction minimize measurement errors, and the system is protected by national and international patents for its innovative design.
Brand img

Stahlwille 96521069 7706-9PC Complete calibration system, 3/4" Drive

You may also like
Specifications
General Information
Brand
Stahlwille
Packaging
Bulk
Country of Origin
Germany
UPC
4018754179145
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
96521069
Product Type
Torque Wrenches
Physical Characteristics
Weight
12.00 kg
26.46 lb
Details
Tip Type
Squarre
Features
the special power transmission system prevents the force application point from shifting
the handwheel drives a lever linearly via a spindle, whereby this movement is converted into a rotary movement for the transducer
2 ball-bearing bushings ensure a friction-free contact surface and enable the horizontal alignment of the wrench
the torque wrench remains in position whilst the load is being applied
minimal transverse forces and reduced friction minimise measurement errors
protected by national and international patents
Torque Range ft lbs
2-100 NM
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
