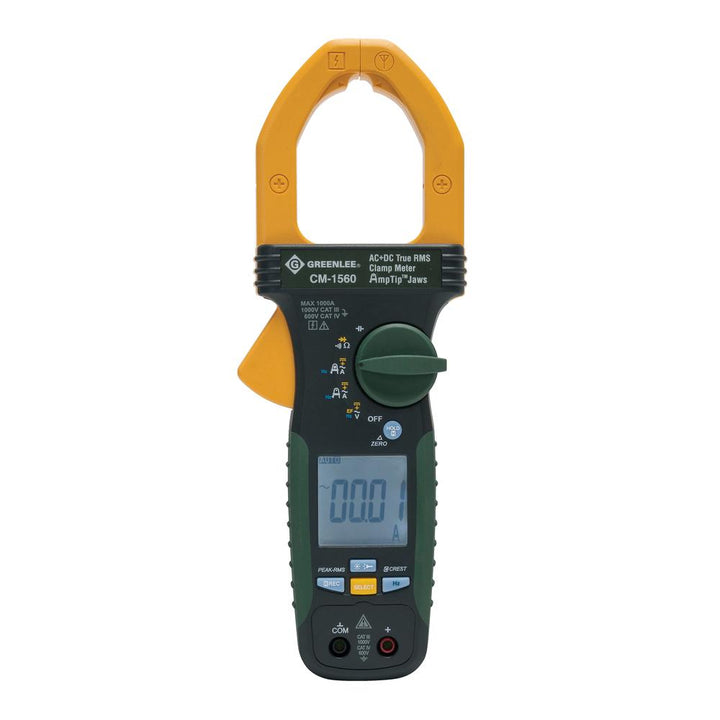

Greenlee CM-1560-C 1000 AMP AC + DC True RMS Clamp Meter - Calibrated
Greenlee CM-1560-C 1000 AMP AC + DC True RMS Clamp Meter - Calibrated

Greenlee CM-1560-C 1000 AMP AC + DC True RMS Clamp Meter - Calibrated

Regular price
/

$374.35 USD & FREE Shipping.
  • CM-1560 Clamp meter with Certificate of Calibration
  • Measures AC+DC current
  • AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance and frequency
  • Tests continuity and diodes
Overview
Greenlee CM-1560-C 1000 AMP AC + DC True RMS Clamp Meter - Calibrated

Greenlee CM-1560-C 1000 AMP AC + DC True RMS Clamp Meter - Calibrated

Specifications
General Information
Brand
Greenlee
Part Number
CM-1560-C
Product Type
Clamp Meter
What's Included
(2) 1.5V AA batteries, TSG-3 test leads, TC-30 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310022190
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.83 kg
1.84 lb
Details
Features
CM-1560 Clamp meter with Certificate of Calibration
Measures AC+DC current
AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance and frequency
Tests continuity and diodes
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
Peak-RMS measures motor in rush current
AmpTipâ„¢ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings
Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds

Amperage Measurement: 60, 600, 1000 Amps AC+DC
Measurement Category: CAT III 1000V, CAT IV 600V
Standard: CAT IV, C/US UL Listed, CE
True Power: AC+DC True RMS
Jaw Size
2.0'' (51 mm)
Voltage
600, 1000 Volts AC/DC
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage: 50/60 Hz. Current: 40 to 400 Hz
Batteries
(2) 1.5V AA batteries
Display Type
LCD, 6000 Count
