Overview
Features

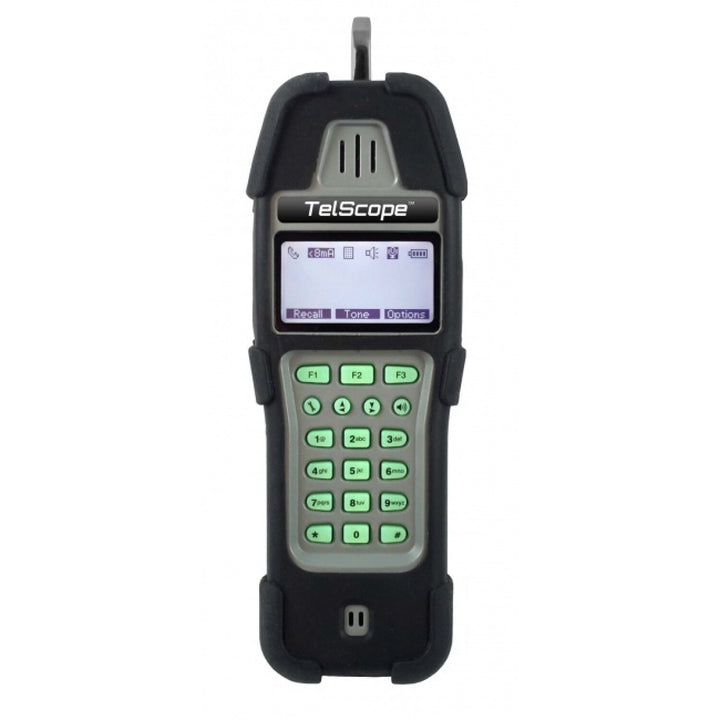

Tel Scope uses the latest embedded processor technology to enhance the user interface experience to provide a “smart” telephone test set that can be modified easily with new innovative feature sets. Combined with a rugged weatherproof case, the Tel Scope is designed for field use in extreme conditions.

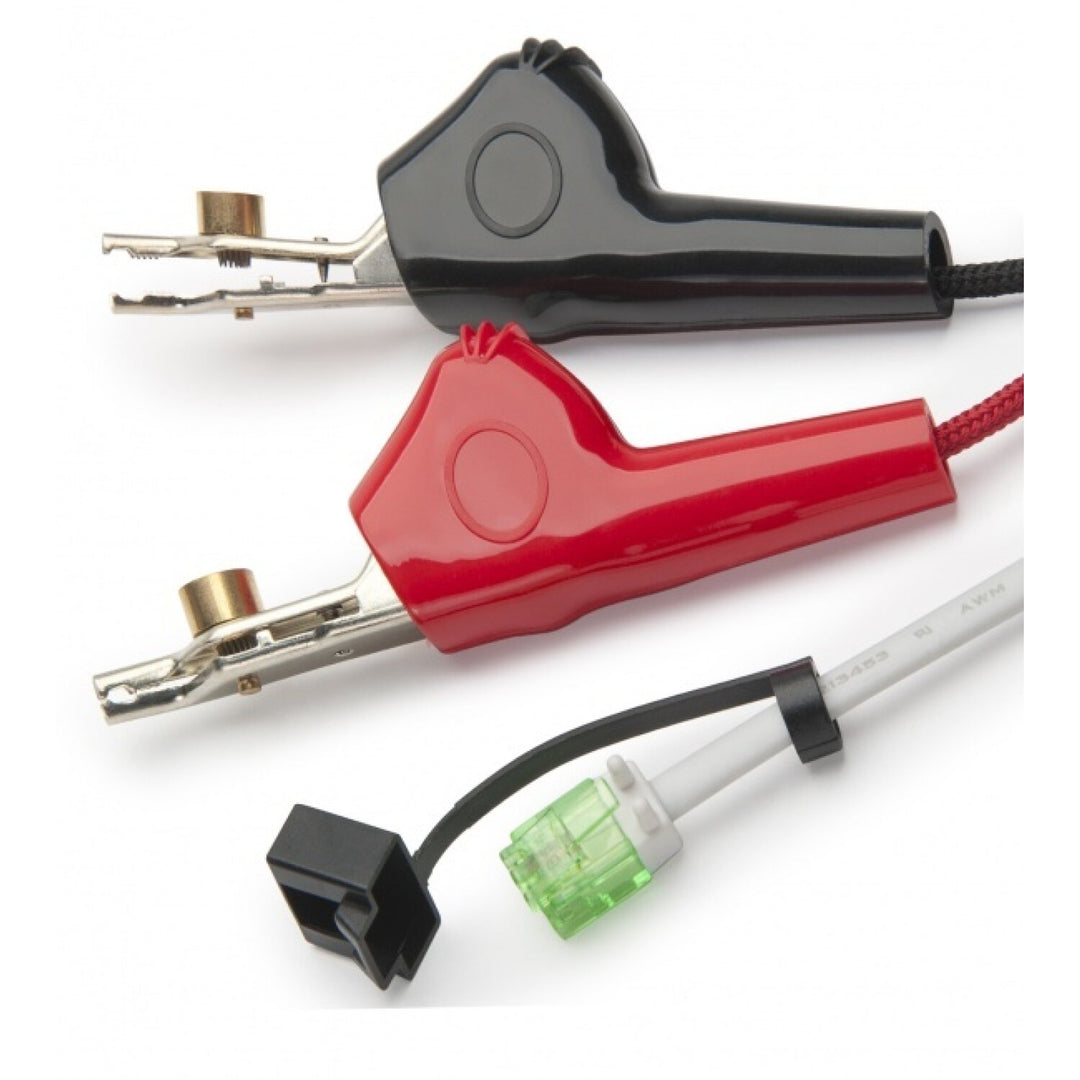

Platinum Tools 6070K1 TelScope Telecom Line Analyzer and Butt Set Replacement Cord Set
- Data Testers
- Platinum Tools
- 6070K1
You may also like
Specifications
Physical Characteristics
Color
Black
Weight
0.14 kg
0.30 lb
Details
Batteries
4 x AAA alkaline batteries
Display Type
Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
Features
Multilingual (English, French, Spanish)
Rugged water and rainproof housing
Angled Bed-of-Nails, Piercing Clip and No-Fault RJ12 Cord Set with dust-cap
Large backlit LCD
Glow in the dark keypad
On-hook voltage and off-hook current readings
Caller ID/Call Waiting Caller ID and error detection
Last number called or received list
Amplified line monitoring
Soft key menu system
Data Defender™ keeps digital lines safe
Detects and identifies DSL and T1 lines
DTMF Digit Capturing
Displays Ring Frequency & Ring Voltage
Rugged water and rainproof housing
Angled Bed-of-Nails, Piercing Clip and No-Fault RJ12 Cord Set with dust-cap
Large backlit LCD
Glow in the dark keypad
On-hook voltage and off-hook current readings
Caller ID/Call Waiting Caller ID and error detection
Last number called or received list
Amplified line monitoring
Soft key menu system
Data Defender™ keeps digital lines safe
Detects and identifies DSL and T1 lines
DTMF Digit Capturing
Displays Ring Frequency & Ring Voltage
Current
10 to 110 mA ±5%;
Voltage
0 to 200 VDC ±5%
Resistance (Ohms)
600 Ohms
Frequency
: ±1.5%
Battery Life
7 hours min. 150 hours ma
General Information
Brand
Platinum Tools
Number of Pieces
4
What's Included
Butt Set Replacement Cord
Country of Origin
China
California Residents
Part Number
6070K1
Product Type
TelScope Telecom Line Analyzer
UPC
849160007135
Resources
Datasheet
About Manufacturer
Platinum Tools has been making test and installation equipment for telecom and internet since the early days of the internet, 1997. Having lasted this long is a testament to the quality that their tools bring to the table. Every Platinum Tools product must meet the standards of “utility of function, quality of function and economic value.” This dedication is the reason why Platinum Products make every telecom install a success, they help you get the job done right the first time. With high quality crimpers, high accuracy testers, Platinum Tools takes the headaches out of telecom work.
