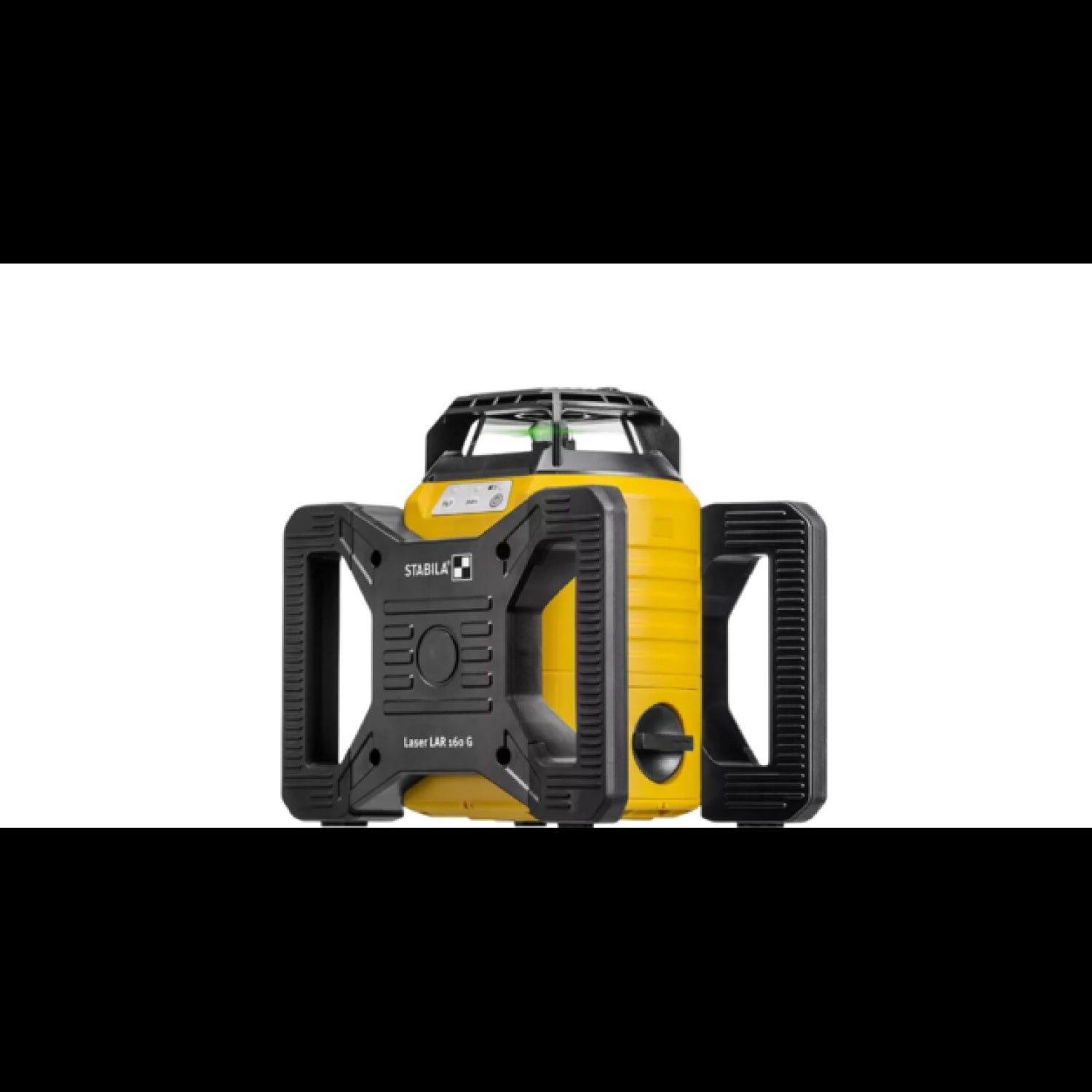

Stabila 04500 TR LAR 160 G rotary laser set with tripod and grade rod

/

$1,100.00 USD & FREE Shipping.
  • Fully automatic, motor-driven rotary laser – high leveling accuracy of 1/8 in @ 100 ft, fast self-leveling function within 20 seconds.
  • STABILA GREENBEAM technology for improved visibility.

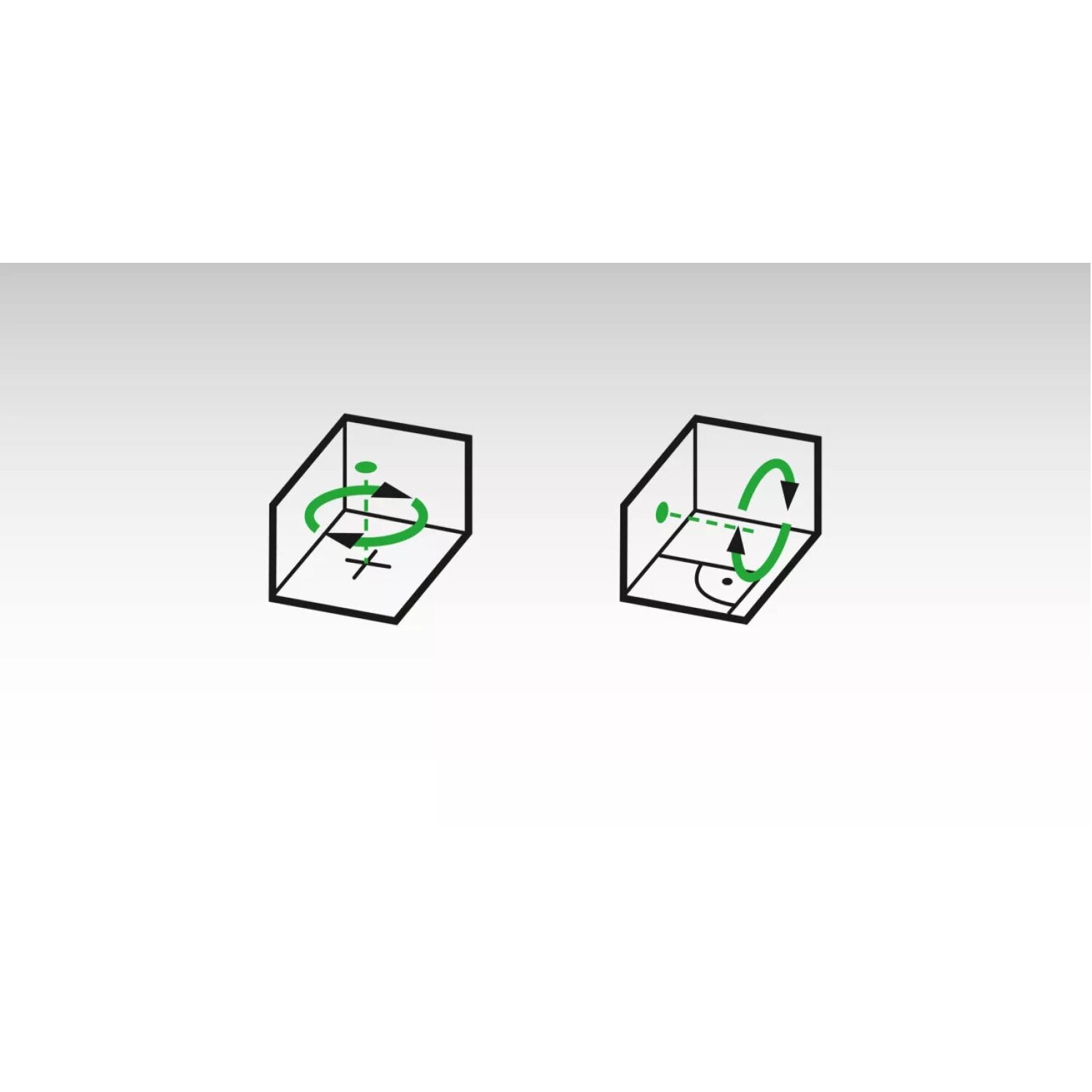

  • Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and square in vertical operation.
  • IP 65 – dust and waterproof.
  • Shock-absorbent casing provides protection against impacts – the stable housing cover also protects the laser optics
Overview

Are you looking to achieve vertical and horizontal leveling for major outdoor or interior construction projects? Do you need to work precisely and avoid costly measurement errors and rework? Then the STABILA LAR 160 G with GREENBEAM technology is the right rotation laser for you. It is quick to set up, easy to operate and suitable for use over large distances when linked to a receiver. All in all, it is a high-quality product that can endure the elements and deliver precise results – exactly what you need.

Brand img

Stabila 04500 TR LAR 160 G rotary laser set with tripod and grade rod

Specifications
General Information
Brand
STABILA
What's Included
LAR 160 G rotary laser,
REC 160 RG receiver with clamp
BST-S construction tripod
NL leveling rod, target plate
manual, hard case
2 x D 1.5 V batteries, 2 x AA 1.5 V batteries
UPC
089634045007
California Residents
Proposition 65 Warning
Part Number
04500 TR
Product Type
rotary laser set
Physical Characteristics
Weight
16.51 kg
36.40 lb
Color
Yellow and Black
Details
Features
Fully automatic, motor-driven rotary laser – high leveling accuracy of 1/8 in @ 100 ft, fast self-leveling function within 20 seconds.
STABILA GREENBEAM technology for improved visibility.
Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and square in vertical operation.

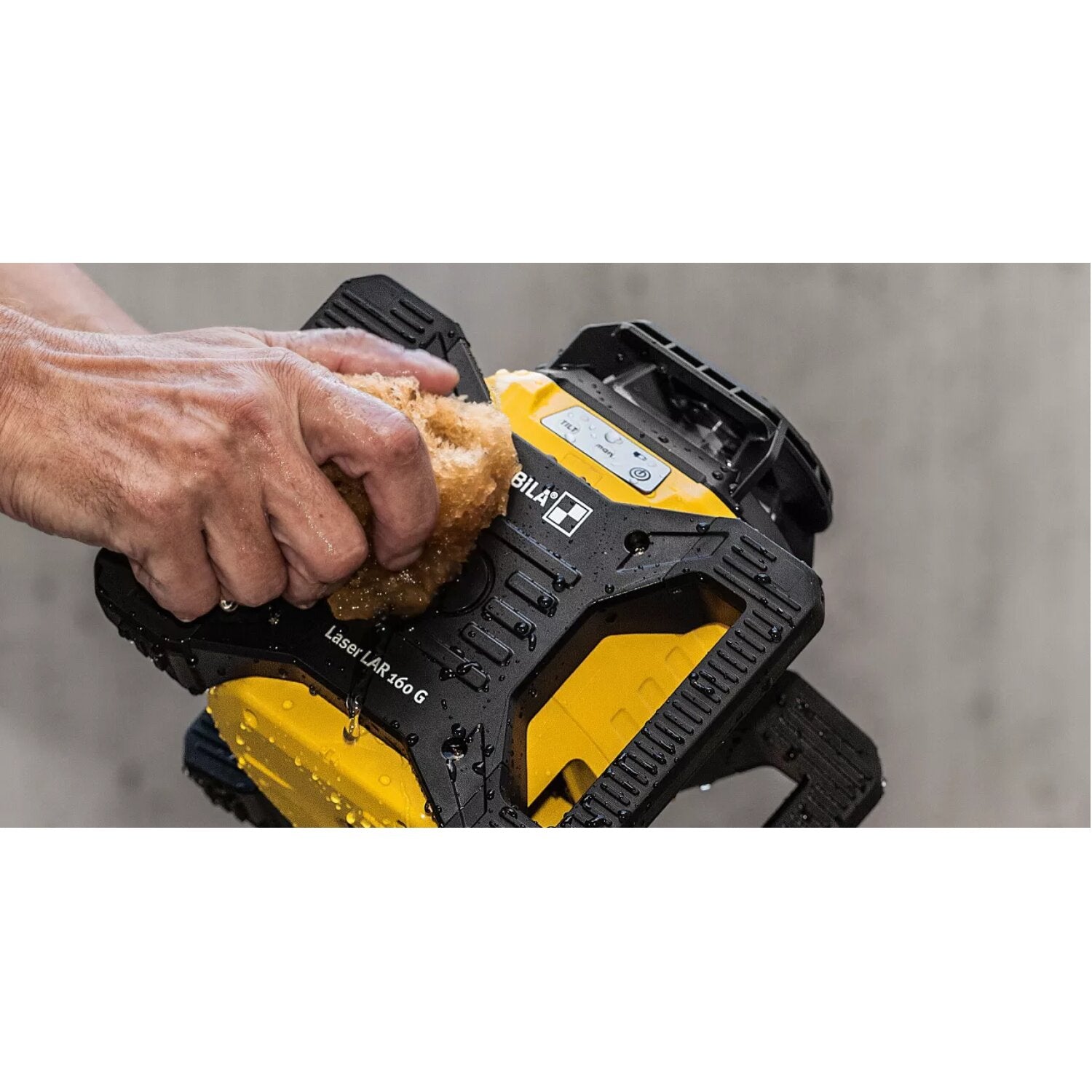

IP 65 – dust and waterproof.
Shock-absorbent casing provides protection against impacts – the stable housing cover also protects the laser optics.
Easy to use via three control buttons – on/off, tilt mode, manual mode.
Battery drawer – easy replacement.
Large working area with REC 160 RG set receiver – up to 2000 ft (600 m) in diameter.

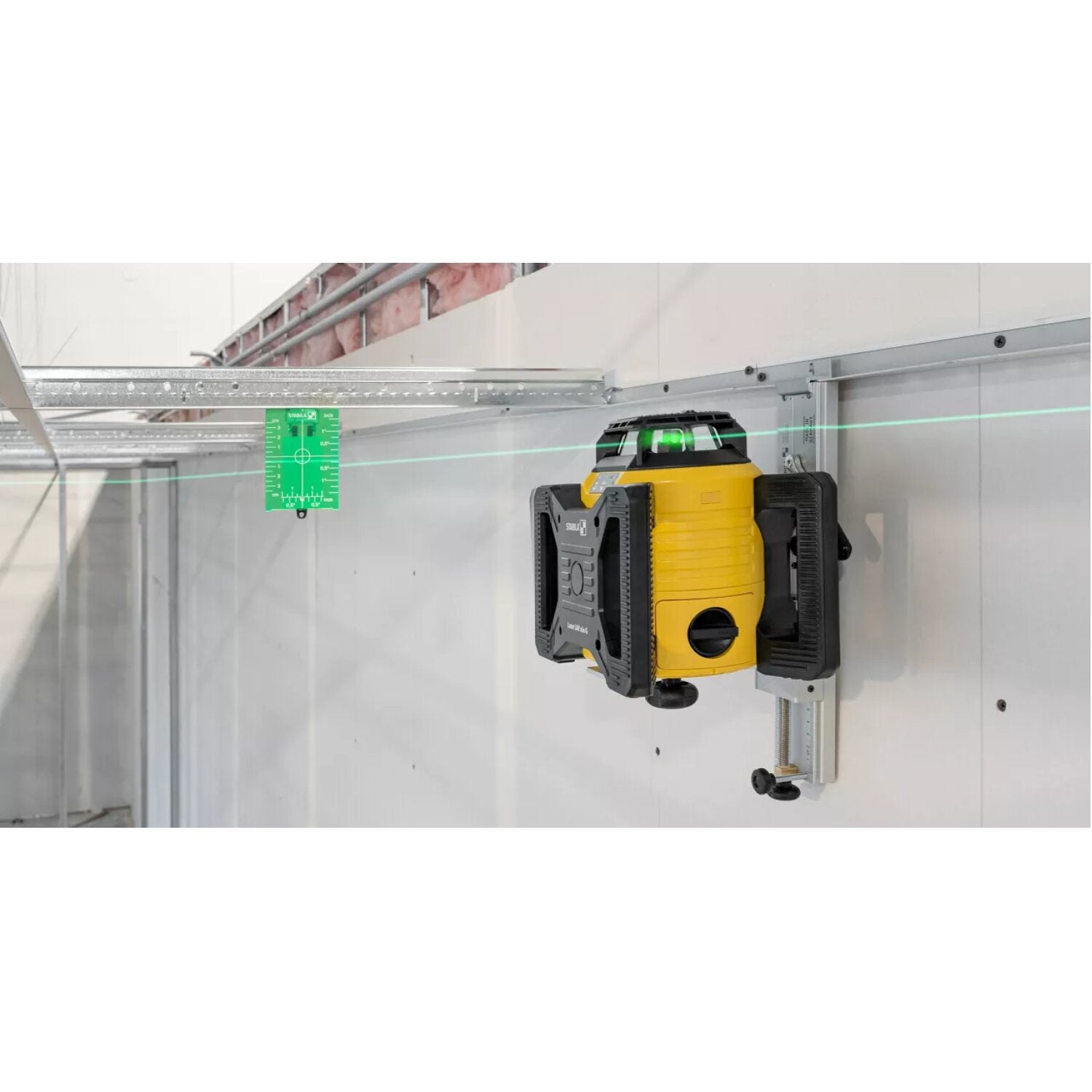

Two mounting points for vertical and horizontal applications, 5/8 x 11 threads integrated in the housing.
Green, magnetic high-visibility plastic target plate with cross-hair.
Hard shell case for laser and accessories.
Batteries
2 x D 1.5 V batteries, 2 x AA 1.5 V batteries
Voltage
1.5 V
Range
Self-levelling range ± : 5°
Accuracy
Levelling accuracy ± : 1/8 in @ 100 ft
Resources
Datasheet
Why would you use this tool for ?
About manufacturer
STABILA

STABILA is a world-renowned German manufacturer of professional measuring tools, trusted for their exceptional precision and durability. Founded in 1889, STABILA has continually set industry standards through innovation and quality engineering. Their extensive range includes spirit levels, laser distance measurers, tape measures, and folding rulers, all designed to deliver accurate results even in the toughest job-site conditions. With over a century of experience, STABILA remains a symbol of reliability and craftsmanship for builders, engineers, and craftsmen around the globe.
