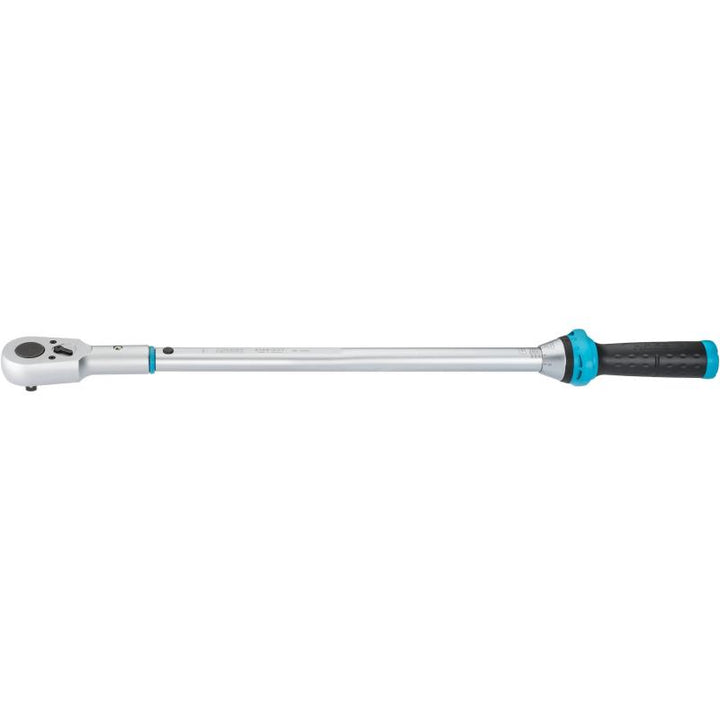

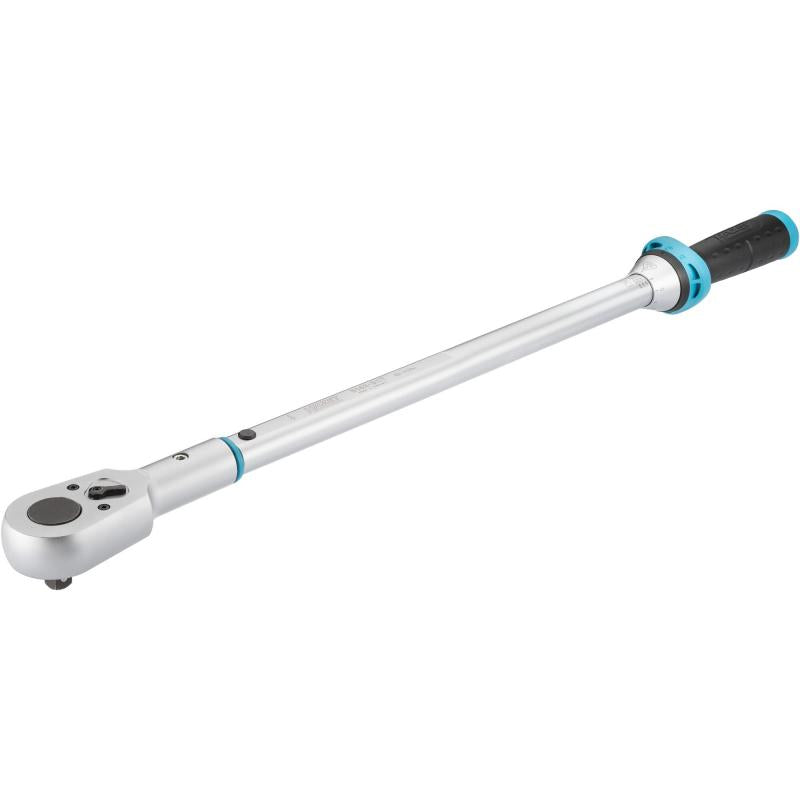

Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square
Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square
Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square
Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square
Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square
Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square

Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square

Regular price
/

$1,899.00 USD & FREE Shipping.
  • User-friendly reversible ratchet
  • Accuracy ± 3 % of scale value (in direction of actuation) (5107-3 CT ± 4 % accuracy of scale value)
  • Designed for rough workshop use
  • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry.
  • Optimized sealing ring to protect against debris
Overview
  • For applications with high torques
    • Axle central screws in FIAT Ducato ∙ MERCEDES-BENZ Sprinter
    • Wheel bearings in e.g. OPEL/VAUXHALL Movano ∙ PEUGEOT Boxer
    • Bearing blocks in agricultural machinery and gear blocks in commercial vehicles
  • Thanks to the possibility of using 12.5 mm (1⁄2″) sockets/extensions, torque-controlled screw connections of 100 to 400 Nm can now also be operated in all manual and industrial production areas, e.g. with threads of M12 to M16 (property class 12.9) or M16 to M24 (property class 5.6) with restricted access, e.g. for flange or machine screw connections
  • Accuracy ± 3 % of scale value (in direction of actuation)
  • (5107-3 CT ± 4 % accuracy of scale value)
  • Safety:
    • Haptic (close-gap release)
    • Audible (“click” sound)
  • Designed for rough workshop use
  • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry.
  • Optimized sealing ring to protect against debris
  • Ratchet repair set for customer-oriented self-assembly enables decades of use
  • Handle with better grip for easier power transmission
  • Adjustment aid with detent points for optimized operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
  • Safe locking of the setting values by latching function on the rotary assembly
  • Rotary assembly in triangular form prevents uncontrolled rolling
  • Lock symbols indicate the respective locking status.
  • Can be attached to the cable loop through openings on the locking rotary assembly
  • Easy-to-read, high-contrast scale
  • Permanent readability due to laser marking on the scale bush
  • Integrated shift lever
  • 5121-3 CT – 5123-3 CT: shift level with idle function – reduces risk of injury and malfunction
  • Tested in accordance with DIN EN ISO 6789-2:2017
  • With calibration certificate and serial number
  • Delivery in sturdy Hexa plastic box
Brand img

Hazet 5143-3CT Torque Wrench, 100-400 Nm, 12.5mm (1/2") Square

Specifications
General Information
Brand
Hazet
Part Number
5143-3CT
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896235407
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Blue
Length
790 mm
Weight
3.60 kg
7.94 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
12.5 mm (1/2 inch)
Features
Tolerance: 3 %
Scale Graduation (Nm): 2.5 Nm
Effective torque wrench length min.-max. I1 mm: 687.80 – 675.80 Nm
Actuating force min.-max. kg: 14.8 – 60.3 kg
Number of teeth: 32 (Opening angle 11.25°)

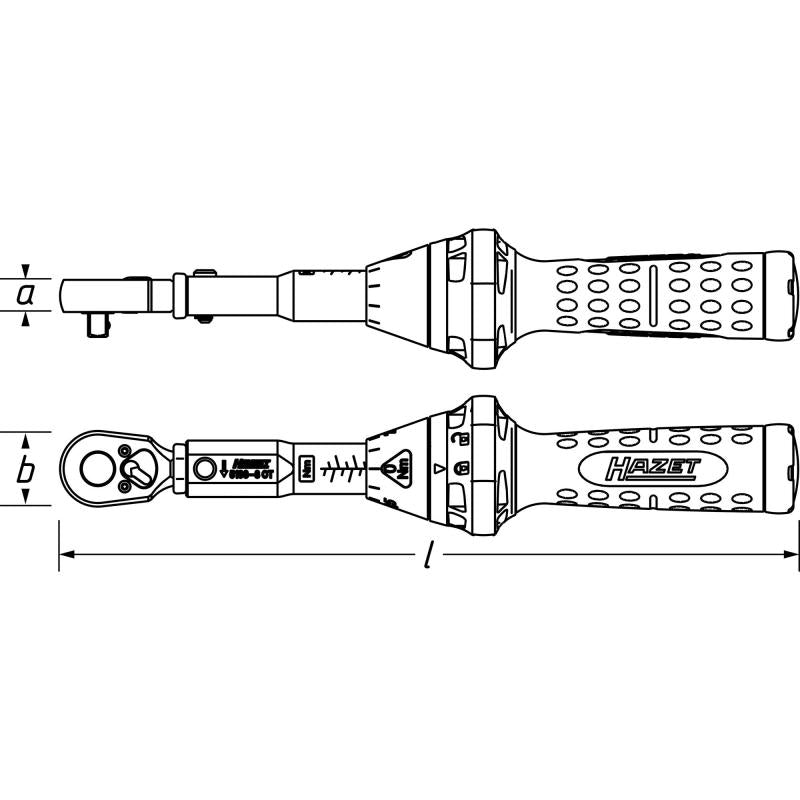

Head Thickness a: 28.5 mm
Head Width b: 64 mm
Torque Range Nm
100 – 400 Nm
Why would you use this tool for ?
About manufacturer
Brand img

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
