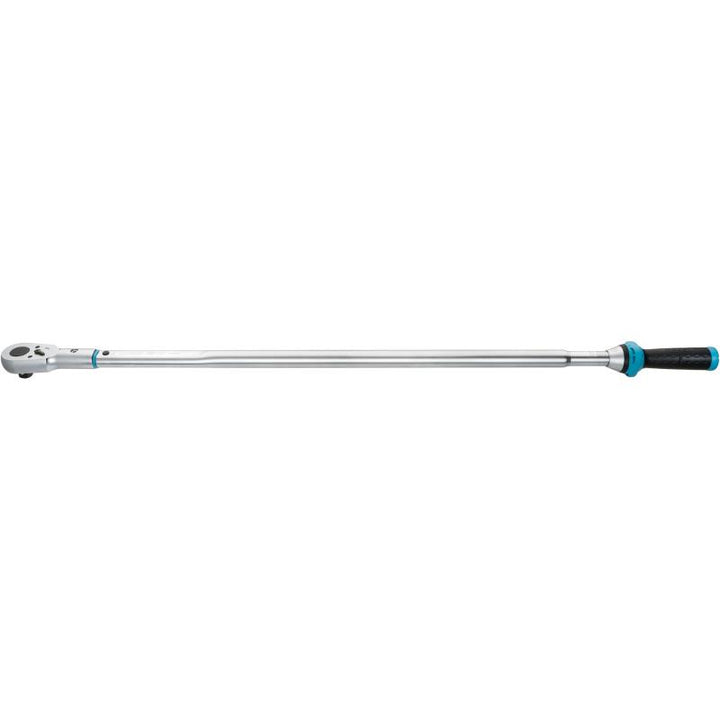

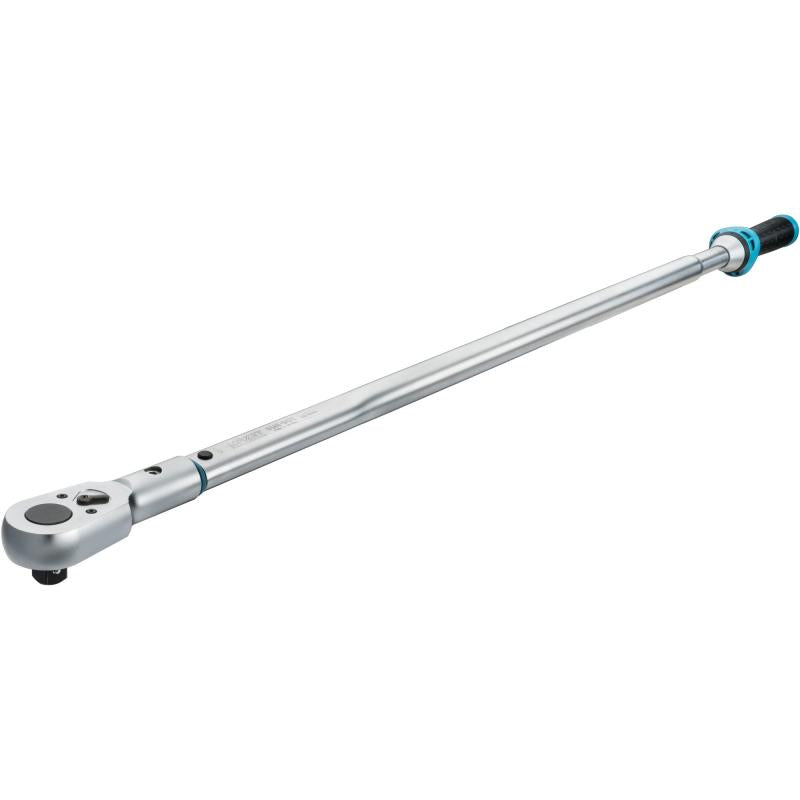

Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square
Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square

Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square

Regular price
/

$2,299.00 USD & FREE Shipping.
  • User-friendly reversible ratchet
  • Accuracy ± 3 % of scale value (in direction of actuation) (5107-3 CT ± 4 % accuracy of scale value)
  • Designed for rough workshop use

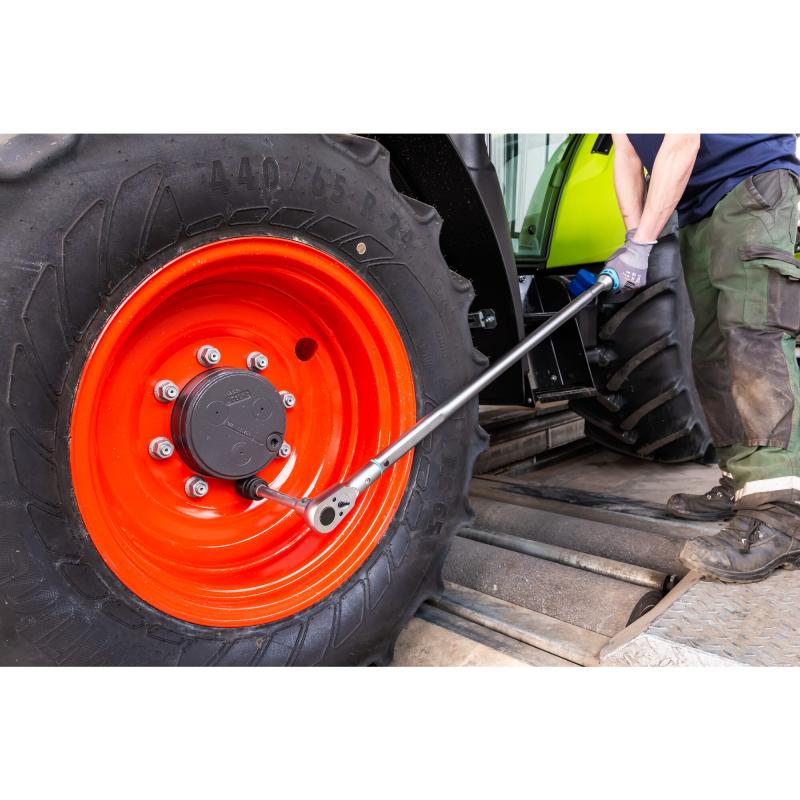

  • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry.
  • Optimized sealing ring to protect against debris
Overview
  • Safety:
    • Haptic (close-gap release)
    • Audible (“click” sound)
  • Ratchet repair set for customer-oriented self-assembly enables decades of use
  • Handle with better grip for easier power transmission
  • Adjustment aid with detent points for optimized operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
  • Safe locking of the setting values by latching function on the rotary assembly
  • Rotary assembly in triangular form prevents uncontrolled rolling
  • Lock symbols indicate the respective locking status.
  • Can be attached to the cable loop through openings on the locking rotary assembly

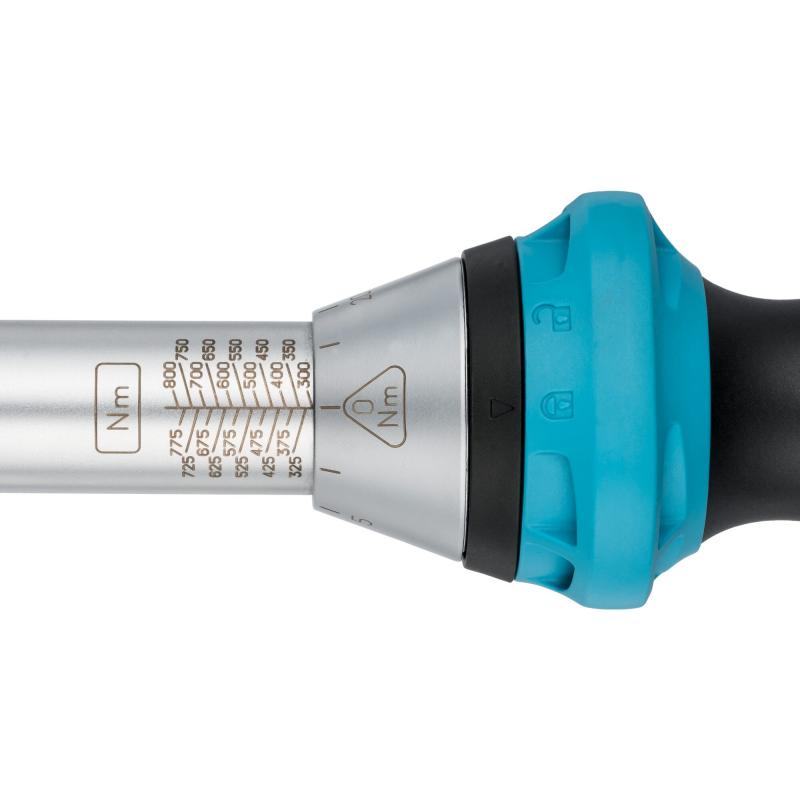

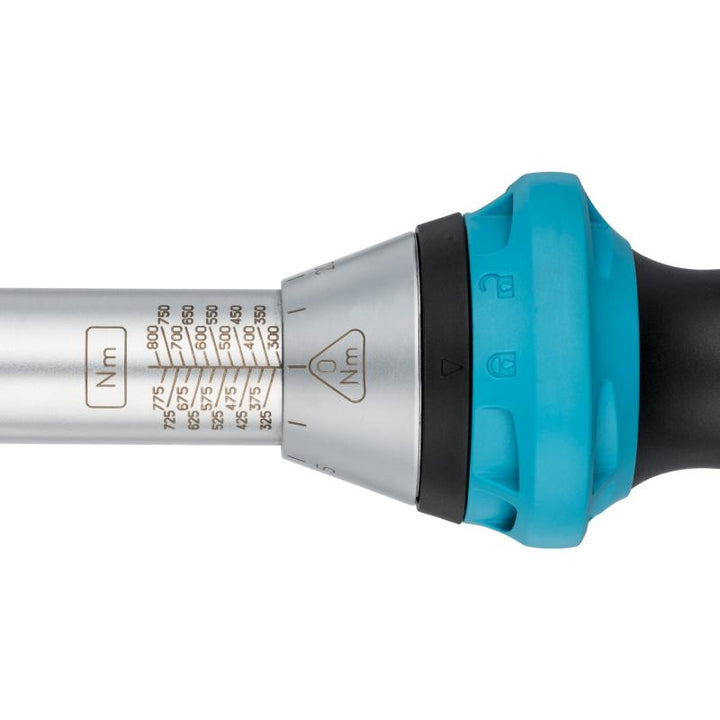

  • Easy-to-read, high-contrast scale
  • Permanent readability due to laser marking on the scale bush
  • Integrated shift lever
  • 5121-3 CT – 5123-3 CT: shift level with idle function – reduces risk of injury and malfunction
  • Tested in accordance with DIN EN ISO 6789-2:2017
  • With calibration certificate and serial number
  • Delivery in sturdy Hexa plastic box

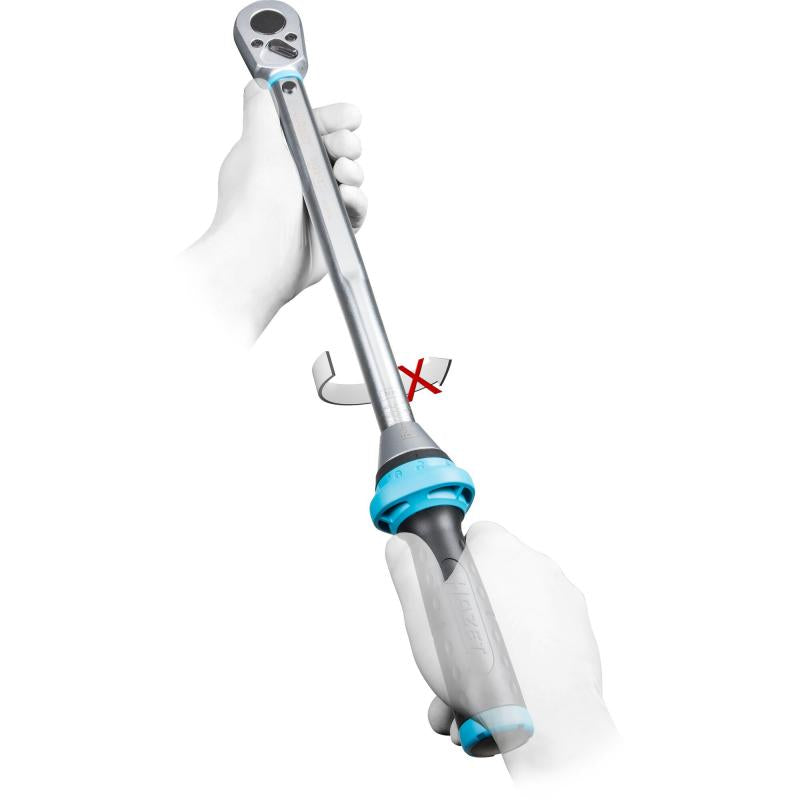

  • No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
Brand img

Hazet 5145-3CT Torque Wrench, 300-800 Nm, 20mm (3/4") Square

Specifications
General Information
Brand
Hazet
Part Number
5145-3CT
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896218929
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Blue
Length
1271 mm
Weight
6.70 kg
14.77 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
20 mm (3/4 inch)
Features
DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017
Tolerance: 3 %
Scale Graduation (Nm): 2.5 Nm
Effective torque wrench length min.-max. I1 mm: 1169.00 – 1149.00 Nm
Actuating force min.-max. kg: 26.2 – 71.0 kg
Number of teeth: 32 (Opening angle 11.25°)

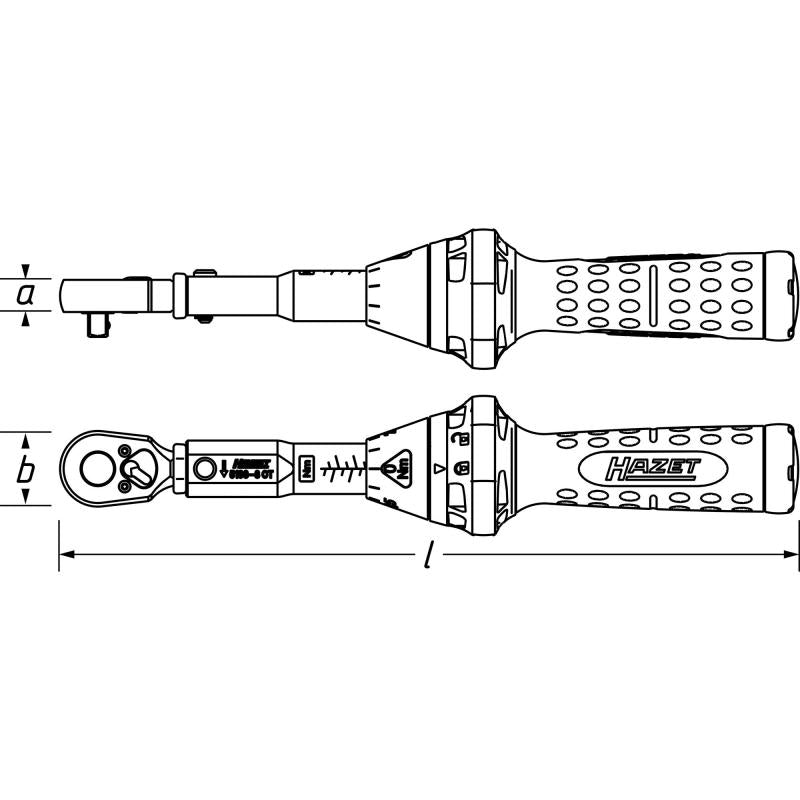

Head Thickness a: 28.5 mm
Head Width b: 64 mm
Torque Range Nm
300 – 800 Nm
