Overview
Features
- Regulation of the control valve at the gas tank of VW up! and Caddy model years 2012 → (adjustment is necessary after installation or removal)
- Extra short construction for areas with restricted access

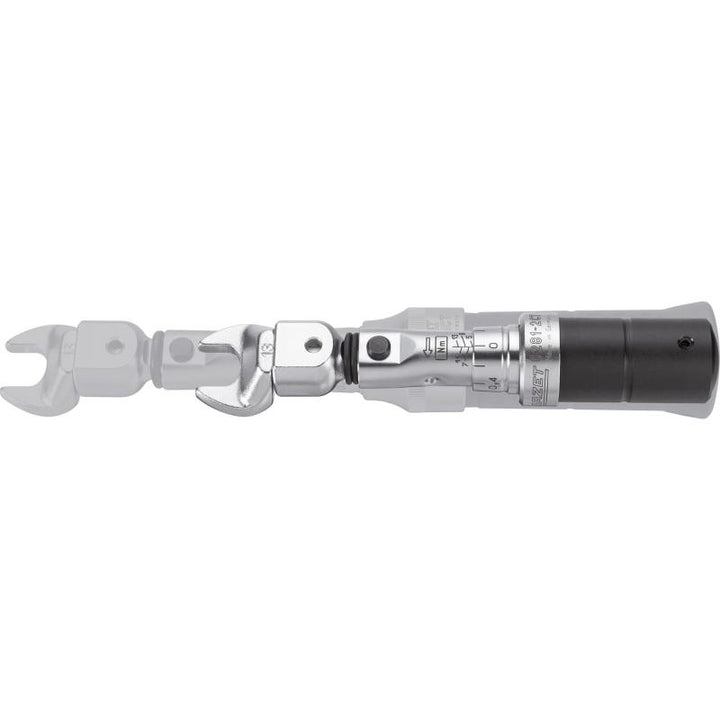

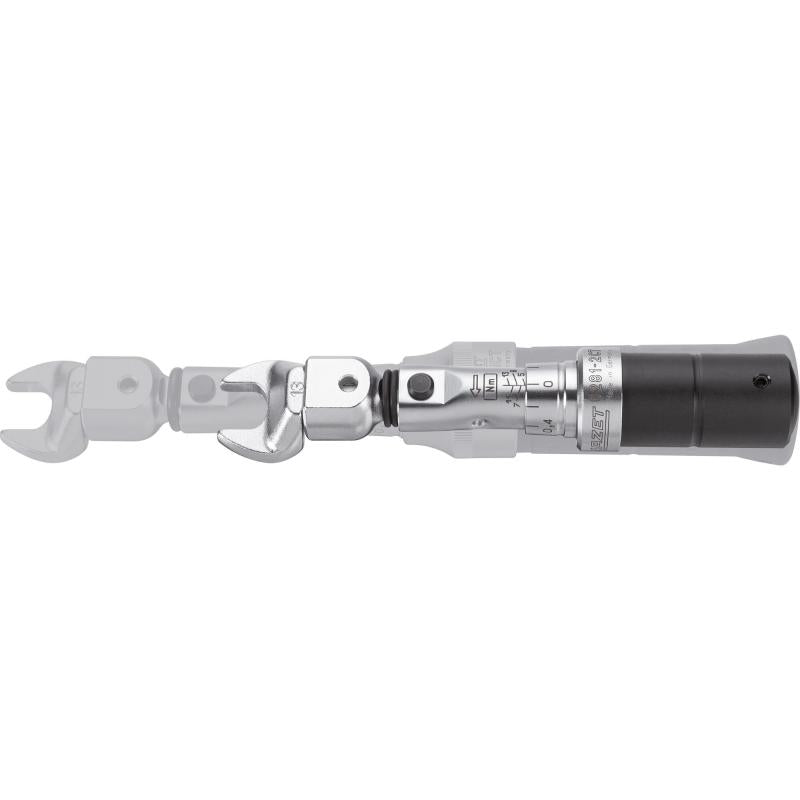

- Plug-and-socket connection to hold insert tools
- Accuracy ± 4 % of scale value (in direction of actuation)
- Safety:
- Haptic (close-gap release)
- Audible (“click” sound)
- With calibration certificate and serial number
- Easy and safe adjustment of the desired torque value by turning the handle
- Surface: hard chrome plated
- DIN EN ISO 6789-2:2017
- No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
You may also like
Specifications
General Information
Brand
Hazet
Part Number
6281-2CT
Product Type
Torque wrench
Application
Regulation of the control valve at the gas tank of VW up! and Caddy model years 2012 → (adjustment is necessary after installation or removal)
Packaging
Retail
Country of Origin
Germany
UPC
4000896183326
California Residents
Proposition 65 Warning
Physical Characteristics
Length
125.4 mm
Weight
0.23 kg
0.51 lb
Details
Wrench Type
Torque wrench
Type
Insert square
Size
9 x 12 mm
Features
Scale Graduation (Nm): 0.2 Nm

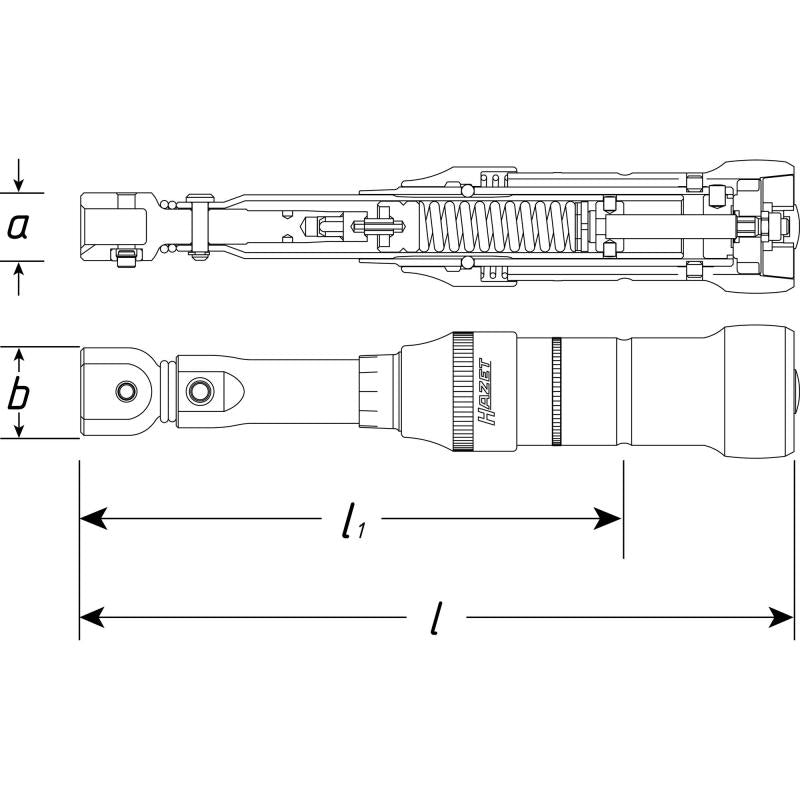

Effective torque wrench length min.-max. I1 mm: 116.50 – 112.50 Nm
Actuating force min.-max. kg: 4.4 – 11.8 kg
Inside micrometre of the adjusting tool l2: 17.5 mm
Head Thickness a: 17 mm
Head Width b: 22 mm
Effective torque wrench length min.-max. I1 mm: 116.50 – 112.50 Nm
Actuating force min.-max. kg: 4.4 – 11.8 kg
Inside micrometre of the adjusting tool l2: 17.5 mm
Head Thickness a: 17 mm
Head Width b: 22 mm
Torque Range Nm
5 – 13 Nm
Torque Accuracy
± 4 % of scale value (in direction of actuation)
Why would you use this tool for ?
About manufacturer
Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
