Hazet 6392-200V Torque Wrench, 50–200 Nm, 14x18mm Insert Square

/
$515.99 USD & FREE Shipping.
Extended Handling May Be Required
  • Factory preset triggering value as requested
  • Accuracy ± 2 % of set value (in direction of actuation)
  • Left tightening with same accuracy possible by reversing the wrench
  • Output: Insert square 14 x 18 mm
  • Nm min-max: 50 – 200 Nm
Overview
  • Factory preset triggering value as requested
  • Accuracy ± 2 % of set value (in direction of actuation)
  • Left tightening with same accuracy possible by reversing the wrench
  • Plug-and-socket connection to hold insert tools
  • Permanently adjustable value
  • Especially suitable for application in industrial series production
  • Setting the desired torque value with adjustment wrench 6399 together with HAZET torque tester 7901 E, 7902 E, 7903 E or any other suitable device
  • All wrenches of this series (HAZET 6391-6392) are without a scale and a signal transmitter
  • With calibration certificate and serial number
Brand img

Hazet 6392-200V Torque Wrench, 50–200 Nm, 14x18mm Insert Square

Specifications
General Information
Brand
Hazet
Part Number
6392-200V
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896145904
California Residents
Proposition 65 Warning
Physical Characteristics
Length
401 mm
Width
Head width b: 30 mm
Weight
0.74 kg
1.63 lb
Details
Wrench Type
Torque
Type
Insert square
Size
14 x 18 mm
Features
Tolerance: 2 %

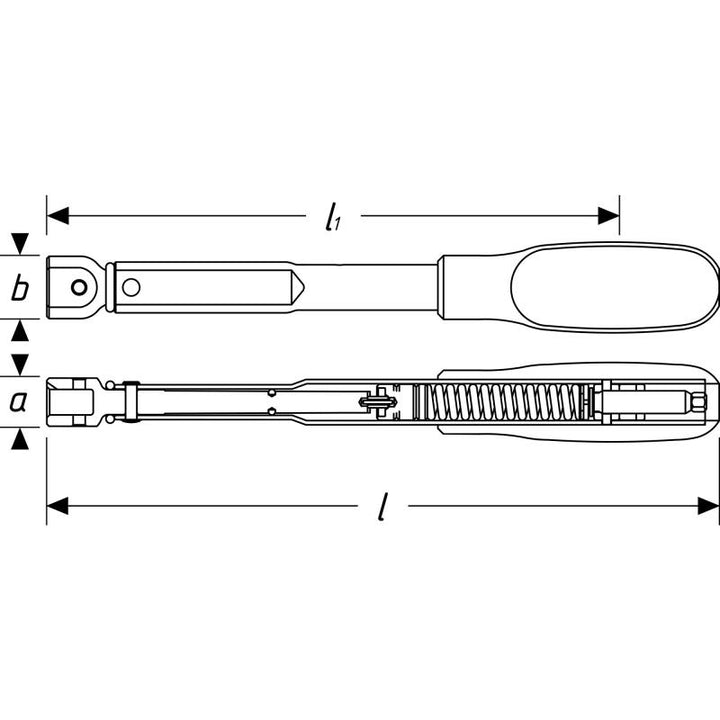

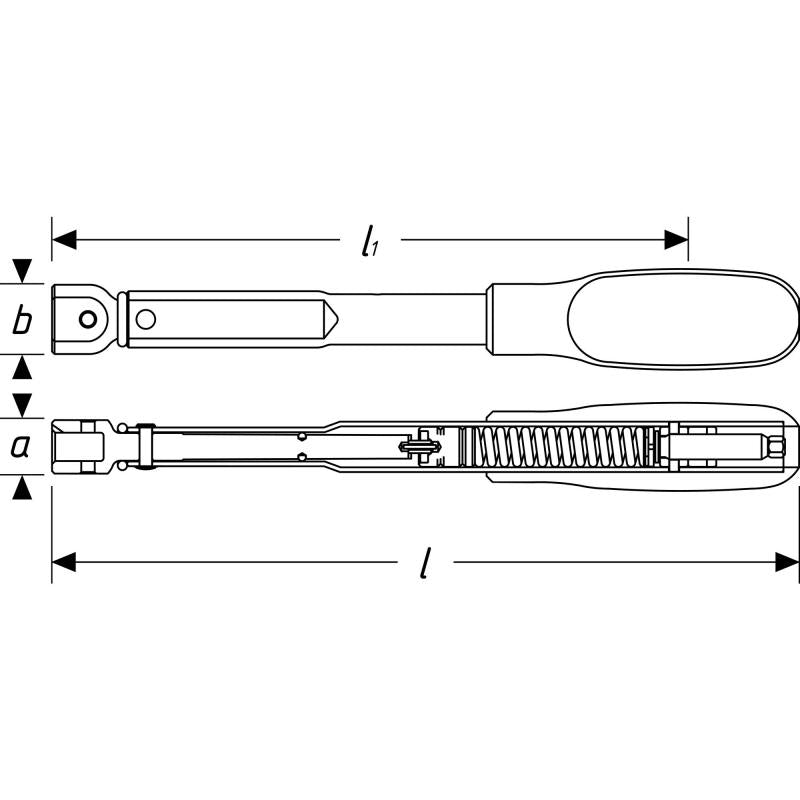

Effective torque wrench length min.-max. I1 mm: 397.00 – 397.00 Nm
Actuating force min.-max. kg: 12.8 – 51.4 kg
Head Thickness a: 23 mm
Head Width b: 30 mm
Torque Range Nm
50 – 200 Nm
Torque Accuracy
± 2 % of set value (in direction of actuation)
Why would you use this tool for ?
About manufacturer
Hazet

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
