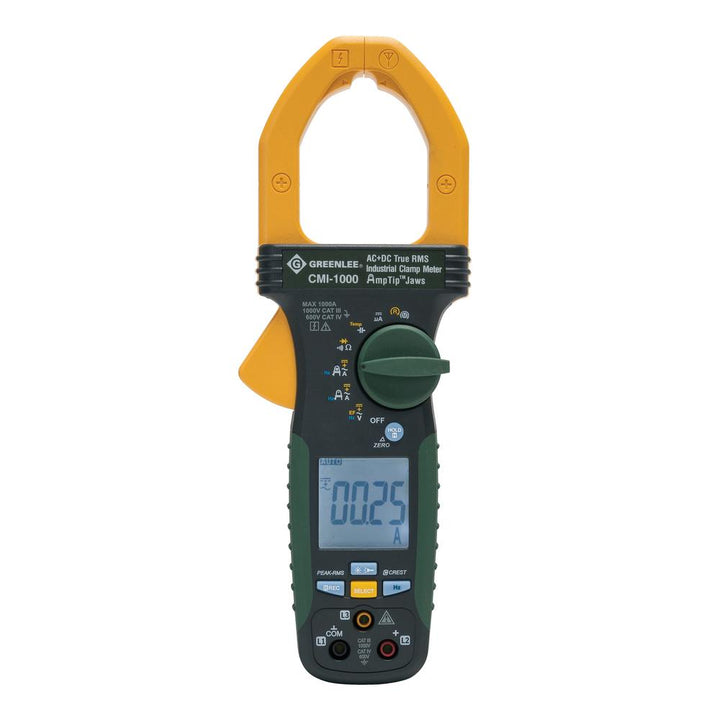

FeaturesThe Greenlee CMI-1000 Industrial AC+DC True RMS Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also checks diodes and verifies continuity. The meter is designed to be placed on or removed from insulated or uninsulated conductors.
AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance, temperature and frequency
Tests continuity and diodes
Phase Sequence & Motor Rotation tests
Peak-RMS measures motor in rush current
Flashlight inside clamp jaw for easier work in dark locations
Backlight & relative mode for added versatility
AmpTip™ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Recording of Maximum, Minimum, and Average readings
Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
Amperage Measurement: 60, 600, 1000 Amps AC+DC
Measurement Category: CAT III 1000V, CAT IV 600V
True Power: AC+DC True RMS
Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
