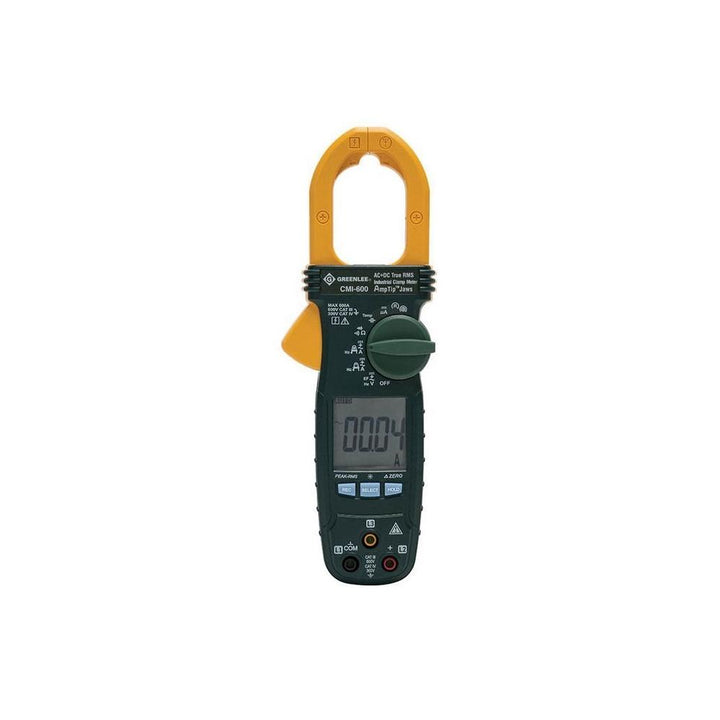

Greenlee CMI-600 AC/DC Clamp Meter
Greenlee CMI-600 AC/DC Clamp Meter
Greenlee CMI-600 AC/DC Clamp Meter

Greenlee CMI-600 AC/DC Clamp Meter

Regular price
/

$257.98 USD & FREE Shipping.
  • Measures AC+DC current and DC microamps
  • AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance, temperature and frequency
  • Tests continuity and diodes
  • Phase Sequence & Motor Rotation tests
Overview
The Greenlee CMI-600 AC/DC Clamp Meter is a hand-held testing device equipped with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip, frequency, non-contact electric field (EF) detection, and resistance. It also checks diodes and verifies continuity. The meter is designed to be placed on or removed from insulated or uninsulated conductors.

Greenlee CMI-600 AC/DC Clamp Meter

Specifications
General Information
Brand
Greenlee
Part Number
CMI-600
Product Type
Clamp Meter
What's Included
(2) 1.5V AAA batteries, 02714 test leads and clips, TC-10 carrying case
Packaging
Retail
Country of Origin
Taiwan
UPC
783310021919
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.68 kg
1.50 lb
Details
Measurement Standard
CAT III, C/US UL Listed, CE
Features
Measures AC+DC current and DC microamps
AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
Also measures DC voltage, resistance, capacitance, temperature and frequency
Tests continuity and diodes
Phase Sequence & Motor Rotation tests
Peak-RMS measures motor in rush current
Backlight & relative mode for added versatility
AmpTipâ„¢ increases accuracy on small wires and low current
Two voltage detection modes - non-contact or using a single test lead
Data hold
Recording of Maximum, Minimum, and Average readings

Amperage Measurement: 60, 600 Amps AC+DC
Measurement Category: CAT III 600V, CAT IV 300V
True Power: AC+DC True RMS
Jaw Size
1.18'' (30 mm)
Voltage
600 Volts AC+DC
Resistance (Ohms)
600, 6k, 60k Ohms
Frequency
Voltage and AmpTipâ„¢ current: 50/60 Hz. High current: 50 to 400 Hz
Batteries
(2) 1.5V AAA batteries
Display Type
LCD, 6000 Count
